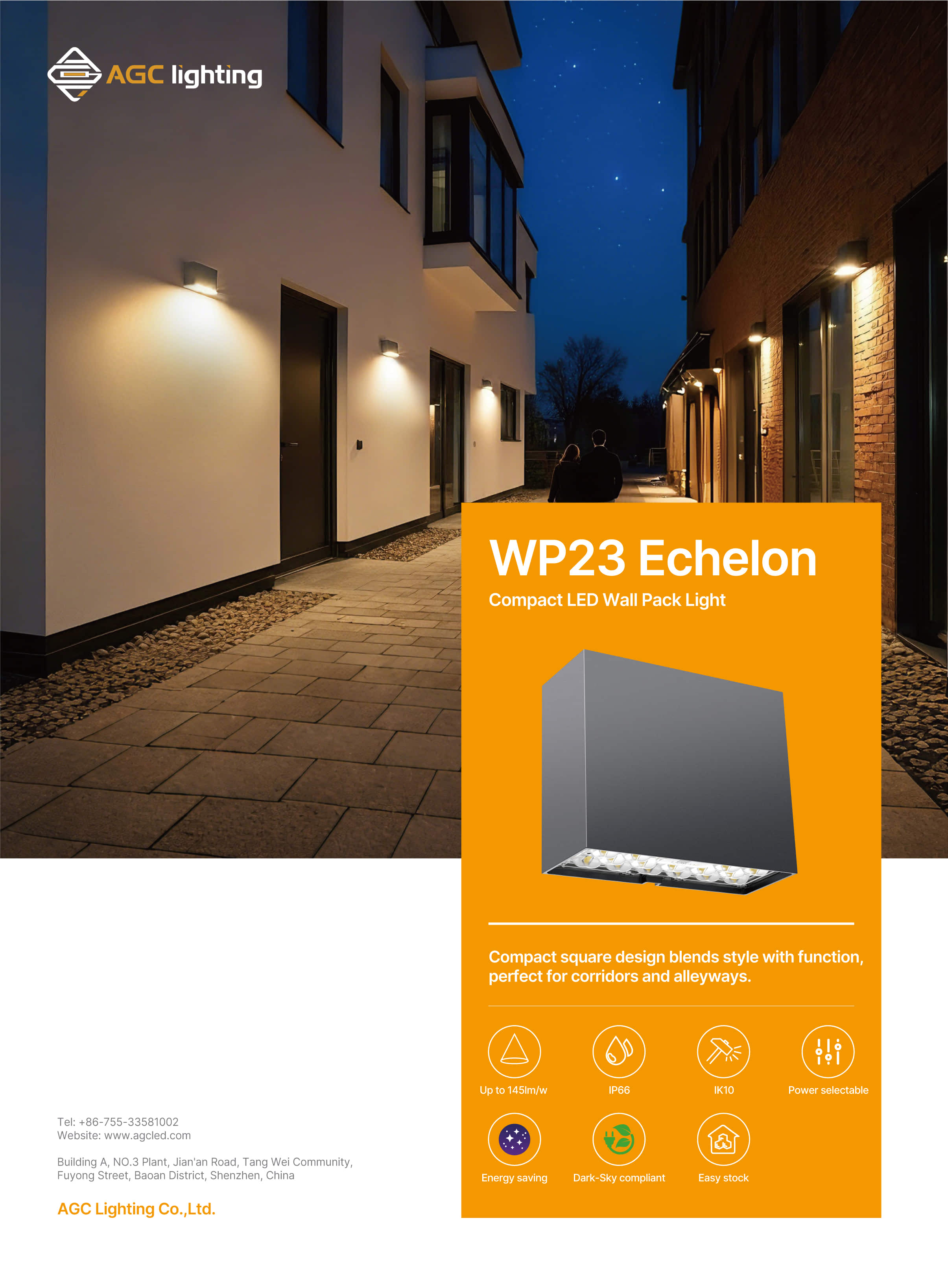

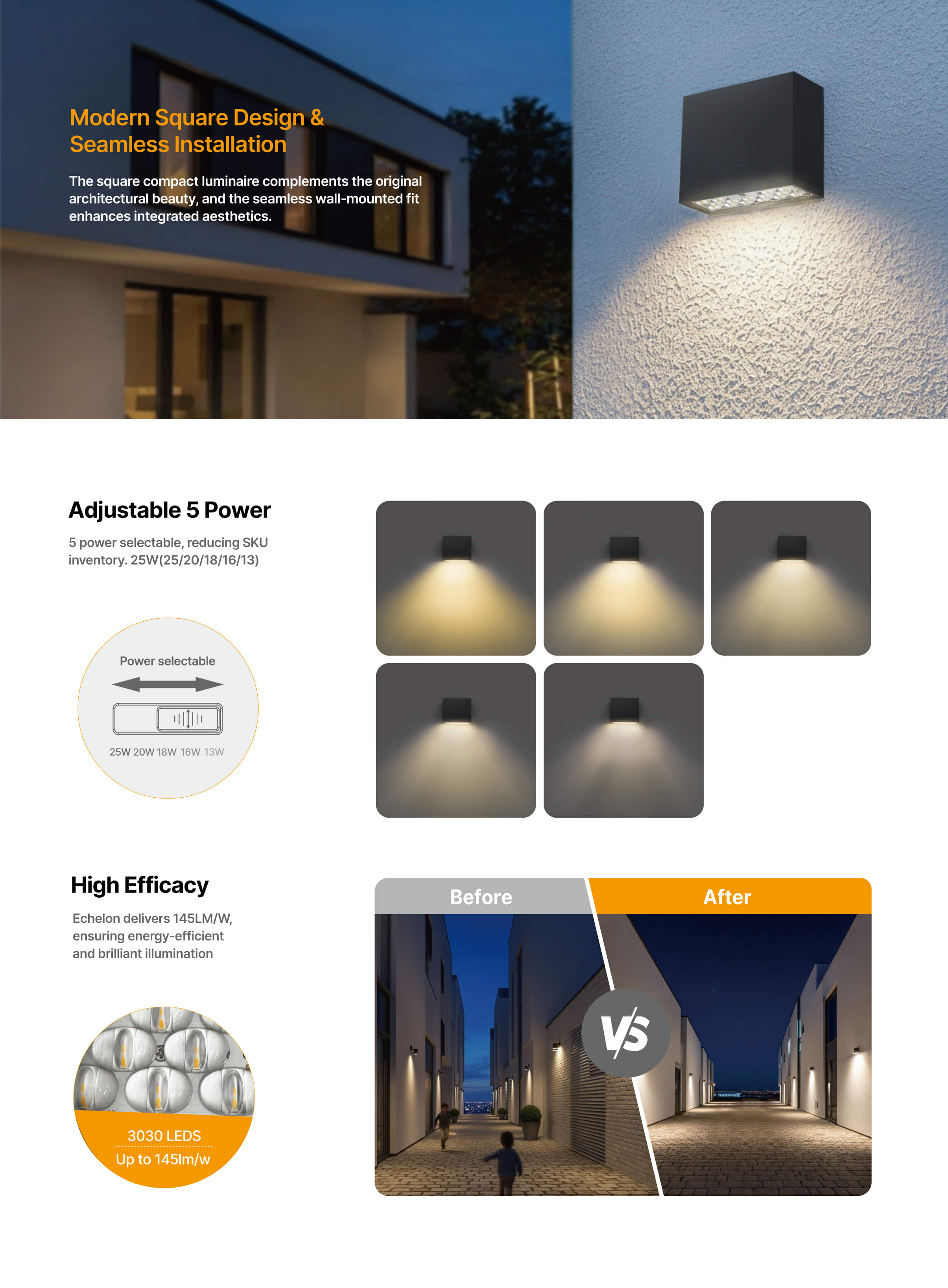

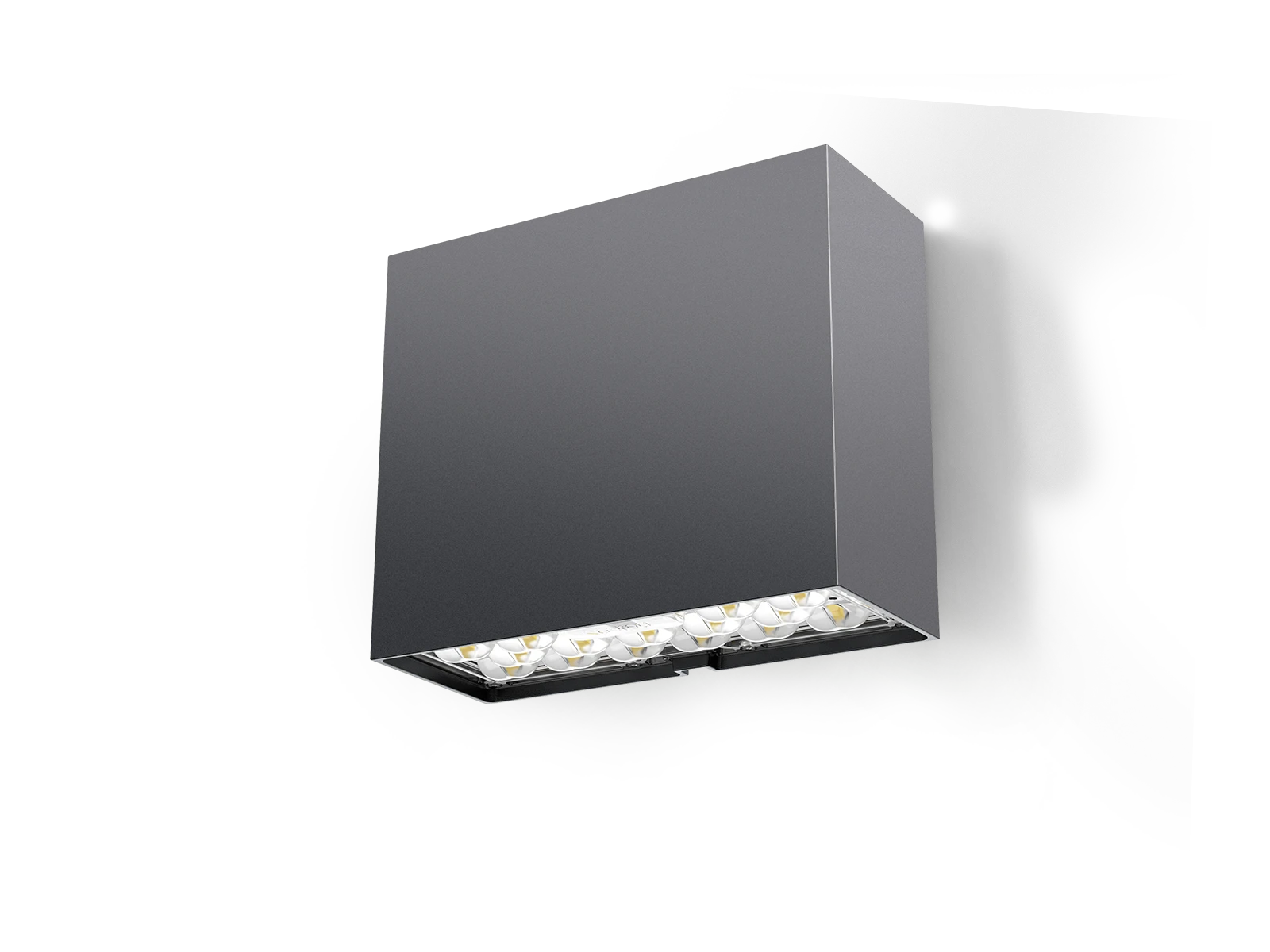

Echelon is a compact LED wall pack light designed for corridors and alleyways. Its 5 power-selectable settings help reduce SKUs inventory. With IP66 waterproof rating and IK10 impact resistance, Echelon is built to withstand outdoor environments.

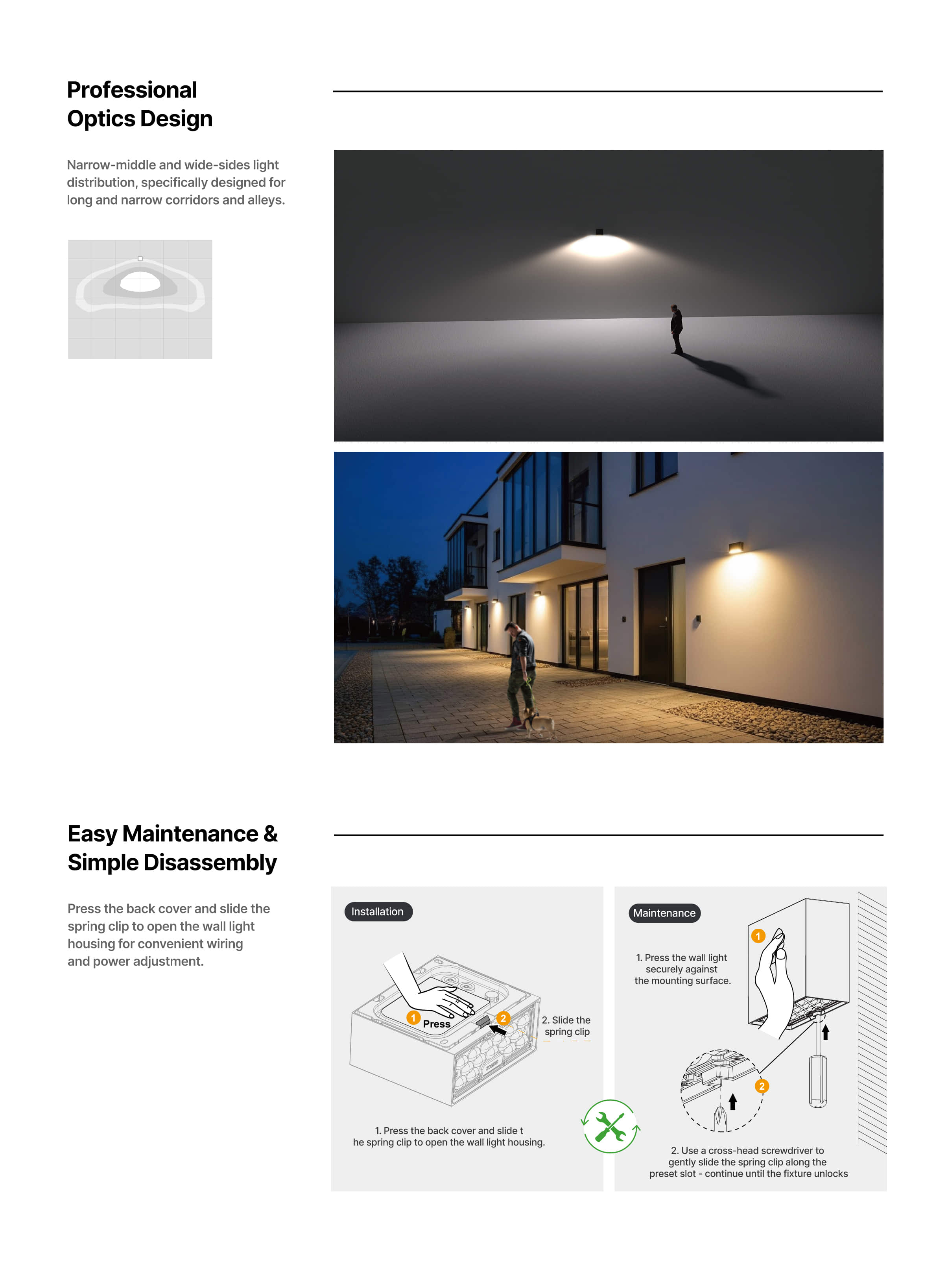

For easy installation and maintenance, simply press the back cover and slide the spring clip to open the housing, allowing convenient access for wiring and power adjustment.
| Series Code | WP23 |
|---|---|
| Power | 25W |
| Efficacy | 145lm/W |
| Input Voltage | 220-240VAC, 50 / 60 Hz |
| Power Factor | >0.90 |
| IP Rating | IP66 |
| IK Rating | IK10 |
| CCT | 2700K, 3000K, 4000K |
| CRI(Ra) | 70, 80 |
| Operating Temperature | -30°C to + 45°C |
| Mounting Option | Wall Mounting |
| Warranty | 5 Years |
