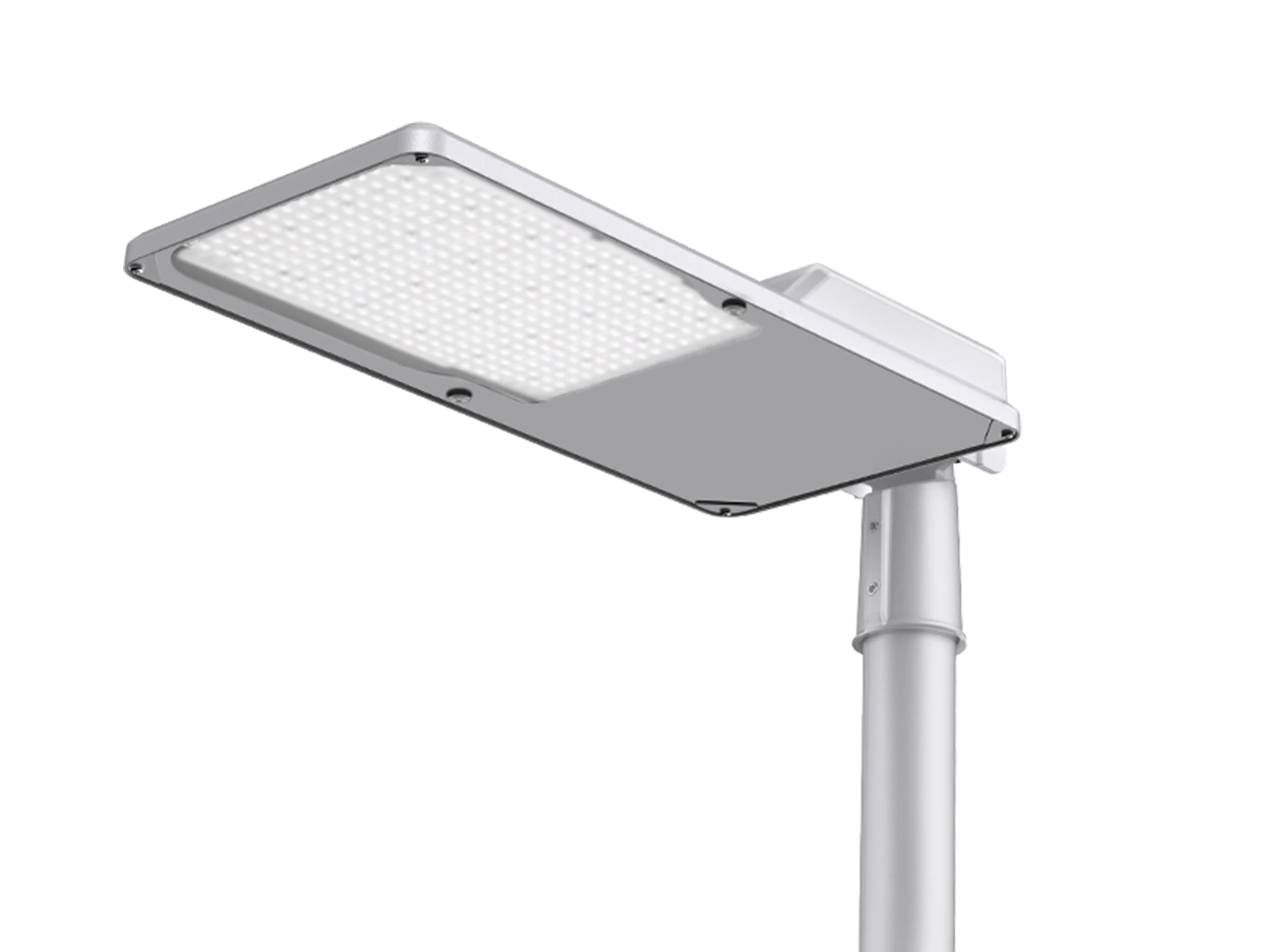

ST72 20-240W

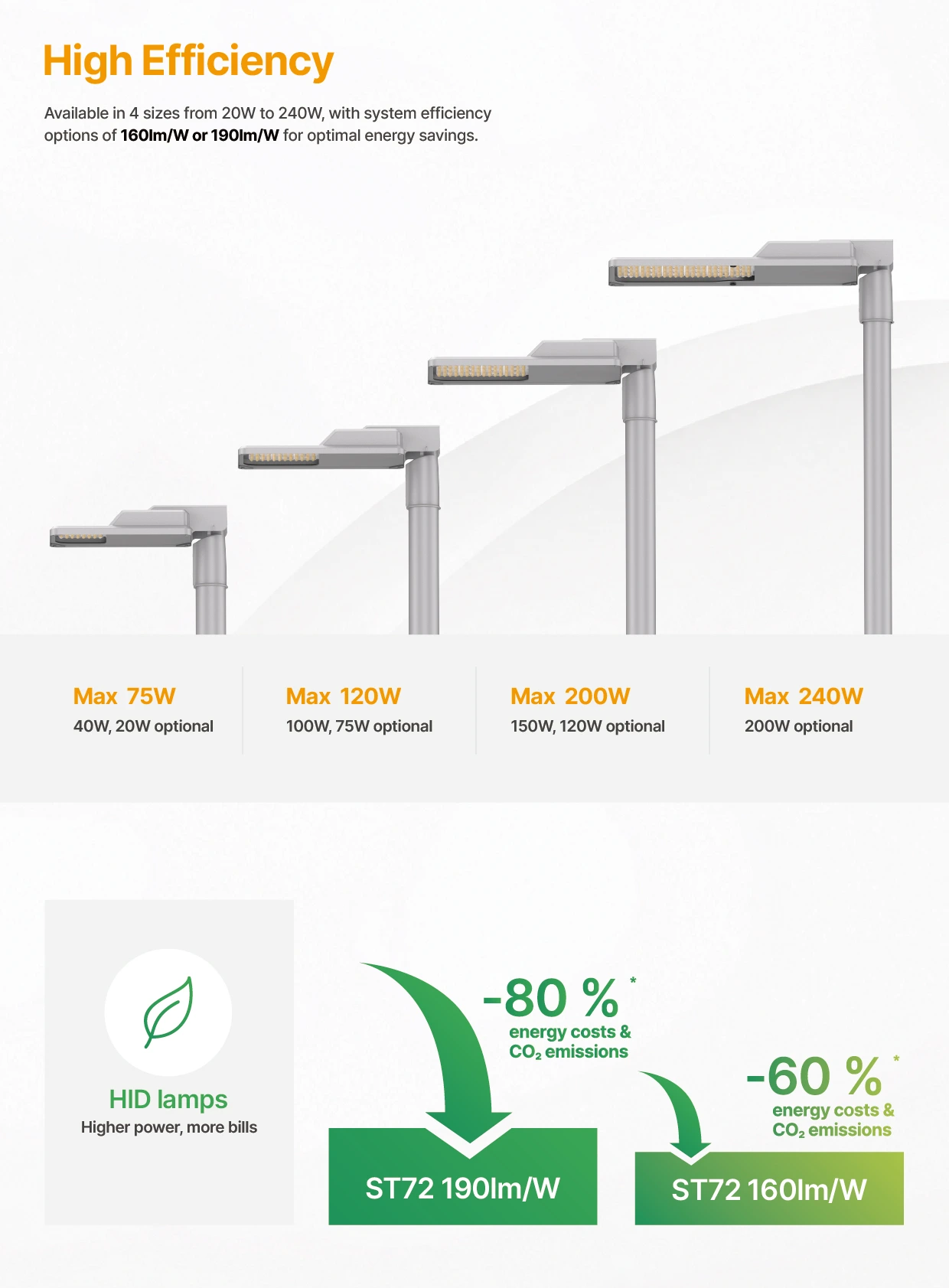

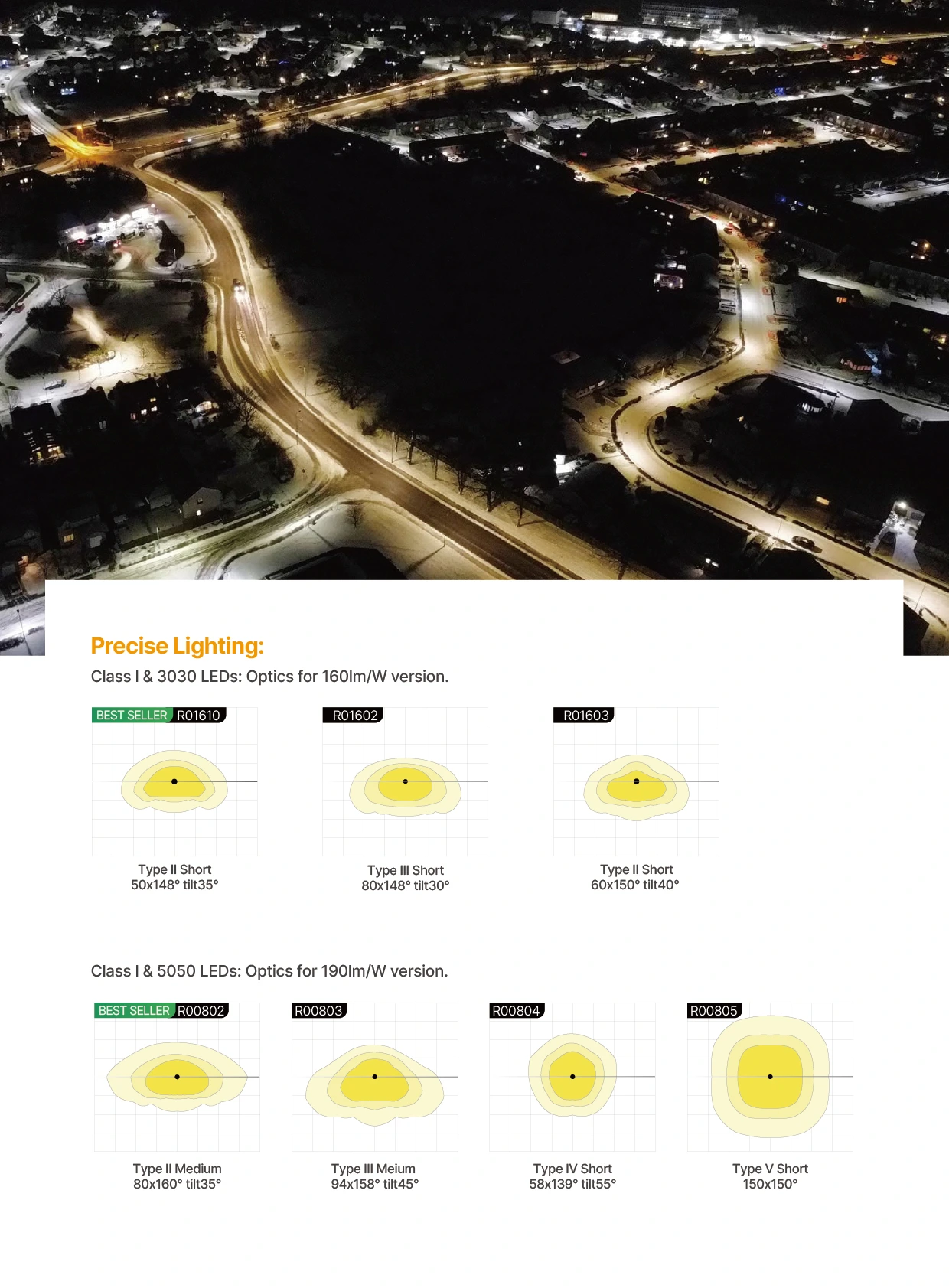

ST72 is a cost-effective and high-performance street light. It is vailable in 4 sizes from 20W to 240W, with system efficiency options of 160im/W or 190lm/W for optimal energy savings.

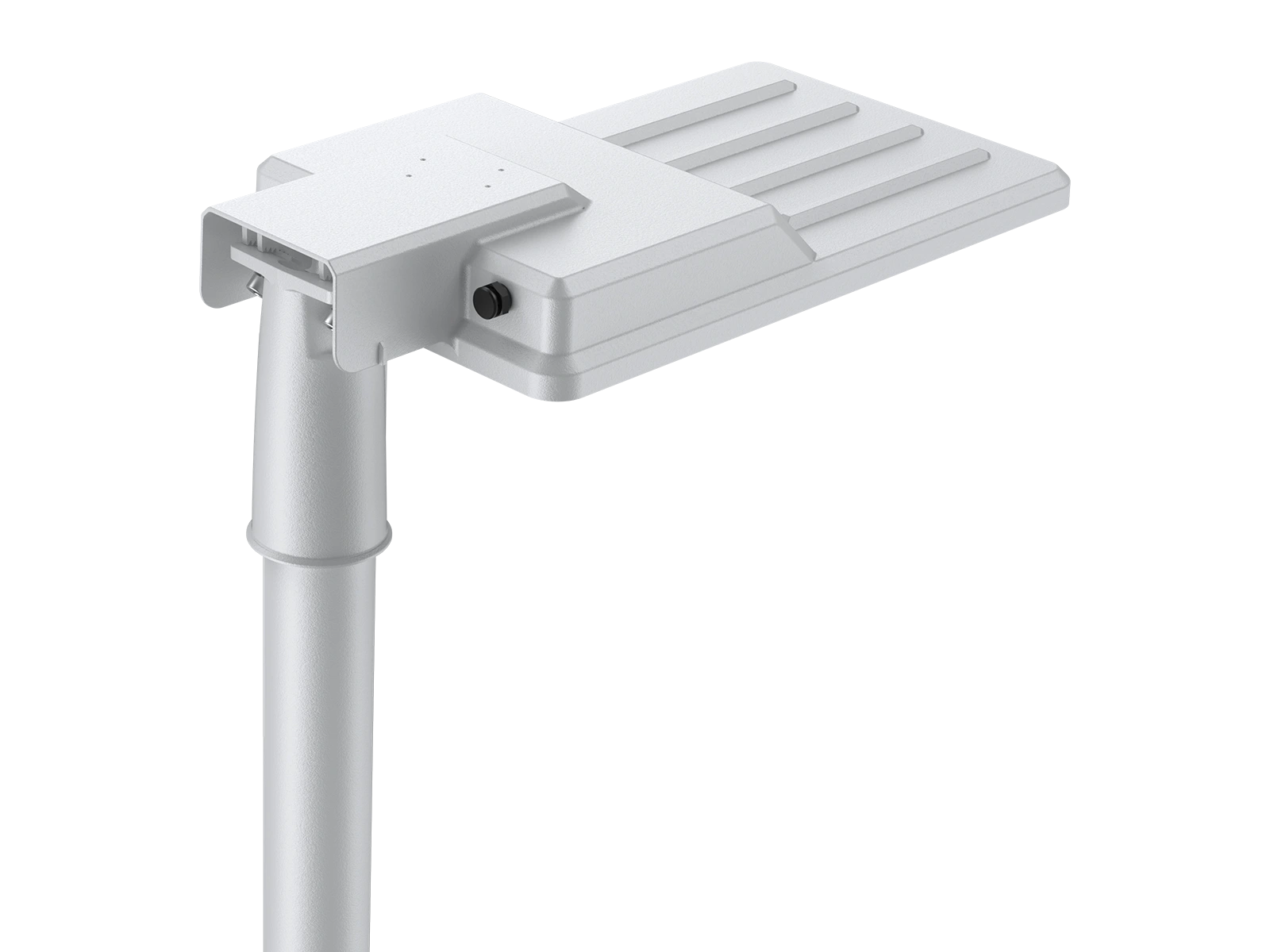

Constructed with premium ADC12 aluminum and high-transmittance ultra-clear tempered glass, it offers excellent thermal conductivity and visual performance.

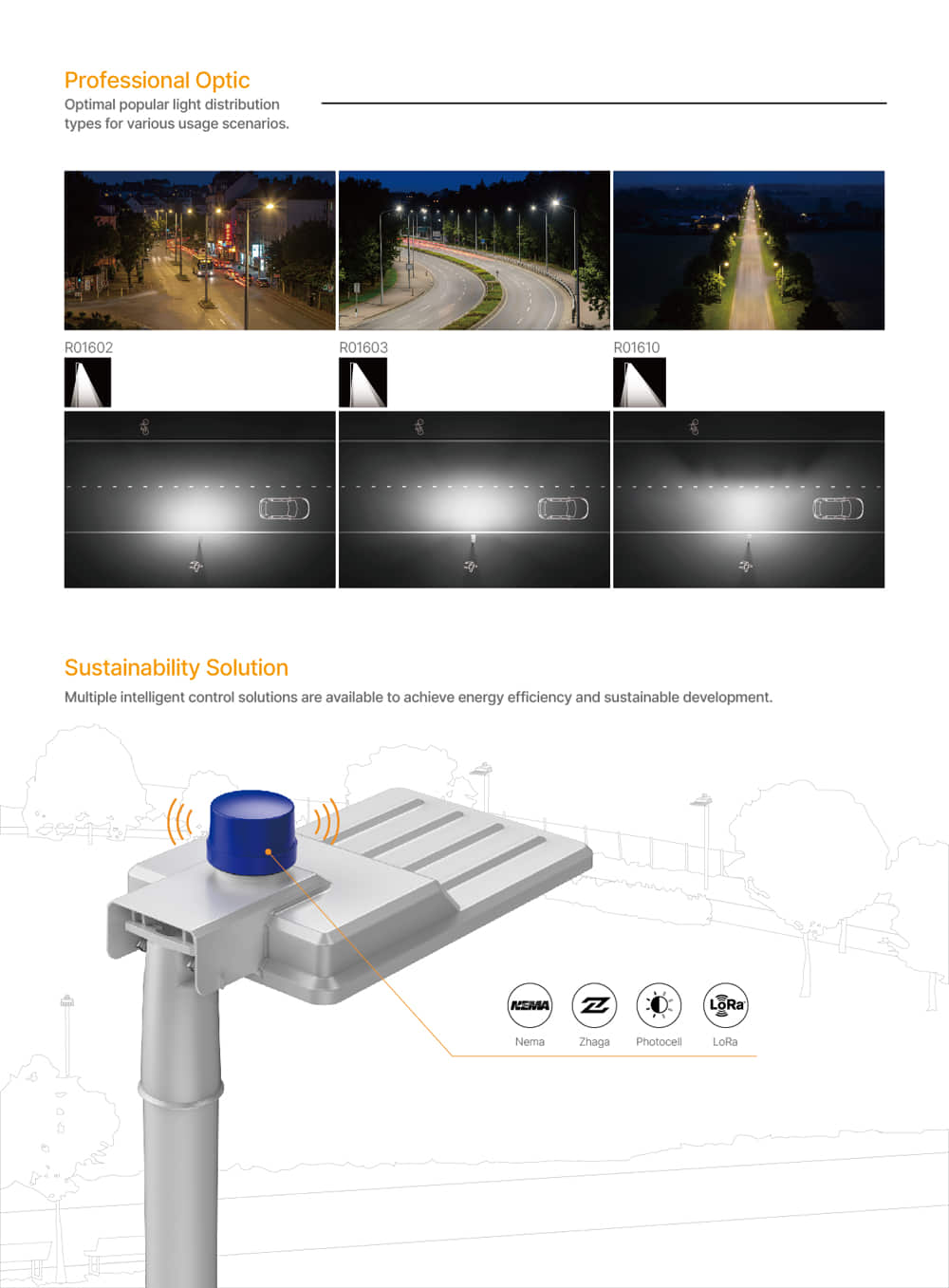

With IP66 and IK08 ratings, it is built to withstand outdoor conditions. Additionally, the ST72 offers a variety of intelligent control options, such as NEMA, Zhaga, photocell, and LoRa, promoting energy efficiency and sustainability.
Specification
- Series Code: ST72
- Power: 40W, 75W, 100W, 120W, 150W, 200W, 240W
- Efficacy: 160lm/W, 190lm/W
- Input Voltage: 220-240VAC, 50 / 60 Hz
- Power Factor: >0.97
- CCT: 3000K, 4000K, 5000K
- CRI(Ra): 70
- Control: ON/OFF
- Corrosion Class: C3
- Class Electrical Equipment: Class I
- IP Rating: IP66
- IK Rating: IK08

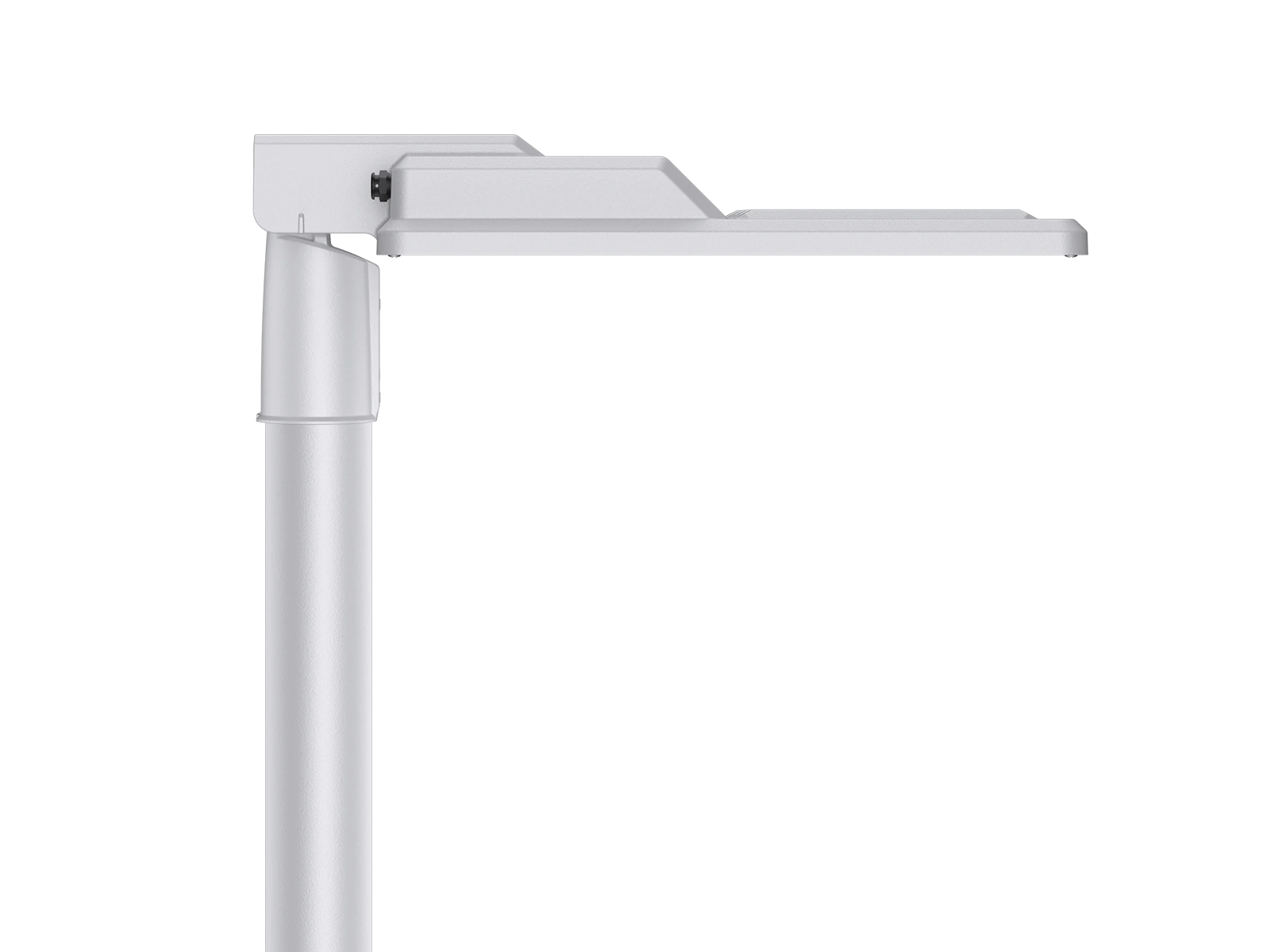

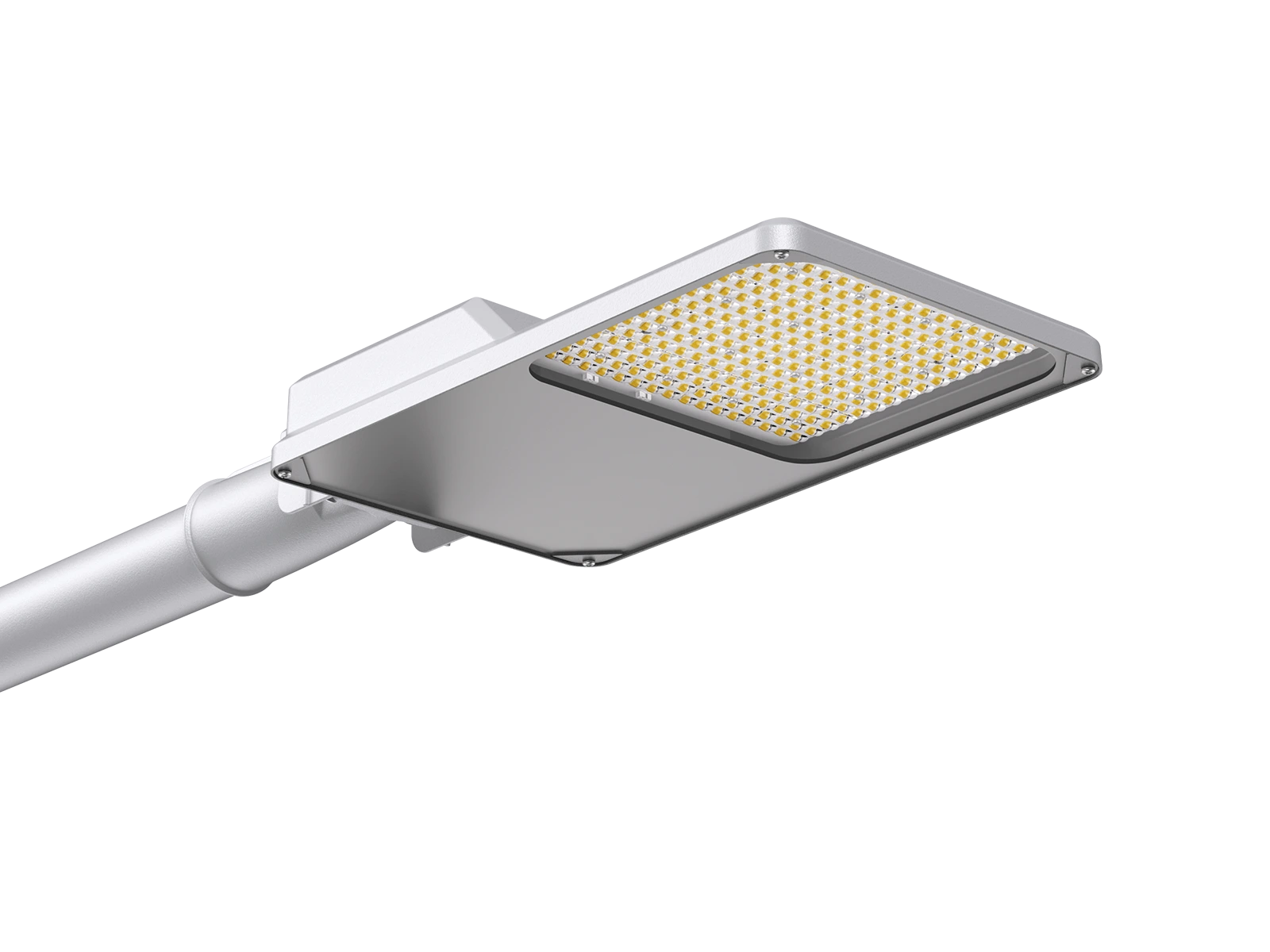

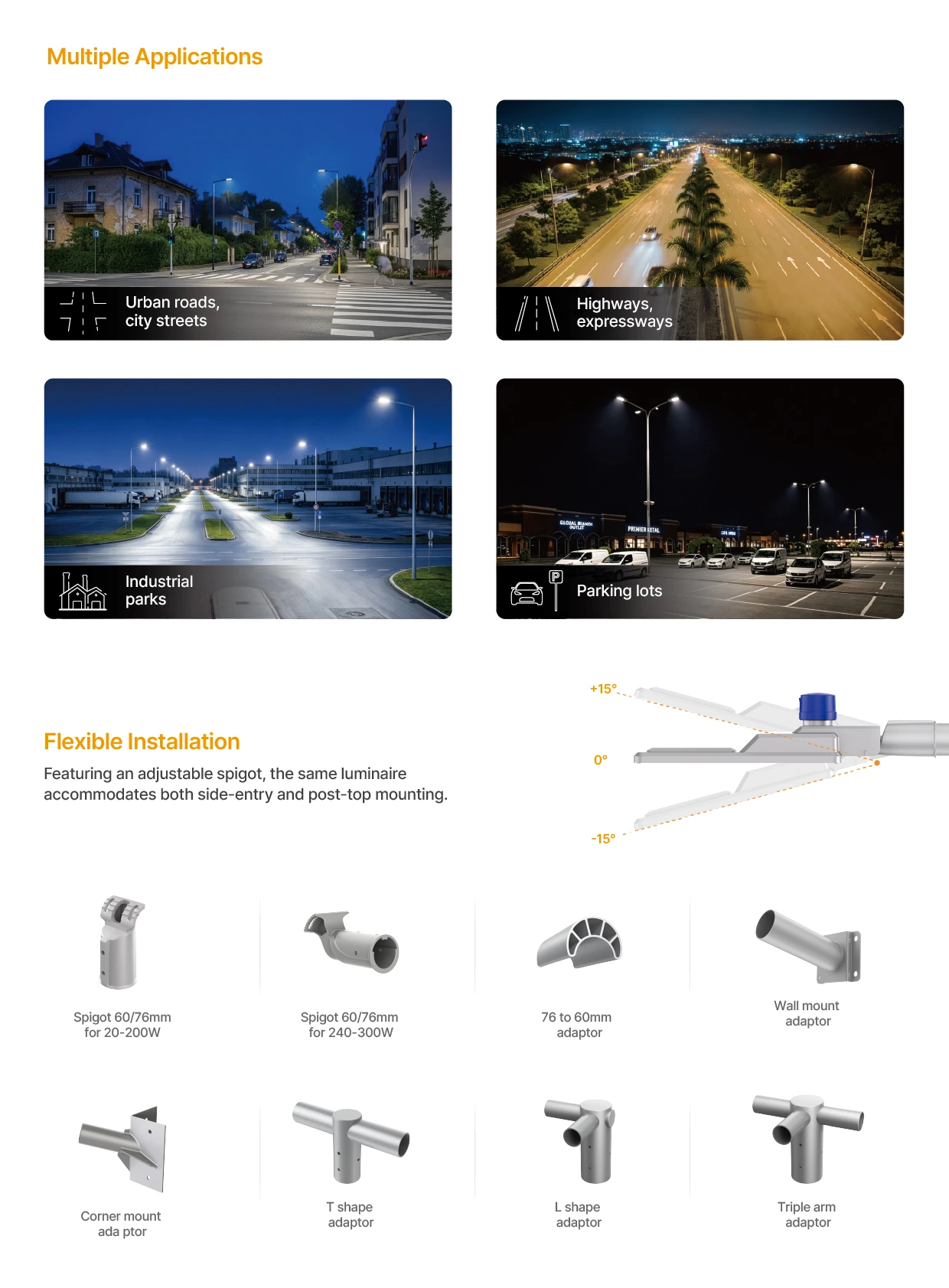

- Mounting Option: Post Top, Side Entry
- Warranty: 5 Years
- Surge Protection: 4kV line-line, 6kV line-earth
- Operating Temperature: -40°C to + 50°C
