ST41 20-200W

ST41 20-200W

Slim design is an excellent choice for new construction or retrofit applications. The high-output LED and 30W-200W make the power a whole series.

  • Simple installation.
  • High output lumen efficiency, up to 140lm/W
  • The housing is made of 100% aluminum alloy (ADC12)
  • Powder coating with strong anti-corrosion.
  • Easy to maintain.
  • Adjustable elevation.

Specification

  • Series Code: ST41
  • Power: 20W, 30W, 40W, 60W, 75W, 100W, 120W, 150W, 180W, 200W
  • Efficacy: 140lm/W
  • Input Voltage: AC 220-240V, AC120-240 VAC, 50 / 60 Hz
  • Power Factor: >0.94
  • CCT: 3000K, 4000K, 5000K
  • CRI(Ra): 70, 80
  • Control: Dimmable, Photocell, DALI, Zhaga Socket, Microwave Sensor, PIR Sensor
  • IP Rating: IP66
  • IK Rating: IK09, IK10
  • Mounting Option: Side Entry
  • Warranty: 5 Years
  • Surge Protection: 6kV line-line, 10kV line-earth, 4kV line-line, 6kV line-earth, 5kV line-line
  • Operating Temperature: Class I: -30°C to + 50°C, Class II: -30°C to + 40°C

Accessories

NEMA Socket
3pin/ 5pin /7pin are optional. Code: NS-A00-02(for 3pin) Code: NS-A00-03(for 5pin) Code: NS-A00-04(for 7pin)
Photocell Control
ON-OFF automatically according to day light. Code: PS-A00-01
ZHAGA Receptacle
Compliant with Zhaga Book 18. Code: ZG-A00-01
Wall Mount Adaptor
Q235+SPCC materials with outdoor powder coating. Q235+SPCC materials with hot dip galvanizing. Code: SP-R03-05
T Shape Pole Mount Adaptor
Q235+SPCC with Akzo Powder Coating materials, for 100x100mm square pole. Code: SP-R03-07
T Shape Pole Mount Adaptor
Q235 materials, for dia.60/ 76mm pole Code: SP-R03-06(for dia.60mm) Code: SP-R03-08(for dia.76mm) Code: SP-R03-08a(for dia.90mm)
L Shape Pole Mount Adaptor
Q235+SPCC materials, for 100x100mm square pole. Code: SP-R03-10
L Shape Pole Mount Adaptor
Q235 materials, for dia.90mm pole Code: SP-R03-09(for dia.90mm) Code: SP-R03-09a(for dia.76mm) Code: SP-R19-01(for dia.60mm)
Corner Mount Adaptor
SPCC materials with outdoor powder coating. Code: SP-R19-02
Quad Adaptor
Q235 materials with outdoor powder coating, 90° 4 ways Code: SP-R03-15( for dia.90mm)
Triple Adaptor
Q235 materials, with outdoor powder coating ,90° 3 ways Code: SP-R03-14( for dia. 90mm)
Twin Adaptor
Q235 materials , 90° 2 ways Code: SP-R03-13(for dia 90mm pole)
Microwave Motion Sensor
12Vdc input, IP65 rating, max detect height is 15m. Code: ANT-5-4T

ST41 LED streetlight 1

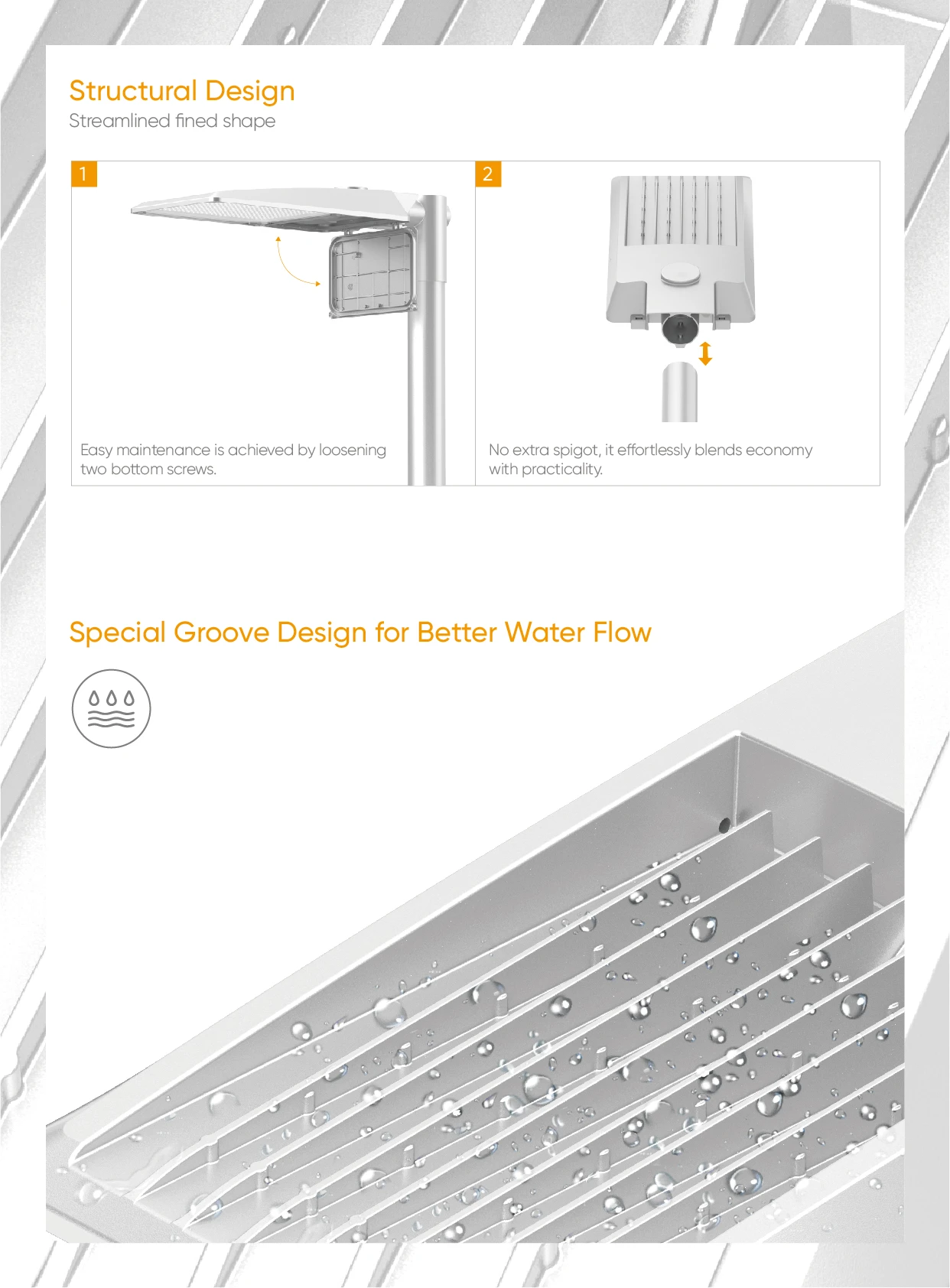

ST41 structure design 2

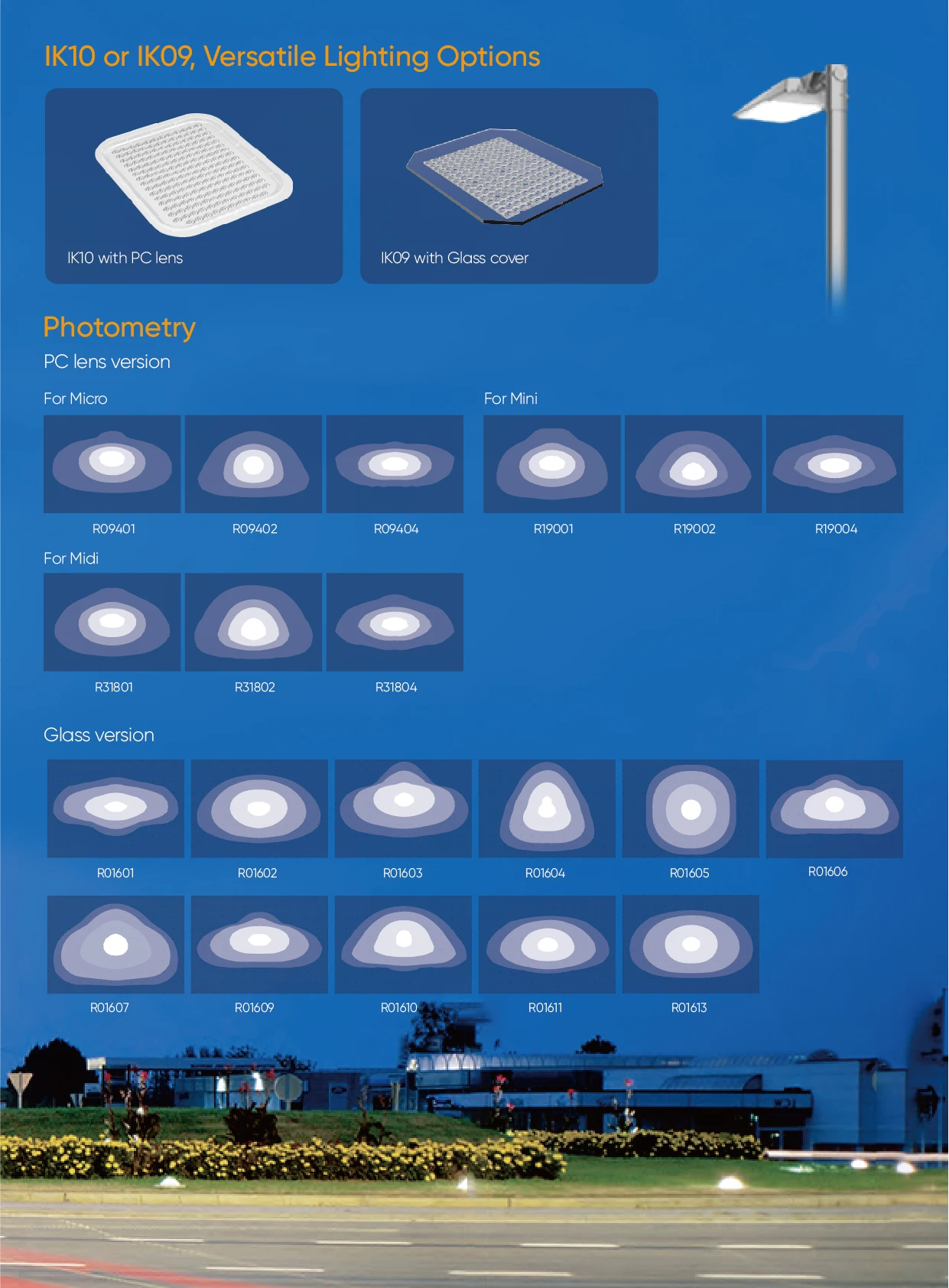

ST41 light distribution 3

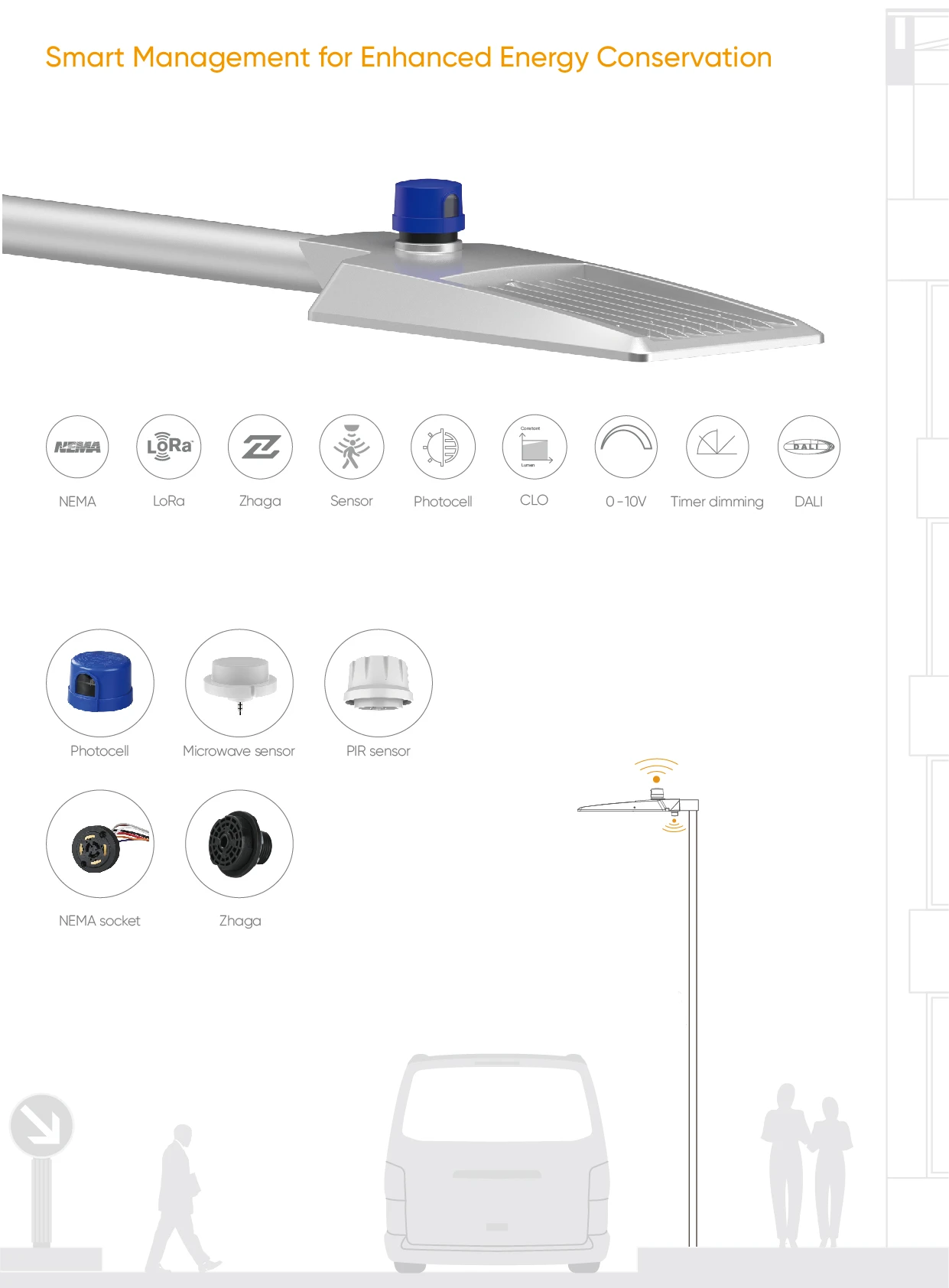

ST41 smart control 4
