ST37 Anole LED Area/Site Light

ST37 Anole LED Area/Site Light

Anole is designed for sustained, long-term performance with advanced thermal management, an elegantly simple heat sink and industry leading surge protection. The economical product line provides value-oriented area lighting solutions for a variety of applications without compromising quality or performance.

  • The lumen package ranges from 4200 48,000 nominal lumens, replace 70W – 1000W HID luminaires
  • Vertical heat fins that are optimal for heat dissipation while keeping a smooth outer surface
  • The LED driver chamber can be opened separately
  • Big driver chamber, several types of drivers are available, and enough space to install intelligent devices.

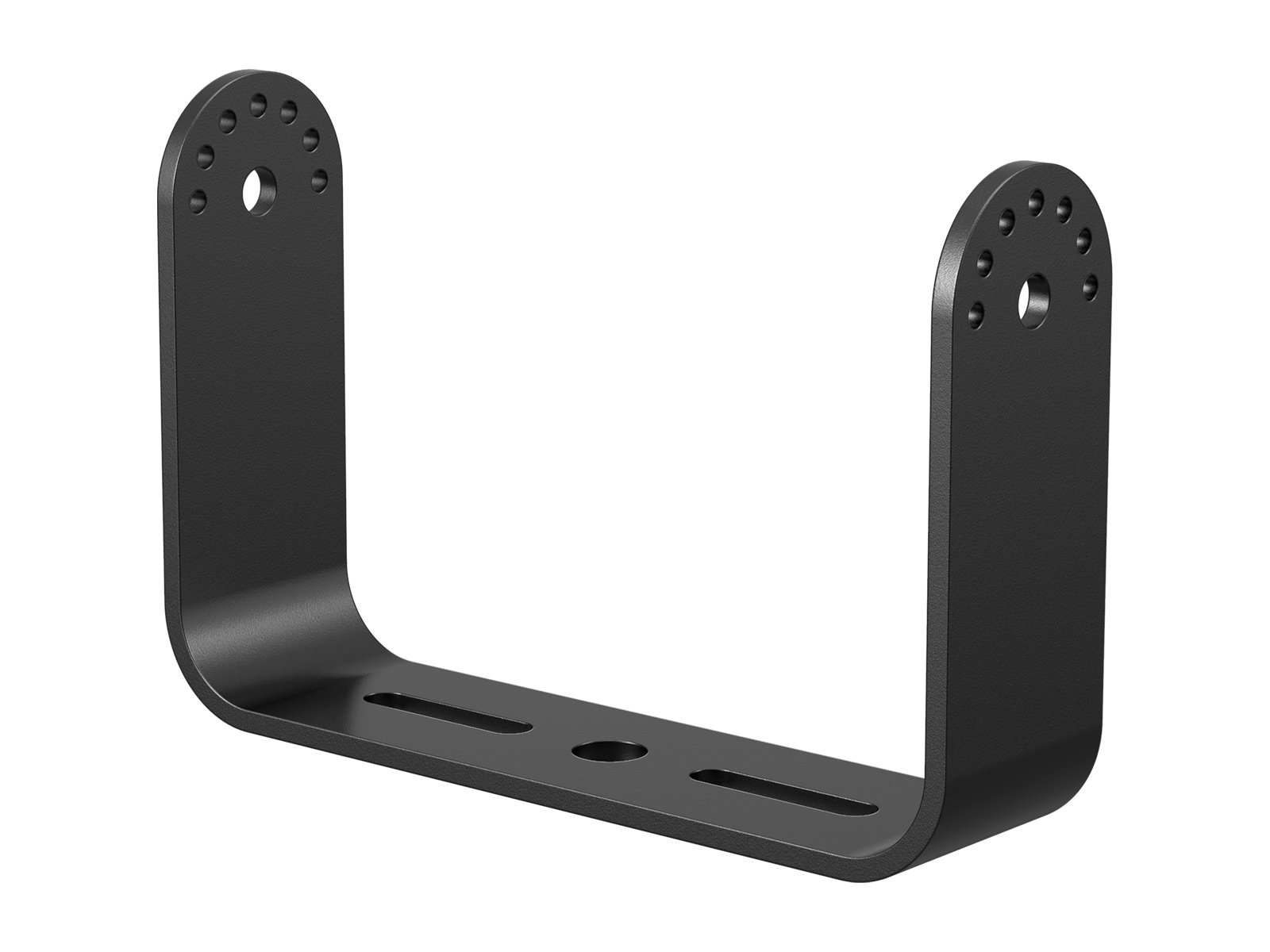

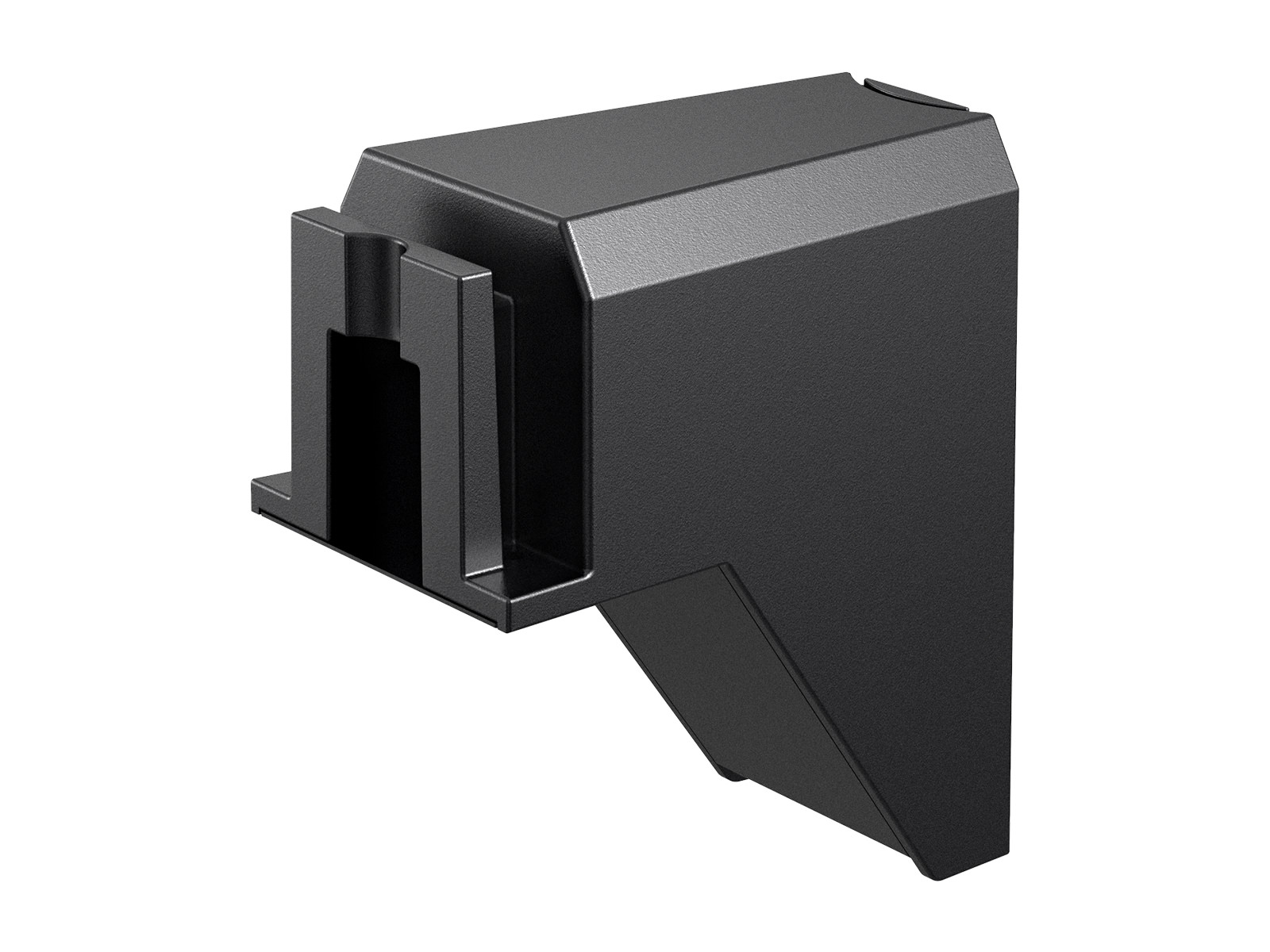

  • Different types of mounting brackets are available in options, such as a pole-arm (square or round), slip fitter, trunnion, and U bracket as a floodlight.
  • Optional backlight control shield
  • Plug-and-play sensors
  • ANSI 3G rated for high-vibration applications
  • Compact and lightweight design with low EPA
  • 5 years warranty or 10 year warranty options
* AGC products are designed for global market. Please contact our sales team for certification details.
* Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
ST37 led street light 1
ST37 led street light 2
ST37 led street light 3
ST37 led street light 4
Series CodeST37
Power30W, 40W, 60W, 100W, 150W, 200W, 300W
Efficacy130lm/W, 140lm/W, 150lm/W, 160lm/W
Input Voltage100-277VAC, 277-480VAC, 120-277VAC, 220-240VAC, 100-240 VAC, 50 / 60 Hz
Power Factor>0.92
Surge Protection6kV line-line, 10kV line-earth
ControlPlug-and-play Microwave, PIR Sensor, Zhaga Socket
IP RatingIP65
IK RatingIK08
CCT5000K, 4000K
CRI70, 80
Operating Temperature-30°C to + 45°C
Beam AngleR21601, R21602, R08803, R08805
Mounting Optionintegral slipfitter, Yoke, Square pole, Round pole
Warrantys5 Years, 10 Years
CertificationsETL
