ST36 20-230W

ST36 20-230W

This robust easier to installation and maintenance and high-performance Mezzo ST36 LED street light brings comfort and safety to any road or street.

  • Full wattage: 20W/30W/60W/75W/100W/120W/150W/180W/200W/230W.
  • 160lm/W, 10KV, IP66 & IK09
  • Excellent heat dissipation, robust and durable design, passed 3G vibration test.
  • Protection class I or II.
  • Plug-and-play microwave and PIR sensor are available.
  • Photocell, 3/5/7 pins NEMA Socket and LoRa/Zhaga socket for smart city controls optional.
  • Removable metal gear plate, easy to maintain.
  • Can be installed on vertical poles or horizontal arms, the angle can be adjusted ±15° easily
  • Wide choice of optics and installation spigots.

Applications

Specification

  • Series Code: ST36
  • Power: 20W, 30W, 40W, 60W, 75W, 100W, 120W, 150W, 180W, 200W, 230W
  • Efficacy: 160lm/W, 165lm/W
  • Input Voltage: 100-240 VAC, 220-240VAC, 50 / 60 Hz
  • Power Factor: >0.94
  • CCT: 3000K, 4000K, 5000K
  • CRI(Ra): 70, 80
  • Control: Dimmable, Photocell, DALI Dimmable, Zhaga Socket, Microwave Sensor, PIR Sensor
  • Corrosion Class: C3
  • IP Rating: IP66
  • IK Rating: IK09, IK10
  • Mounting Option: Post Top, Side Entry
  • Warranty: 5 Years
  • Surge Protection: 4kV line-line, 6kV line-earth, 5kV line-line, 10kV line-earth
  • Operating Temperature: Class I: -30°C to + 50°C, Class II: -30°C to + 40°C

Accessories

NEMA Socket
3pin/ 5pin /7pin are optional. Code: NS-A00-02(for 3pin) Code: NS-A00-03(for 5pin) Code: NS-A00-04(for 7pin)
Photocell Control
ON-OFF automatically according to day light. Code: PS-A00-01

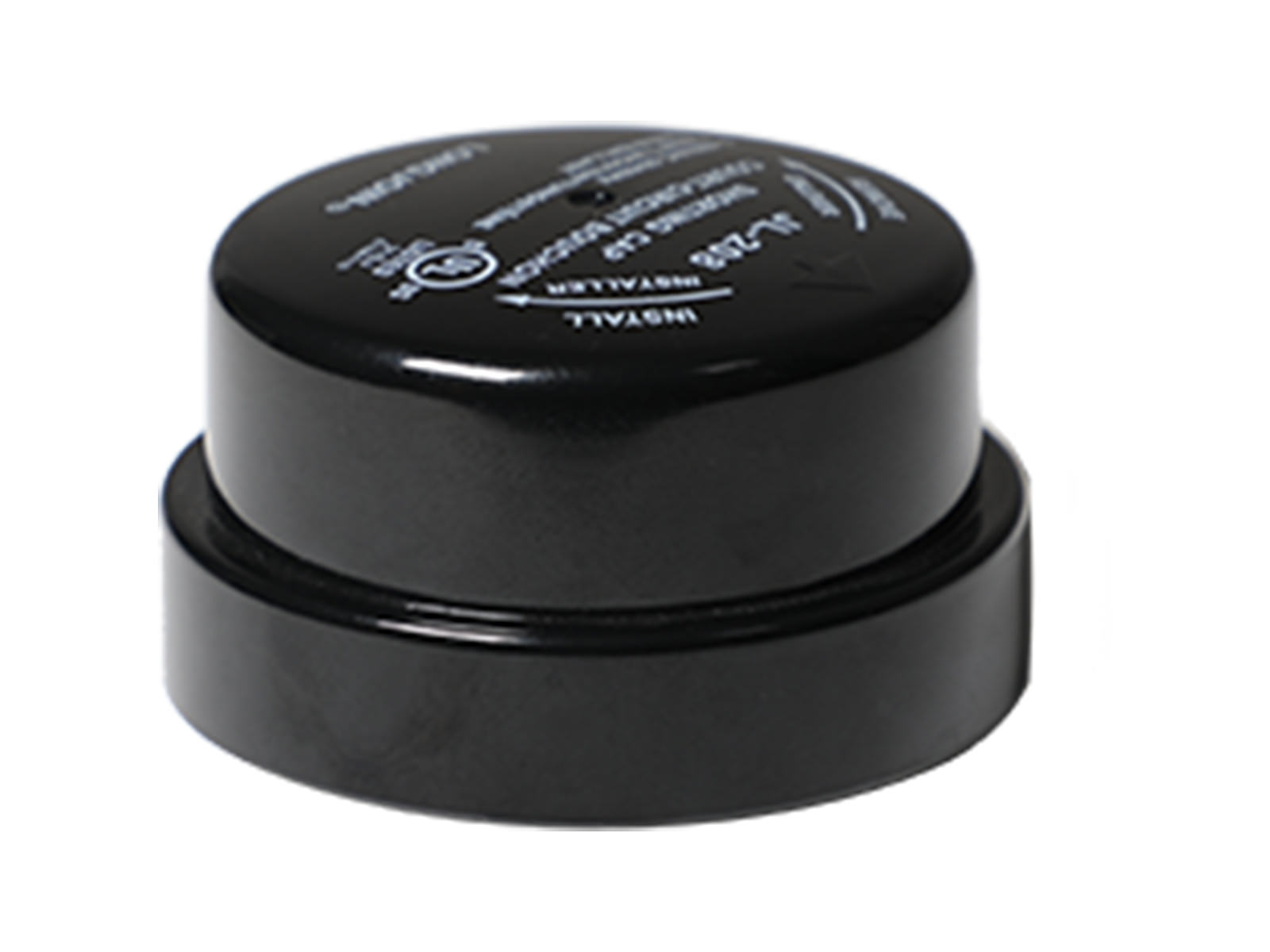

Shorting Cap
Cover NEMA socket when it is not used. Code: NS-A00-01

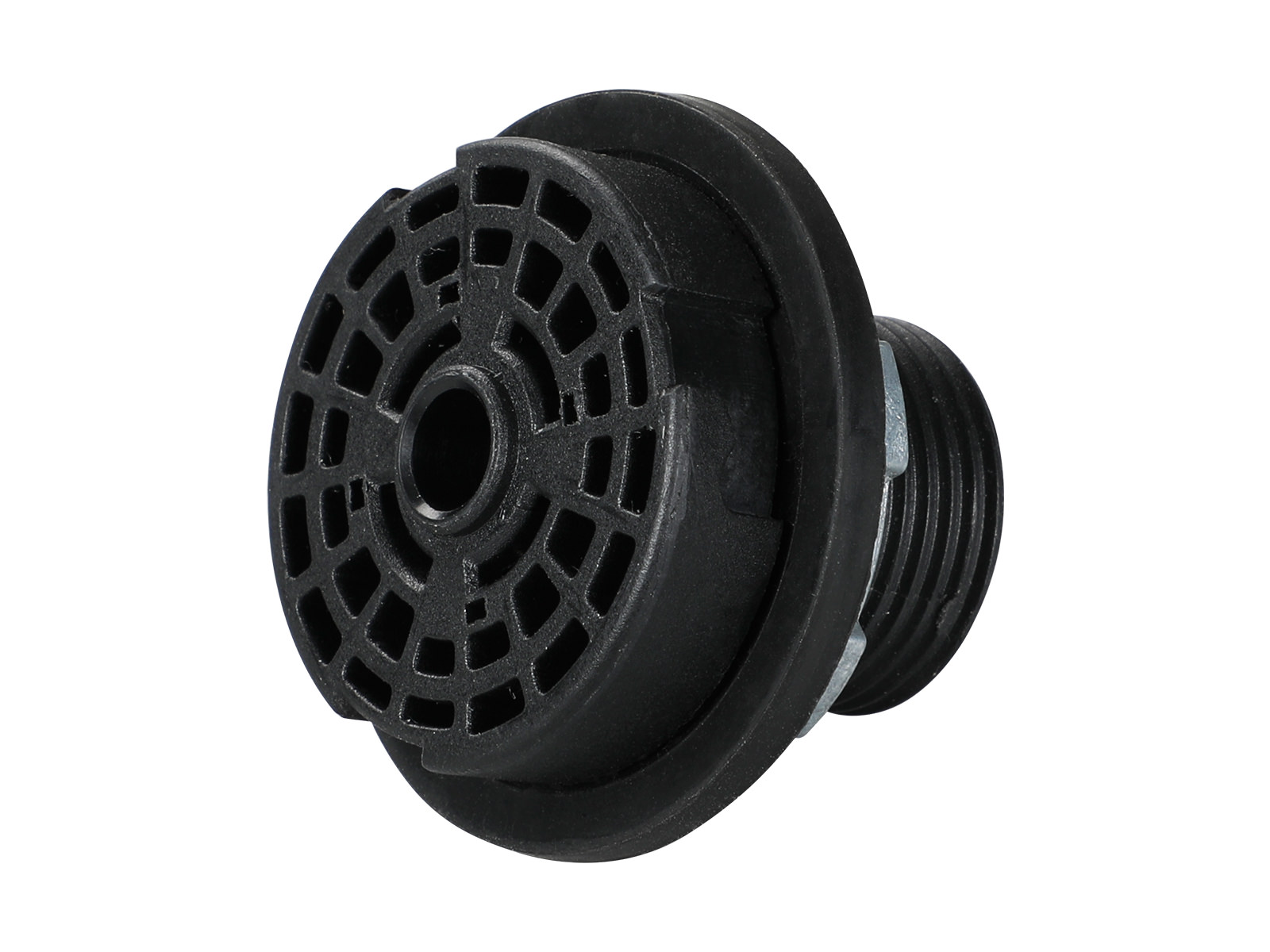

ZHAGA Receptacle
Compliant with Zhaga Book 18. Code: ZG-A00-01
Pole Mount Spigot
ADC12 materials, ±15°tilt adjustable, for dia.34/ 42/ 60/ 76mm pole. Code: SP-R03-01(for dia.34mm) Code: SP-R03-02(for dia.42mm) Code: SP-R03-03(for dia.60mm) Code: SP-R03-04(for dia.76mm)
Wall Mount Adaptor
Q235+SPCC materials with outdoor powder coating. Q235+SPCC materials with hot dip galvanizing. Code: SP-R03-05
T Shape Pole Mount Adaptor
Q235+SPCC with Akzo Powder Coating materials, for 100x100mm square pole. Code: SP-R03-07
T Shape Pole Mount Adaptor
Q235 materials, for dia.60/ 76mm pole Code: SP-R03-06(for dia.60mm) Code: SP-R03-08(for dia.76mm) Code: SP-R03-08a(for dia.90mm)
L Shape Pole Mount Adaptor
Q235+SPCC materials, for 100x100mm square pole. Code: SP-R03-10
L Shape Pole Mount Adaptor
Q235 materials, for dia.90mm pole Code: SP-R03-09(for dia.90mm) Code: SP-R03-09a(for dia.76mm) Code: SP-R19-01(for dia.60mm)
Corner Mount Adaptor
SPCC materials with outdoor powder coating. Code: SP-R19-02
Quad Adaptor
Q235 materials with outdoor powder coating, 90° 4 ways Code: SP-R03-15( for dia.90mm)

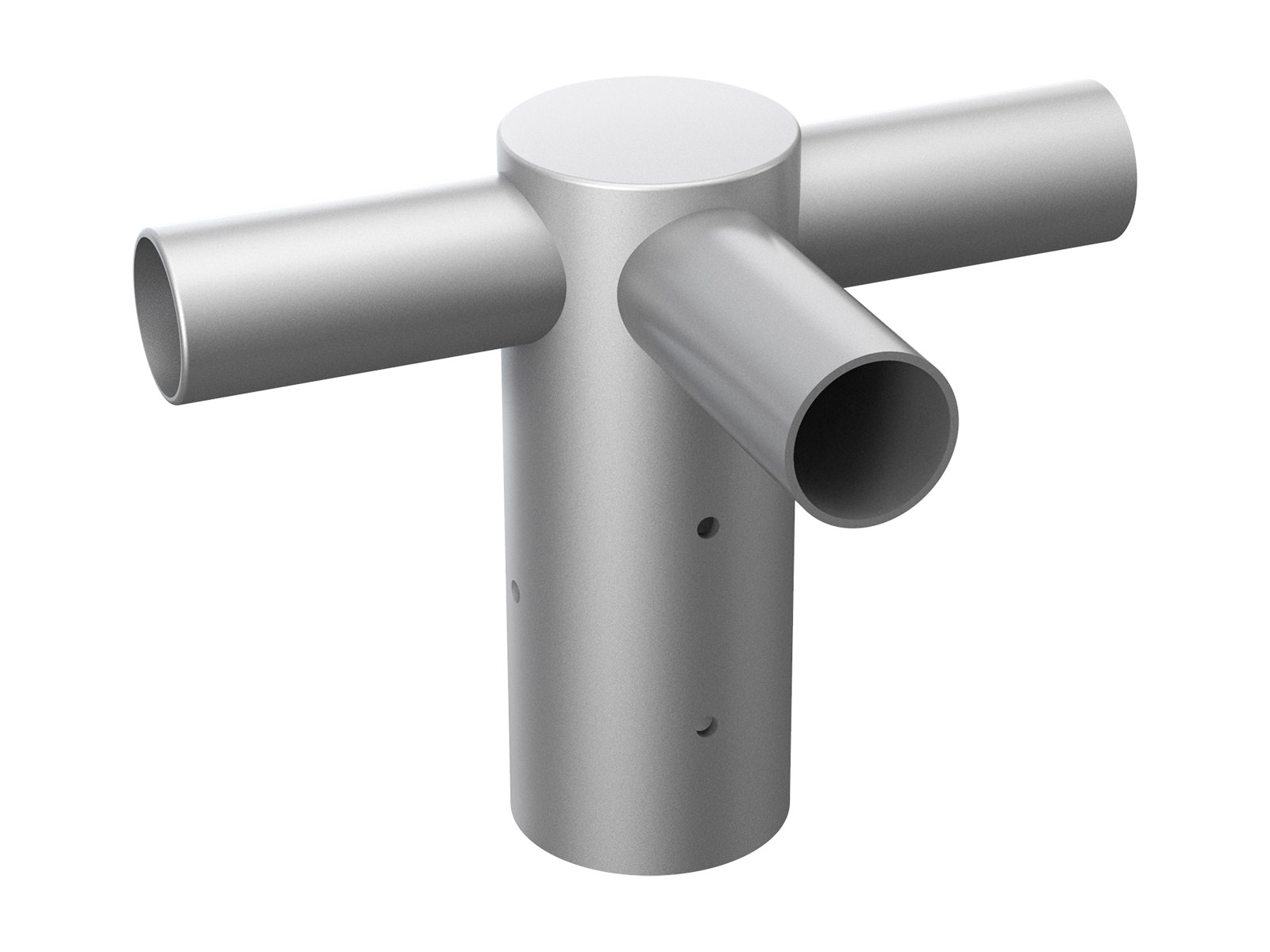

Triple Adaptor
Q235 materials, with outdoor powder coating ,90° 3 ways Code: SP-R03-14( for dia. 90mm)

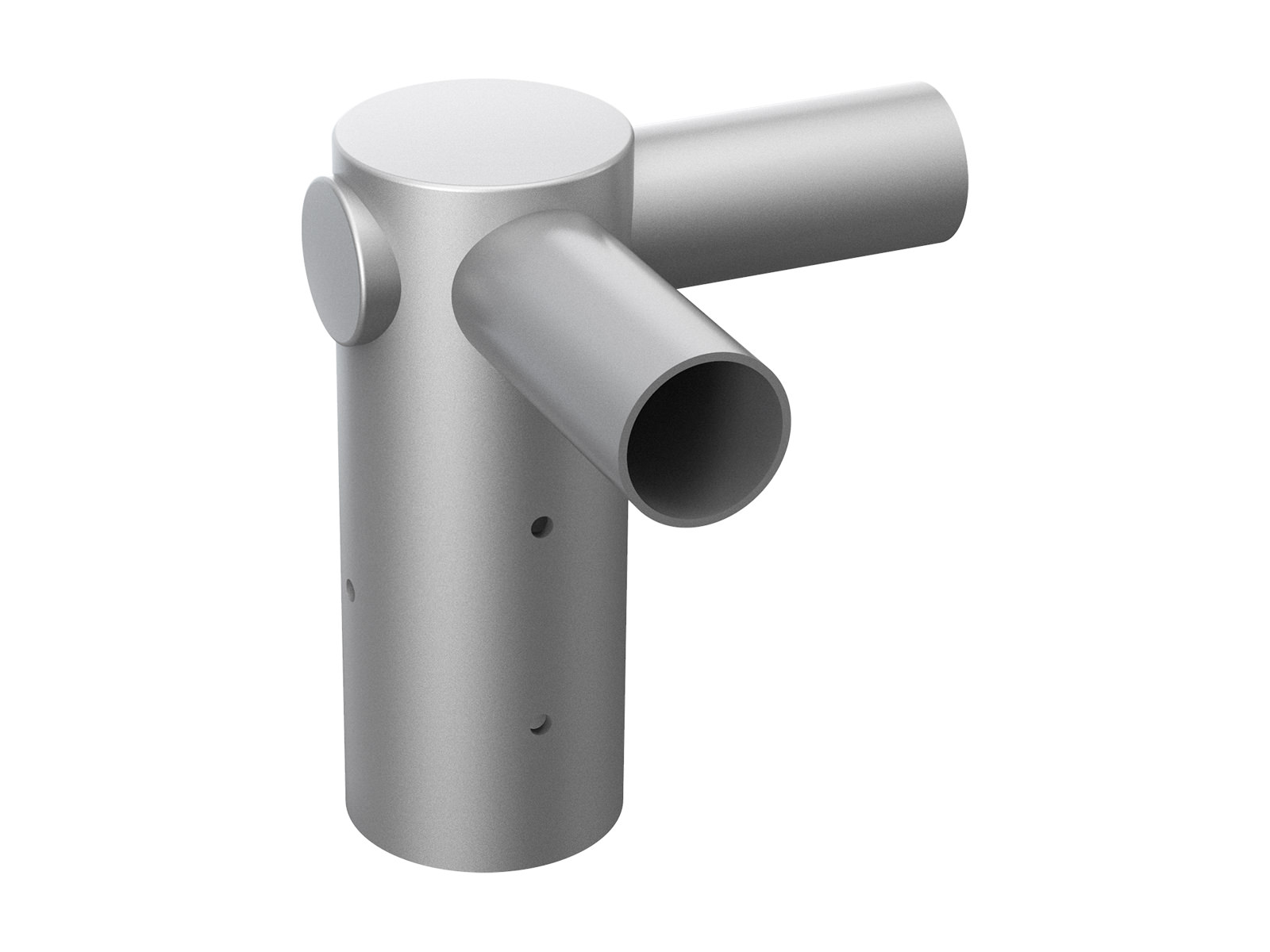

Twin Adaptor
Q235 materials , 90° 2 ways Code: SP-R03-13(for dia 90mm pole)
Post Top Mount Adaptor
Q235 materials , 76mm to 60mm Adaptor Code: SP-R03-16(for dia 76mm pole)
Microwave Motion Sensor
12Vdc input, IP65 rating, max detect height is 15m. Code: ANT-5-4T
