ST23 Doris

ST23 Doris

The product has been discontinued online. Please contact our sales representative for more information.

A circular flexible LED street light to be mounted on arm or wire, super smooth and modern lines in a classic form.

  •  Super smooth design, one size for 60w, 90w, 120w, 150w
  •  Built in Motion Sensor is optional
  •  Professional light distribution
  •  Multiple installation options: side entry, post top and suspension
  •  φ60mm & φ76mm spigot are available.

Applications

Specification

  • Series Code: ST23
  • Power: 60W, 90W, 120W, 150W
  • Efficacy: 135lm/W
  • Input Voltage: 220-240VAC, 50 / 60 Hz
  • Power Factor: >0.90
  • CCT: 3000K, 4000K, 5000K
  • CRI(Ra): 80, 70
  • Control: Photocell, Dimmable, Non-Dimmable, Timer, 1-10V Dimmable
  • IP Rating: IP66
  • IK Rating: IK08
  • Mounting Option: Post Top, Side Entry, Wire Suspension
  • Warranty: 5 Years
  • Surge Protection: 6kV line-line, 10kV line-earth
  • Operating Temperature: -30°C to + 40°C

Accessories

NEMA Socket
3pin/ 5pin /7pin are optional. Code: NS-A00-02(for 3pin) Code: NS-A00-03(for 5pin) Code: NS-A00-04(for 7pin)
Photocell Control
ON-OFF automatically according to day light. Code: PS-A00-01
Shorting Cap
Cover NEMA socket when it is not used. Code: NS-A00-01
Wall Mount Adaptor
Q235+SPCC materials with outdoor powder coating. Q235+SPCC materials with hot dip galvanizing. Code: SP-R03-05
T Shape Pole Mount Adaptor
Q235 materials, for dia.60/ 76mm pole Code: SP-R03-06(for dia.60mm) Code: SP-R03-08(for dia.76mm) Code: SP-R03-08a(for dia.90mm)
L Shape Pole Mount Adaptor
Q235+SPCC materials, for 100x100mm square pole. Code: SP-R03-10
L Shape Pole Mount Adaptor
Q235 materials, for dia.90mm pole Code: SP-R03-09(for dia.90mm) Code: SP-R03-09a(for dia.76mm) Code: SP-R19-01(for dia.60mm)
Corner Mount Adaptor
SPCC materials with outdoor powder coating. Code: SP-R19-02
Pole Mount Spigot
ADC12 materials, ±15°tilt adjustable, for dia.60 and 76mm pole. Code: SP-R23-01(for dia.60mm) Code: SP-R23-02(for dia.76mm)

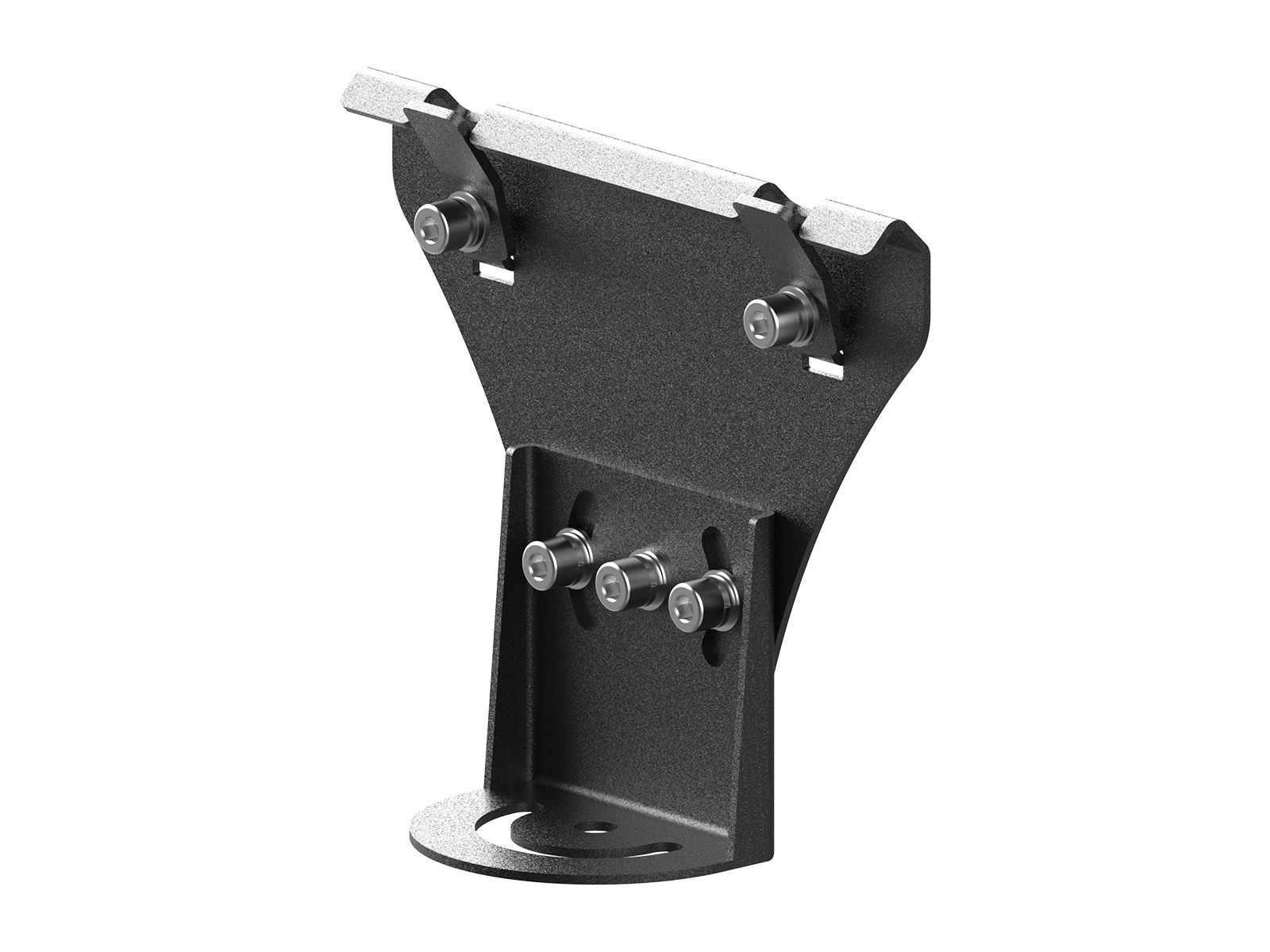

Suspension Bracket
SPCC materials with outdoor powder coating. Code: BC-R23-01
L Shape Pole Mount Adaptor
SPCC materials, for dia.60mm pole Code: SP-R19-01(for dia.60mm)
ST23 circual shape concise area light
