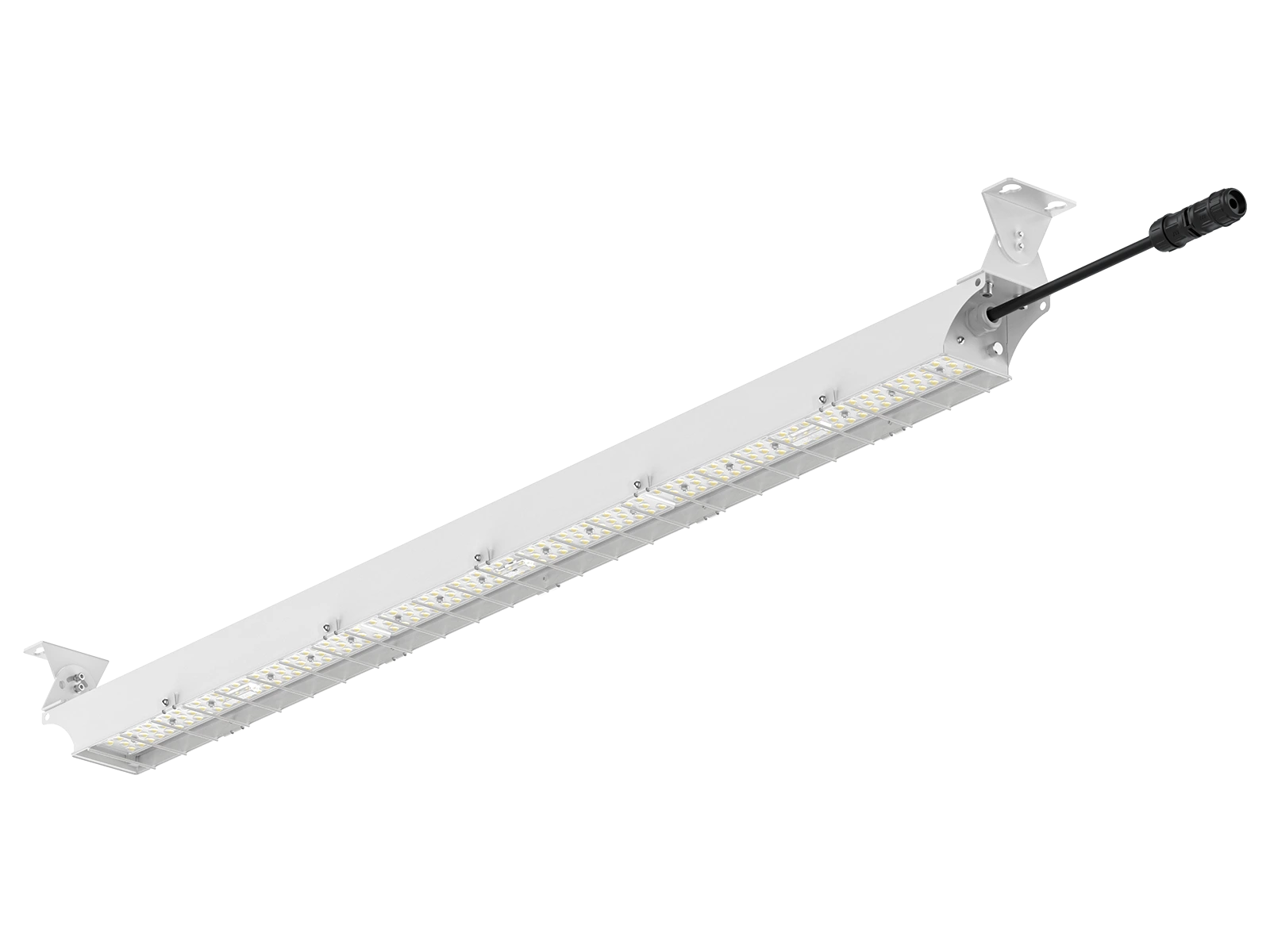

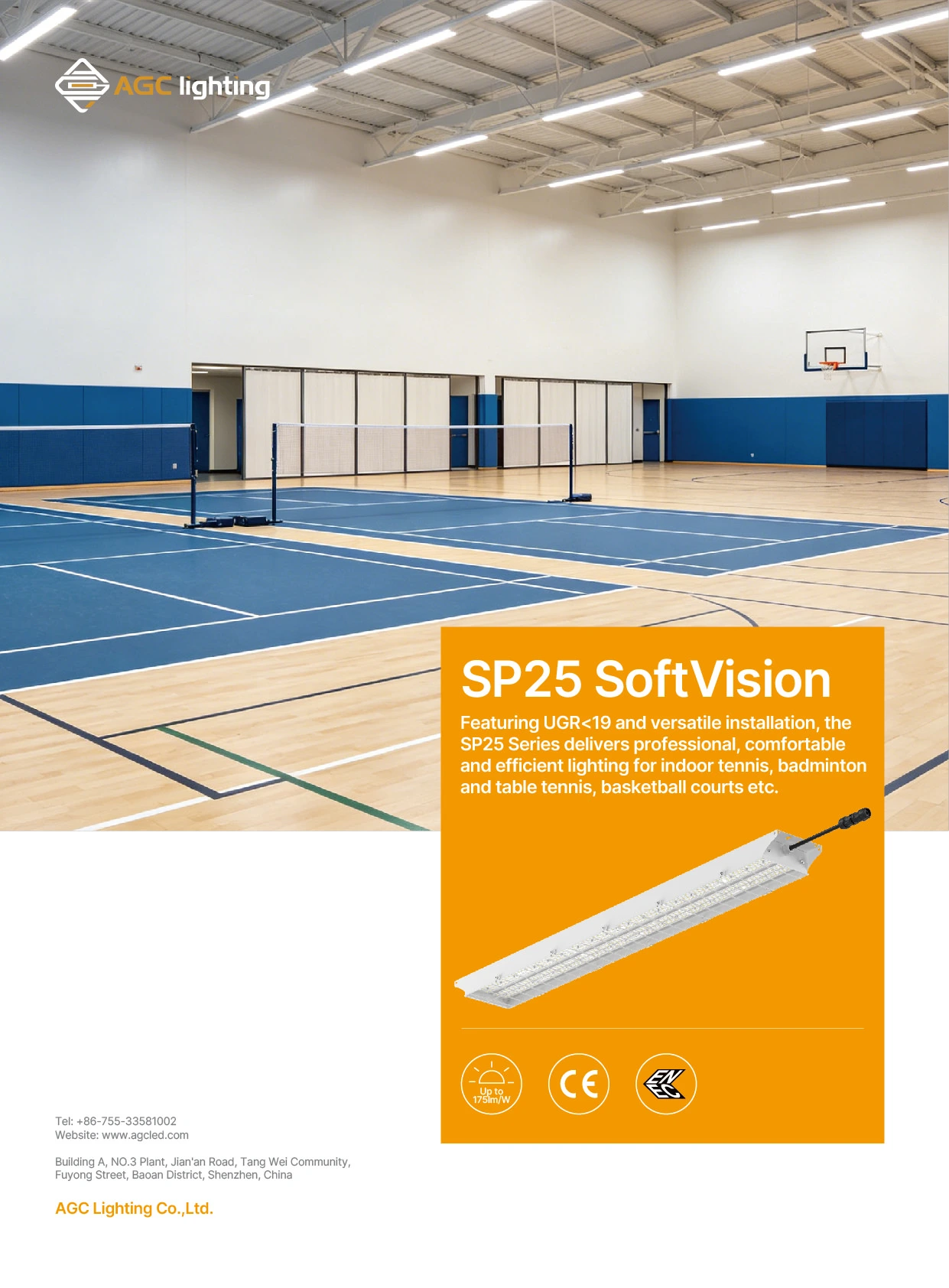

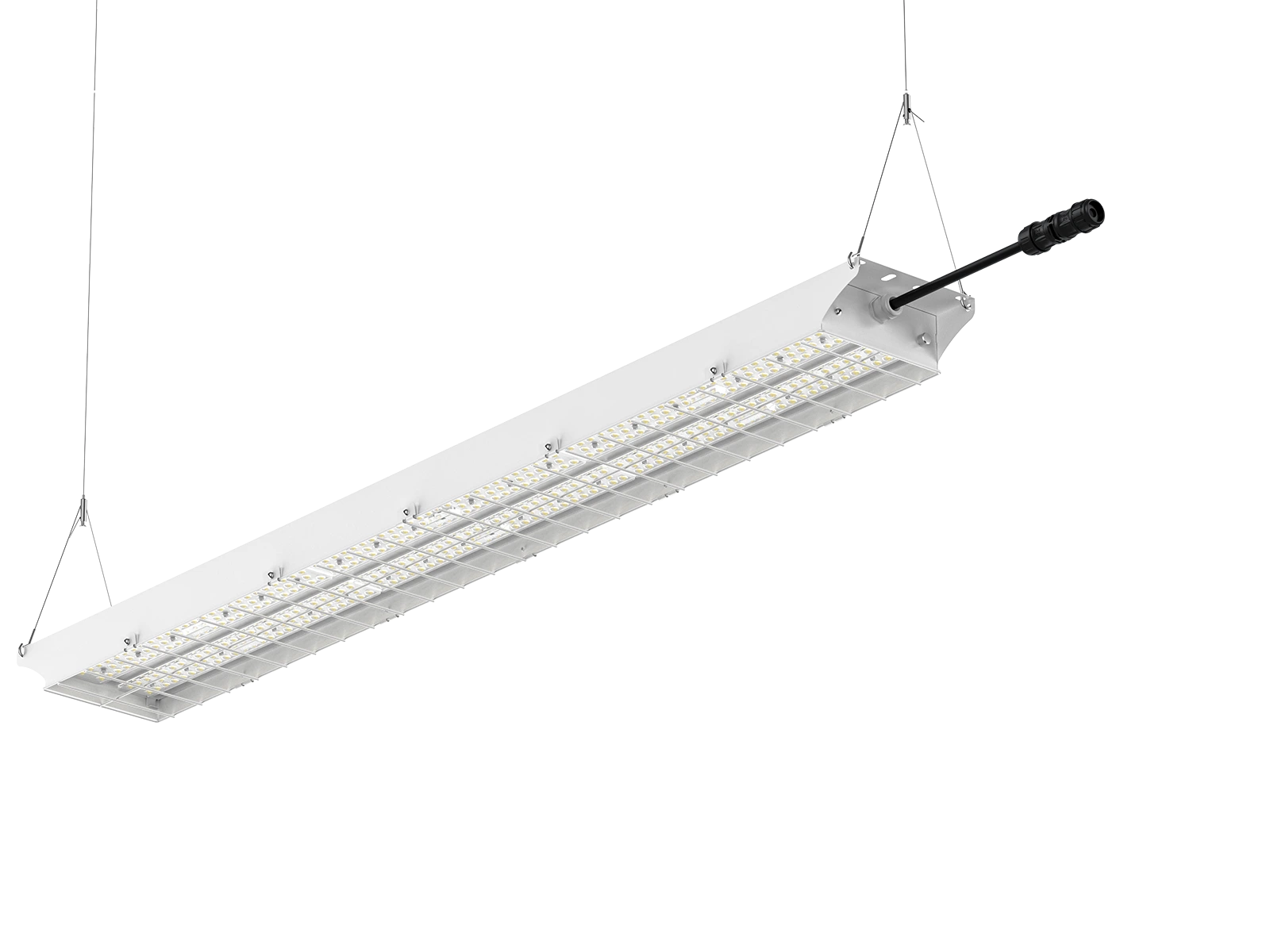

Featuring a UGR of less than 19 and an efficacy of up to 175lm/W, SoftVision provides professional, comfortable, and efficient illumination for indoor sports facilities, including tennis, badminton, table tennis, and basketball courts.

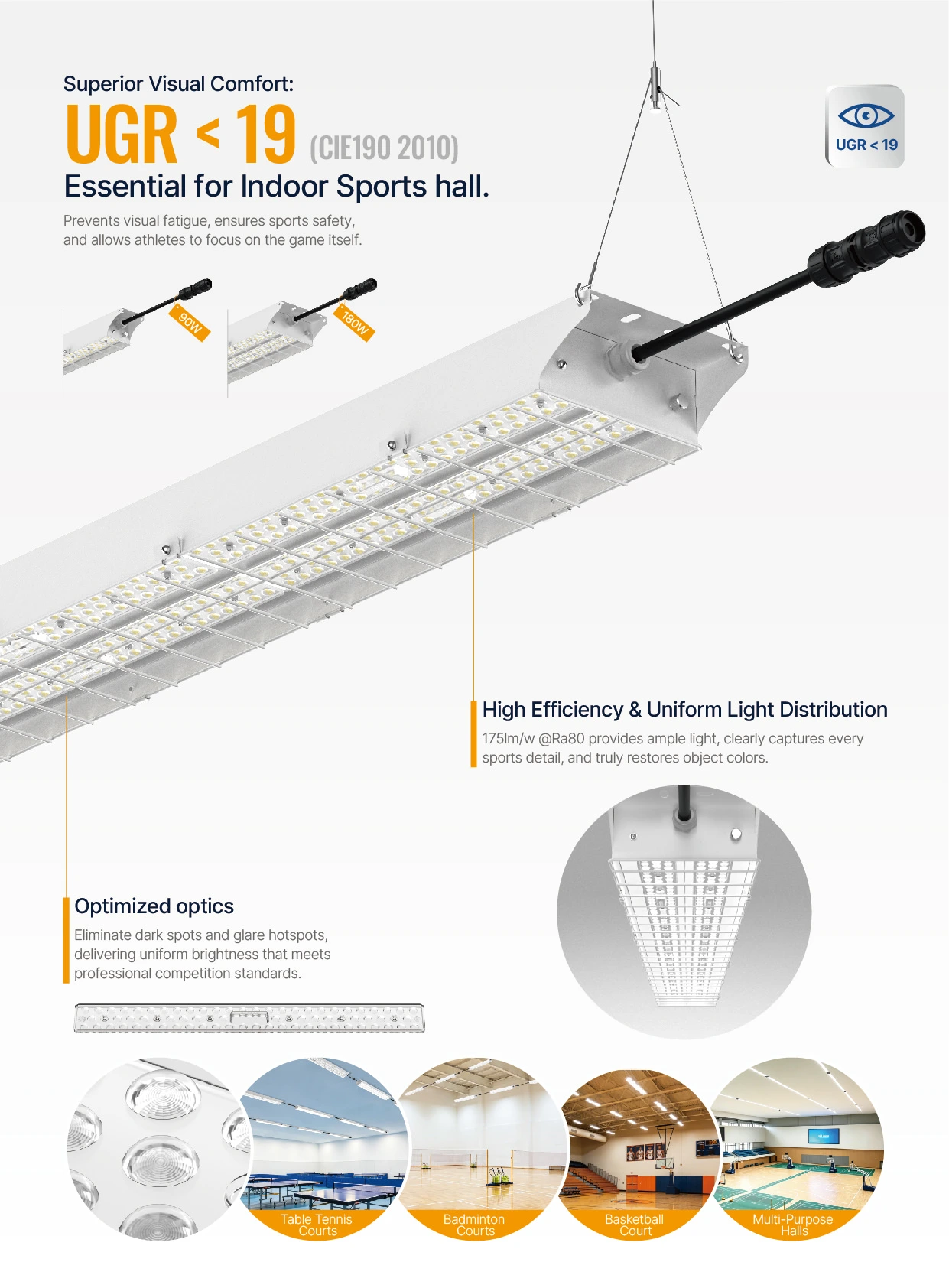

The optimized optical system ensures uniform light distribution by eliminating dark spots and glare, meeting the requirements of competition-grade lighting.

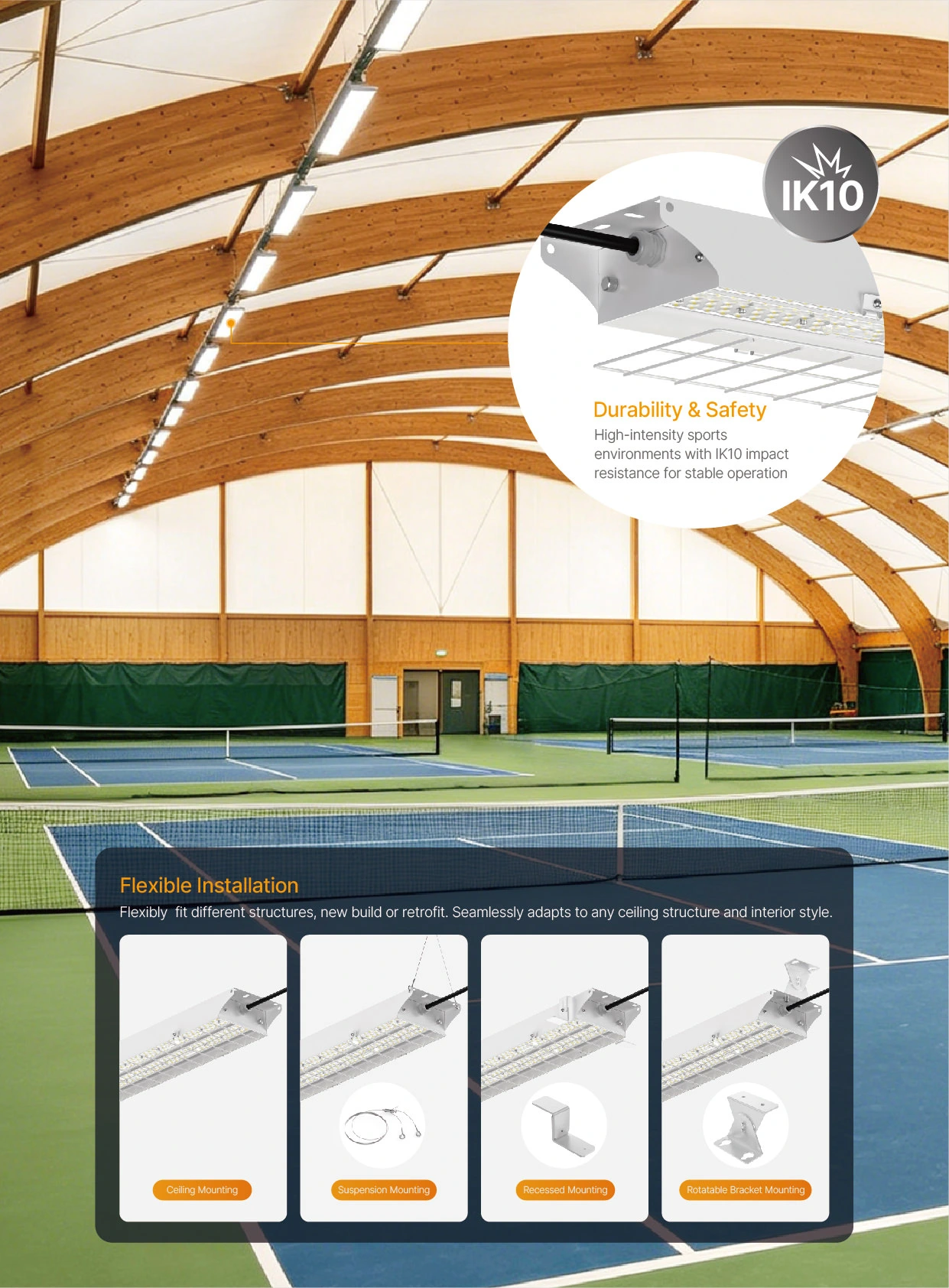

Engineered for durability, the fixture carries an IK10 impact resistance rating to ensure safety in active sports environments.

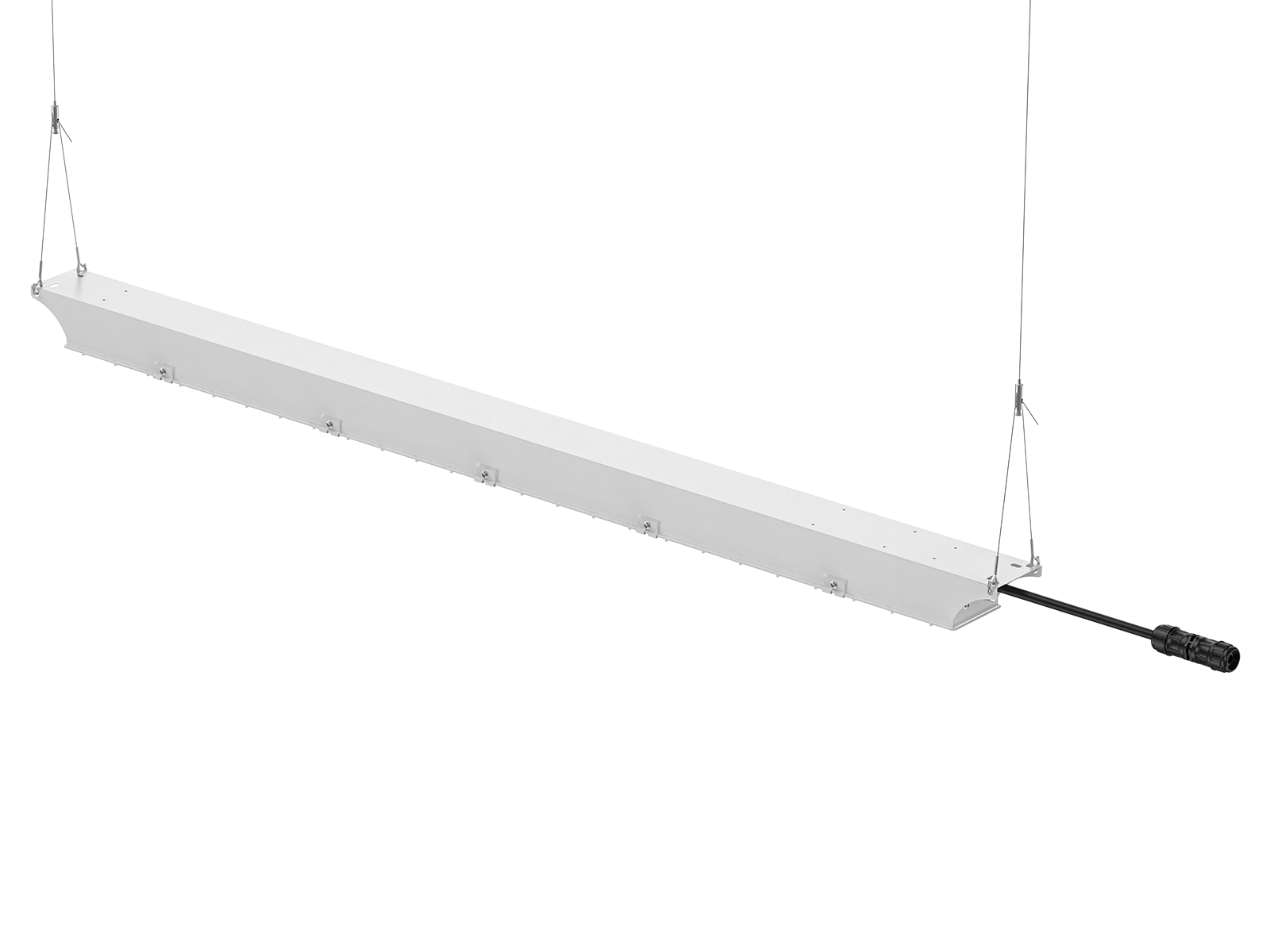

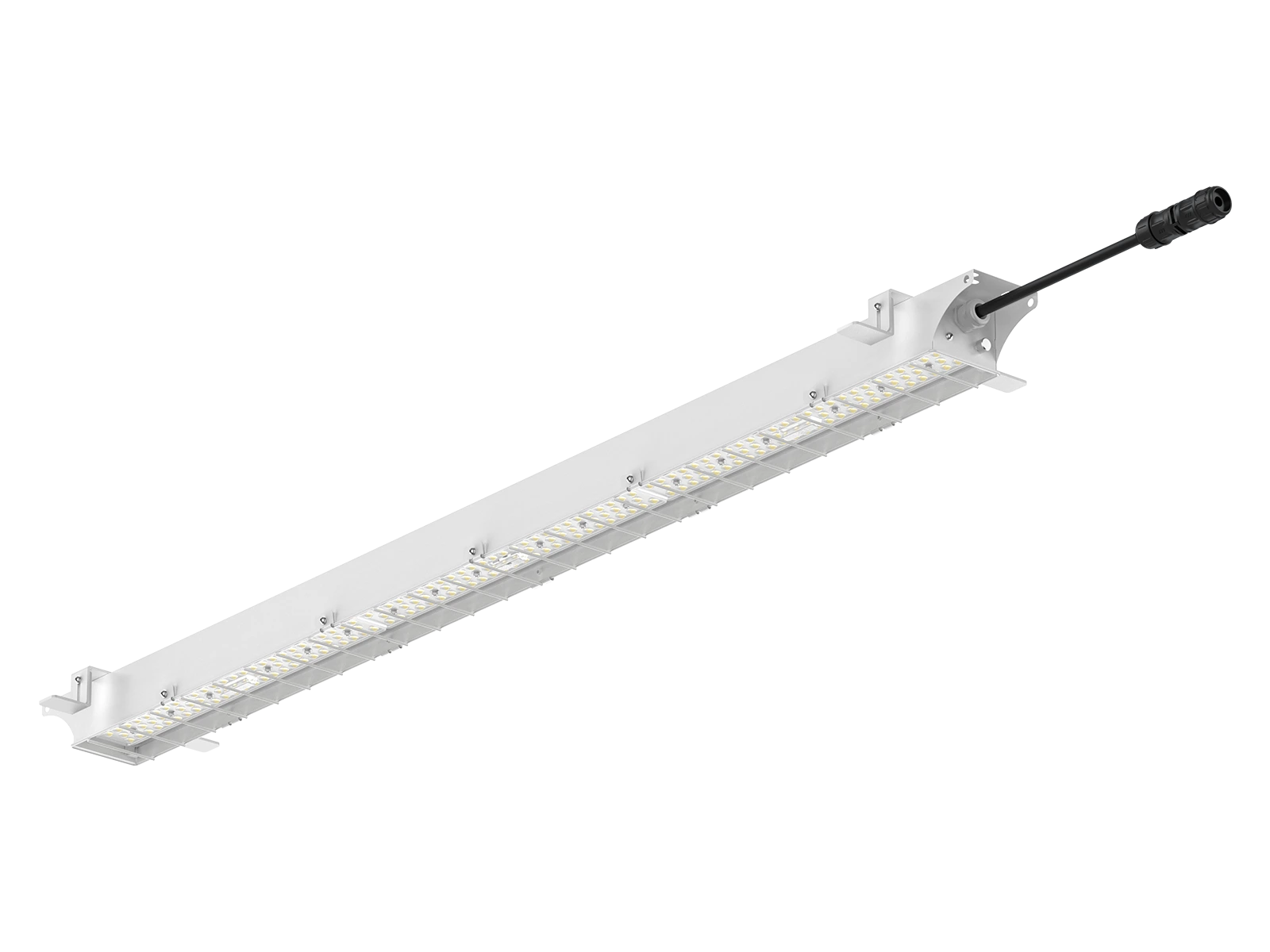

It supports multiple installation methods, making it compatible with various ceiling structures in both new construction and retrofit projects.
| Series Code | SP25 |
|---|---|
| Power | 90W, 180W |
| Efficacy | 175lm/W |
| Power Factor | >0.95 |
| UGR level | <19 |
| Corrosion Class | C3 |
| IP Rating | IP20 |
| IK Rating | IK10 |
| CCT | 4000K |
| CRI(Ra) | 80 |
| Operating Temperature | -30°C to + 50°C |
| Mounting Option | Ceiling Mounting, Rotatable Bracket, Wire Suspension, Recessed |
| Warranty | 5 Years |
