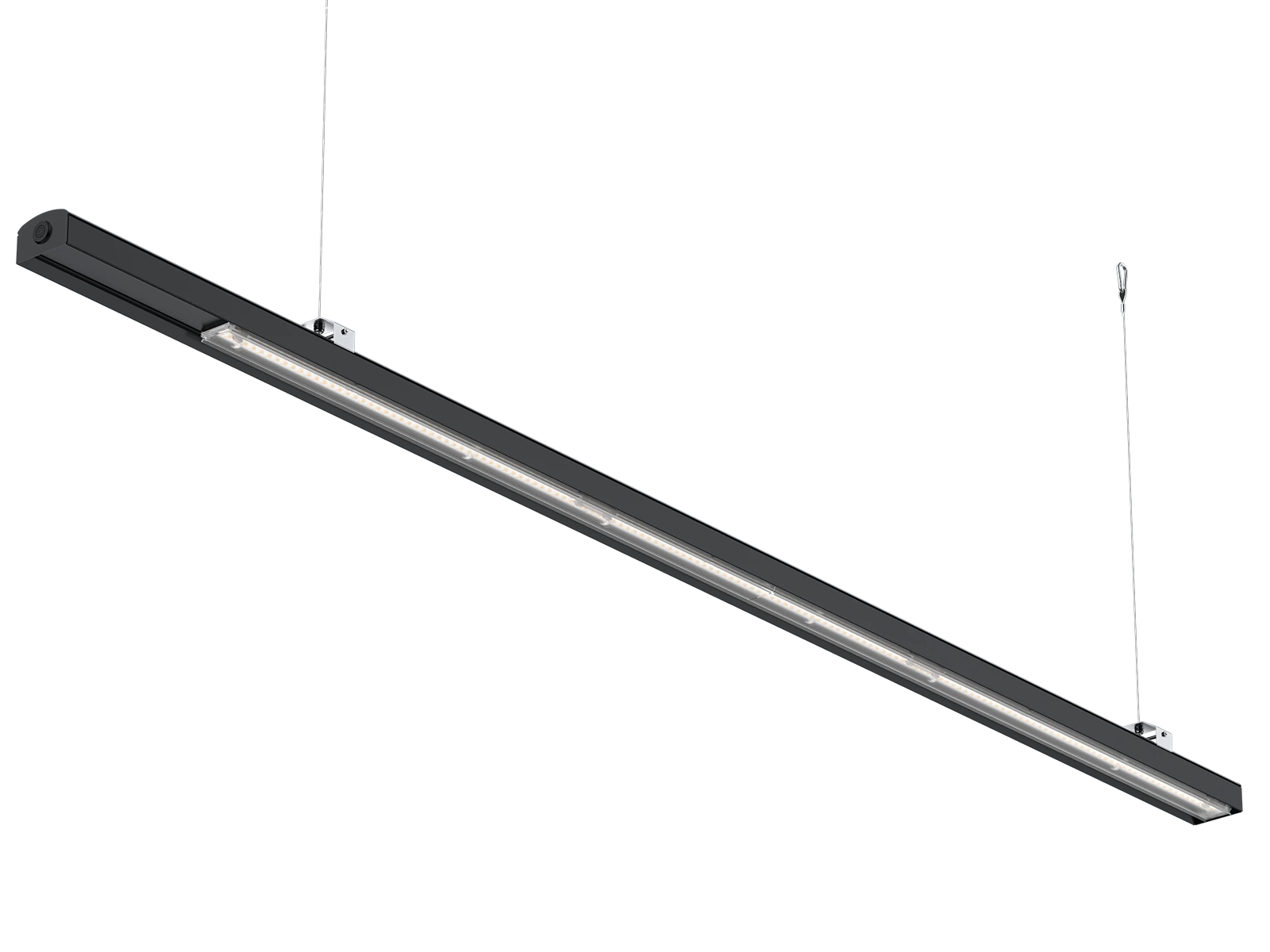

LHB52 44-70W

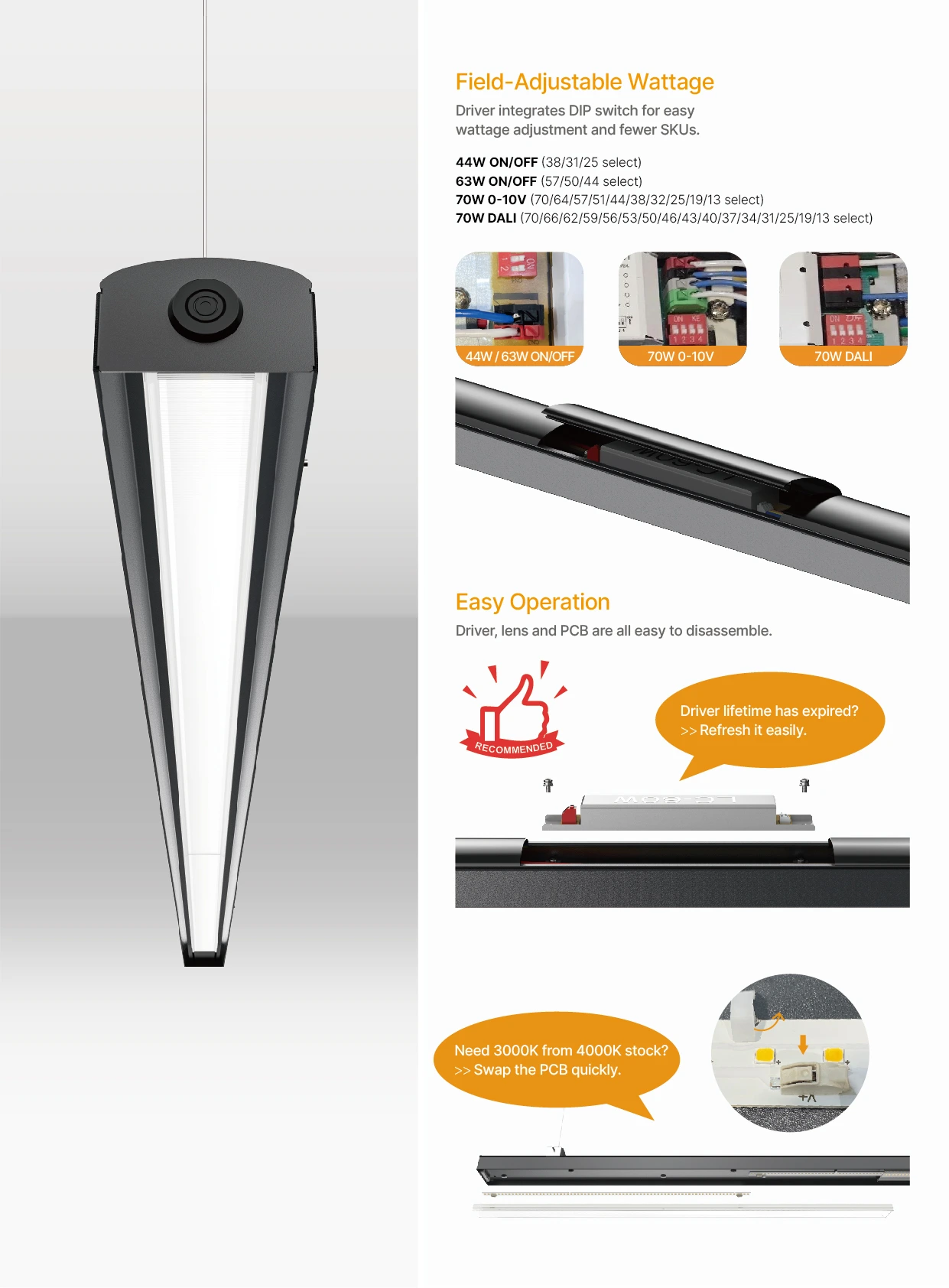

The LHB52 is a linear trunking system designed as a direct retrofit for traditional continuous-row fluorescent fixtures. The integrated driver features a DIP switch for wattage adjustments, significantly reducing required SKU counts and optimizing inventory management

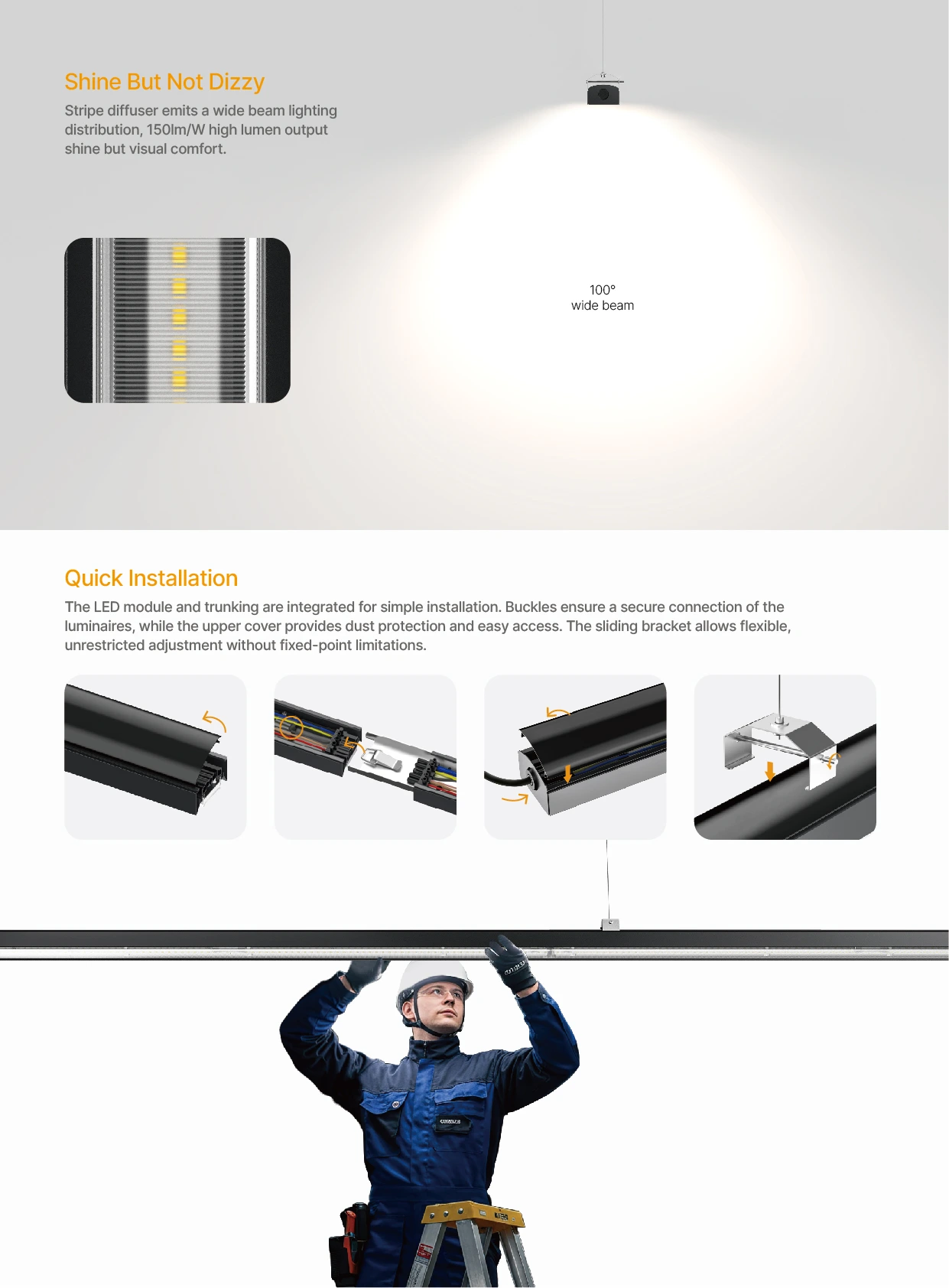

Its lightweight construction enables fast installation, while a modular architecture allows the driver, lens, and PCB to be disassembled and replaced swiftly. This design minimizes labor costs during setup, simplifies routine maintenance, and ensures rapid servicing across warehouses, factories, exhibition halls, and shopping malls.
Specification
- Series Code: LHB52
- Power: 44W, 63W, 70W
- Efficacy: 150lm/W, 140lm/W
- Power Factor: >0.93
- CCT: 4000K
- CRI(Ra): 80
- Control: On/Off, 0-10V, DALI
- Corrosion Class: C3
- IP Rating: IP20
- Mounting Option: Suspension Mounting
- Warranty: 5 Years
- Operating Temperature: -20°C to + 50°C
