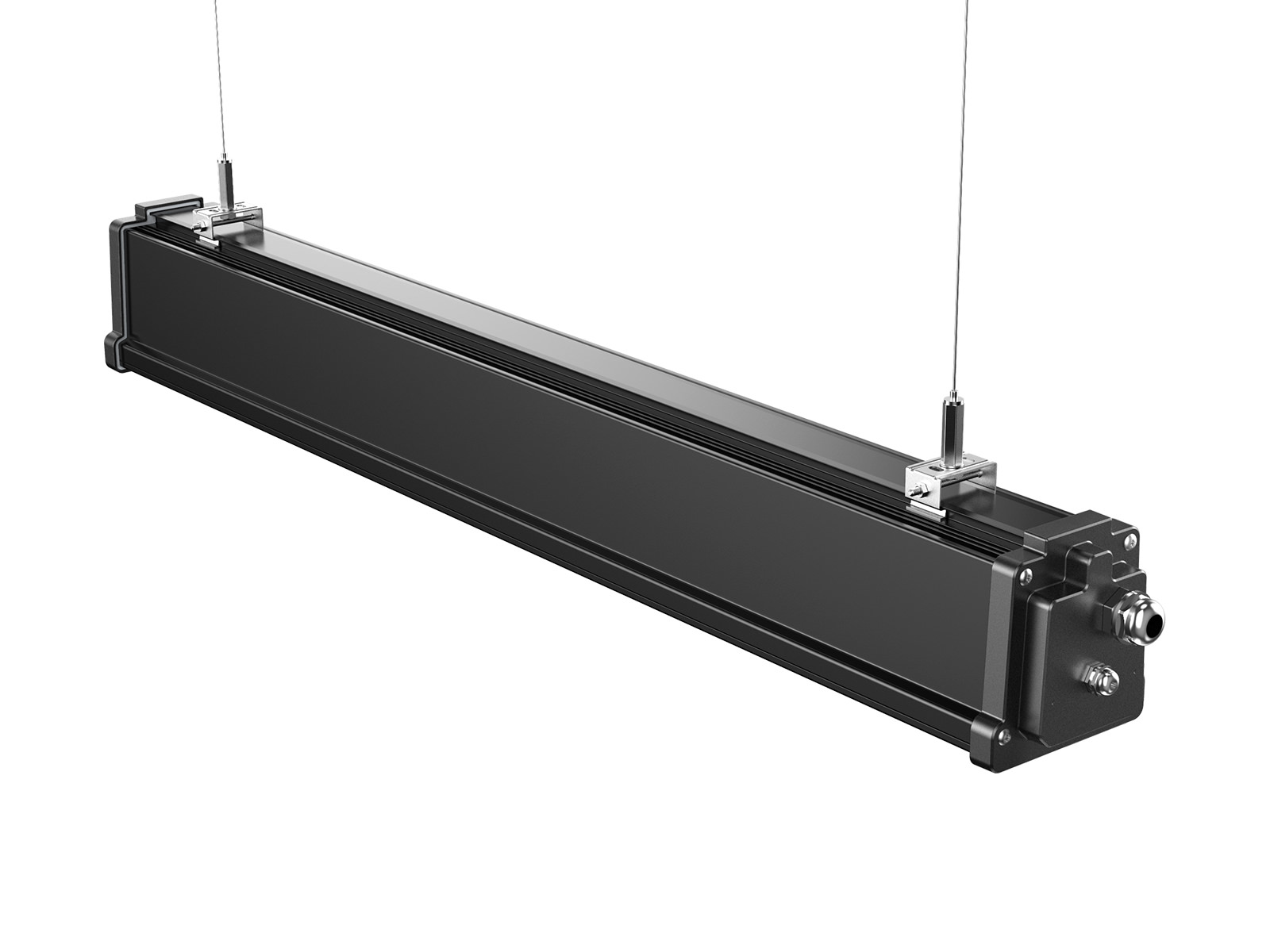

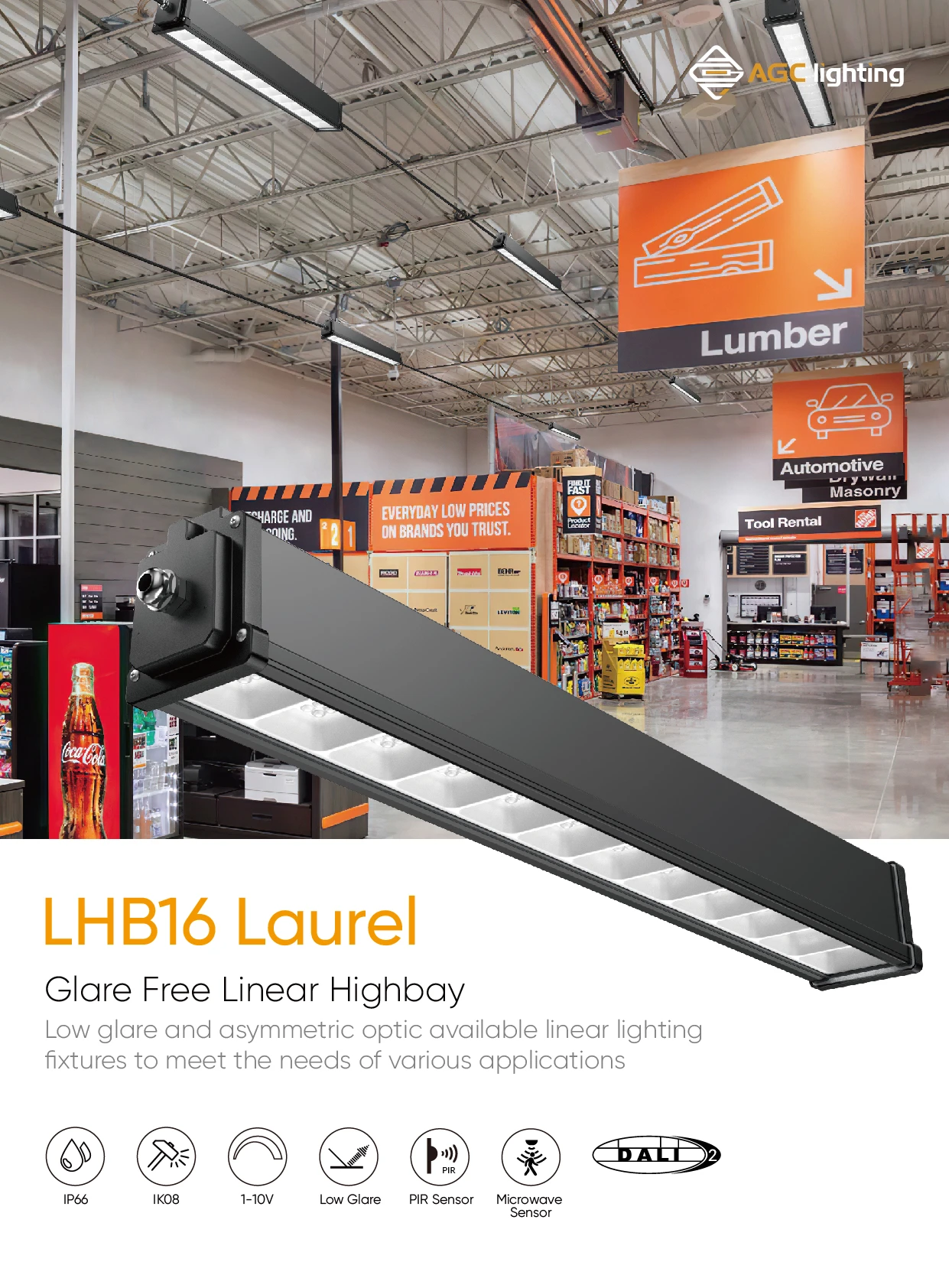

LHB16 Laurel - Glare Free Linear High Bay

LHB16 Laurel - Glare Free Linear High Bay

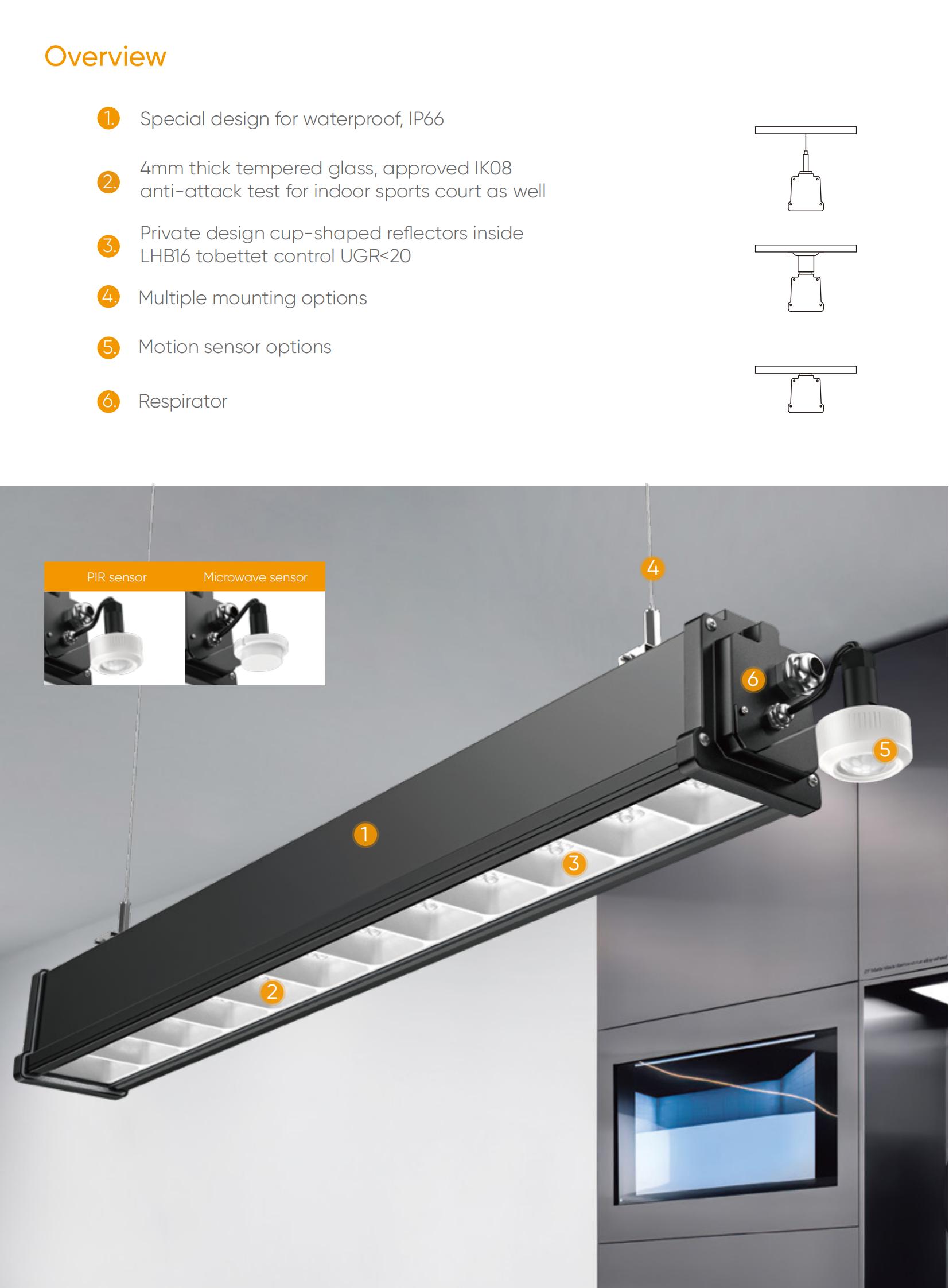

Laurel looks simple and elegant. Its housing is made of a combination of high thermal conductivity aluminum extruded radiator and die-cast aluminum end cover that feels somehow metallic. Module lens, universal and interchangeable. It can realize the interchangeability of light distribution from different angles and meet the needs of various applications.

  • Low UGR with soft vision environment

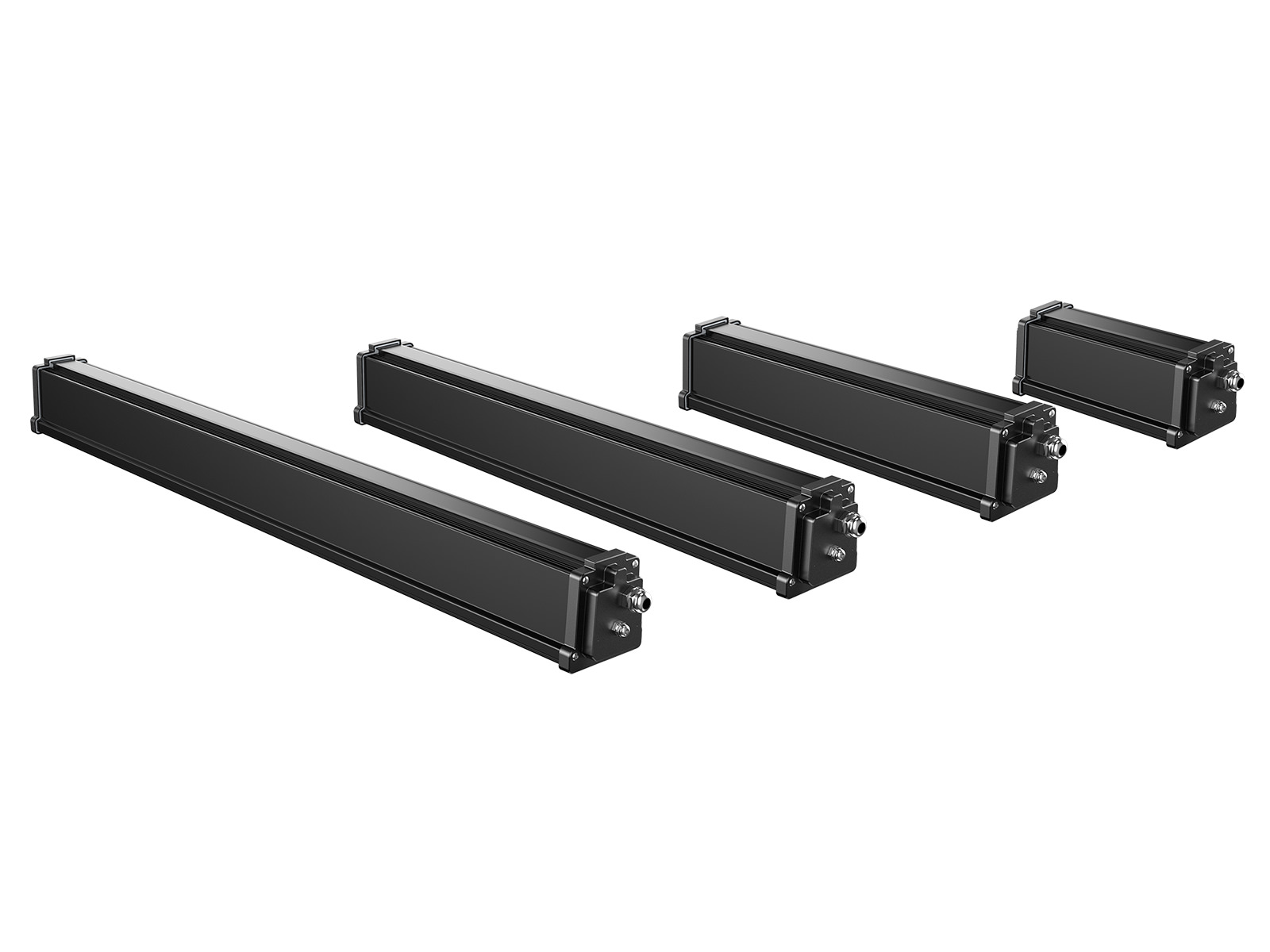

  • Four sizes
  • High efficacy
  • Various intelligent controls
  • Multiple mounting options
* AGC products are designed for global market. Please contact our sales team for certification details.
* Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
LHB16 LED linear light 00
LHB16 LED linear light 01
LHB16 LED linear light 02
Series CodeLHB16
Power50W, 100W, 150W, 200W
Efficacy140lm/W
Input Voltage100-240 VAC, 50 / 60 Hz
Power Factor>0.92
Surge Protection4kV line-line, 6kV line-earth, 5kV line-line, 10kV line-earth
UGR level20
ControlDimmable, Microwave Sensor, PIR Sensor, Non-Dimmable
IP RatingIP65
IK RatingIK08
CCT3000K, 4000K, 5000K
CRI80
Operating Temperature-30°C to + 50°C(with sensor :0°C to + 50°C)

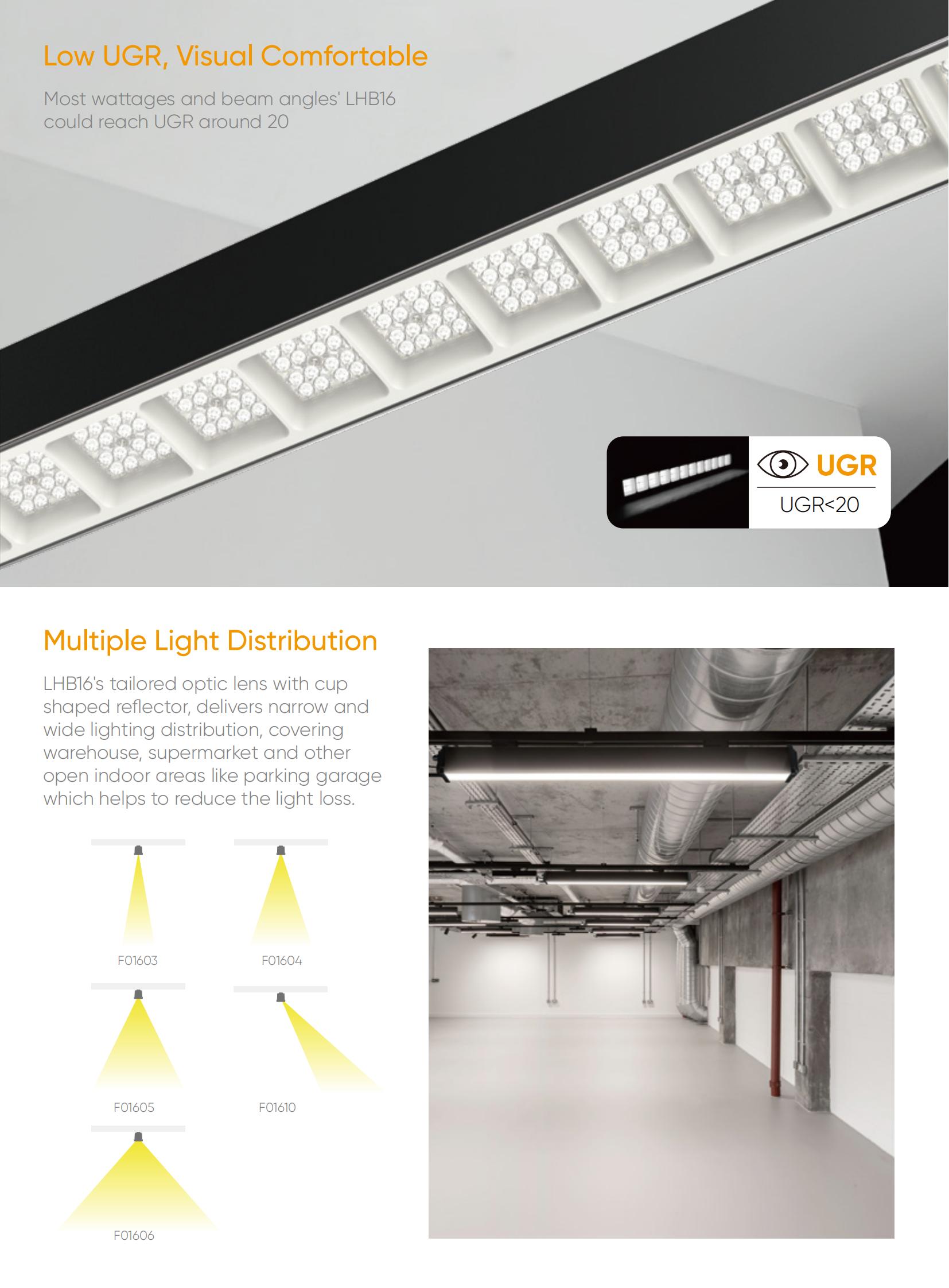

Beam AngleF01603, F01604, F01605, F01606, F01610

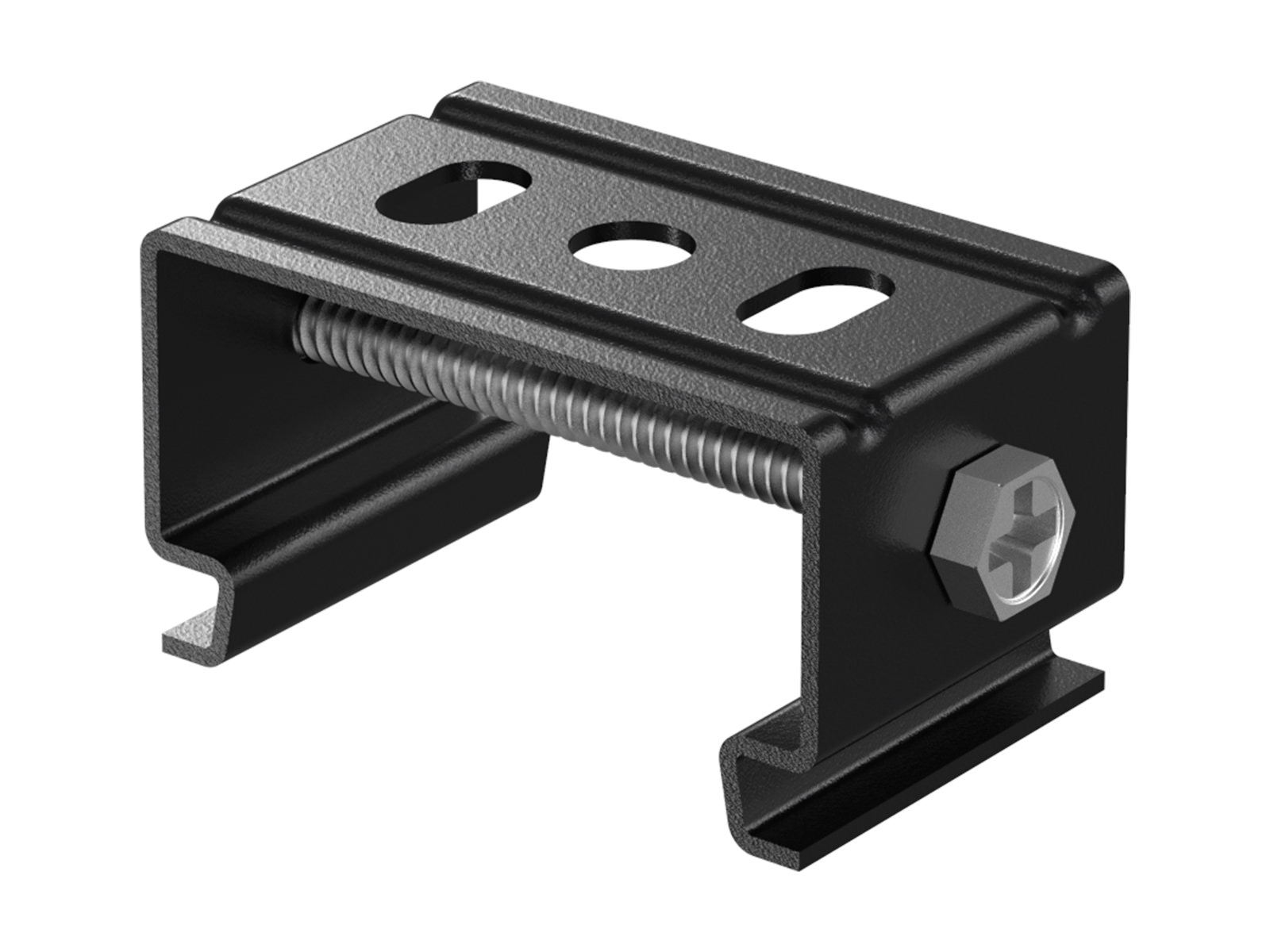

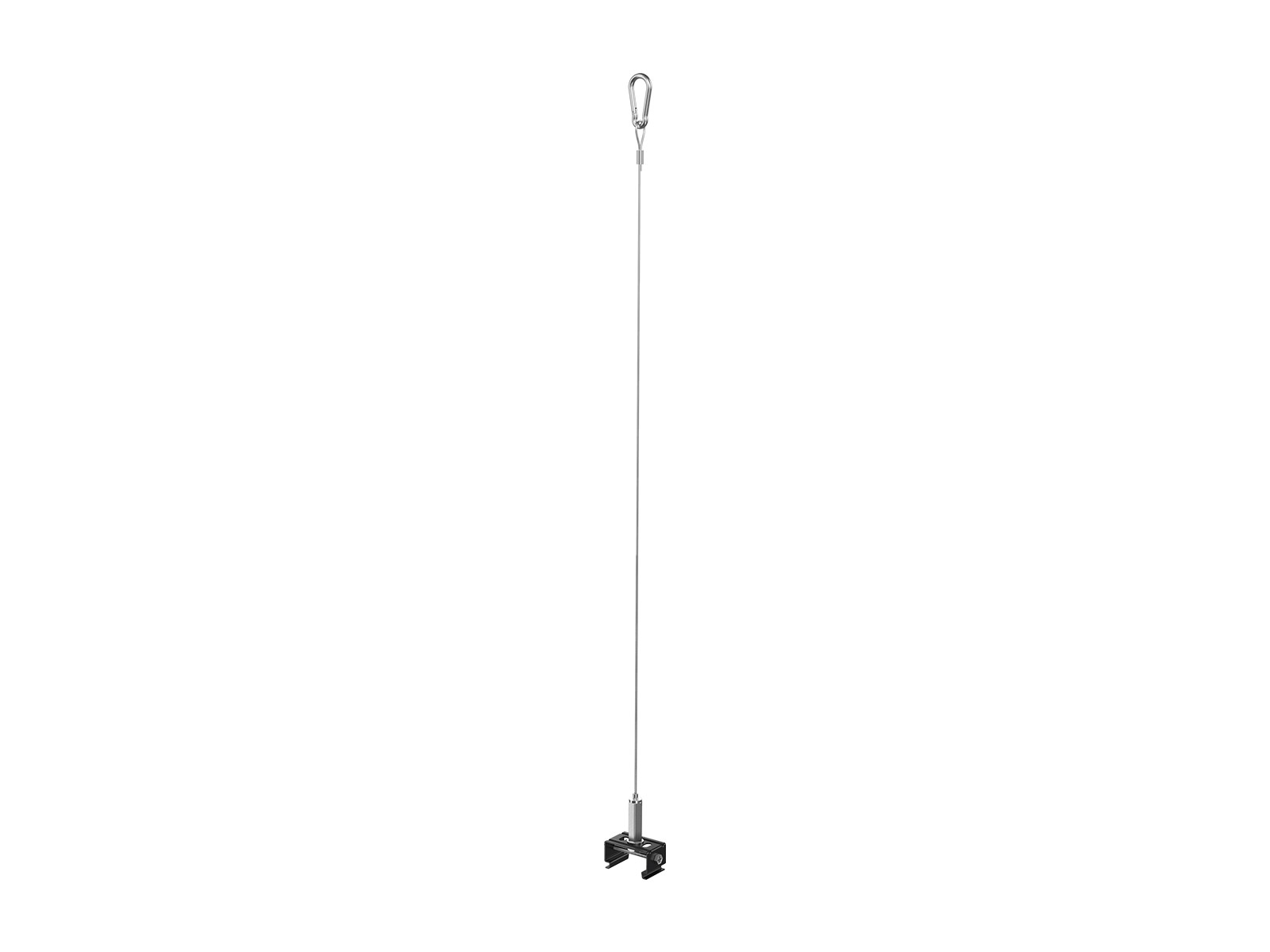

Mounting OptionWire Suspension, Surface
Warrantys5 Years
CertificationsCE, RoHS, SAA, EMC
