ST10 HiSmooth-X

ST10 HiSmooth-X

The product has been discontinued online. Please contact our sales representative for more information.

HiSmooth-X from 30W to 300W premium street light with a unique design for road lighting and parking lighting.

  • Smart structure, open the top cover by 45deg to detach it into two parts easily.
  • Various professional optics for optional.
  • Smart control, energy-saving.
  • Various mounting adaptors for different applications.
  • External vent avoids internal fogging and frosting.
  • Bubble level, accurate installation in one minute.

Applications

Specification

  • Series Code: ST10
  • Power: 30W, 50W, 70W, 90W, 120W, 150W, 180W, 240W, 300W
  • Efficacy: 145lm/W
  • Input Voltage: 100-240 VAC, 120-277VAC, 50 / 60 Hz
  • Power Factor: >0.95
  • CCT: 3000K, 4000K, 5000K
  • CRI(Ra): 80, 70
  • Control: DALI, Photocell, 1-10V, PWM, Timer
  • Corrosion Class: C4
  • IP Rating: IP66
  • IK Rating: IK08
  • Mounting Option: Side entry mounting, Post top mounting, Wall mounting, Corner mounting
  • Warranty: 5 Years
  • Surge Protection: 6kV line-line, 10kV line-earth
  • Operating Temperature: -30°C to + 50°C

Accessories

NEMA Socket
3pin/ 5pin /7pin are optional. Code: NS-A00-02(for 3pin) Code: NS-A00-03(for 5pin) Code: NS-A00-04(for 7pin)
Photocell Control
ON-OFF automatically according to day light. Code: PS-A00-01
Shorting Cap
Cover NEMA socket when it is not used. Code: NS-A00-01
Pole Mount Spigot
ADC12 materials, ±15°tilt adjustable, for dia.34/ 42/ 60/ 76mm pole. Code: SP-R03-01(for dia.34mm) Code: SP-R03-02(for dia.42mm) Code: SP-R03-03(for dia.60mm) Code: SP-R03-04(for dia.76mm)
Wall Mount Adaptor
Q235+SPCC materials with outdoor powder coating. Q235+SPCC materials with hot dip galvanizing. Code: SP-R03-05
T Shape Pole Mount Adaptor
Q235+SPCC with Akzo Powder Coating materials, for 100x100mm square pole. Code: SP-R03-07
T Shape Pole Mount Adaptor
Q235 materials, for dia.60/ 76mm pole Code: SP-R03-06(for dia.60mm) Code: SP-R03-08(for dia.76mm) Code: SP-R03-08a(for dia.90mm)
L Shape Pole Mount Adaptor
Q235+SPCC materials, for 100x100mm square pole. Code: SP-R03-10
L Shape Pole Mount Adaptor
Q235 materials, for dia.90mm pole Code: SP-R03-09(for dia.90mm) Code: SP-R03-09a(for dia.76mm) Code: SP-R19-01(for dia.60mm)
Corner Mount Adaptor
SPCC materials with outdoor powder coating. Code: SP-R19-02
Quad Adaptor
Q235 materials with outdoor powder coating, 90° 4 ways Code: SP-R03-15( for dia.90mm)
Triple Adaptor
Q235 materials, with outdoor powder coating ,90° 3 ways Code: SP-R03-14( for dia. 90mm)
Twin Adaptor
Q235 materials , 90° 2 ways Code: SP-R03-13(for dia 90mm pole)
Post Top Mount Adaptor
Q235 materials , 76mm to 60mm Adaptor Code: SP-R03-16(for dia 76mm pole)

Project Cases

ST10 HiSmooth X 00
ST10 HiSmooth X 01

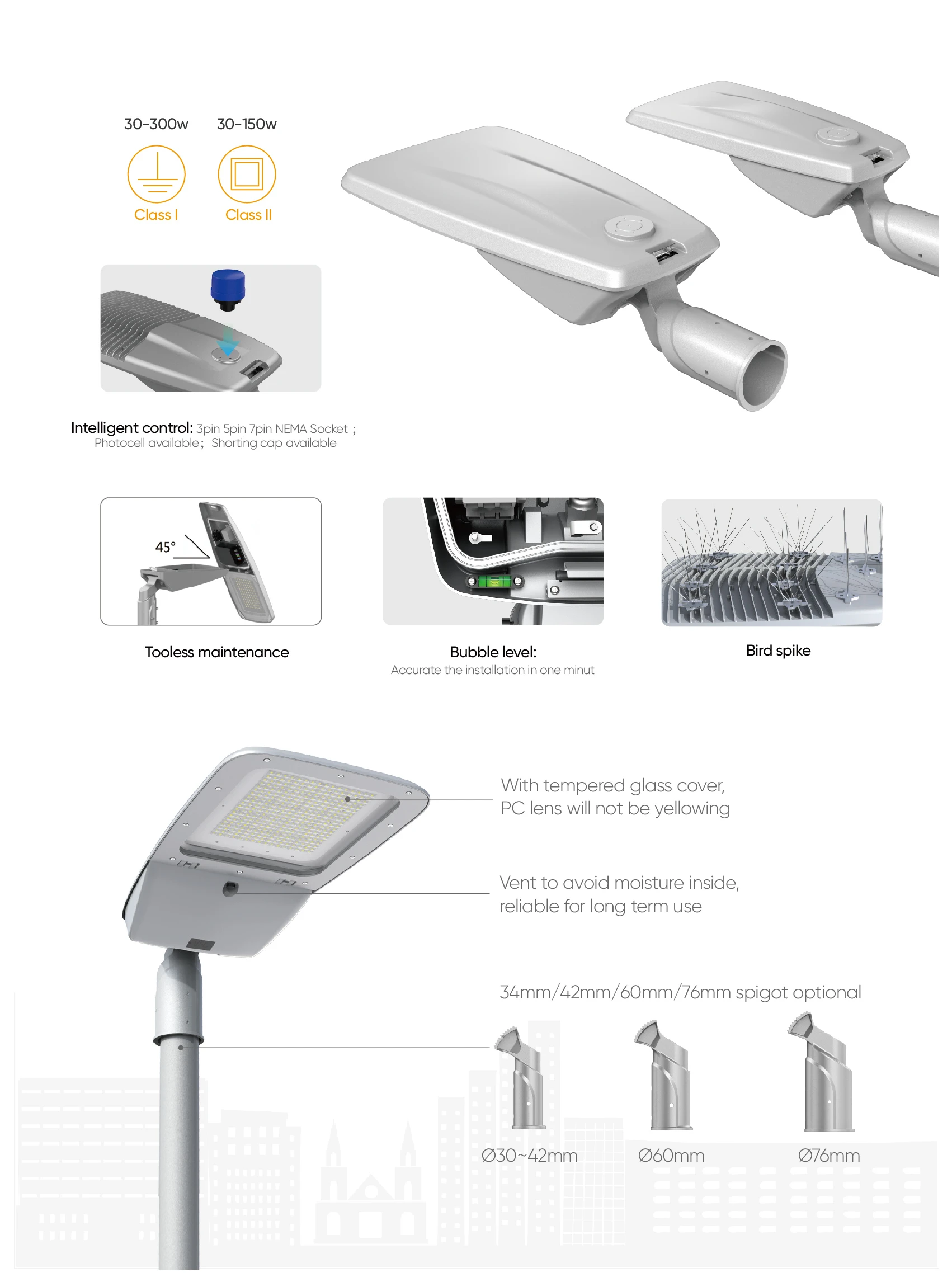

ST10 tool less maintenance and PC lens 3
