HiRack LED linear high bay is perfect lighting for aisles in warehouse. Asymmetric optic lens adapts to narrow aisle very well between high shelves. The rectangular light pattern perfectly matches with aisles, which can effectively reduce light loss.
| Series Code | LHB01, LHB10 |
|---|---|
| Power | 30W, 50W, 60W, 90W, 100W, 120W, 150W, 180W, 200W, 240W |
| Efficacy | 165lm/W, 135lm/W |
| Input Voltage | 100-240 VAC, 100-277VAC, 50 / 60 Hz |
| Power Factor | >0.92, >0.90 |
| Surge Protection | 2kV line-line, 4kV line-earth, 4kV line-line, 6kV line-earth |
| Control | Dimmable, DALI, Daylight Sensor, Microwave Sensor, PIR Sensor, Emergency, ZigBee Control, Wireless |
| IP Rating | IP65 |
| IK Rating | IK10 |
| CCT | 5000K, 4000K, 3000K |
| CRI | 80, 70 |
| Operating Temperature | -30°C to + 50°C |
| Beam Angle | L06401, L06402, L06403, L06404, L06405, L28201, L28202, L28203, L28204, L28205 |

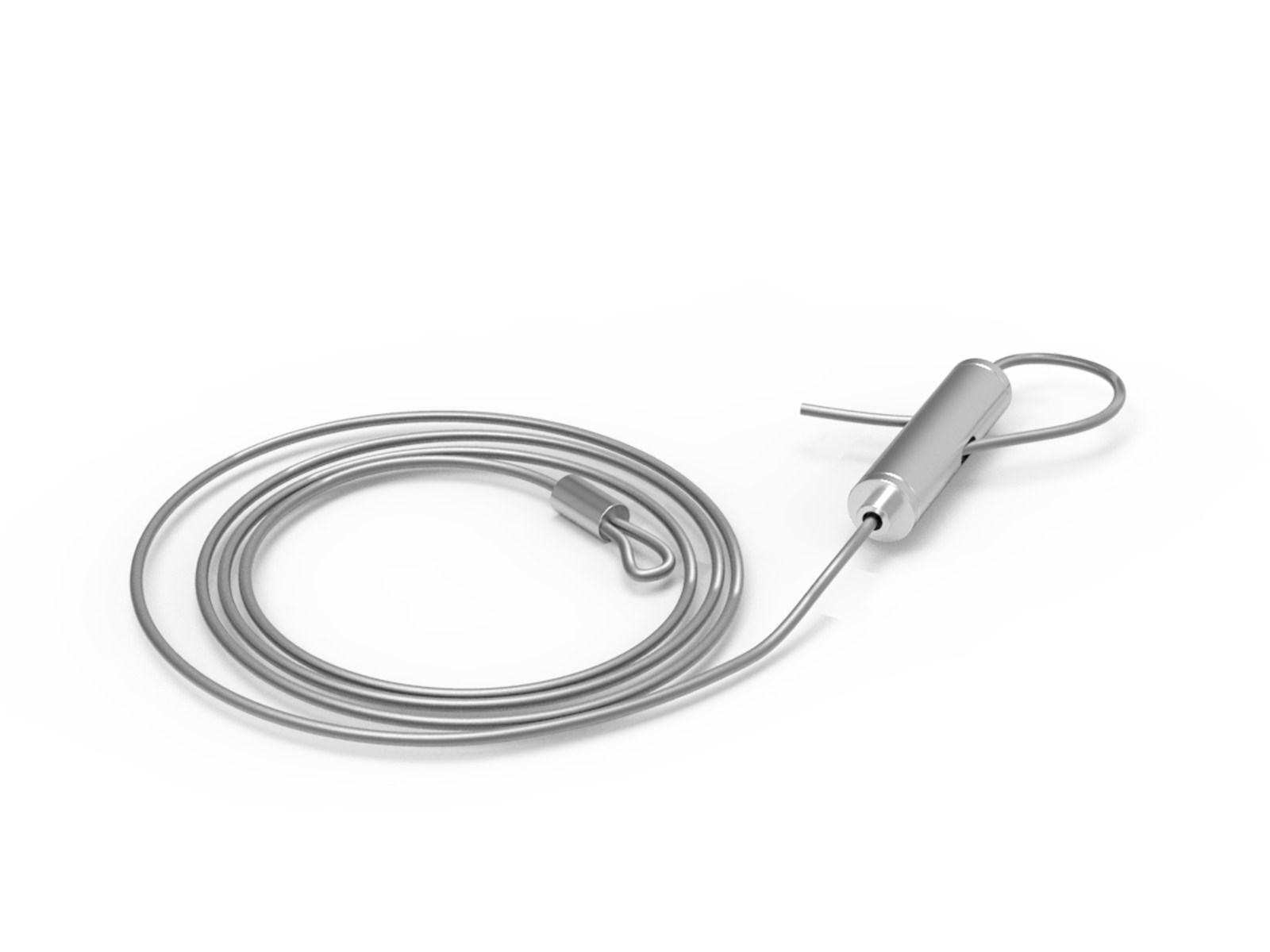

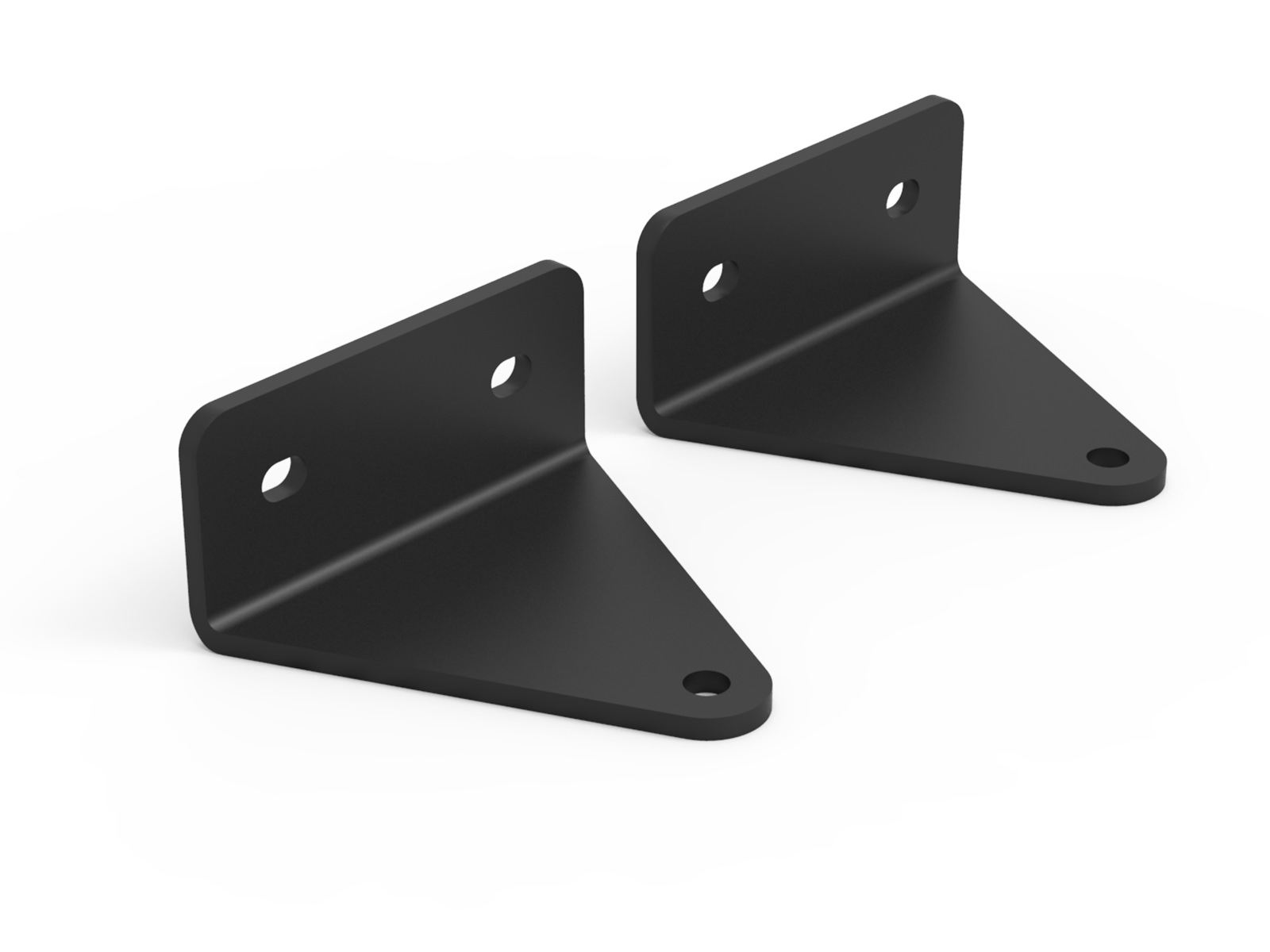

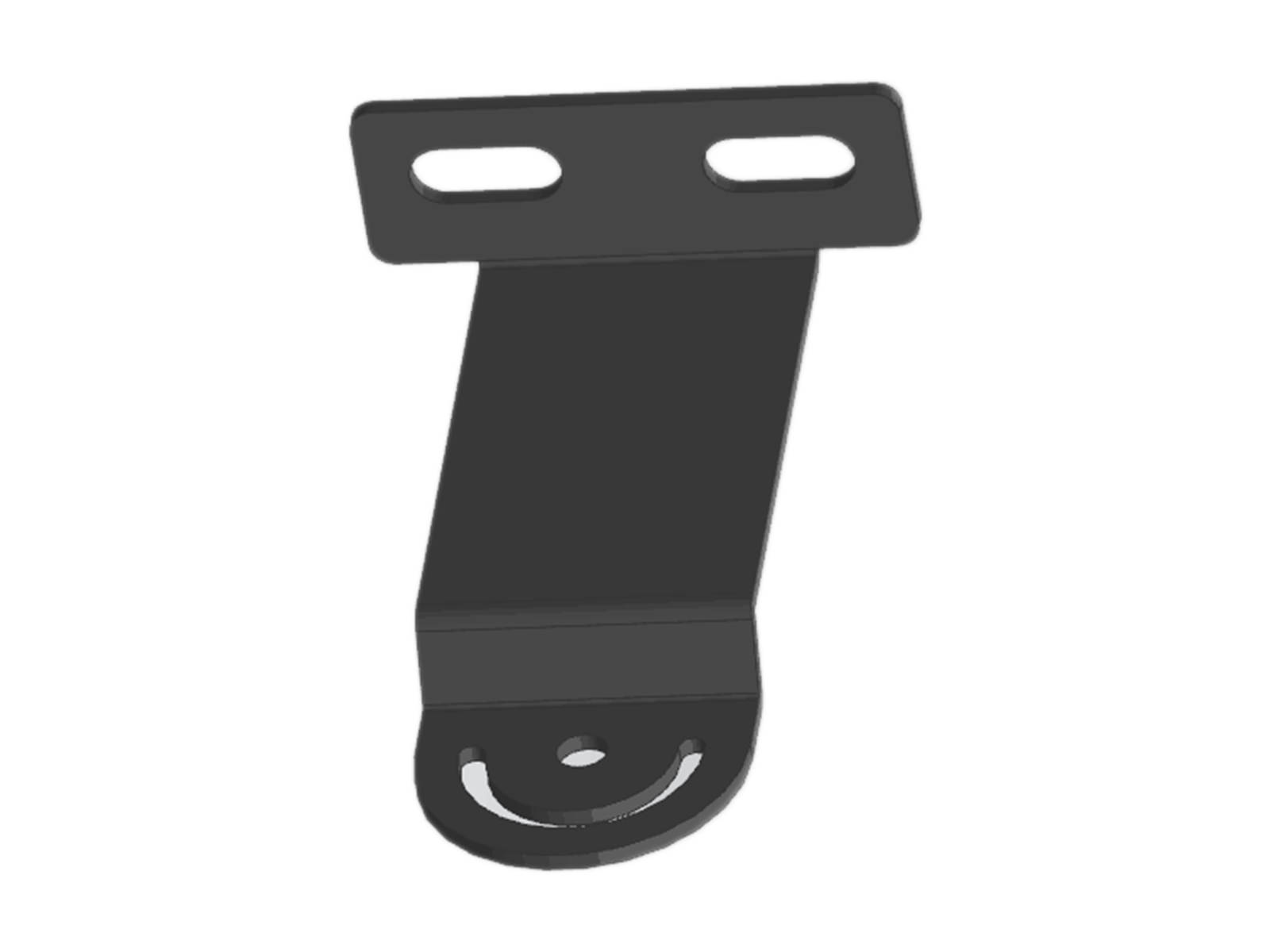

| Mounting Option | Wire Suspension, Ceiling Mounting |
| Warrantys | 5 Years |
