HB06 High Bay For Food Processing With Red Dot Design Award

HB06 High Bay For Food Processing With Red Dot Design Award

Winner of the Red Dot Award, HiClean Plus is a break through design in industrial lighting. The smooth housing is combined with aesthetic taste and dust-proof features. On the basis of highly efficient heat dissipation solution, our design concept is "UNIBODY", which leads the way in highbay lights.

  • Food Processing: NSF & IP66/IP69K & No Toxic chemicals & Smooth outline & Non-exposed stainless steel screws & No glass & Anti UV... etc.
  • UGR<19 with honeycomb diffuser available.
  • Full certificates: CE, ROHS, UL, DLC, SAA, EMC, LM79, D-mark, NSF HACCP
* AGC products are designed for global market. Please contact our sales team for certification details.
* Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
HB06 high bay 01
HB06 high bay 02
HB06 high bay 03
Series CodeHB06
Power100W, 120W, 150W, 200W
Efficacy150lm/W, 155lm/W
Input Voltage120-277Vac, 50 / 60 Hz
Power Factor>0.95
Surge Protection6kV line-line, 10kV line-earth
UGR level26
ControlDimmable, DALI, Daylight Sensor, Microwave Sensor, PIR Sensor, ZigBee Control, Wireless
IP RatingIP66
IK RatingIK08, IK10
CCT5000K, 4000K, 3000K
CRI80, 70
Operating Temperature-30°C to + 50°C
Beam AngleH00105, H00106, H00A09, H00B32, H00A02, H00B03, H00B04, H25201, H25202, H25203

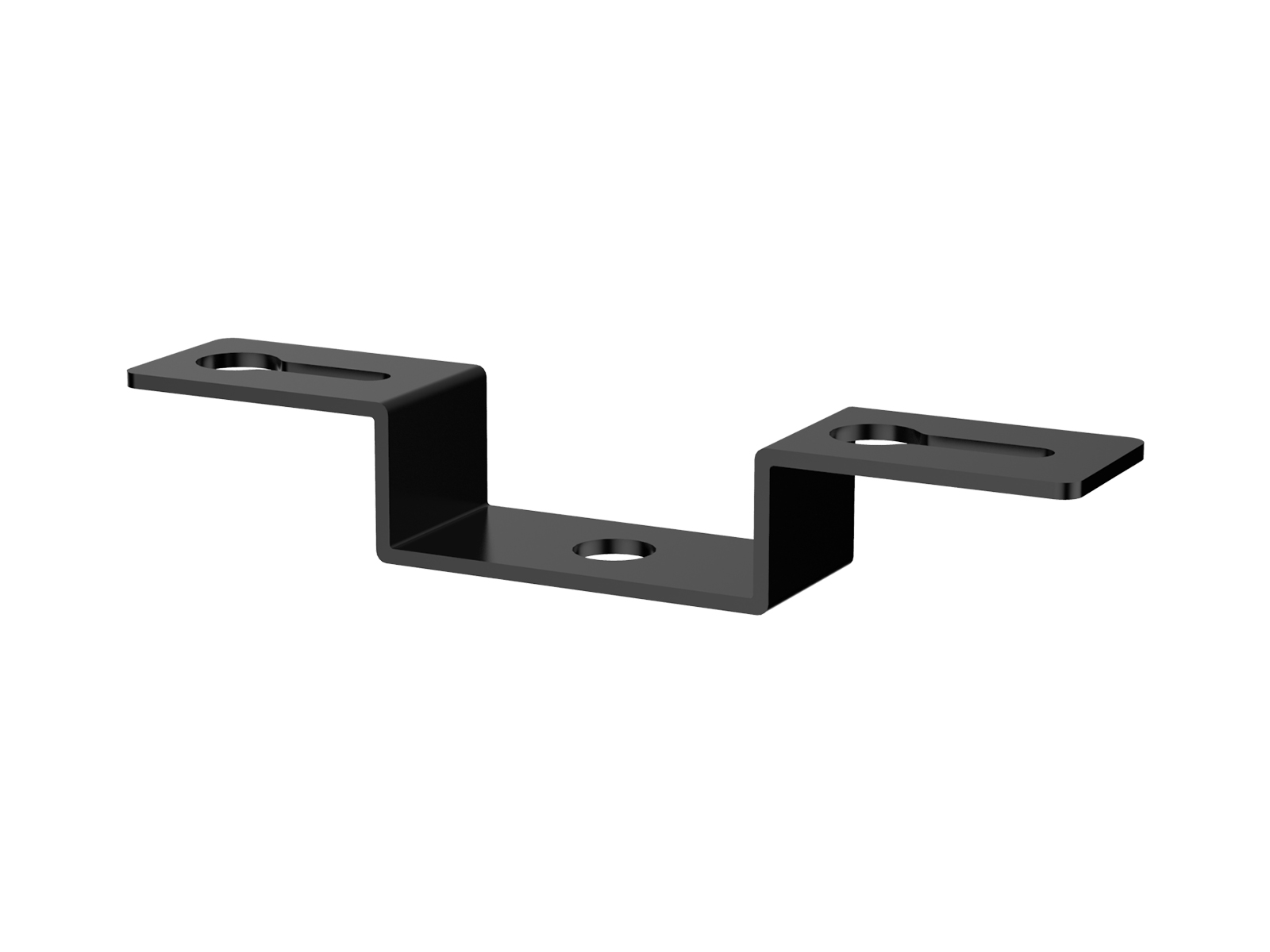

Mounting OptionLoop Hanging, Ceiling Mounting, Pipe Mounting
Warrantys5 Years
CertificationsCE, CB, RoHS, NSF, D-MARK, C-TICK, SAA, HACCP
