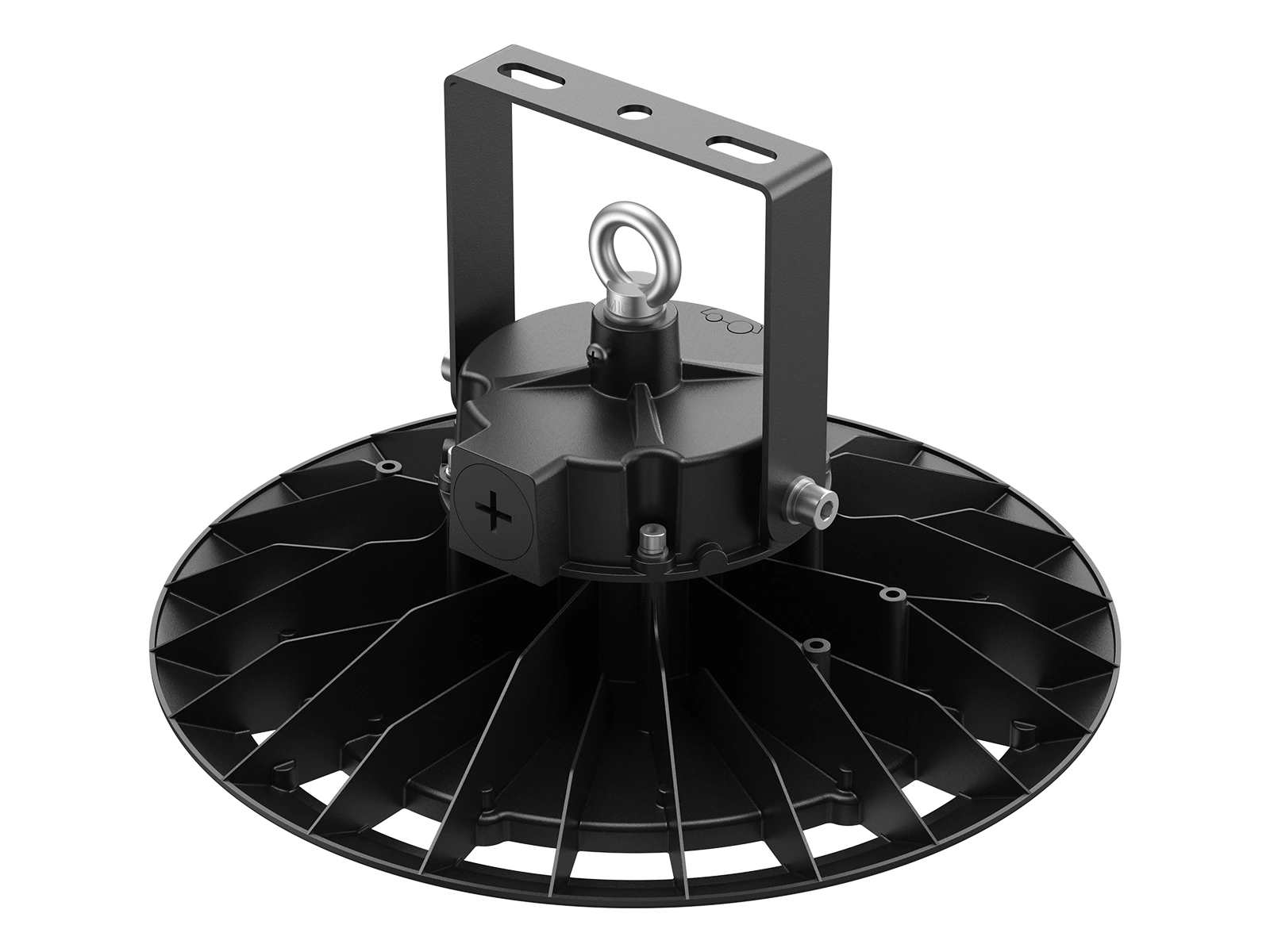

HB73 is an economical and compact design high bay light, with the optimized heat sink structure, the 4 power 100W/150W/200W/240W and 4 sizes compact design saves cost and freight, power selectable easy for stock and quick delivery, 160lm/W or 200lm/W different efficiency for optional for meet the different budget.
Applications: Indoor ceiling application, Warehouse, Factory, Industrial facility, Chemical Facilities, Exhibition centers, Shopping malls, Stadiums, Toll stations
| Series Code | HB73 |
|---|---|
| Power | 100W, 150W, 200W, 240W |
| Efficacy | 160lm/W, 200lm/W |
| Input Voltage | 120-277VAC, 50 / 60 Hz |
| Power Factor | >0.92 |
| Surge Protection | 6kV line-line, 6kV line-earth |
| UGR level | 28 |
| Control | Dimmable, DALI, Microwave motion sensor, PIR sensor, casambi |
| IP Rating | IP65 |
| IK Rating | IK08 |
| CCT | 3000K, 4000K, 5000K |
| CRI | 70, 80 |
| Operating Temperature | -30°C to + 50°C |
| Beam Angle | H00213, H00214, H00215, H00216, H00217, H00218, H00219, H00220, H00221 |
| Mounting Option | Loop Hanging, Ceiling Mounting |
| Warrantys | 5 Years |
