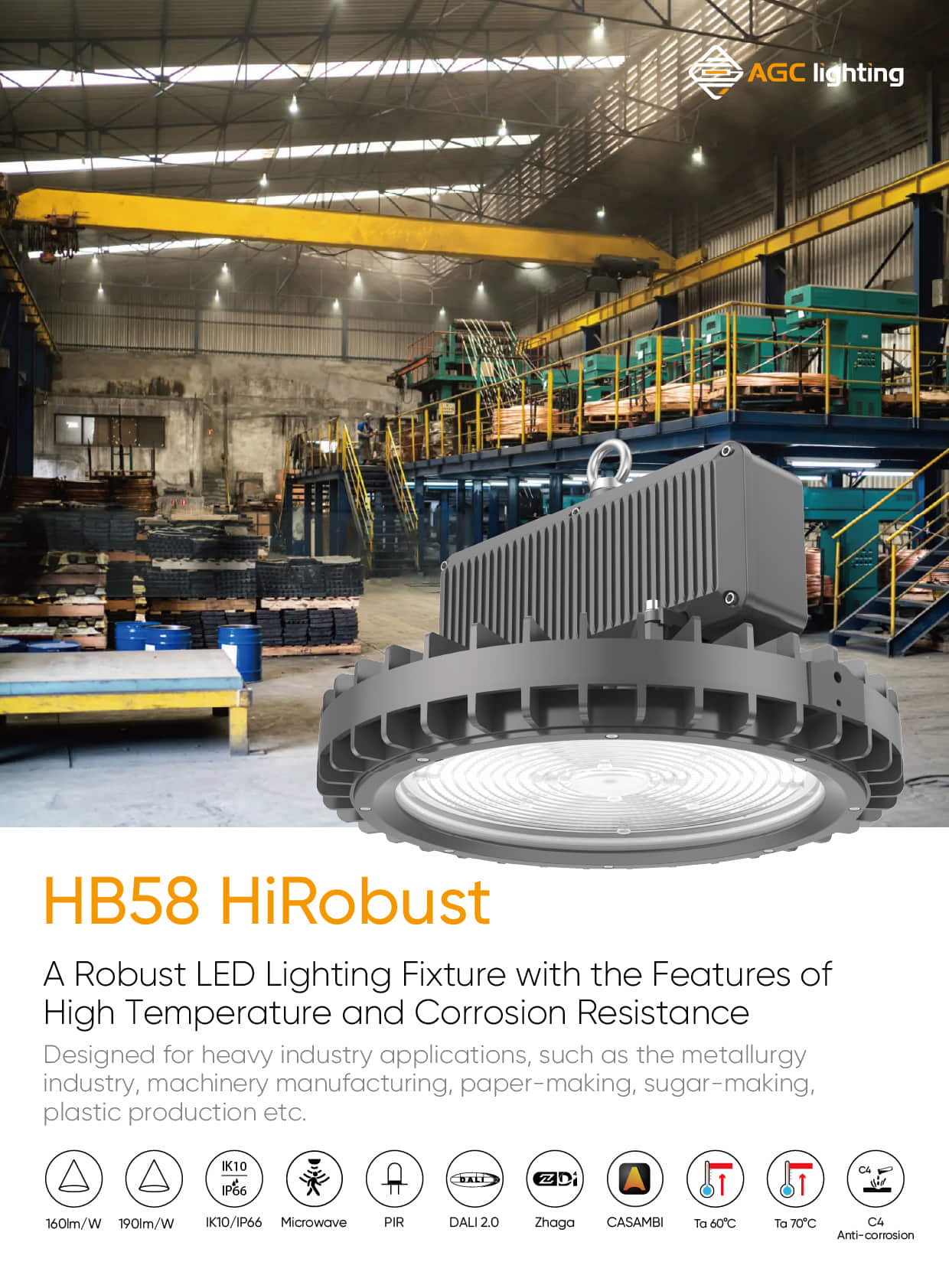

HB58 is specifically designed for high-temperature environments of up to 70°C.

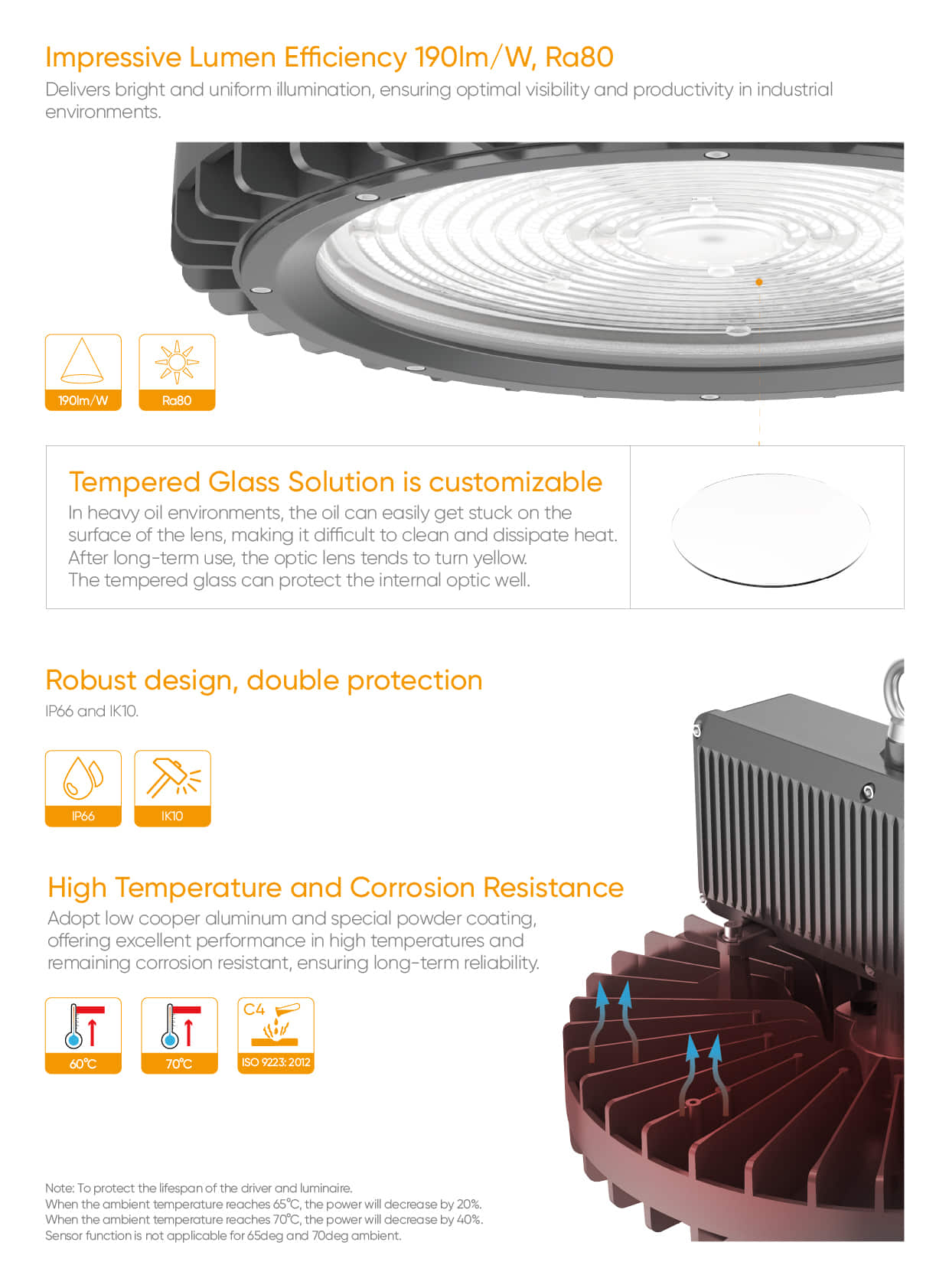

With a high luminous efficacy up to 180 lm/W, it offers excellent energy efficiency. The specially engineered heat sink effectively dissipates heat, helping to maintain performance and extend the fixture's lifespan. IP66 and IK08 ratings provide strong protection against dust, water, and impact. Additionally, 0-10V dimming is available to support the greater energy savings. It is ideal for applications such as steel mills, processing facilities, and power plants.
| Series Code | HB58 |
|---|---|
| Power | 200W |
| Efficacy | 160lm/W, 180lm/W |
| Input Voltage | 120-240 VAC, 50 / 60 Hz |
| Power Factor | >0.92 |
| Surge Protection | 6kV line-line, 10kV line-earth |

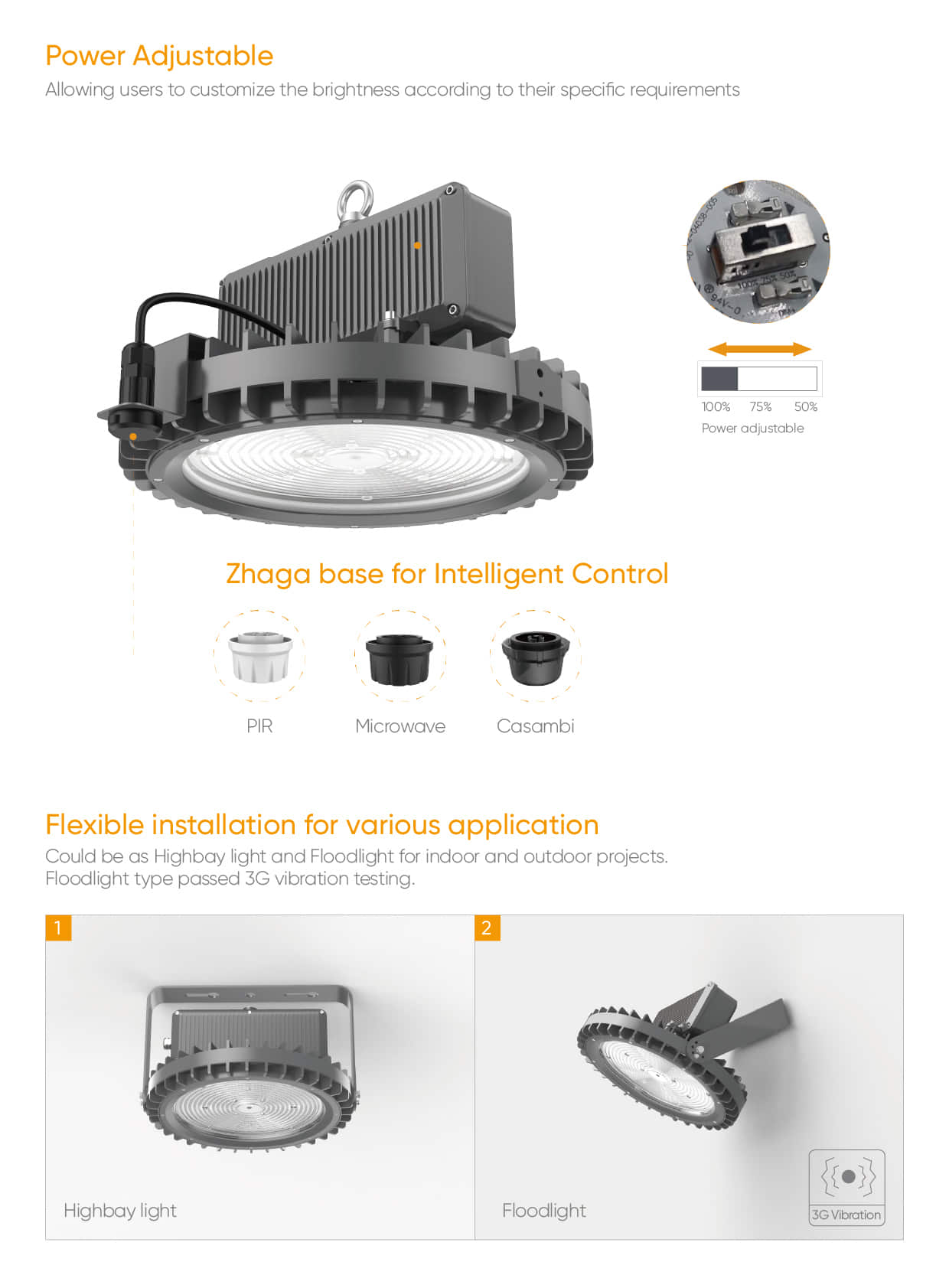

| Control | Microwave Sensor, PIR Sensor, Casambi, DALI, Zhaga Socket |
| Corrosion Class | C4 |
| IP Rating | IP66 |
| IK Rating | IK10 |
| CCT | 4000K, 5000K |
| CRI(Ra) | 70, 80 |
| Operating Temperature | -30°C to + 70°C |
| Mounting Option | Loop Hanging, Ceiling Mounting, Bracket Mounting |
| Warranty | 5 Years |
