Industrial Indoor & Outdoor Lighting

HB42 100-200W

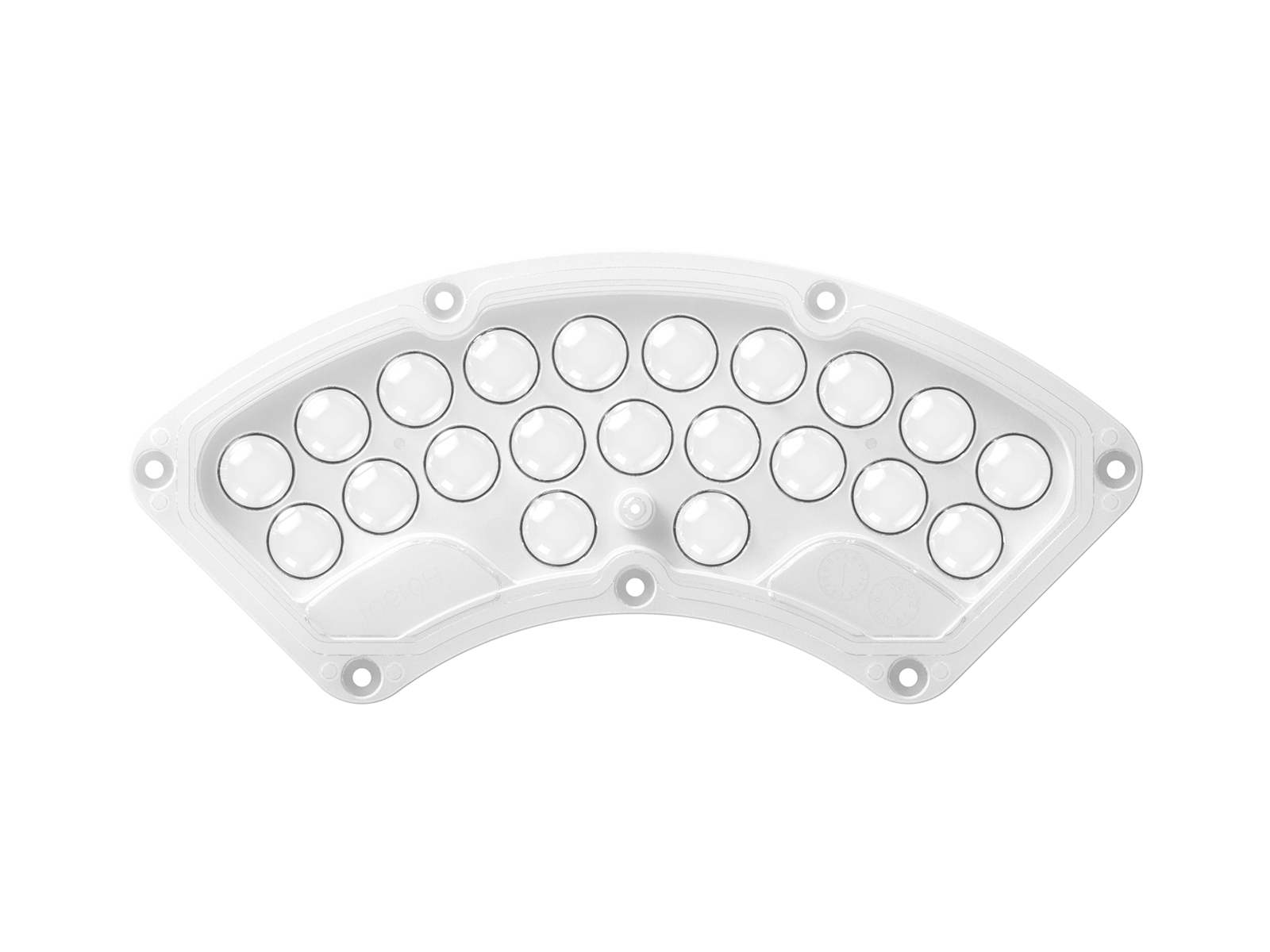

With the breakthrough multiple-LED-in-one lens design, VENUS high bay provides a high efficacy of up to 170lm/W, one-to-one replacement of 600W HID lamps, while lowering the glare to UGR<19. The fixture passed the DIN 18032-3 and DIN 57710-13 Sports hall ball tests and is engineered with durable materials, offering higher impact resistance than normal fixtures.

  • Gorgeous design.
  • High efficacy up to 170lm/W @Ra80.
  • Professional optic control provides UGR<19 & creates a comfortable visual experience.
  • CCT Field selectable and power selectable are optional; save your inventory.
  • Smooth housing design, easy to clean.
  • φ400MM large heat sink with hollow design achieves superior thermal management
cct selectable
power selectable
ip66
ik09
visual comfort
zhaga
dali-2
casambi
sustainable
din-57710-13

Specification

  • Series Code: HB42
  • Power: 100W, 120W, 150W, 200W
  • Efficacy: 170lm/W
  • Input Voltage: 100-240 VAC, 50 / 60 Hz
  • Power Factor: >0.93
  • UGR Level: 19
  • CCT: 3000K, 4000K, 5000K
  • CRI(Ra): 70, 80
  • Control: DALI, Daylight Sensor, Microwave Sensor, PIR Sensor
  • IP Rating: IP65
  • IK Rating: IK09

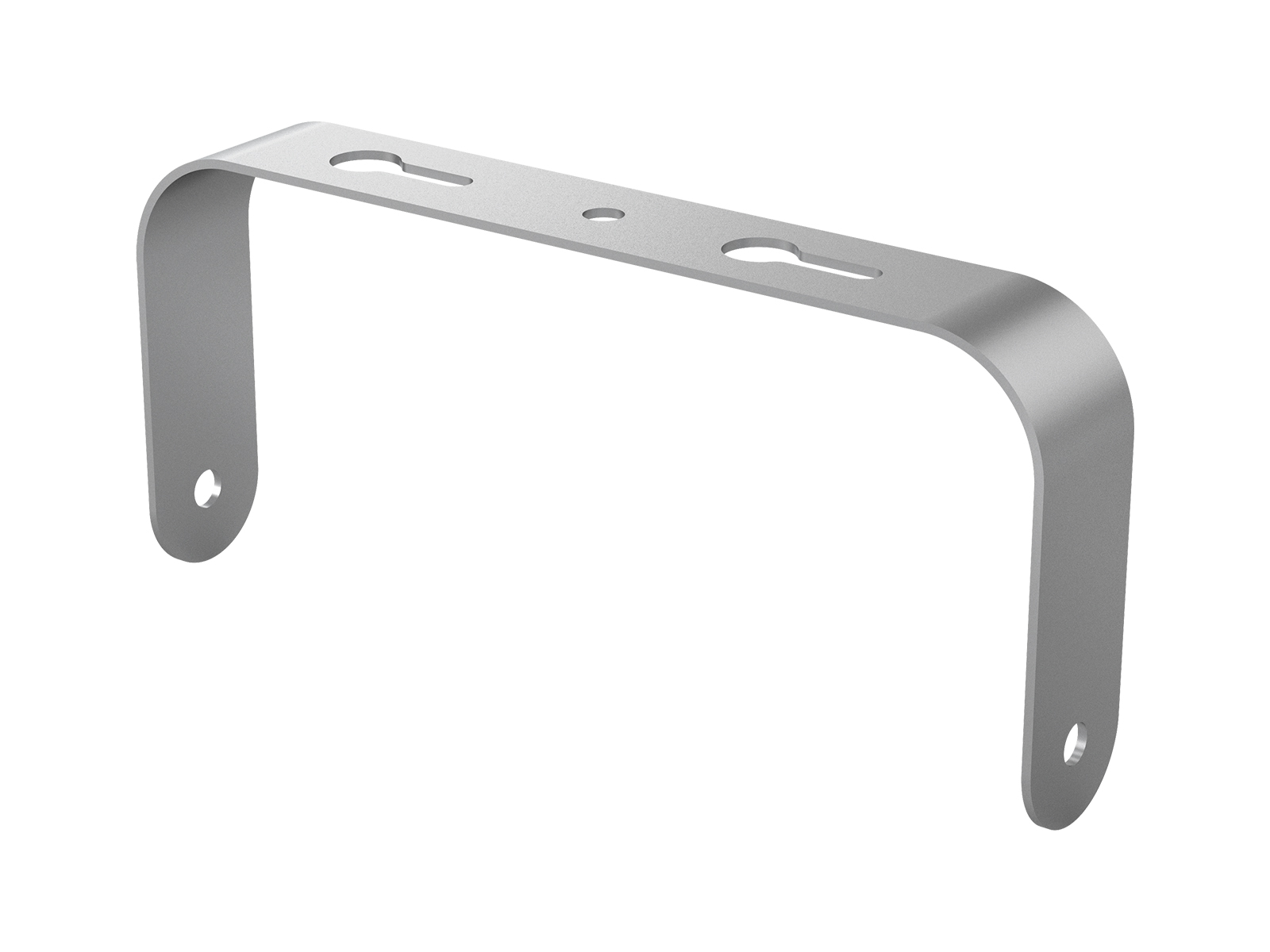

  • Mounting Option: Loop Hanging, Ceiling Mounting
  • Warranty: 5 Years
  • Surge Protection: 10kV line-earth, 6kV line-line
  • Operating Temperature: -30°C to + 50°C
HB42 1
HB42 2
HB42 3
