HB28 E-legend
The product has been discontinued online. Please contact our sales representative for more information.
E-Legend is a cost-effective high bay light with a combination of high performance, offering 130lm/W, 160lm/W, and 190lm/W super high lumen output version. Two size heat sinks support 100W 120W and 150W 200W separately. Its compact housing with lightweight helps much to save shipping cost and labor cost. Absolutely, E-Legend with competitive price is your best choice for the wholesale market.
- Different light system efficiencies to choose from 190lm/W, 160lm/W, and 130lm/W
- 100W-200W
- Cost-effective solution
- IP65 & IK08

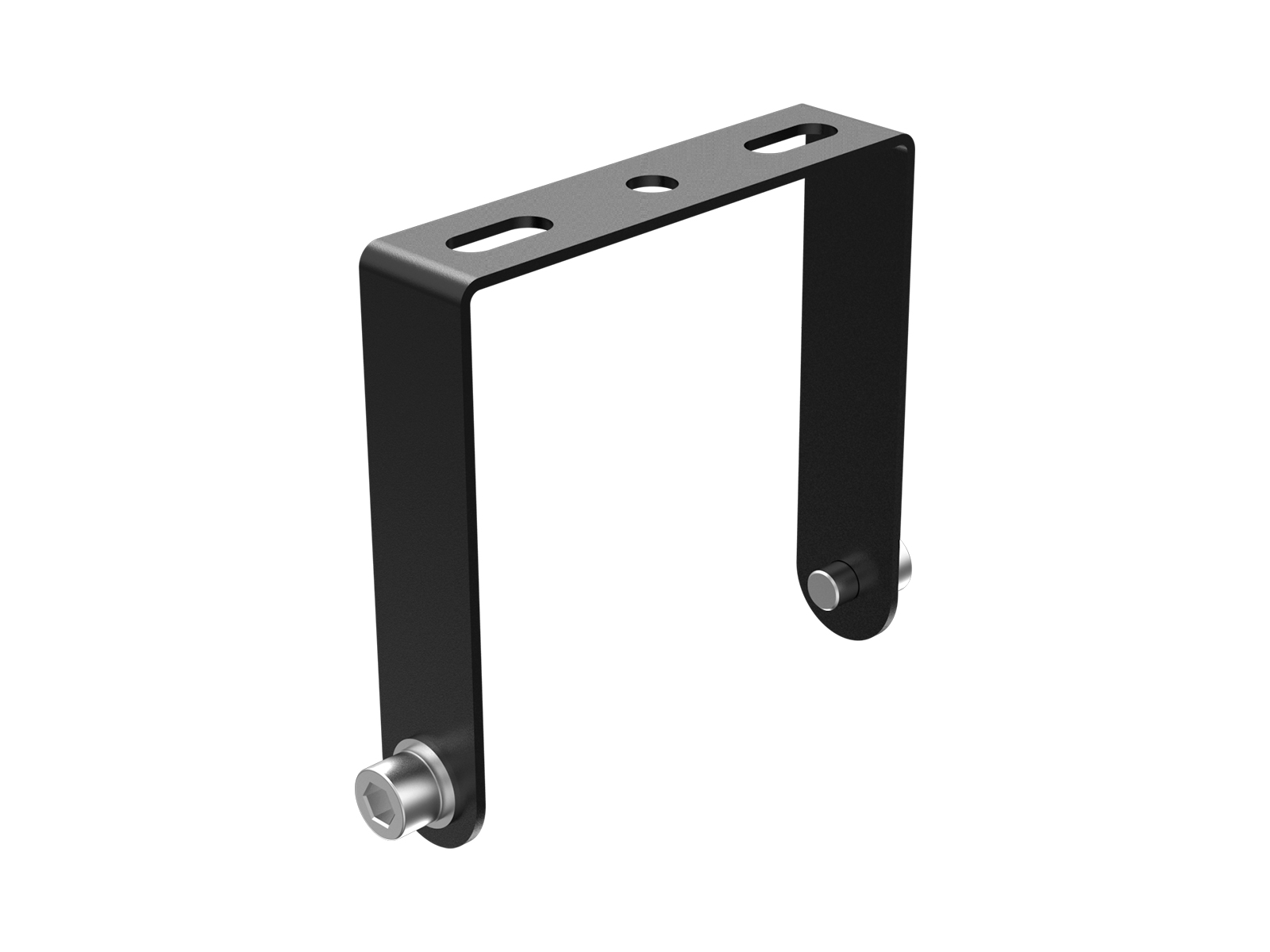

- Mounting options: Eye-bolt, ceiling mount/adjustable bracket.
- More compact size with light weight ensures lower shipping costs and fast installation.

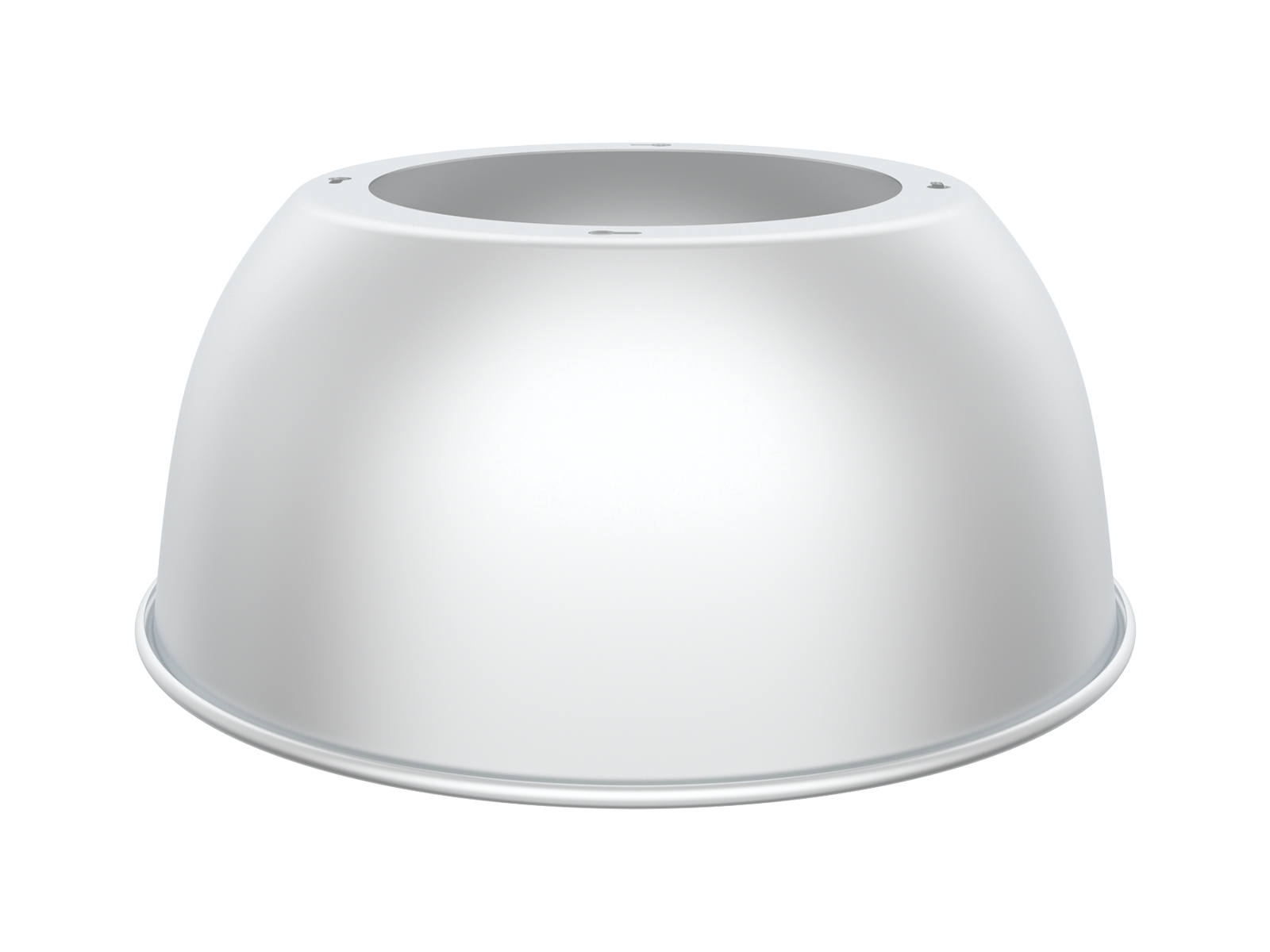

- Aluminum and PC diffusers are available
- Microwave sensor is optional
Applications
Specification
- Series Code: HB28
- Power: 100W, 120W, 150W, 200W
- Efficacy: 130lm/W
- Input Voltage: 220-240VAC, 100-277VAC, 50 / 60 Hz
- Power Factor: >0.92
- UGR Level: 26
- CCT: 5000K, 4000K, 3000K
- CRI(Ra): 80, 70
- Control: Dimmable, DALI, Daylight Sensor, Microwave Sensor, PIR Sensor, ZigBee Control, Wireless
- IP Rating: IP65
- IK Rating: IK08
- Mounting Option: Loop Hanging, Ceiling Mounting
- Warranty: 5 Years
- Surge Protection: 4kV line-line, 4kV line-earth
- Operating Temperature: -30°C to + 45°C
