HB25 HiHot 190lm/W LED Highbay with Plug-and-Play Sensor

HB25 HiHot 190lm/W LED Highbay with Plug-and-Play Sensor

HiHot supports 190lm/W high lumen output and various beam angle ( 60° 90° 120°), perfect for high mounting application. The plug-and-play sensor gets more energy saving. Superior heat sink ensures it can be used at 65℃ working environment. Importantly, 10 years warranty version is workable between -30~+50℃ working ambient.

  • Plug and play sensor.
  • Beam angle & Power selectable solution optional.
  • Rack Optics, Dotted PC Lens and Strip Lens are available.
  • PC and ALU reflector are optional.
  • Vertical Philips driver version offers:
    10 years warranty based on ambient temperature < 50 deg.
    High temperature 65℃ with 5 years warranty
* AGC products are designed for global market. Please contact our sales team for certification details.
* Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
HB25 190LPW smart control high bay
Series CodeHB25
Power100W, 120W, 150W, 200W, 240W, 300W
Efficacy140lm/W, 150lm/W, 190lm/W
Input Voltage100-240 VAC, 50 / 60 Hz
Power Factor>0.92
Surge Protection4kV line-line, 6kV line-earth, 2kV line-line, 4kV line-earth
UGR level25
ControlDimmable, DALI, Microwave Sensor, ZigBee Control, Wireless, Non-Dimmable
IP RatingIP65
IK RatingIK08
CCT5000K, 4000K, 3000K
CRI80, 70
Operating Temperature-30°C to + 50°C
Beam AngleH55601, H55602, H00108, H00111, H00115, H11401, H00121

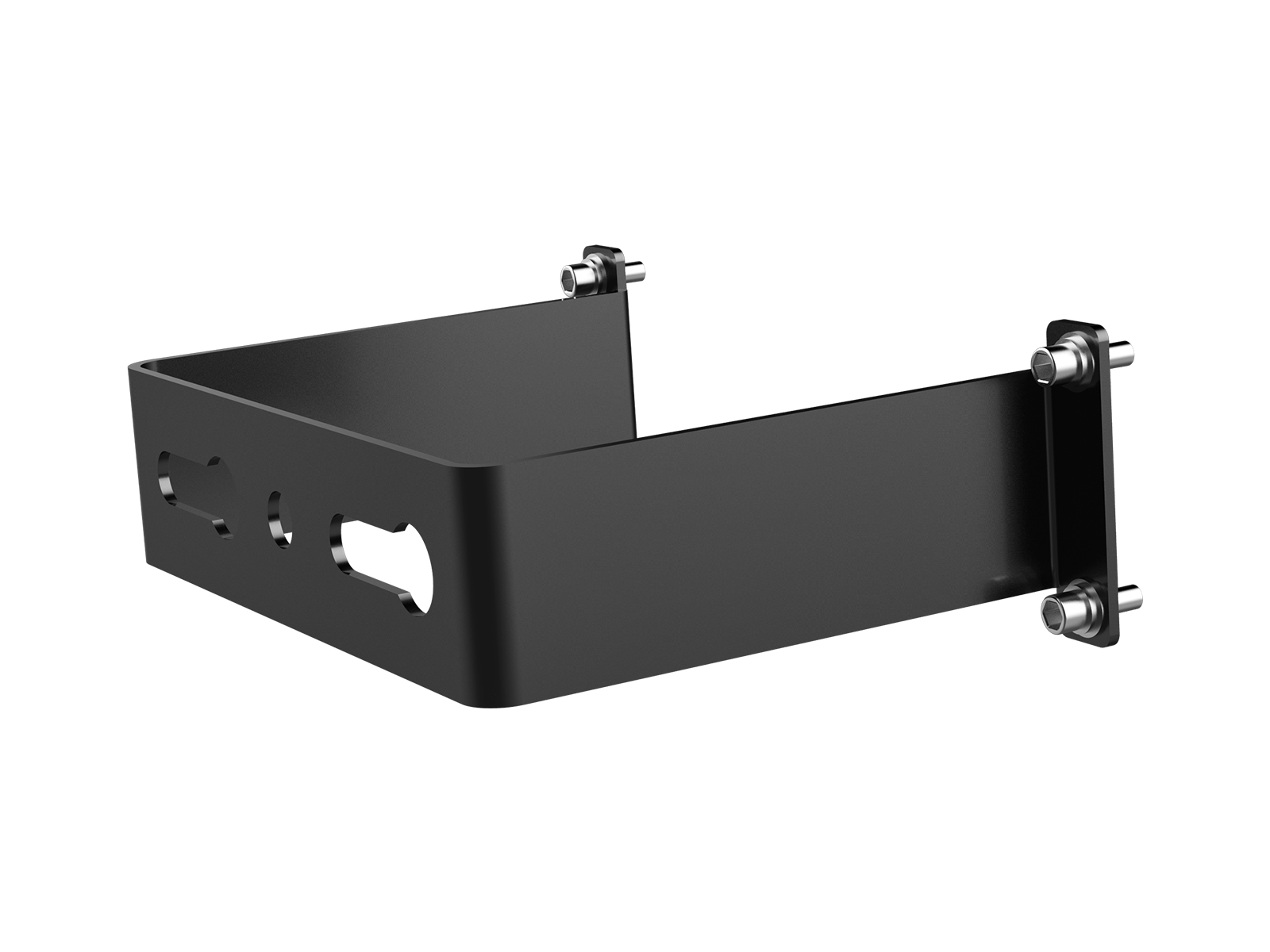

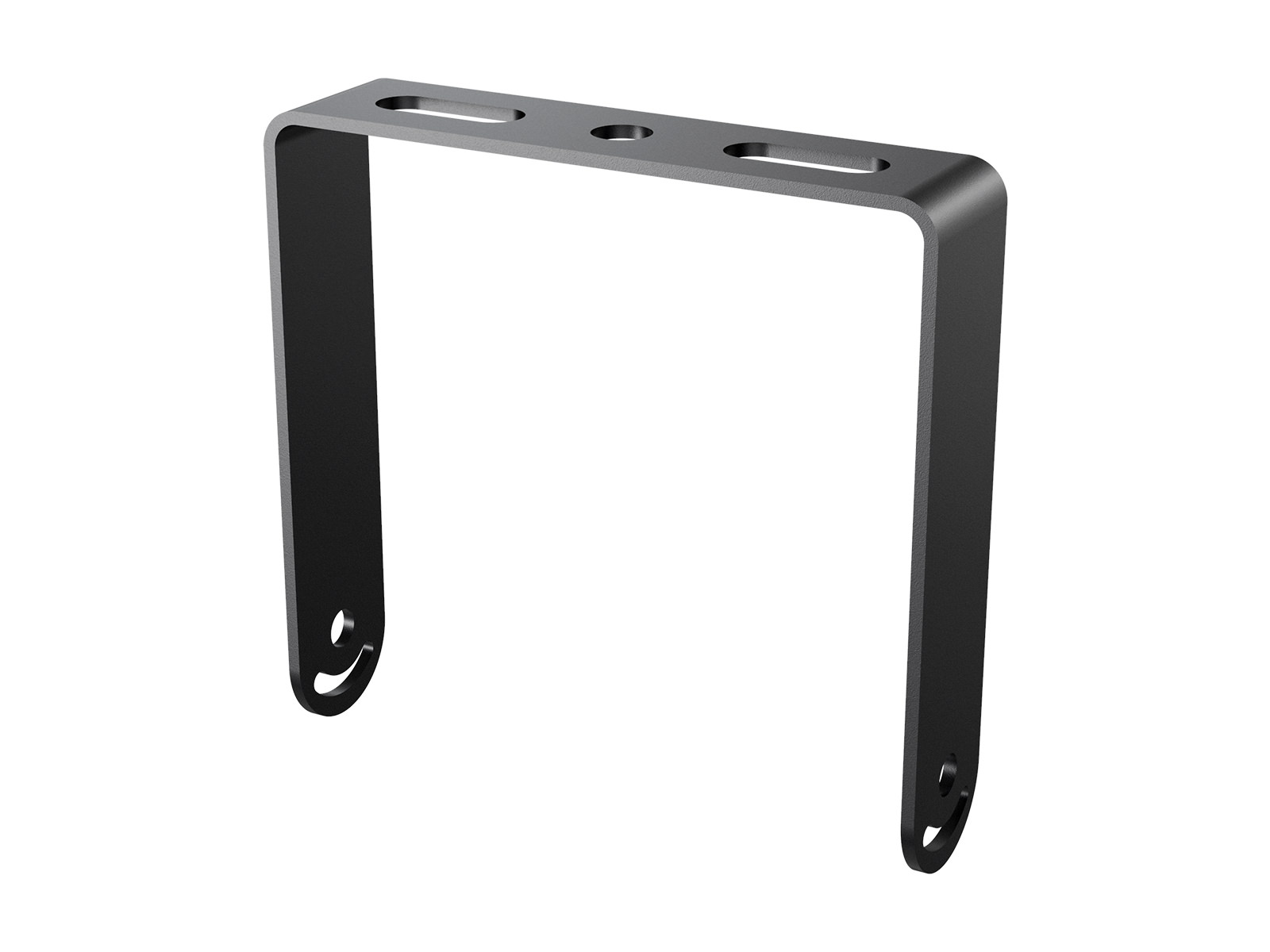

Mounting OptionLoop Hanging, Ceiling Mounting
Warrantys5 Years, 10 Years
CertificationsENEC, CE, SAA, C-TICK, CB, D-MARK, RoHS
