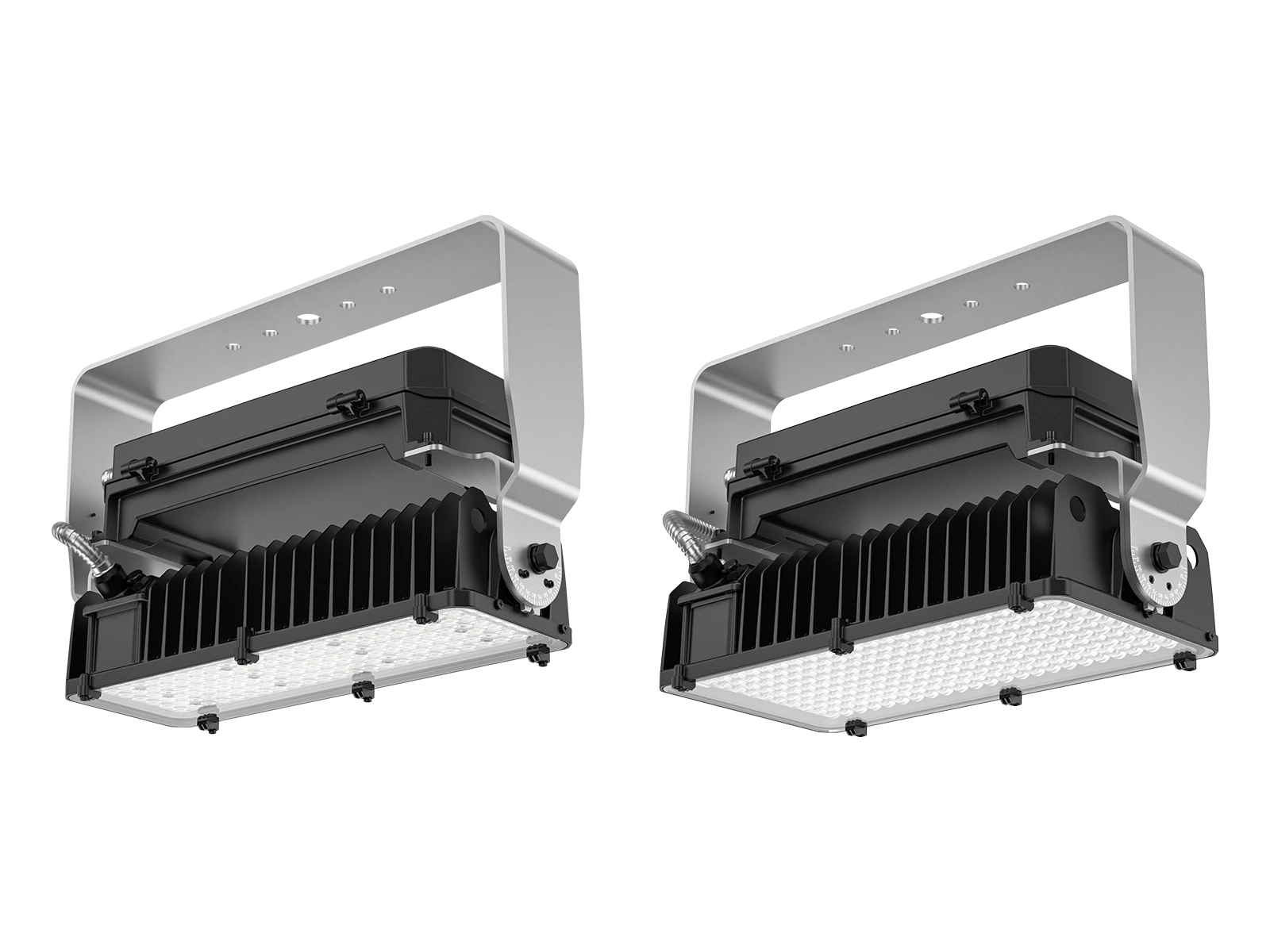

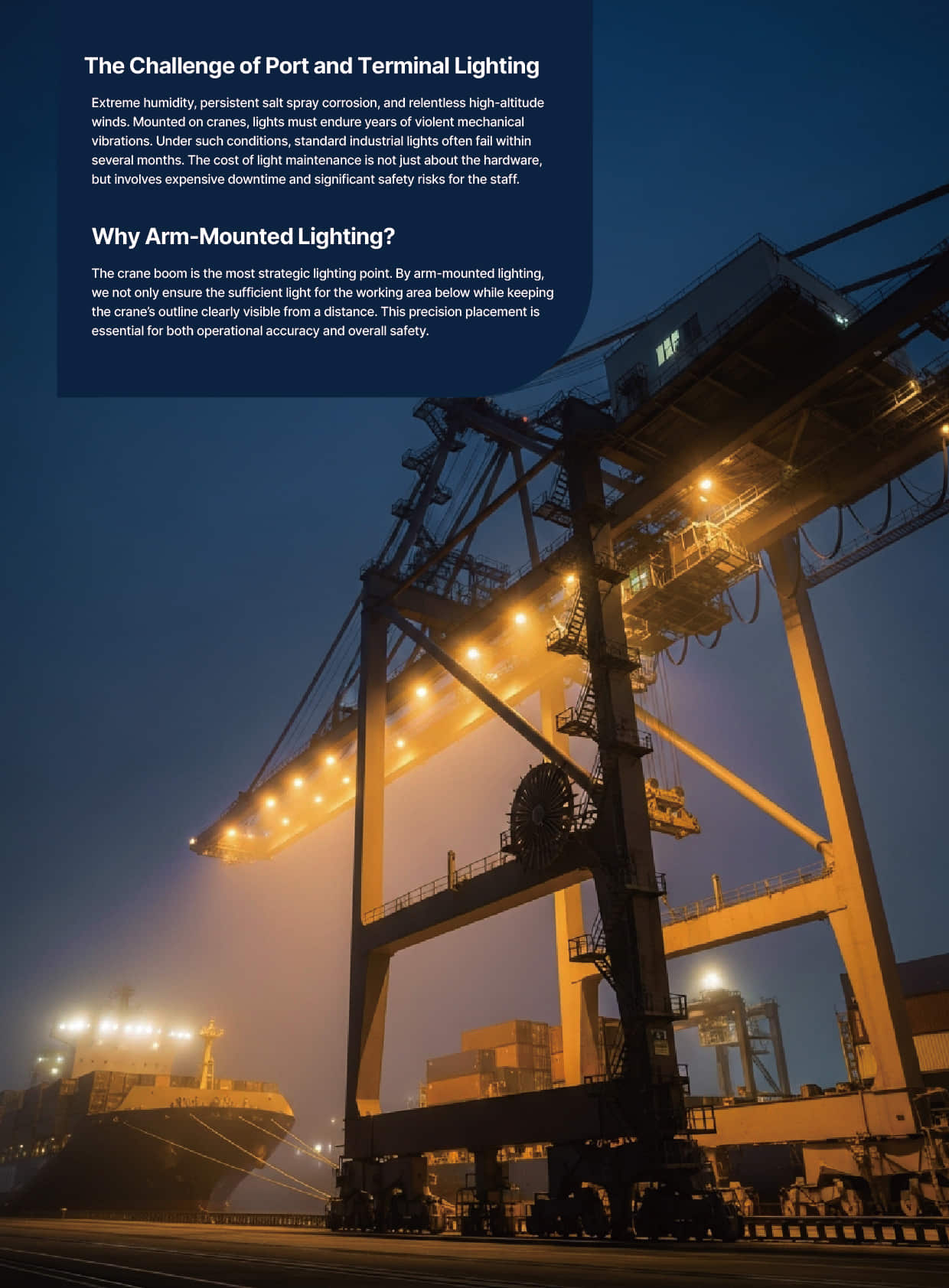

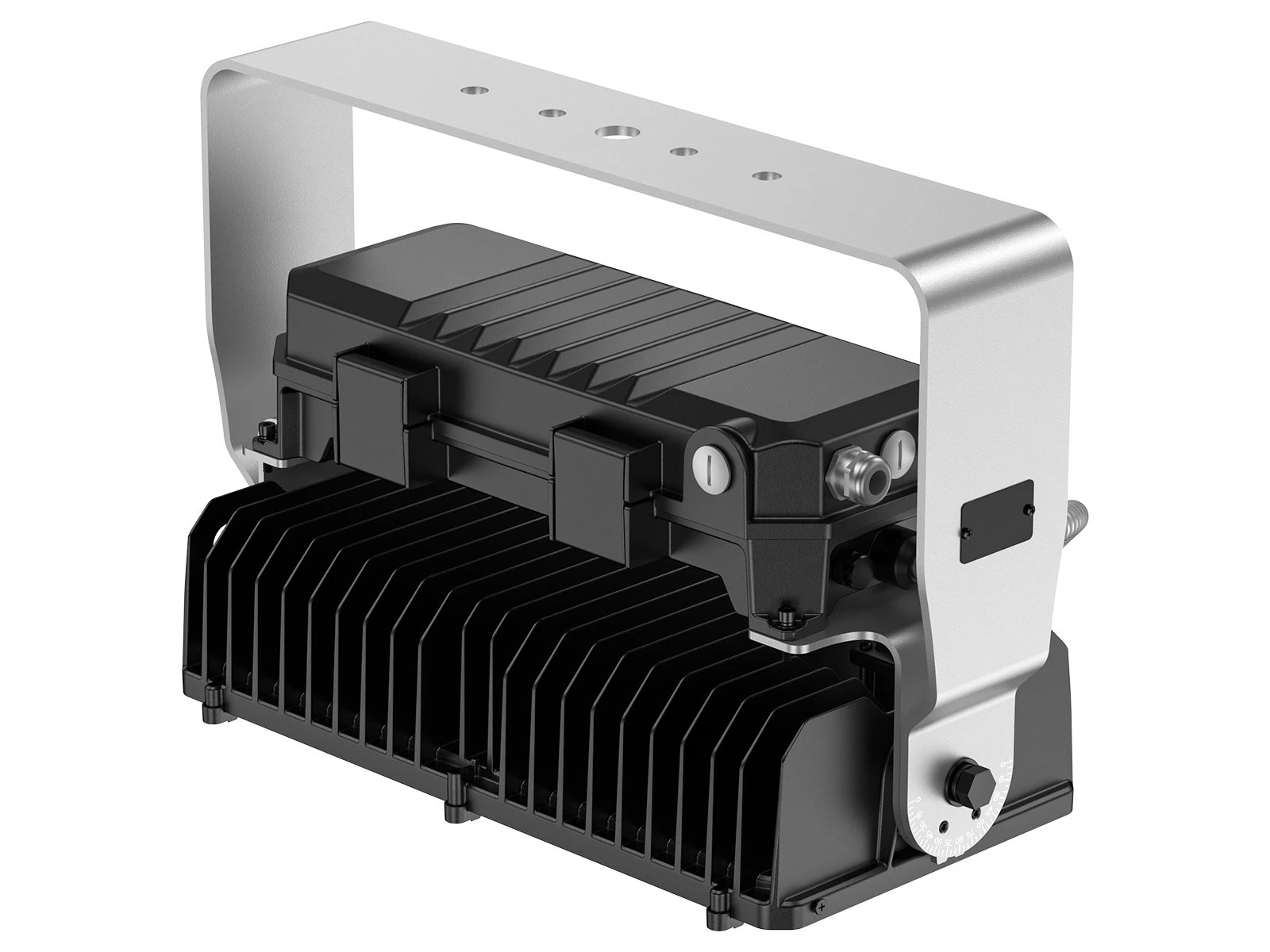

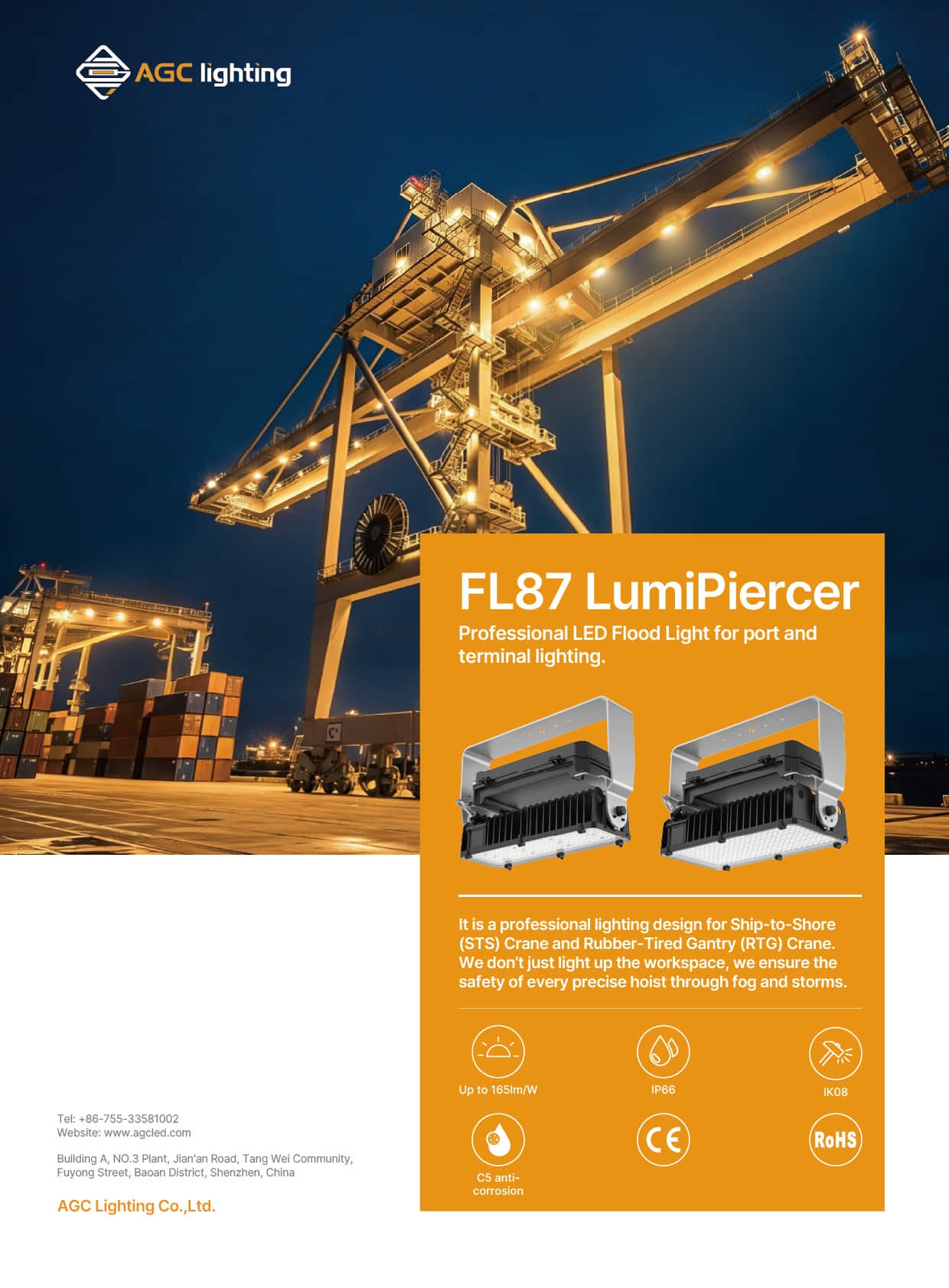

LumiPiercer is a professional LED floodlight designed for port and terminal lighting. Narrow beam angles are optimized for Ship-to-Shore (STS) cranes, while the wide beam angle suits Rubber-Tired Gantry (RTG) cranes.

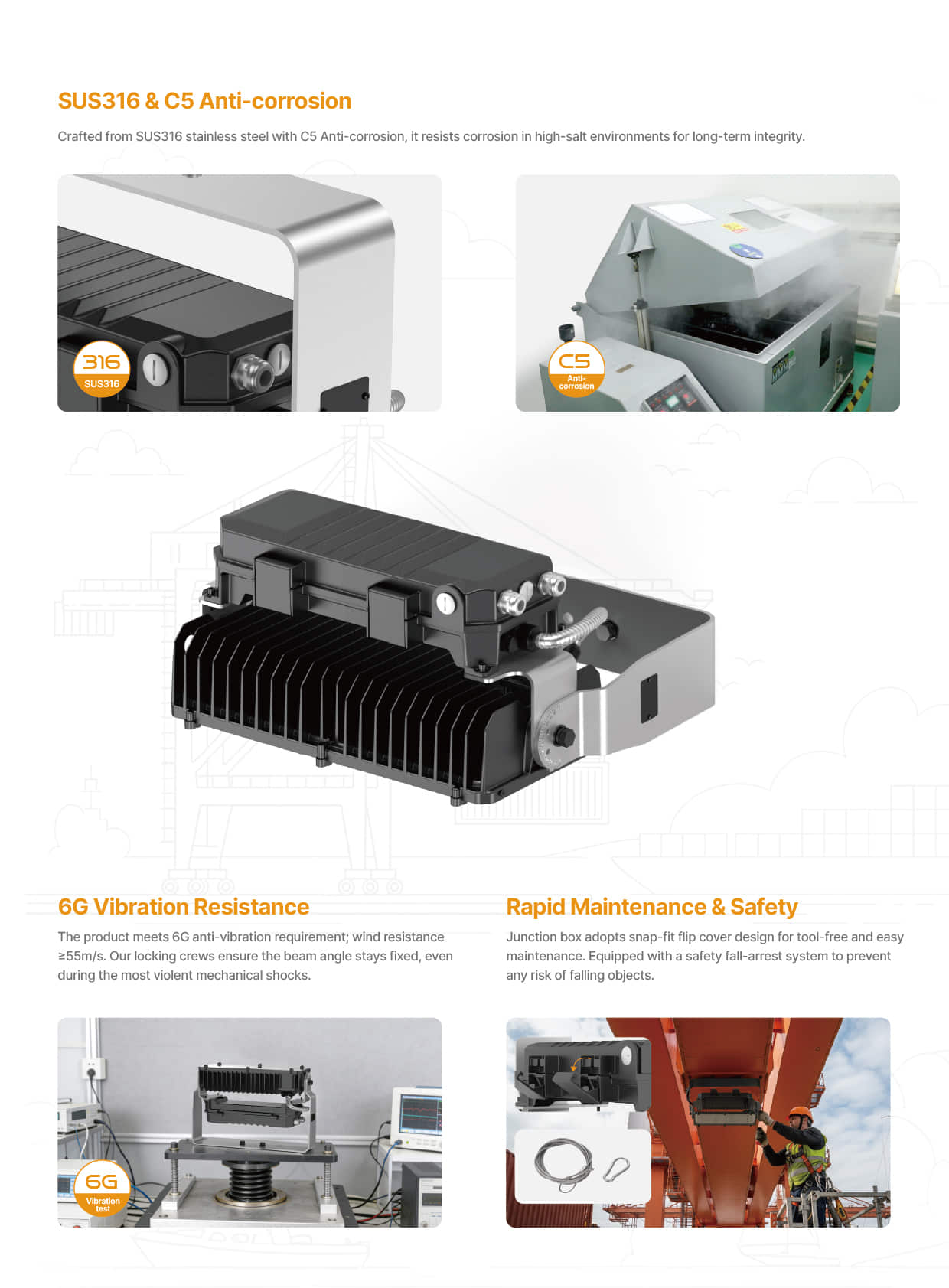

Built from SUS316 stainless steel with C5 anti-corrosion protection and compliant with 6G anti-vibration standards, LumiPiercer withstands high-salt environments and severe mechanical shock.

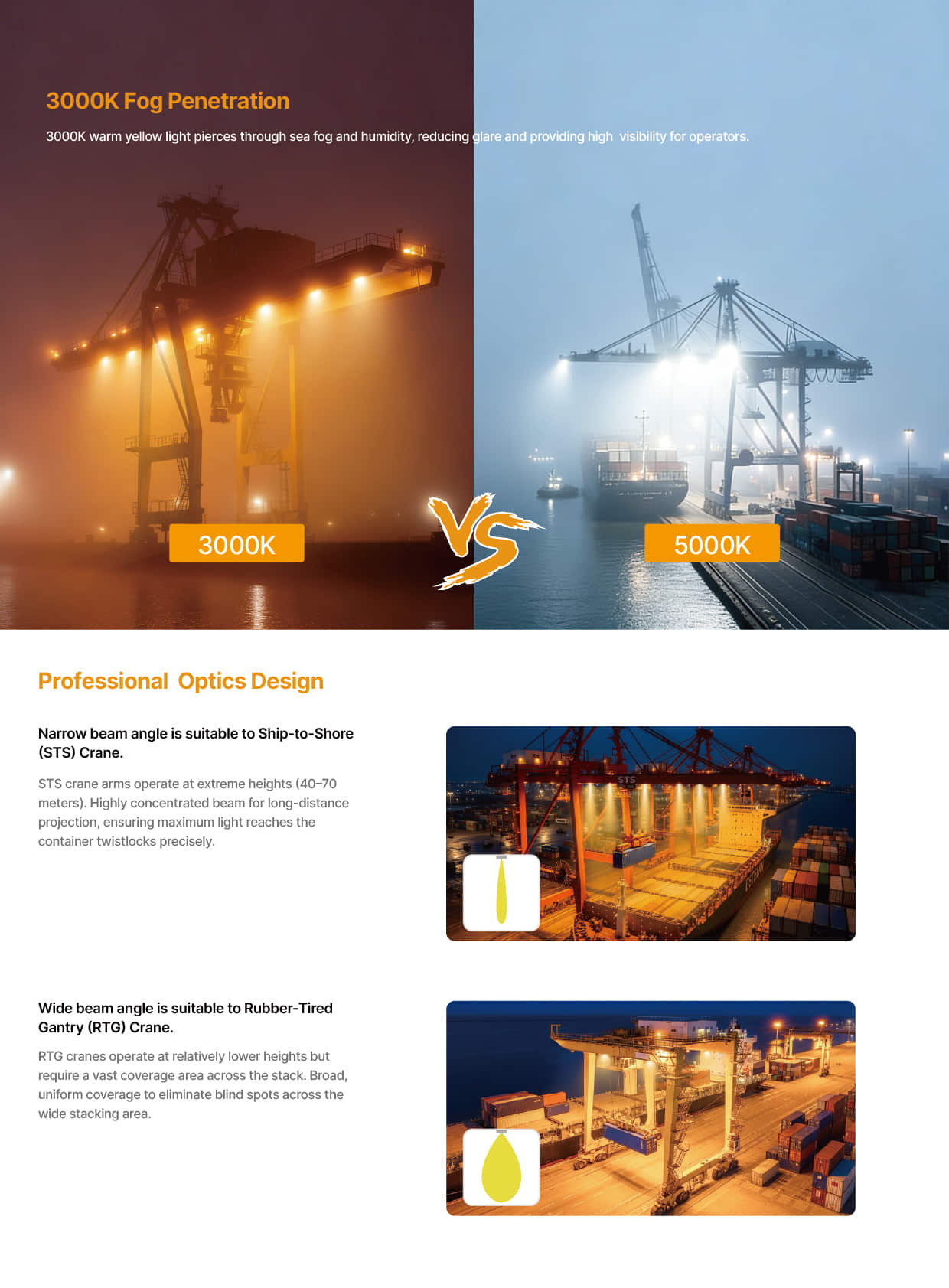

An optional 3000K warm CCT improves penetration through sea fog and humidity, enhancing visibility while reducing operator glare. The junction box features a snap-fit flip-cover design for tool-free maintenance.







| Series Code | FL87 |
|---|---|
| Power | 400W, 600W |
| Efficacy | 145lm/W, 165lm/W |
| Input Voltage | 200-480VAC, 50 / 60 Hz |
| Corrosion Class | C5 |
| IP Rating | IP66 |
| IK Rating | IK08 |
| CCT | 3000K, 4000K, 5000K |
| CRI(Ra) | 70 |
| Operating Temperature | -30°C to + 45°C |
| Mounting Option | Bracket Mounting |
| Warranty | 5 Years |
