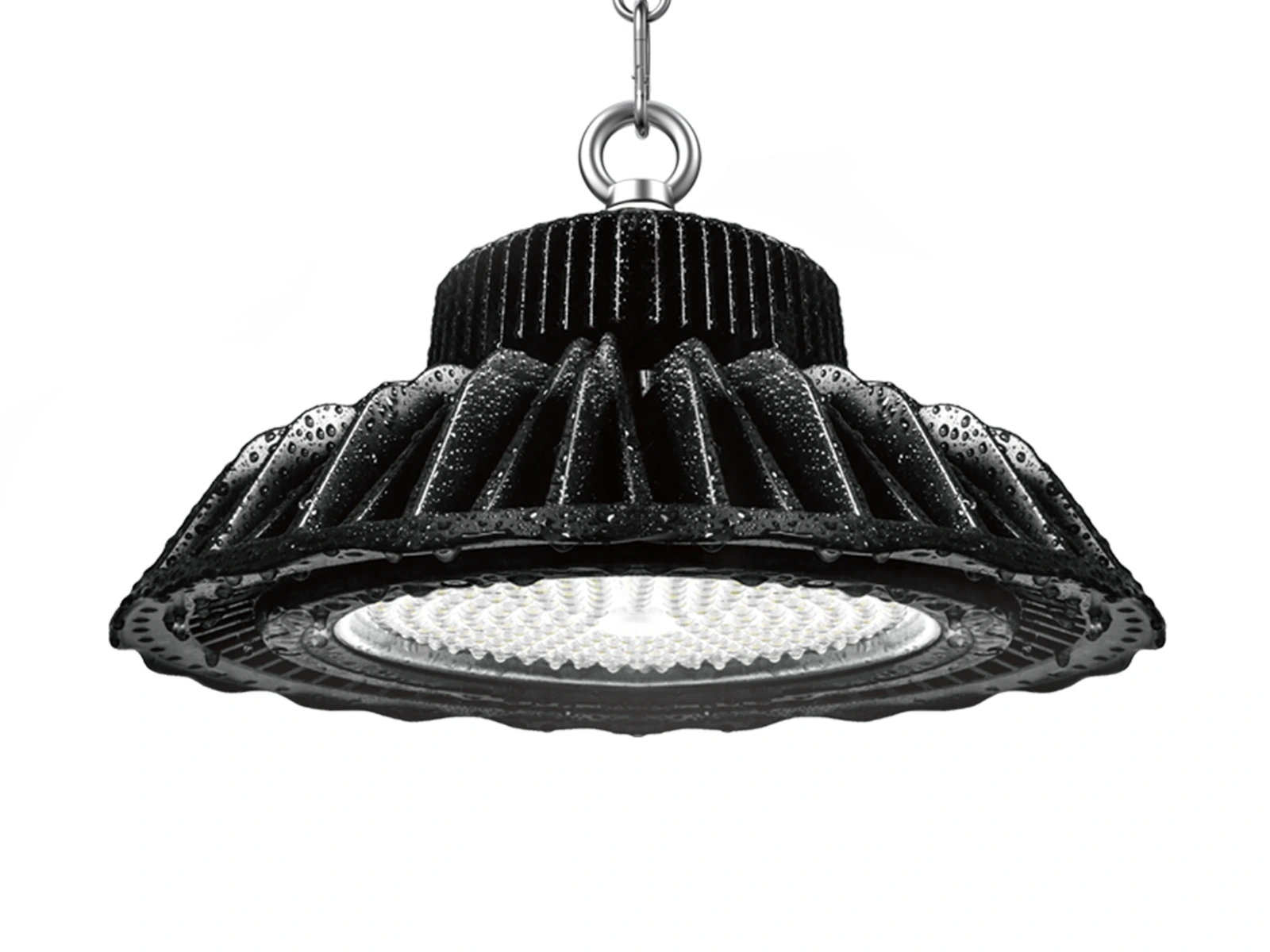

HB01 100-300W

HB01 100-300W

HiCloud Highbay keeps hot selling for 8 consecutive years and supports unlimited possibilities. It combines powerful and high light output LED technology with remarkable energy savings for a quick return on investment. Guaranteed quality LED high bay with everything you want.

  • 1.5 million units of "HiCloud" which is the first UFO high bay were installed all over the world.
  • Full wattages and various accessories.
  • Loop hanging, ceiling mounting, wall mounting, pipe mounting.
  • UGR<19 with honeycomb diffuser available.
  • Tempered glass and lens versions are optional.
  • Full certificates and reports: CE, ROHS, CB, TUV GS, ENEC, C tick, SAA; LM79, LM80, TM 21, ISTMT, LCP.

Applications

Specification

  • Series Code: HB01
  • Power: 100W, 120W, 150W, 200W, 240W, 300W
  • Efficacy: 140lm/W, 150lm/W, 160lm/W
  • Input Voltage: 100-240 VAC, 50 / 60 Hz
  • Power Factor: >0.92
  • UGR Level: 25
  • CCT: 5000K, 4000K, 3000K
  • CRI(Ra): 80, 70
  • Control: Dimmable, DALI, Daylight Sensor, Microwave Sensor, PIR Sensor, ZigBee Control, Wireless
  • IP Rating: IP65
  • IK Rating: IK08, IK10
  • Mounting Option: Loop Hanging, Ceiling Mounting, Pipe Mounting
  • Warranty: 5 Years
  • Surge Protection: 2kV line-line, 4kV line-earth
  • Operating Temperature: -30°C to + 50°C

Accessories

Aluminium Reflectors
Different beam angle, anti glare effect, black/silvery color options. Code: H00D02 (90°),  H00D04 (110°), H00D03 (65°), H00D01 (90°) Code: H00D06 (90°) Code: H00D07 (100°) Code: H00D09 (90°) Code: H00D10
PC Reflector
90°PC reflector with lid. Code: H00C01A+H00C01B  Code: H00C03A+H00C03B  Code: H00C012+H00C12B(100W-200W)

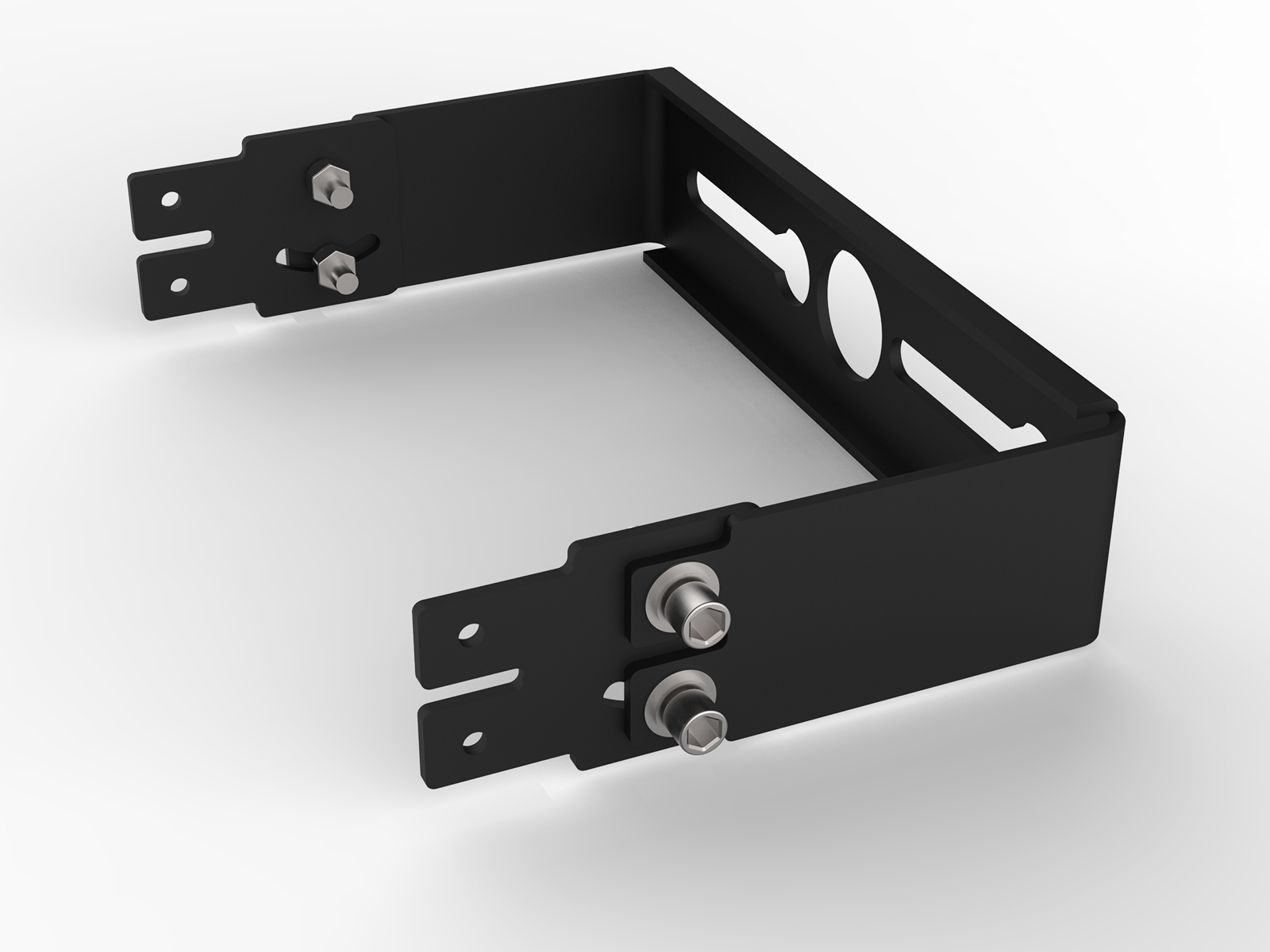

±45° Adjustable Bracket
SPCC materials with outdoor powder coating. Code: BC-H01-02a (100-240W) Code: BC-H01-02b (300W)
±30° Adjustable Bracket
SPCC materials with outdoor powder coating.  Code: BC-H01-02c

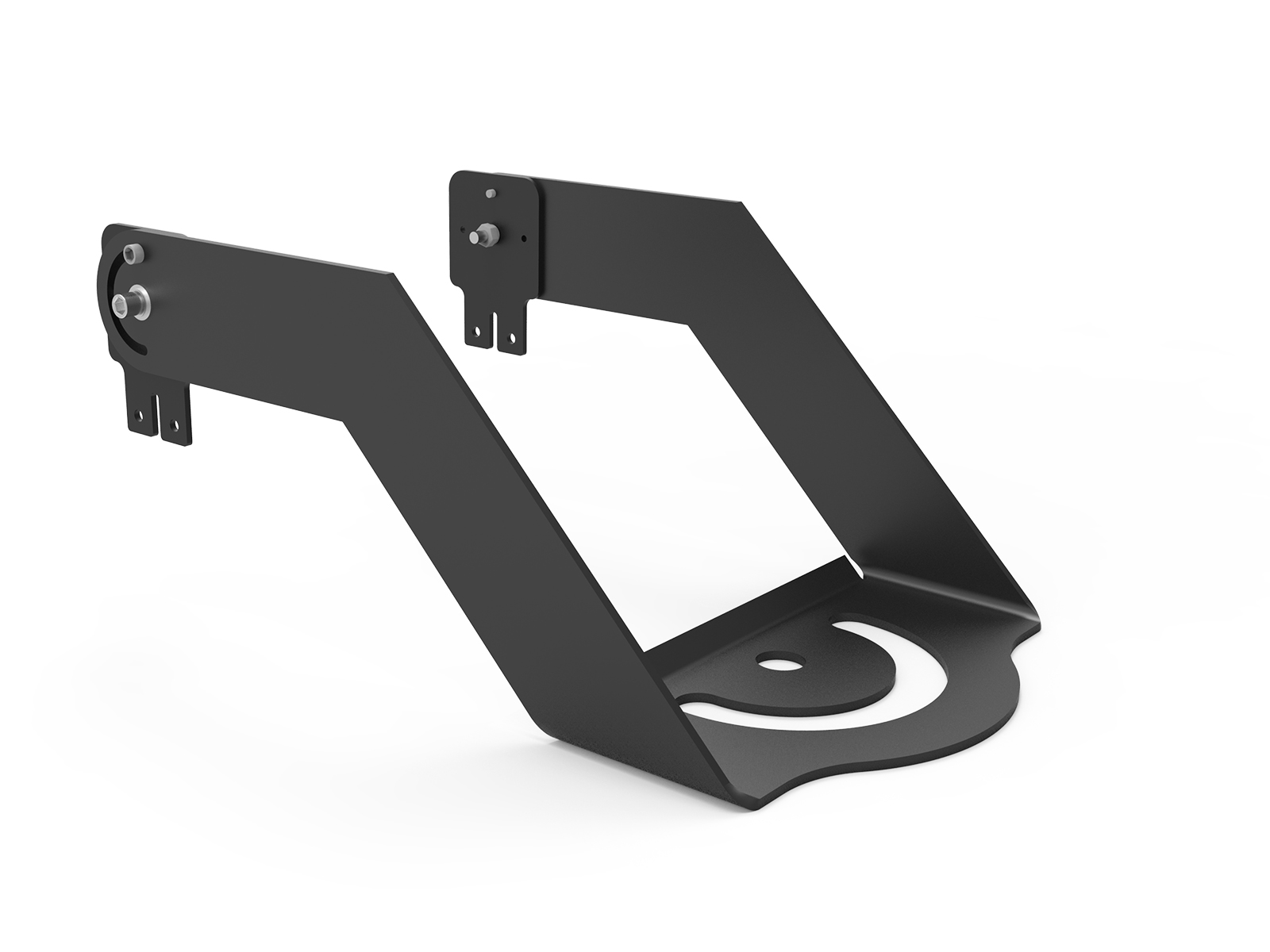

±180°Adjustable Bracket
SPCC materials with outdoor powder coating. Code: BC-H01-03a (100-240W) Code: BC-H01-03b (300W) Code: BC-H08-01 (100-240W) Code: BC-H08-01a(300W) Code: BC-H08-03a (100-240W)Code: BC-H08-03b (300W)
Pipe Mount Bracket
support both 3/4 or 1/2 NPT. Code: BC-H01-04 (100-240W) Code: BC-H12-03
Safety Chain
304 stainless steel, available for 0.25m, 1m, 1.5m and 5m long. Code: SC-H01-01a  Code: SC-H01-01b  Code: SC-H06-03  Code: SC-H06-01
Visor
SPCC materials with outdoor powder coating. Code: BC-H01-08  Code: BC-H17-02

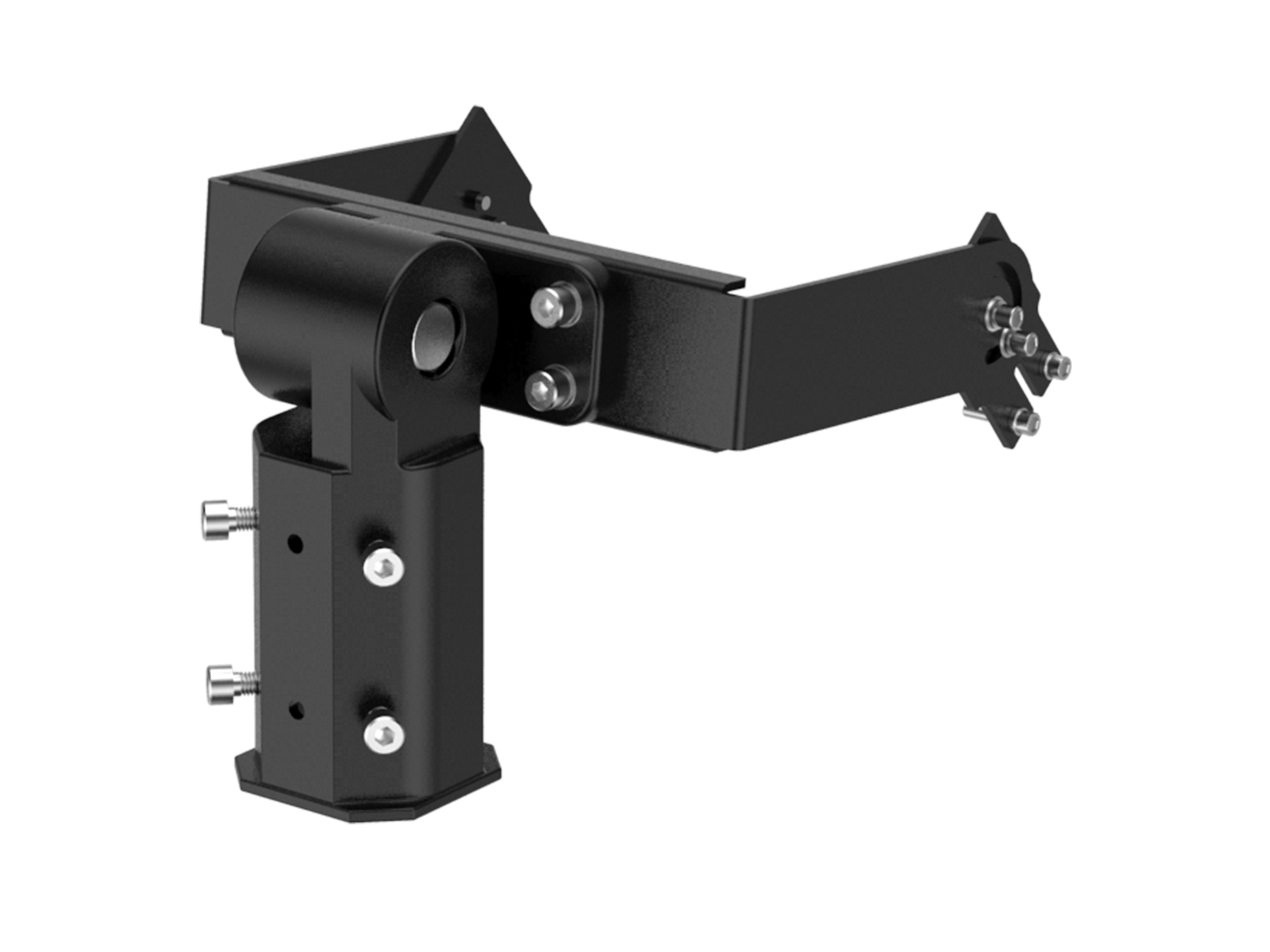

Pole Mount Bracket
Match dia.60mm pole Code: BC-H01-05b Code: BC-H01-05c Code: BC-H01-05a Code: BC-H08-05b Code: BC-H08-02a (100-300W) Code: BC-H08-02b (100-300W)
Optic Lens
High transmittance PC materials, UV test approval. Code: please refer to Photometry for different beam angle.
Protective Wire Guard
Protect the luminaries from hitting. Code: BC-H01-08

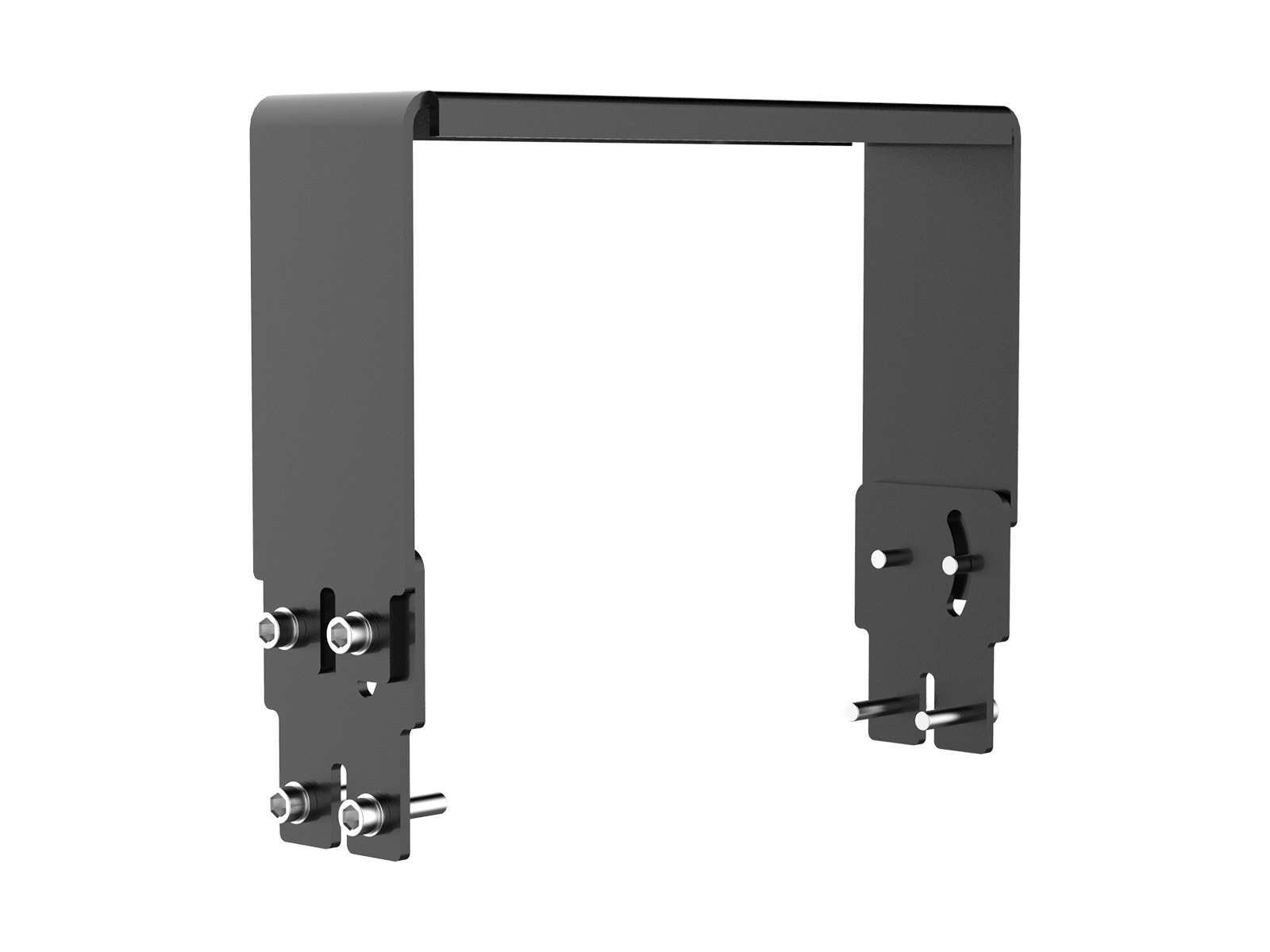

Ceiling Mount Bracket
SPCC materials with outdoor powder coating, Non adjustable. Code: BC-H01-01 (100-240W) Code: BC-H01-01a (300W)

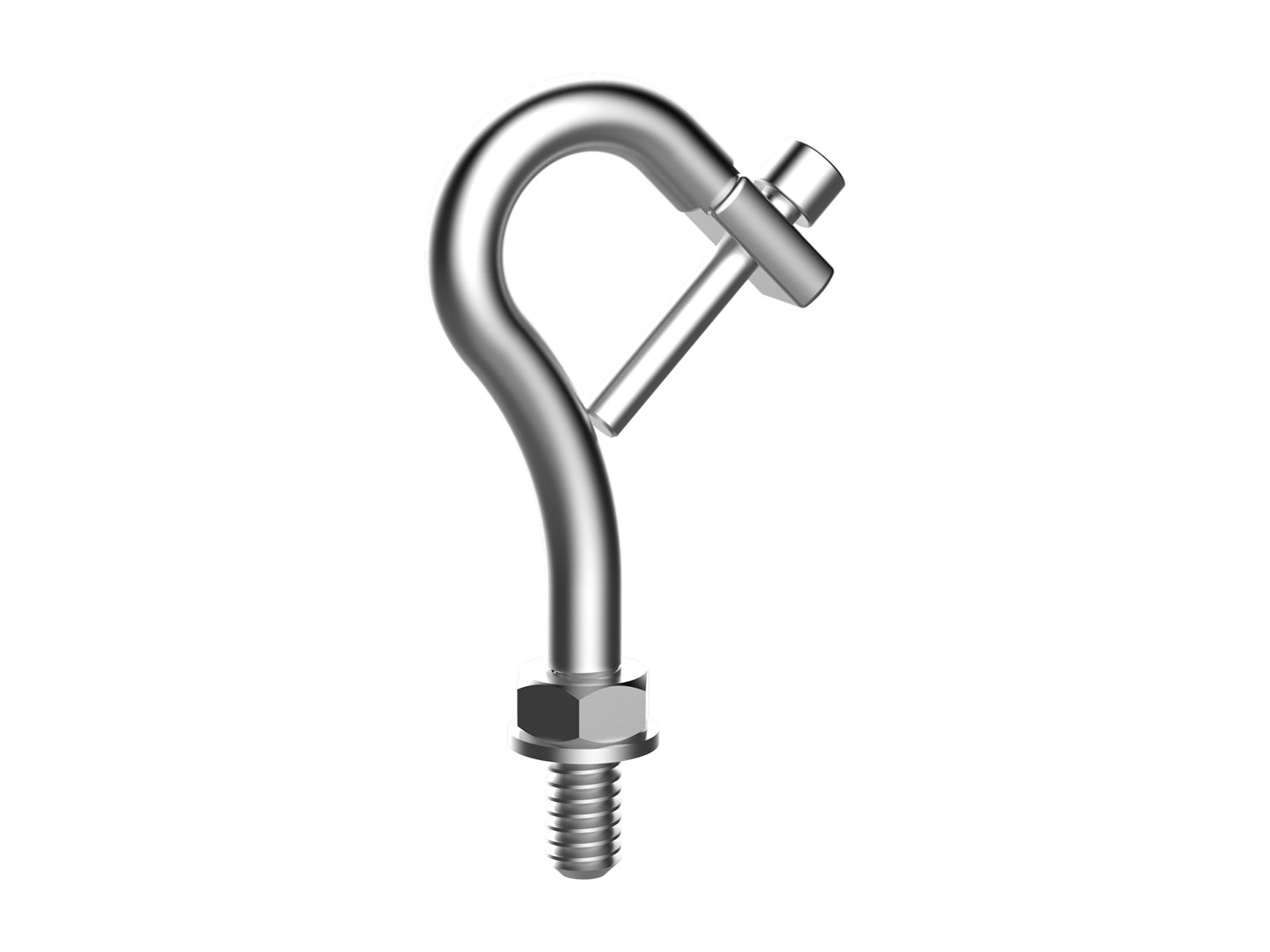

Hook
304 stainless steel. Code: HK-H01-01

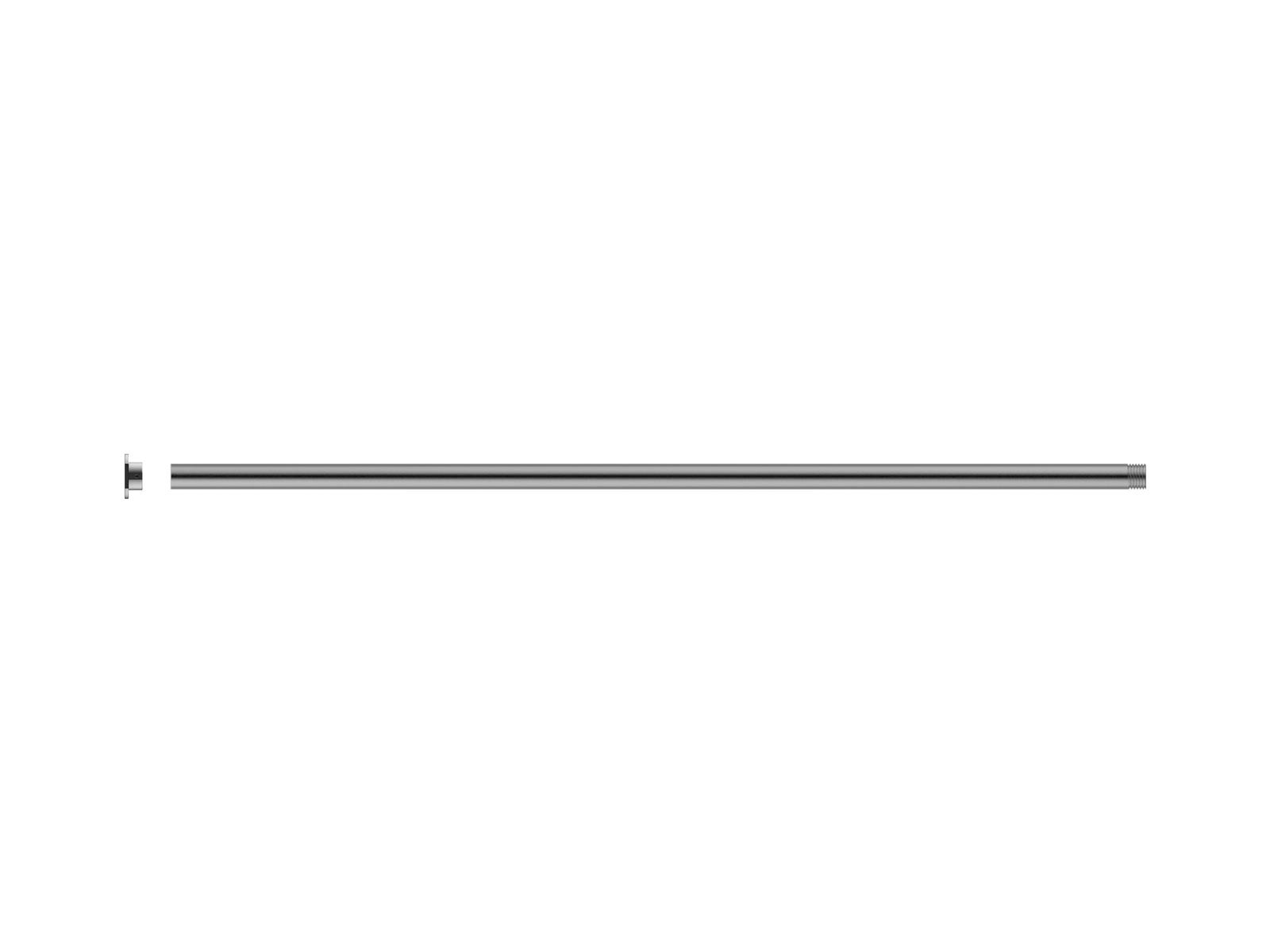

Pole
SPCC pole, length could be customized. Code: PL-A00-01

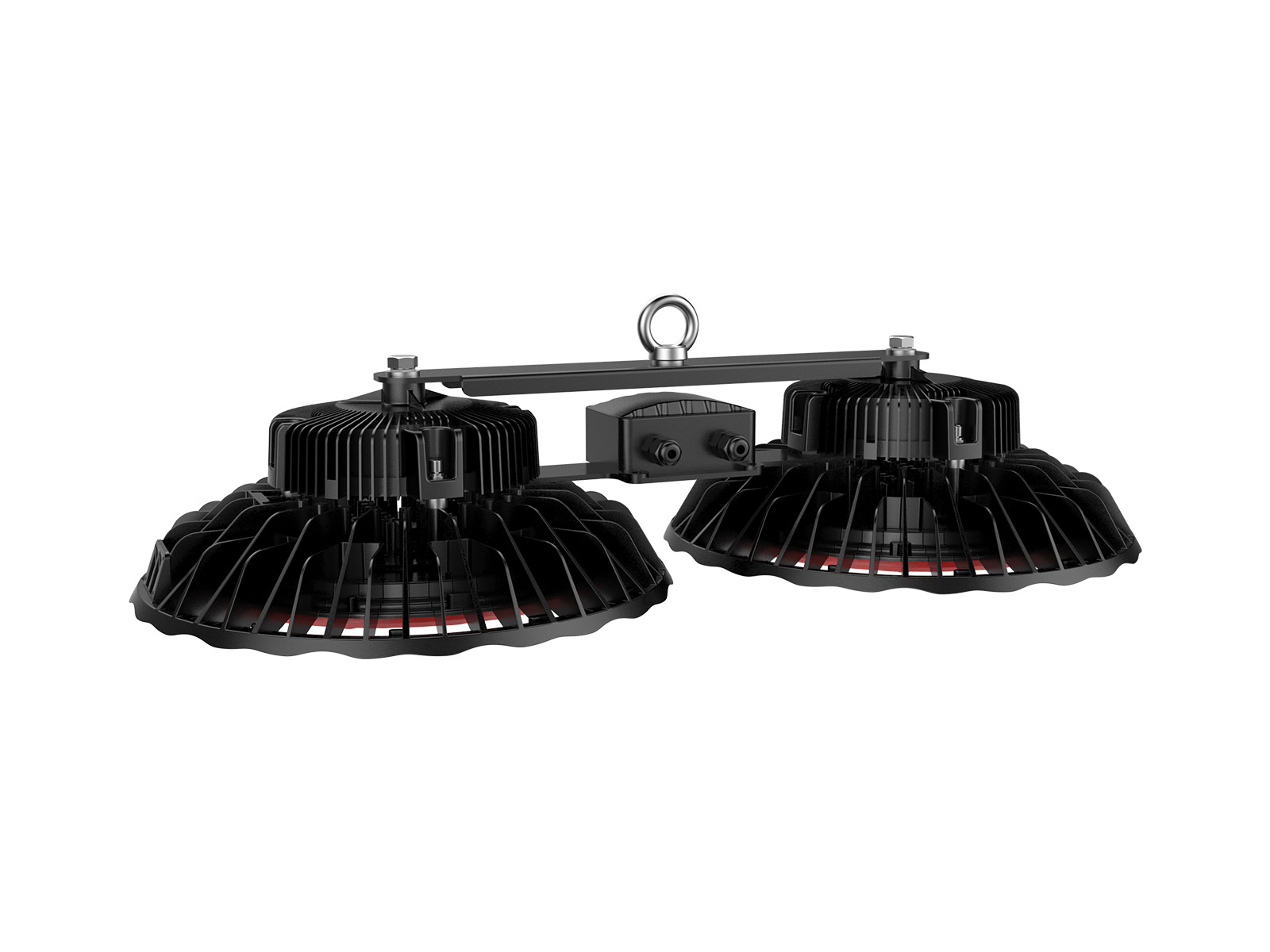

Junction Bracket for 2 High Bay Lights
SPCC materials with outdoor powder coating. Code: BC-H01-09(100W) Code: BC-H01-07(200W)
