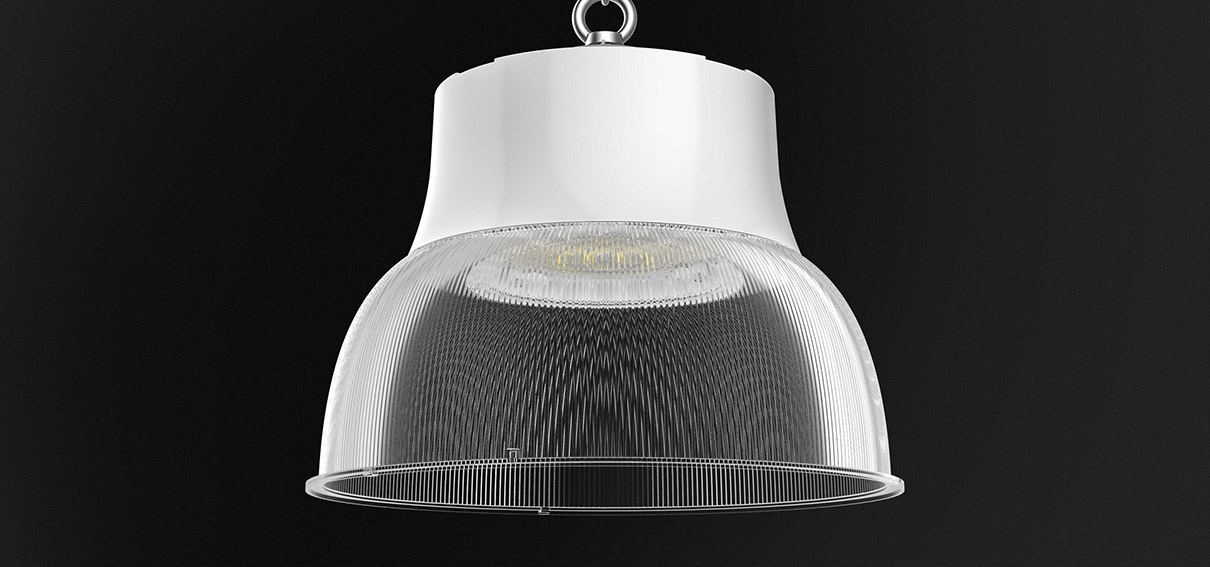

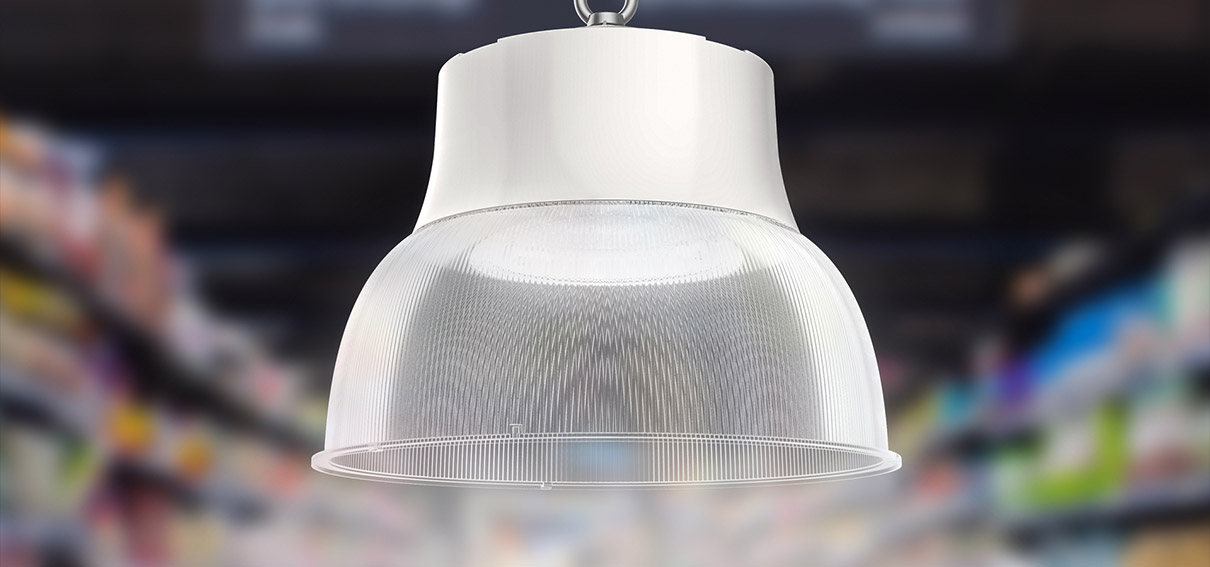

HiWide high bay, ingenious design , which makes it be well suitable for different commercial application, like shopping-mall, large plazas, large Docking, etc. Integrated with PC reflector well for high efficiency up to 130lm/w but low anti-glare. Simple and stylish looking, a heavenly solution to your aesthetically demanding spaces.
| Model No. | HB18-100 | HB18-120 | HB18-150 | HB18-180 |
|---|---|---|---|---|
| Power Consumption | 100±5W | 120±6W | 150±7W | 180±9W |
| LED Type | SMD | |||
| Luminous Flux (±5%) | 13000LM | 15600LM | 19500LM | 23400LM |
| Efficacy(5000K Ra70) | 130 LM/W | |||
| Color Temperature | 5000K (3000K, 4000K optional) | |||
| Color Rendering Index | Ra70 (Ra80 optional) | |||
| Beam Angle | H00C01A/H00B15 | |||
| Input Voltage | 100-240 VAC / 100-277 VAC | |||
| Power Factor | ≥0.92 | |||
| Frequency | 50 / 60 Hz | |||
| Surge Protection | 4kV line-line, 6kV line-earth | |||
| Driver Type | Constant Current (CC) | |||
| Product Dimension | φ421×385mm(φ16.57"×15.16" ) | |||
| Luminaire Net Weight | 4.7 ± 0.3kg(10.36 ± 0.66Lbs) | 4.8 ± 0.3kg(10.58 ± 0.66Lbs) | 5 ± 0.3kg(11.02 ± 0.66Lbs) | |
| Export Carton Size | 355×355×275mm(13.98"×13.98"×10.83") | |||
| Gross Weight | 5.6 ± 0.3kg(12.34 ± 0.66Lbs) | 5.8 ± 0.3kg(10.78 ± 0.66Lbs) | 6.0± 0.3kg(13.23 ± 0.66Lbs) | |
| Finish | Powder Coating | |||
| Fixture Color | White | |||
| IP Rating | IP65 | |||
| Mounting Option | Loop Hanging | |||
| Operating Temperature | -30°C to + 50°C(-22°F to 122°F) | |||
| Life Time | >50,000Hrs (Ta=30°C@L70) | |||
| Warranty | 5 Years | |||
| Dimmable | Dimmable and Non-dimmable | |||
| Intelligent Control | DALI Control | |||
| Accesssory | Safety Chain - 250mm chain, M8 + M8 Hook | |||
| Reflector - PC | ||||
| Plug - EU/US/AU Standard Plug | ||||
| Spec&Data sheets HB18 HiWide LED Highbay Light V2.0 |
| IES file HB18 5000K Ra70 |
| IES file HB18 4000K Ra80 |
| IES file HB18 4000K Ra90 |
| Installation Manual HB18 HiWide LED Highbay Light V1.0 |
| Series Code | HB18 |
|---|---|
| Power | 100W/120W/150W/180WW |
| Efficacy | 130LM/Wlm/W |
| IP Rating | IPIP65 |
