HiClean Plus LED High Bay is specifically designed for food processing environments, including: poultry and meat processing, food processing, cold storage, food service and other areas requiring certification to NSF standards. It has a safe optic lens that meets the 'No-Glass' requirement for food areas. HiClean Plus is made of high grade aluminum with non-exposed stainless steel screws, and its sleek design that allows for easy cleaning and ensures no recesses for bacteria to grow in. Designed with the unique needs of food processing environments in mind, you can specify HiClean Plus with confidence.
| Model No. | HB06-100 | HB06-120 | HB06-150 | HB06-200 |
|---|---|---|---|---|
| Power Consumption | 100±5W | 120±6W | 150±7W | 200±10W |
| LED Type | SMD | |||
| Luminous Flux (±5%) | 14000lm | 16800lm | 21000lm | 28000lm |
| Efficacy(5000K Ra70) | 140lm/W | |||
| Correlated Color Temperature | 5000K (3000K, 4000K optional) | |||
| Color Rendering Index | Ra70 (Ra80 optional) | |||
| Beam Angle | H00A02,H00B03 ,H00B04, H25201, H25202, H25203 | |||
| Input Voltage | 100-240 VAC / 100-277 VAC | |||
| Power Factor | >0.92 | |||
| Frequency | 50 / 60 Hz | |||
| Surge Protection | 2kV line-line, 4kV line-earth | |||
| Driver Type | Constant Current (CC) | |||
| Product Dimension | φ489×200mm (φ19.25" x 7.87") | |||
| Luminaire Net Weight | 7.2±0.3kg(15.87±0.66Lbs) | |||
| Export Carton Size | 560x260x565mm(22.05"×10.24"×22.24") | |||
| Gross Weight | 9.3±0.3kg(20.4±0.66Lbs) | |||
| Finish | Powder Coating | |||
| Fixture Color | Grey/White | |||
| IP Rating | IP66 | |||
| Mounting Option | Loop Hanging /Ceiling Mounting/Pipe Mouting | |||
| Operating Temperature | -30°C to + 50°C(-22°F to 122°F) | |||
| Life Time | >50,000Hrs (Ta=30°C@L70) | |||
| Warranty | 5 Years | |||
| Dimmable | Dimmable and Non-dimmable | |||
| Intelligent Control | DALI Control /Microwave Sensor | |||
| Zigbee Wireless Control | ||||

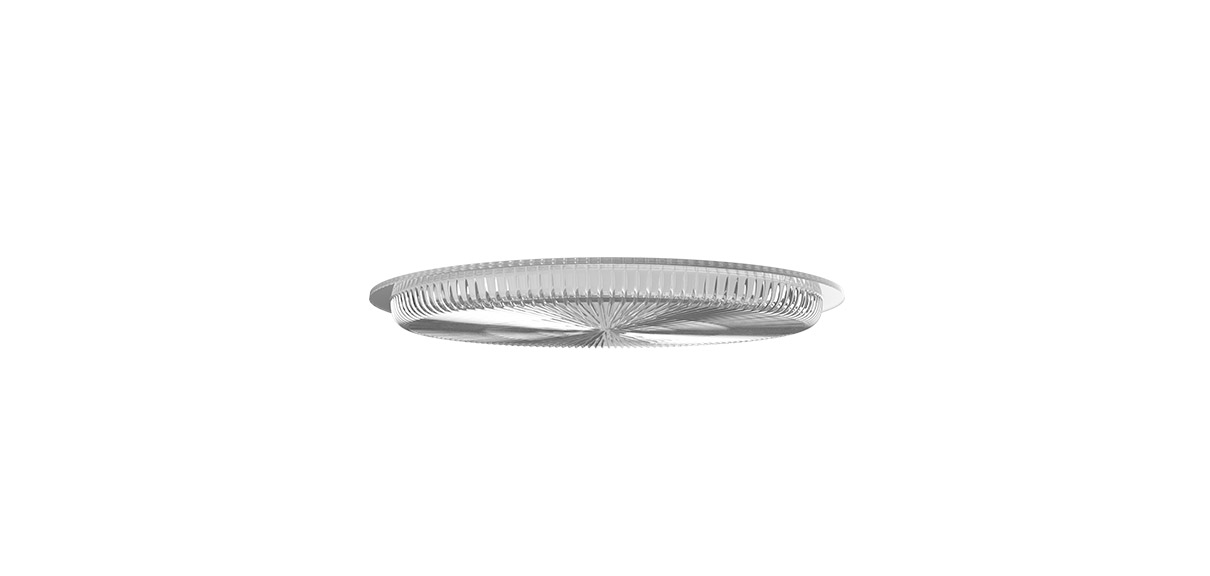

| Accessory | PC Cover - H25201 / H00B04 | |||
| PC Optics Lens - H25203, H25202 and H25201 | ||||

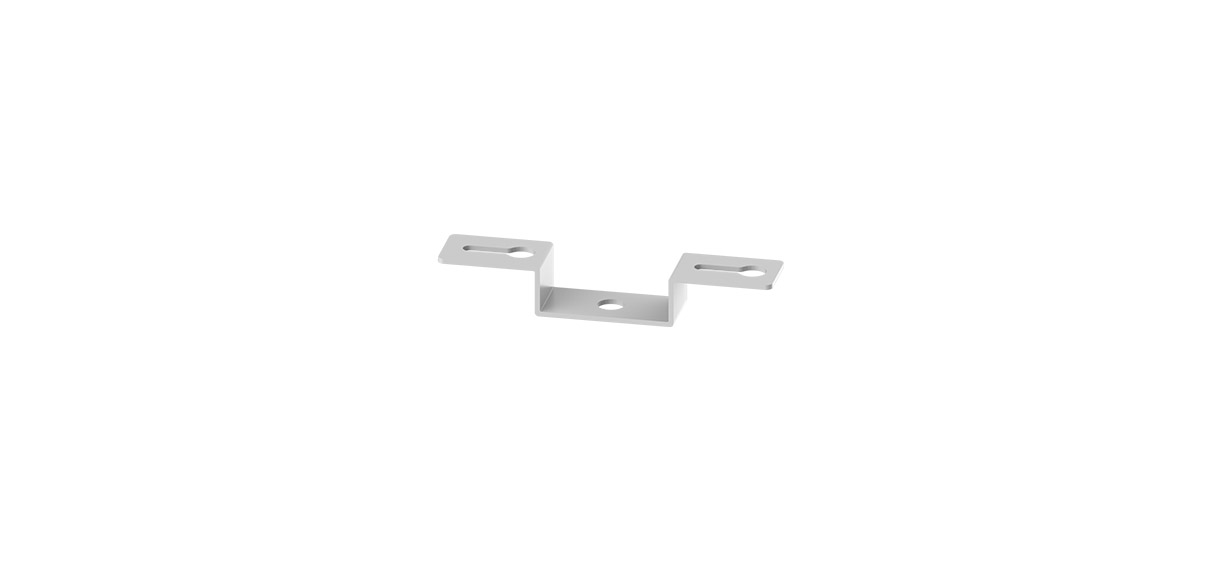

| Bracket - surface mount bracket | ||||
| Safety Chain - 250mm chain, M10 + M10 Hook>340mm | ||||
| Plug - EU/US/AU Standard Plug | ||||
| Spec & Data sheets HB06 HiClean Plus LED High Bay light V2 |
| IES File HB06 HiCleanPlus LED High bay light 5000K Ra70 |
| IES File HB06 HiCleanPlus LED High bay light 4000K Ra80 |
| IES File HB06 HiCleanPlus LED High bay light 4000K Ra90 |
| Installation Manual HB06 HiClean Plus LED High Bay light V1 |
| Product Id | Model No. | Classification | Family Name |
|---|---|---|---|
| PNIFERRX | HB06-200/T-5090-H00B03 | standard | TTTVGY |
| P6KZTBBC | HB06-200/T-5080-H25203 | Premium | CCCGNY |
| P1CTDEF0 | HB06-200/T-5080-H25202 | Premium | CCCGNY |
| P6C583BC | HB06-200/T-5080-H25201 | Premium | CCCGNY |
| P8SK9KYG | HB06-200/T-4090-H00B03 | standard | TTTVGY |
| PE9B6VMJ | HB06-200/T-4080-H25203 | Premium | CCCGNY |
| P380NVTJ | HB06-200/T-4080-H25202 | Premium | CCCGNY |
| P5I9G7TF | HB06-200/T-4080-H25201 | Premium | CCCGNY |
| PU8KE69P | HB06-150/T-5090-H00B03 | standard | TTTVGY |
| PBNY64JV | HB06-150/T-5080-H25203 | Premium | CCCGNY |
| PQYQY2WB | HB06-150/T-5080-H25202 | Premium | CCCGNY |
| PX4YGBIS | HB06-150/T-5080-H25201 | Premium | CCCGNY |
| P7JEPJSC | HB06-150/T-4090-H00B03 | standard | TTTVGY |
| PUQE8OGU | HB06-150/T-4080-H25203 | Premium | CCCGNY |
| P2KL5IP1 | HB06-150/T-4080-H25202 | Premium | CCCGNY |
| PQLL6BSV | HB06-150/T-4080-H25201 | Premium | CCCGNY |
| PI9NL1ZV | HB06-150/GT-5090-H00B03 | standard | TTTVGY |
| P89MZN28 | HB06-150/GT-5080-H25203 | Premium | CCCGNY |
| PCI51GZH | HB06-150/GT-5080-H25202 | Premium | CCCGNY |
| PIVKWU6X | HB06-150/GT-5080-H25201 | Premium | CCCGNY |
| PSY3I2F7 | HB06-150/GT-4090-H00B03 | standard | TTTVGY |
| PDQWVUPM | HB06-150/GT-4080-H25203 | Premium | CCCGNY |
| PU8J0PDM | HB06-150/GT-4080-H25202 | Premium | CCCGNY |
| PUH1S3J7 | HB06-150/GT-4080-H25201 | Premium | CCCGNY |
| PNBTI7CC | HB06-120/T-5090-H00B03 | standard | TTTVGY |
| P6VSMV5N | HB06-120/T-5080-H25203 | Premium | CCCGNY |
| PO462N2O | HB06-120/T-5080-H25202 | Premium | CCCGNY |
| PWWVDEK0 | HB06-120/T-5080-H25201 | Premium | CCCGNY |
| PAWZJ1I2 | HB06-120/T-4090-H00B03 | standard | TTTVGY |
| PAREC53A | HB06-120/T-4080-H25203 | Premium | CCCGNY |
| PY7INPIA | HB06-120/T-4080-H25202 | Premium | CCCGNY |
| P4UE21JV | HB06-120/T-4080-H25201 | Premium | CCCGNY |
| PXJRJNZ1 | HB06-120/GT-5090-H00B03 | standard | TTTVGY |
| PHCWWH7Q | HB06-120/GT-5080-H25203 | Premium | CCCGNY |
| PH07LMV0 | HB06-120/GT-5080-H25202 | Premium | CCCGNY |
| PHUNMFRG | HB06-120/GT-5080-H25201 | Premium | CCCGNY |
| P8Y1DT30 | HB06-120/GT-4090-H00B03 | standard | TTTVGY |
| PAR4IQBF | HB06-120/GT-4080-H25203 | Premium | CCCGNY |
| PCJ5SVQE | HB06-120/GT-4080-H25202 | Premium | CCCGNY |
| PJLHT2S0 | HB06-120/GT-4080-H25201 | Premium | CCCGNY |
| PJ60RWJ6 | HB06-100/T-5090-H00B03 | standard | TTTVGY |
| PWZCCXLB | HB06-100/T-5080-H25203 | Premium | CCCGNY |
| P4XN0B4G | HB06-100/T-5080-H25202 | Premium | CCCGNY |
| PYX3DSDY | HB06-100/T-5080-H25201 | Premium | CCCGNY |
| PL0B16XP | HB06-100/T-4090-H00B03 | standard | TTTVGY |
| PZ5N1LFW | HB06-100/T-4080-H25203 | Premium | CCCGNY |
| PRZIICF5 | HB06-100/T-4080-H25202 | Premium | CCCGNY |
| PU4X5ET1 | HB06-100/T-4080-H25201 | Premium | CCCGNY |
| PHEPOJJT | HB06-100/GT-5090-H00B03 | standard | TTTVGY |
| PP7LWPTJ | HB06-100/GT-5080-H25203 | Premium | CCCGNY |
| P14J8Z4K | HB06-100/GT-5080-H25202 | Premium | CCCGNY |
| PU424KN2 | HB06-100/GT-5080-H25201 | Premium | CCCGNY |
| PU6EFXCB | HB06-100/GT-4090-H00B03 | standard | TTTVGY |
| P38EGQXG | HB06-100/GT-4080-H25203 | Premium | CCCGNY |
| PPF7L2G2 | HB06-100/GT-4080-H25202 | Premium | CCCGNY |
| PANNK1FH | HB06-100/GT-4080-H25201 | Premium | CCCGNY |
| Series Code | HB06 |
|---|---|
| Power | 100W/120W/150W/200WW |
| Efficacy | 140LM/W, 160LM/W |
| IP Rating | IPIP66 |
