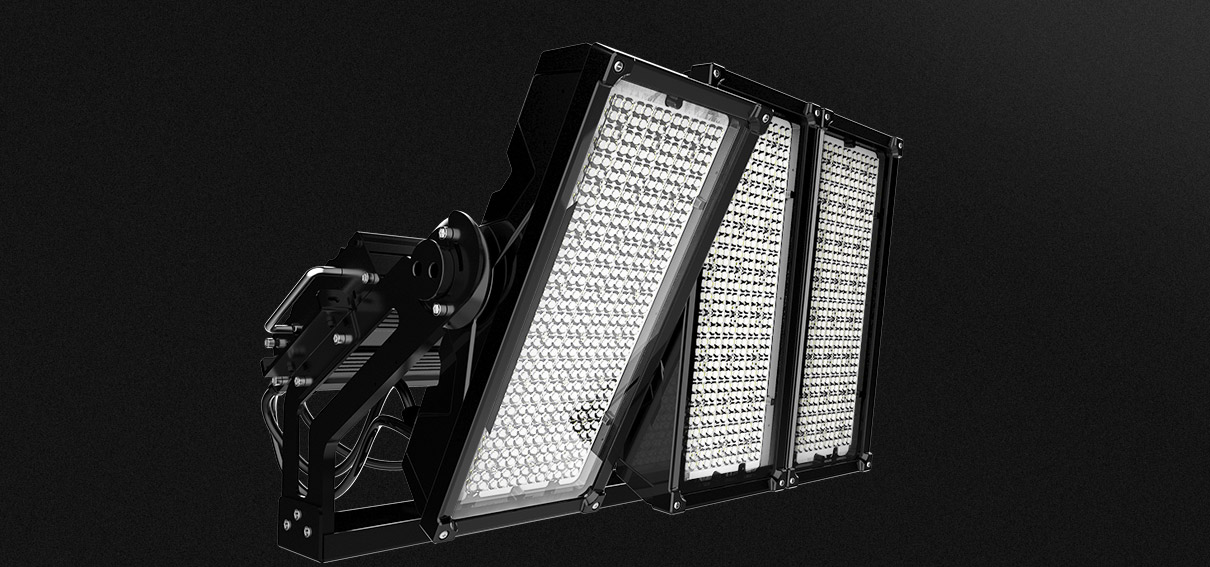

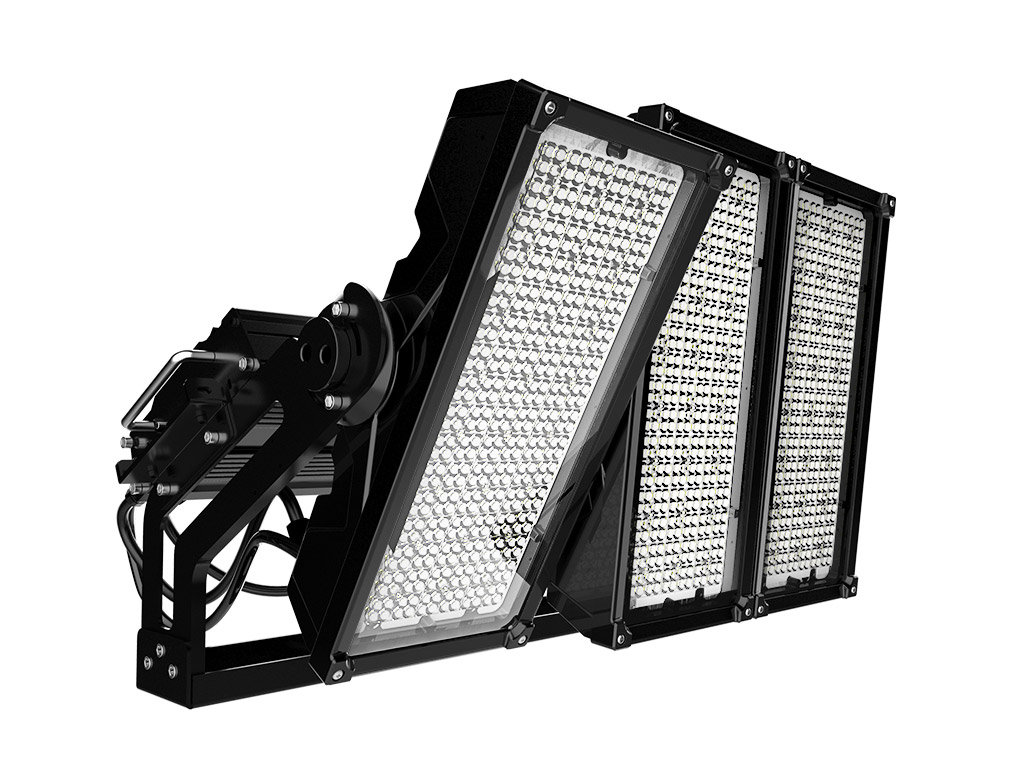

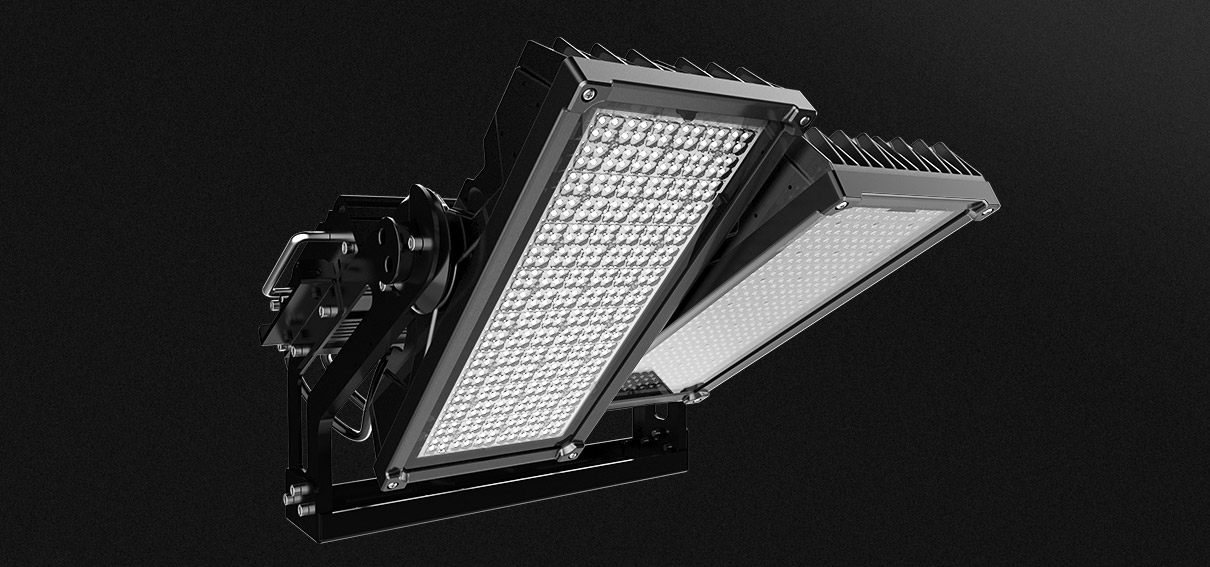

Rotating module design(300W--900W) which makes each module have a 70° rotating range, while the multiple modules having a 40° IP66 & IK08 for outdoor usage and each module equipped with respirator to keep the inside not forging. Easy maintenance and quick assembly. Application for big stadium ,high mast , building site ,wharf etc.
300W | 600W | 900W
135lm/W

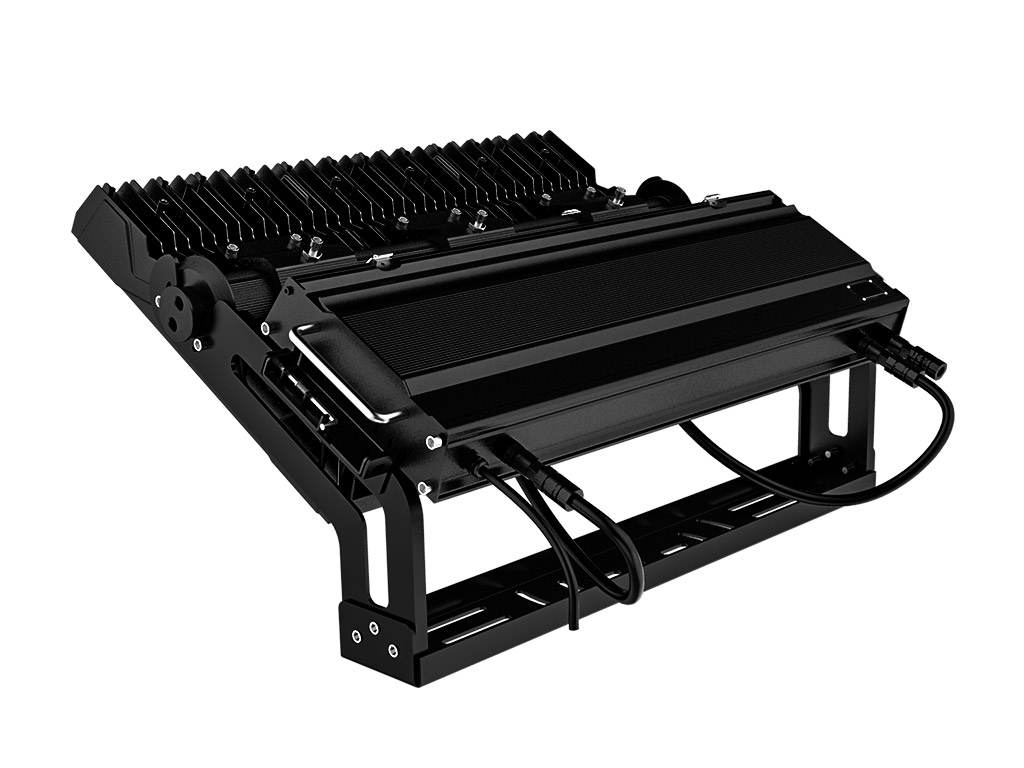

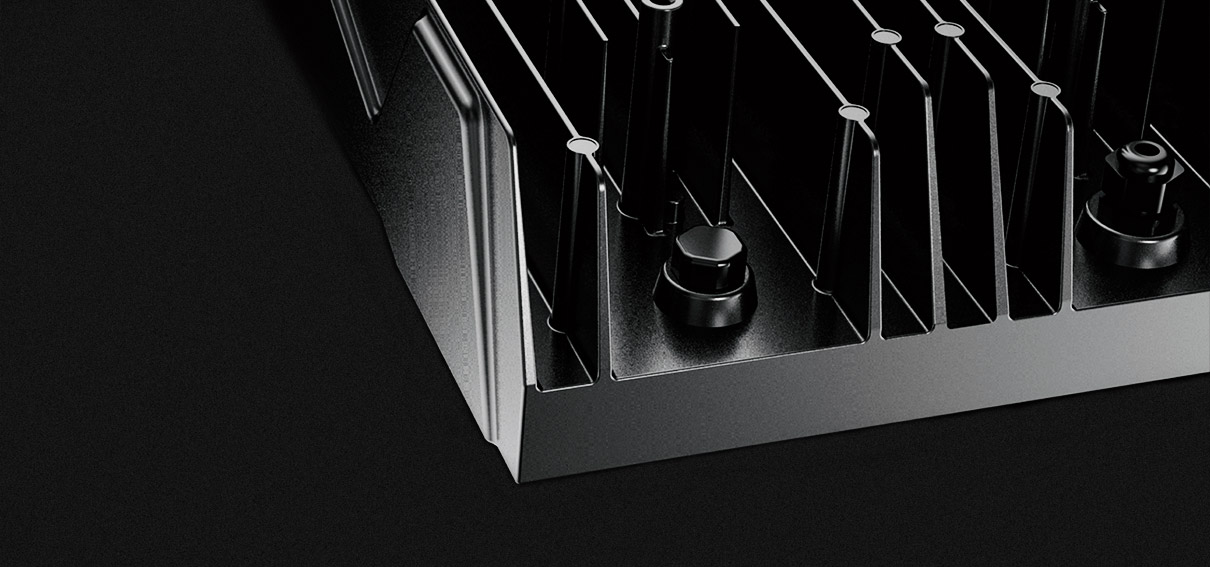

HiMast comes with a waterproof rubber
ring inside. And its well-designed radiating
fins help accelerate airflow and avoid
water accumulating. Each LED module is
equipped with a respirator to prevent
water vapor. Additionally, HiMast gets IK08
impact-resistant grade, which provides
better protection for outdoor usage.
HiMast adopts small beam angle optics
(18° and 30°). And with the high efficacy
130lm/W, it can reach a quite far target
lighting area as wished.

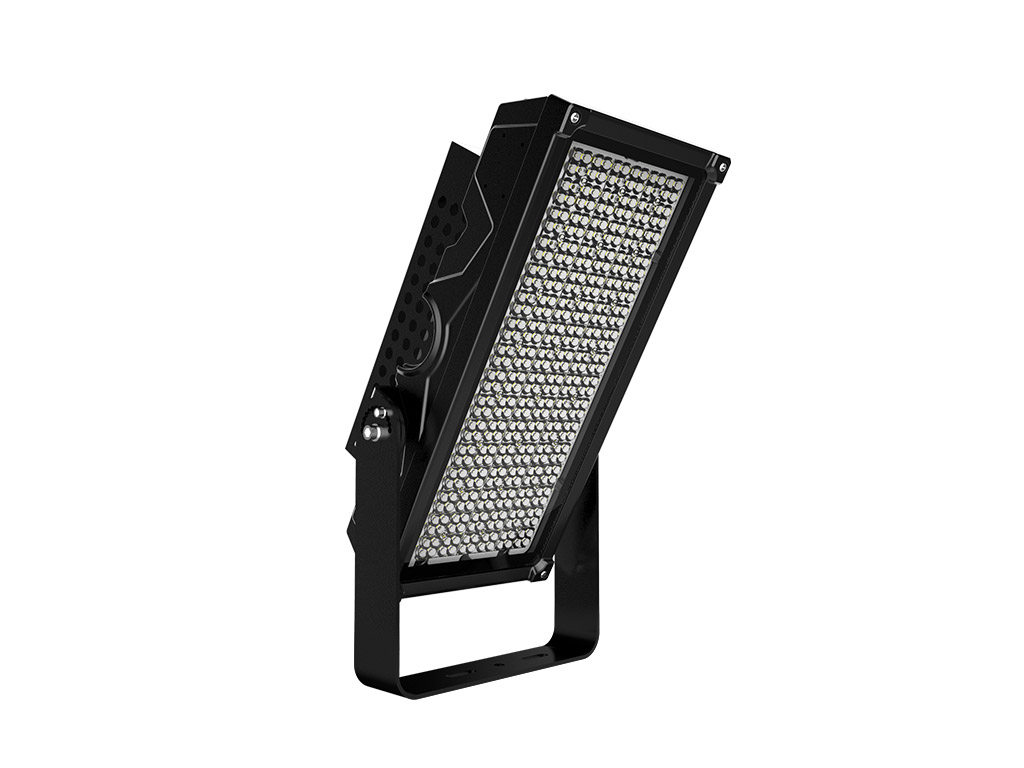

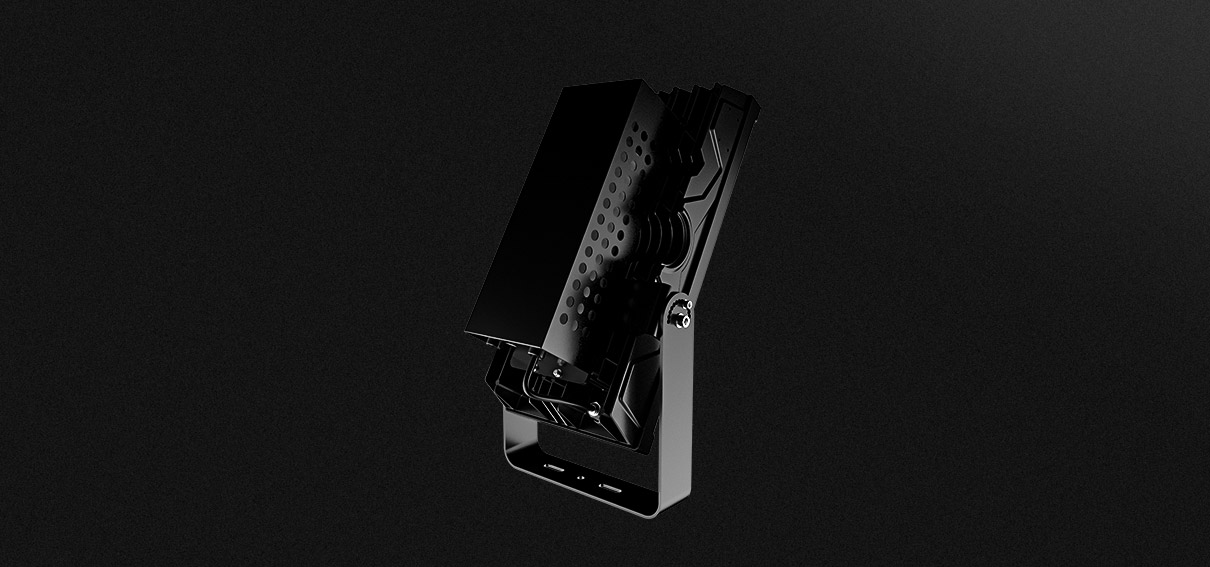

Each module (300W) is made by aluminum alloy
with superior heat dissipation performance, and
tempered glass, and plug-and-play waterproof
cable connector. Installation can be finished just
by using a 6mm hexagonal screwdriver.
Simulation would offer guidance for how a project is designed. We always put 100% effort to
provide a perfect lighting simulation for each project.
| Model No. | FL06-300 | FL06-600 | FL06-900 |
|---|---|---|---|
| Power Consumption | 300W±9W | 600W±18W | 900±27W |
| LED Type | SMD | ||
| Luminous Flux (±5%) | 40500LM | 78000LM | 117000LM |
| Efficacy(5000K,Ra70) | 135LM/W | 130LM/W | |
| Correlated Color Temperature | 5000K (3000K, 4000K optional) | ||
| Color Rendering Index | Ra70 (Ra80 optional) | ||
| Beam Angle | F00801, F01601, F01602, F01603, F01604, F01605,F01606 | ||
| Input Voltage | 100-240 VAC / 100-277 VAC | ||
| Power Factor | >0.92 | ||
| Frequency | 50 / 60 Hz | ||
| Surge Protection | 6kV line-line,10kV line-earth | ||
| Driver Type | Constant Current (CC) | ||
| Product Dimension | 559×288×178mm(22.01"×11.34"×7.01") | 606×564×401mm(23.86"×22.2"×15.79") | 792×606×401mm(31.18"×23.86"×15.79") |
| Luminaire Net Weight | 11.7±0.3kg(25.8±0.66Lbs) | 29.0±0.3kg(63.93±0.66s) | 41.0±0.3kg(90.39±0.66Lbs) |
| Export Carton Size | 24.61"×9.06"×13.19"(625×230×335mm) | heat sink ：575×550×215mm(22.64"×21.65"×8.46") | heat sink ：800×550×215mm(31.5"×21.65"×8.46") |
| Power Supply ：635×340×135mm(25"×13.39"×5.31") | Power Supply：860×340×135mm(33.86"×13.39"×5.31") | ||
| Bracket：670×420×85mm(26.38"×16.54"×3.35") | Bracket：770×420×85mm(30.31"×16.54"×3.35") | ||
| Gross Weight | 12.9±0.3kg(28.46±0.66Lbs) | 35.2±0.3kg(77.6±0.66Lbs) | 46.5±0.3kg(102.5±0.66Lbs) |
| Finish | Powder Coating | ||
| Fixture Color | Black | ||
| IP Rating | IP66 | ||

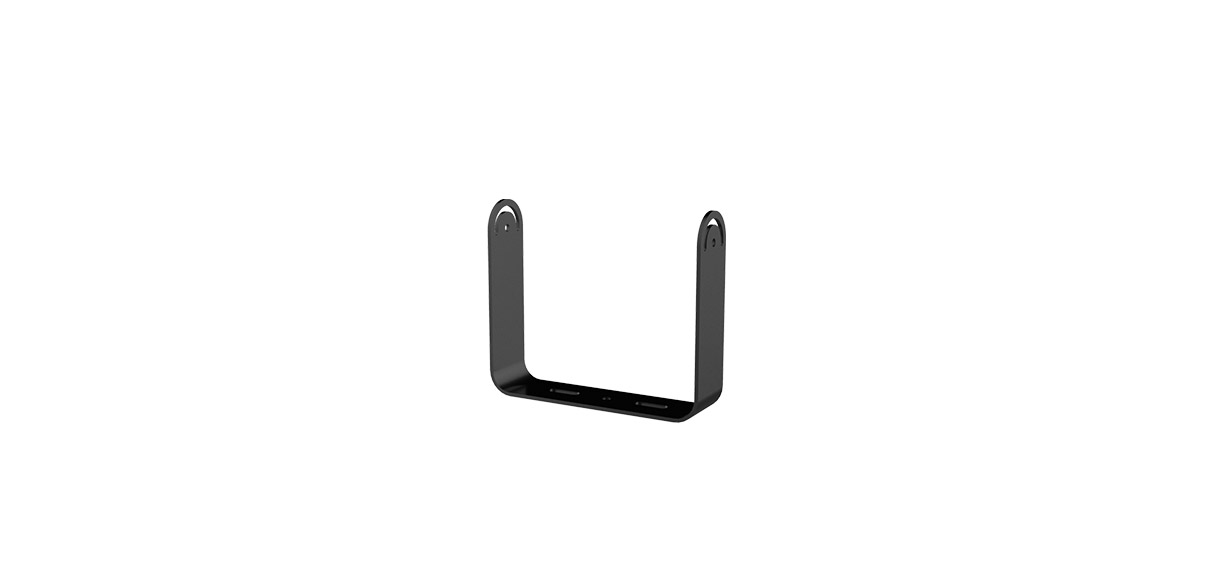

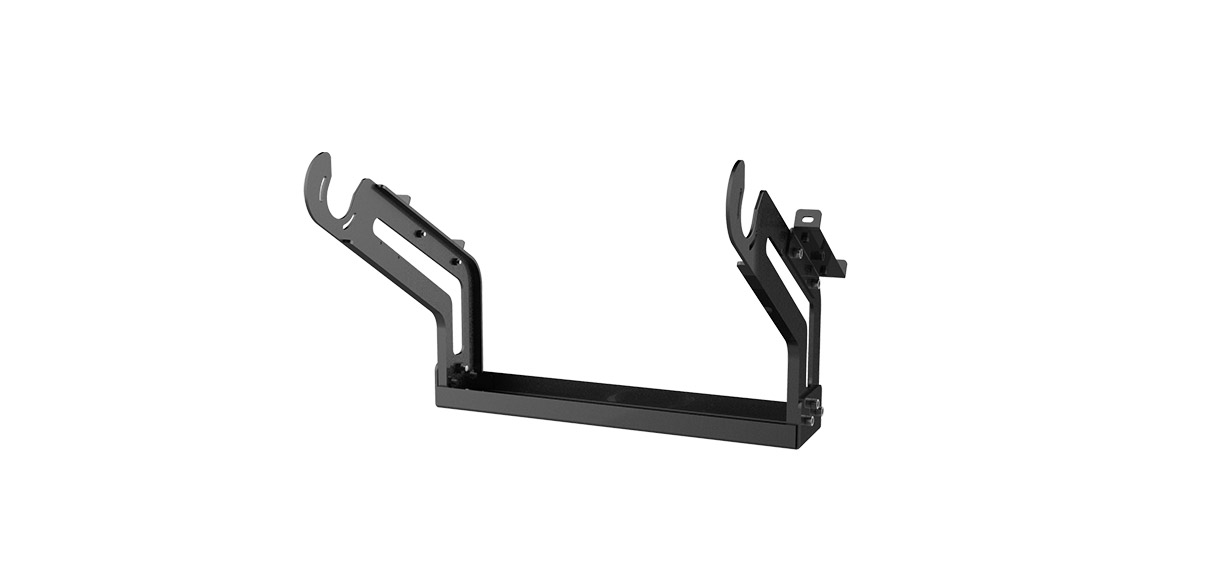

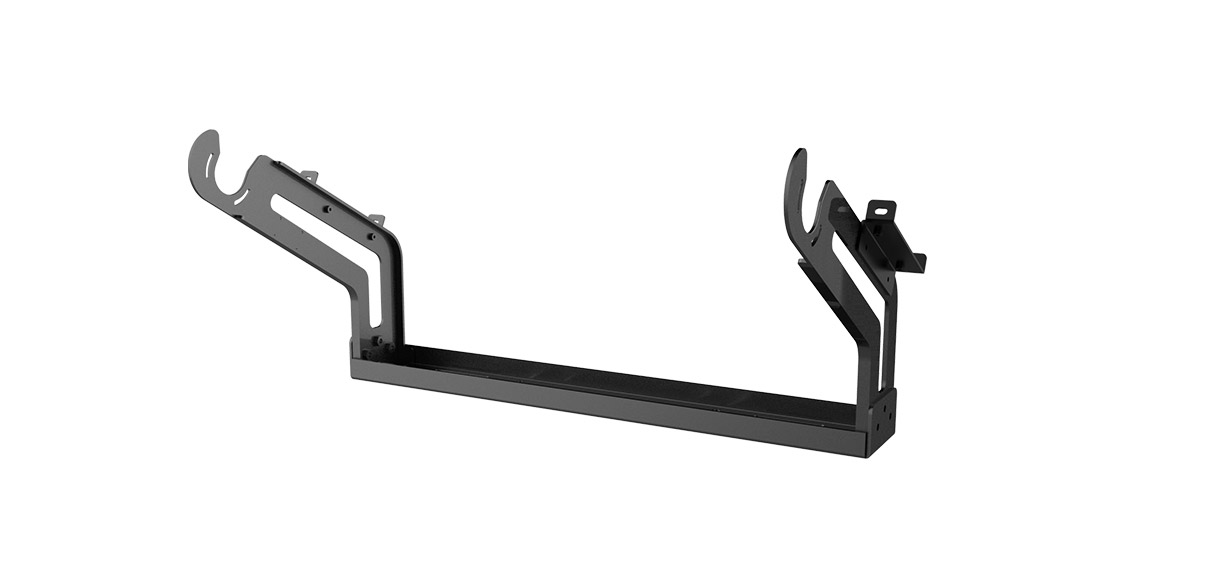

| Mounting Option | Bracket Mounting | ||
| Operating Temperature | -30°C to + 50°C(-22°F to 122°F) | ||
| Life Time | >140,000Hrs(Ta=30°C@L70) | ||
| Warranty | 5 Years | ||
| Dimmable | Dimmable and Non-dimmable | ||
| Intelligent Control | DALI Control | ||
| Product Id | Model No. | Classification | Family Name |
|---|---|---|---|
| P2LFXS9Z | FL06-900/T | Premium | QQQUAH |
| PSFHO0HF | FL06-900/GT | Premium | QQQUAH |
| PMBYL0PG | FL06-600/T | Premium | QQQUAH |
| P7TUOXSZ | FL06-600/GT | Premium | QQQUAH |
| PU4SZ4U0 | FL06-300/T | Premium | QQQUAH |
| P9CM4NJQ | FL06-300/GT | Premium | QQQUAH |
