Seraph is an elegant post-top light available in Indirect Lighting and Direct Lighting versions. The Indirect Lighting version provides soft, comfortable lighting with lower glare, while the Direct Lighting version delivers bright, efficient lighting with higher luminous efficacy.

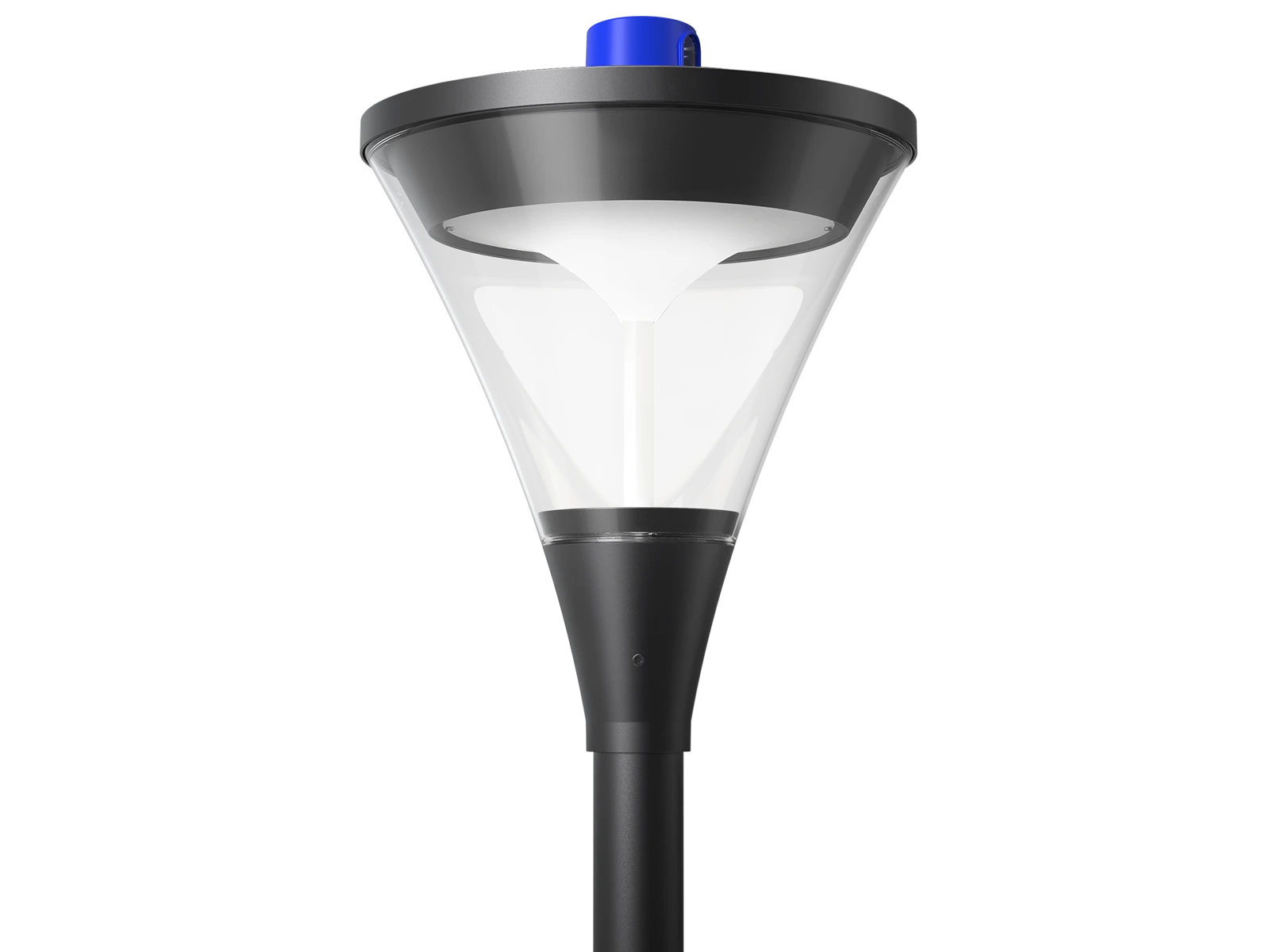

Both versions feature an external DIP switch that allows easy adjustable of 4 power levels and 2 CCT options, helping to reduce SKUs inventory while improving energy efficiency. With IP66 and IK09 ratings, Seraph is designed to withstand outdoor environments.







| Series Code | ST52 |
|---|---|
| Power | Indirect Lighting 20W 40W, Direct Lighting 20W 40W 60W |
| Efficacy | Indirect Lighting 90lm/W, Direct Lighting 130lm/W |
| Input Voltage | 100-240 VAC, 50 / 60 Hz |
| Power Factor | >0.95 |
| Surge Protection | 4kV line-line, 6kV line-earth |
| Corrosion Class | C3 |
| IP Rating | IP66 |
| IK Rating | IK09 |
| CCT | 3000K, 4000K |
| CRI(Ra) | 80 |
| Operating Temperature | -30°C to + 50°C |

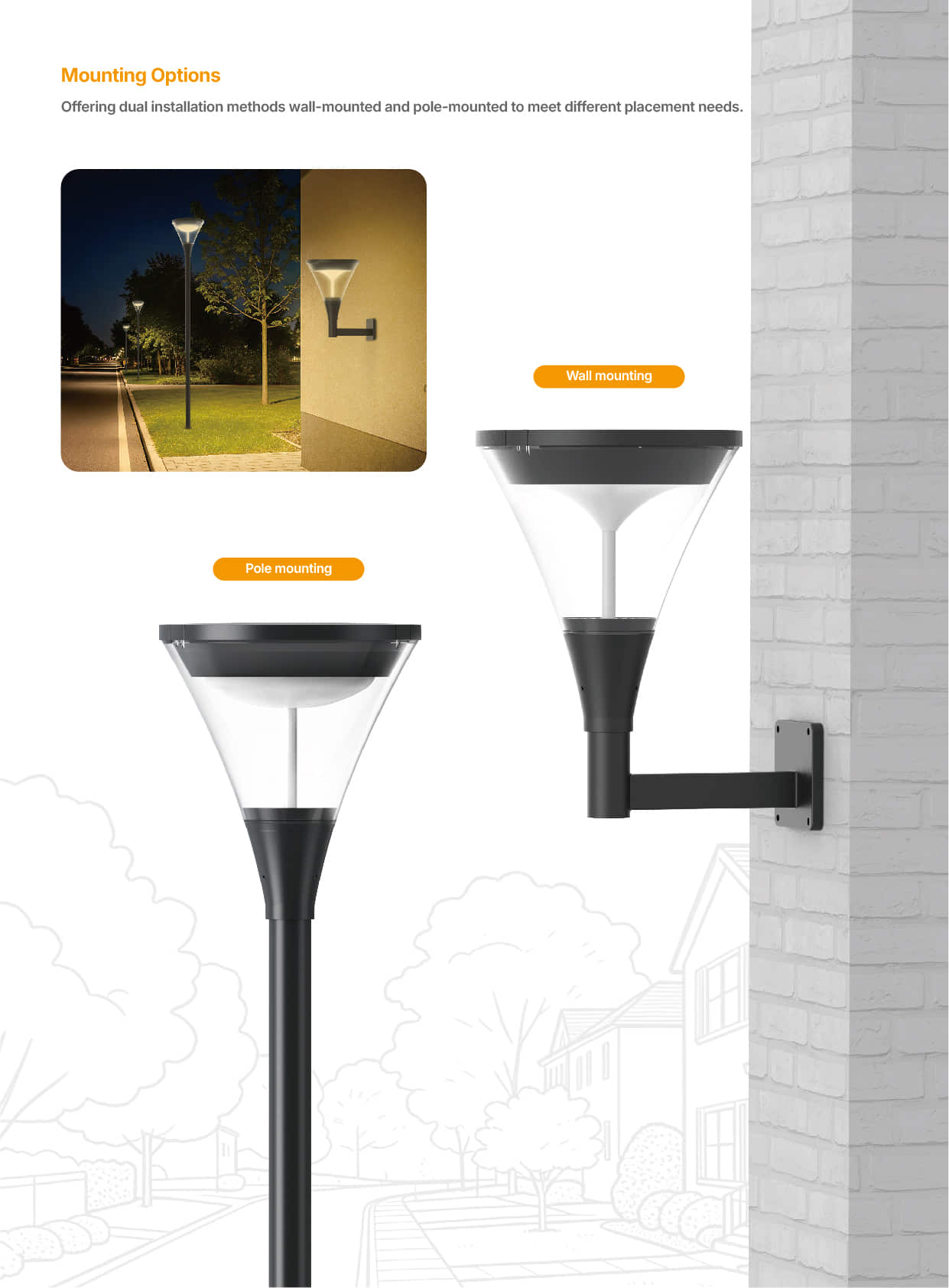

| Mounting Option | Pole Mounting, Wall Mounting |
| Warranty | 5 Years |
