ST16 E-Tide Buckle Design Roadway Light

ST16 E-Tide Buckle Design Roadway Light

The product has been discontinued.

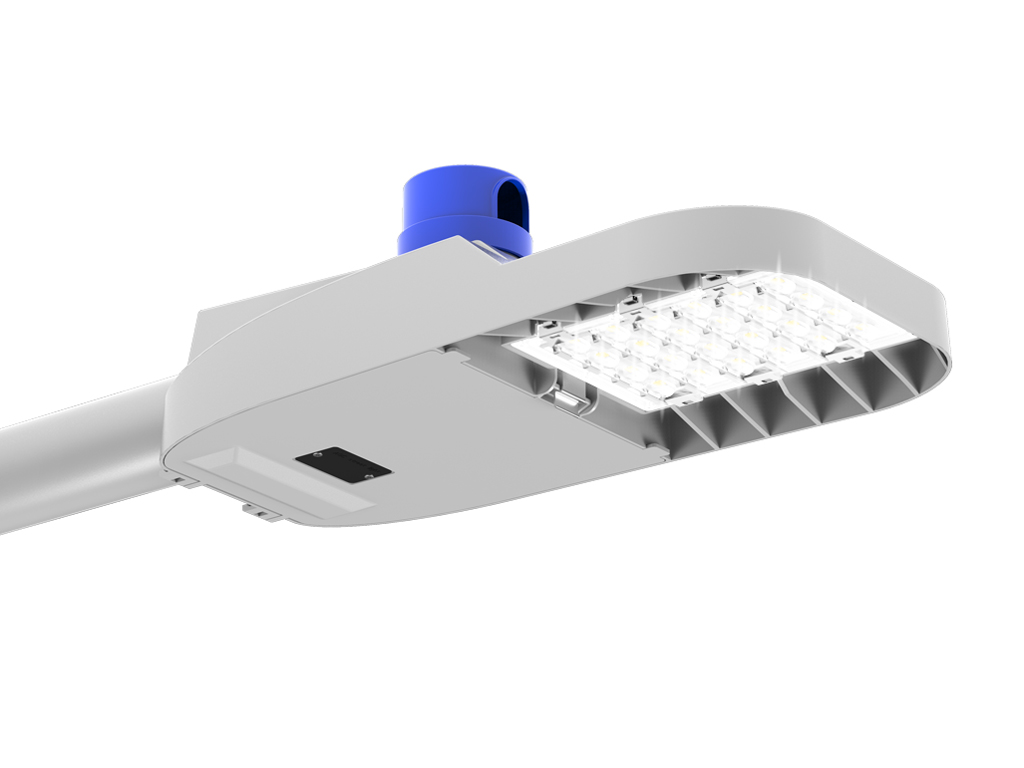

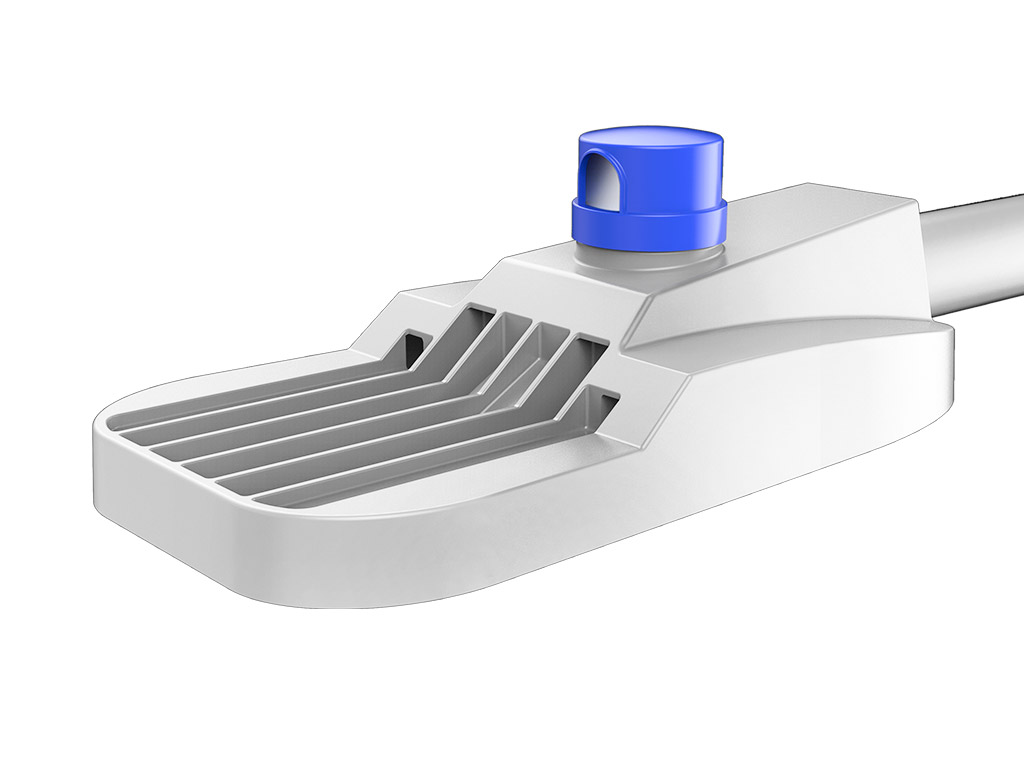

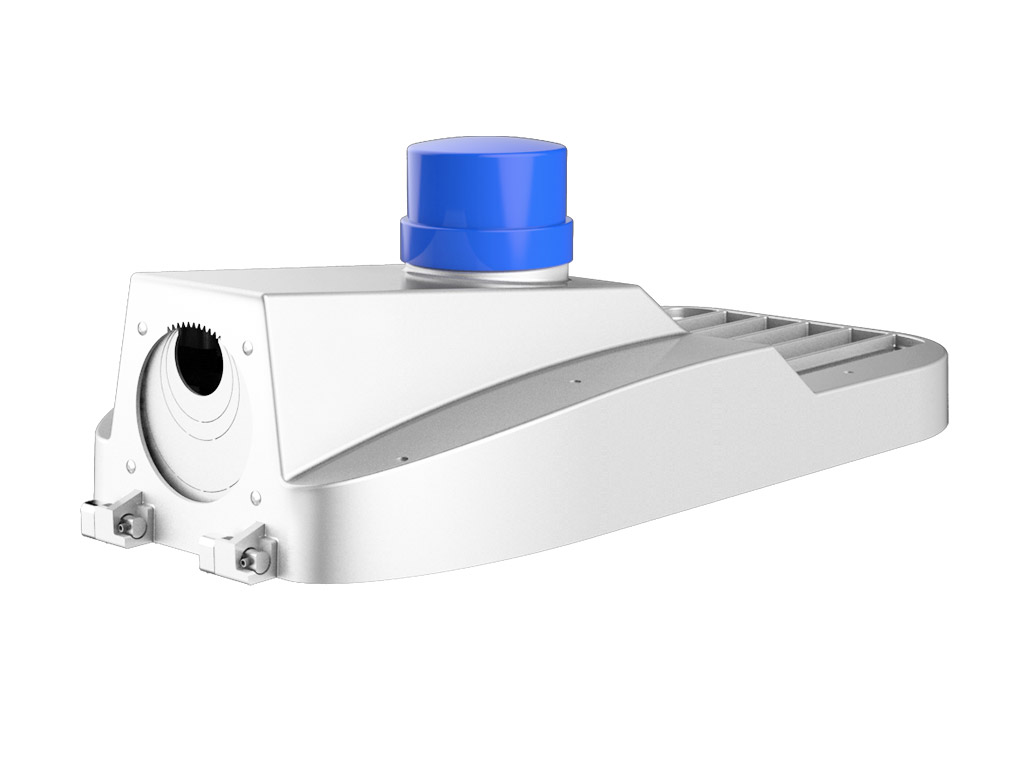

ST16 is a low power roadway light with backlight control shield and photocell optional for residential areas, narrower streets, villas and commercial applications. This fixture has buckle design for toolless driver maintenance.

  • 30W-40W-60W with 140lm/W
  • Back light control
  • 1-10V dimming and photocell available
  • Convenient maintenance of driver.
  • ±5° installation angle adjustable.
  • Ambient temperature range is from -30°C to 50°C
  • 5 years warranty
* AGC products are designed for global market. Please contact our sales team for certification details.
* Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
Series CodeST16
Power30W, 40W, 60W
Efficacy140lm/W
Input Voltage100-240 VAC, 100-277VAC, 50 / 60 Hz
Power Factor>0.92, >0.90
Surge Protection6kV line-line, 10kV line-earth
ControlPhotocell, Timer, 1-10V Dimmable, Non-Dimmable, Dimmable
IP RatingIP66
IK RatingIK10
CCT5000K, 4000K, 3000K
CRI80, 70
Operating Temperature-30°C to + 50°C
Beam AngleR02402
Mounting OptionSide Entry, Pole Mounting
Warrantys5 Years
CertificationsCE, RoHS, ETL
