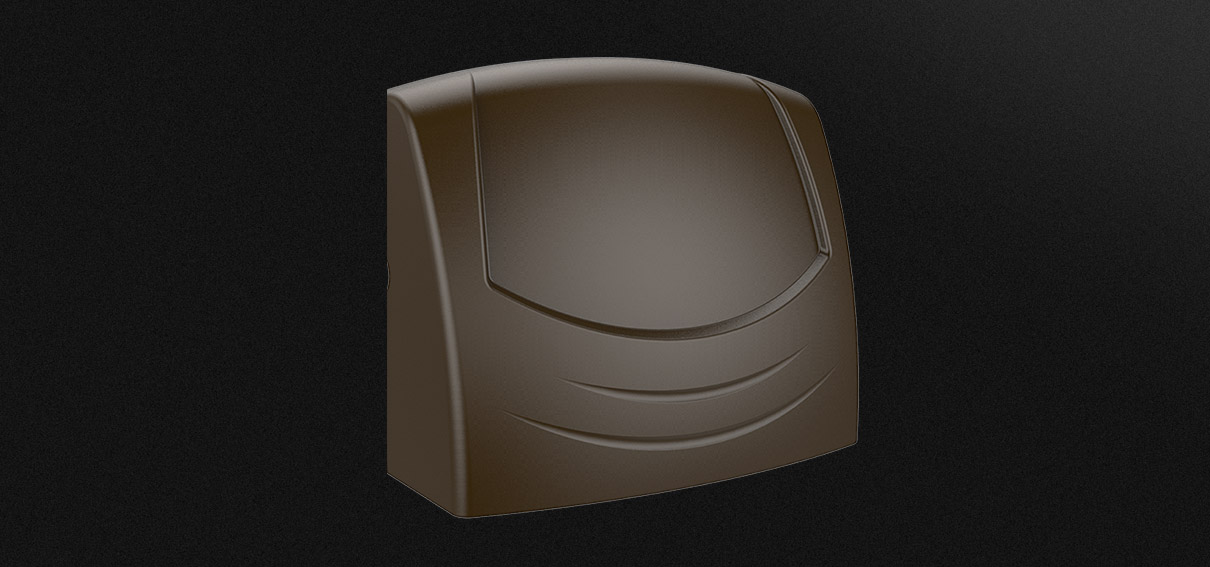

HiPack is a top quality LED wall pack designed for outdoor areas lighting and courtyard illumination. With Asymmetrical light distribution, Hipack is good to replace 250W Metal Halide lamps. With powder coating and sand textured housing, HiPack has good performance of corrosion-resistance.
HiPack is a asymmetrical optics wall pack designed for areas like outdoor lighting and courtyard illumination.

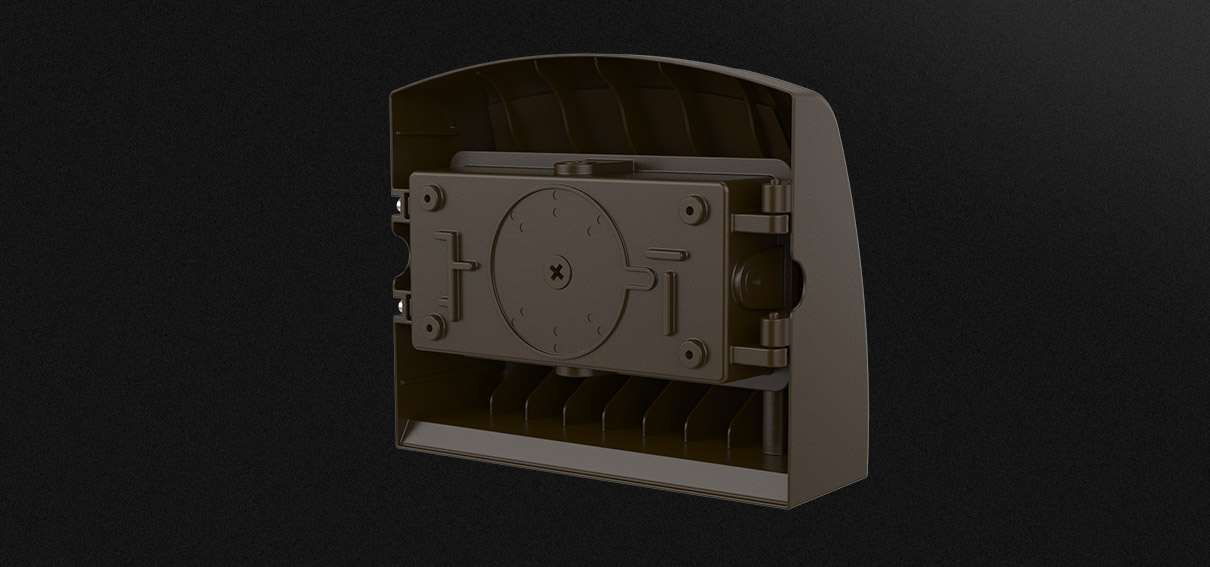

There is a rotatable shaft between driver compartment and fixture body, which can be fixed by only two screws and is convenient for installation.
Foam is added to the back of the fixture for installation, which will not only reduce pressure in installation but also prevent water from flowing into driver compartment.

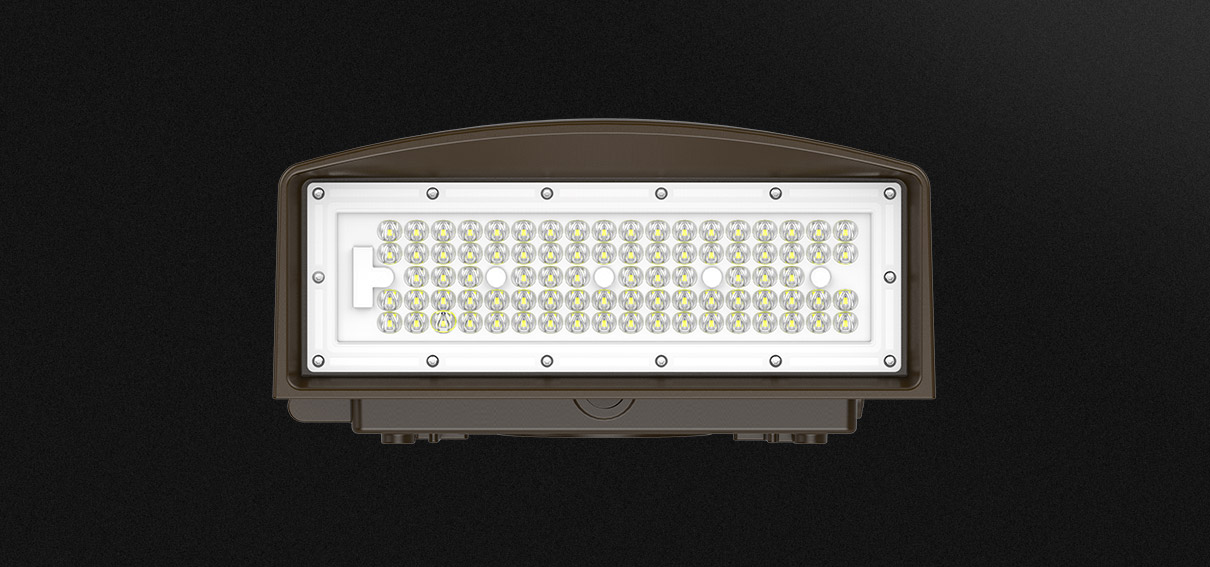

Asymmetric optic lens R08401 are designed
to make the efficacy up to 130lm/W.
The bronze housing has a good performance in corrosion-resistance after 500 hours acid-salt spray test.
Daylight Control (On/Off) can be offered.
| Model No. | WP01-040 | WP01-070 | ||
|---|---|---|---|---|
| Power Consumption | 40±4W | 70±4W | ||
| LED Type | SMD | |||
| Luminous Flux (±5%） | 5600LM | 9800LM | ||
| Efficacy (5000K Ra70) | 140(±5%)LM/W | |||
| Correlated Color Temperature | 5000K (3000K, 4000K optional) | |||
| Color Rendering Index | Ra70 (Ra80 optional) | |||
| Beam Angle | R08401 | |||
| Input Voltage | 100-240 VAC / 100-277 VAC | |||
| Power Factor | ≥0.9 | |||
| Frequency | 50 / 60 Hz | |||
| Surge Protection | 4kV line-line, 6kV line-earth | |||
| Driver Type | Constant Current (CC) | |||
| Product Dimension | 296x150x223mm ( 11.65"×5.91"×8.78" ) | |||
| Luminaire Net Weight | 3.9± 0.3kg (8.6± 0.66Lbs) | |||
| Export Carton Size | 10.71"×7.87"×13.78" (272x200x350mm) | |||
| Gross Weight | 4.6± 0.3kg ( 10.12 ± 0.66Lbs) | |||
| Finish | Powder Coating | |||
| Fixture Color | Bronze | |||
| IP Rating | IP65 | |||
| Mounting Option | Wall Mounting | |||
| Operating Temperature | -30°C to + 50°C (-22°F to 122°F) | |||
| Life Time | >50,000Hrs (Ta=30°C@L70) | |||
| Warranty | 5 Years | |||
| Dimmable | 1-10V Dimmable and Non-dimmable | |||
| Intelligent Control | Microwave Sensor / PIR Sensor / Emergency | |||
| Spec & Data sheets WP01 HiPack LED Wall Pack light V2.0 |
| IES files WP01 5000K Ra80 NiChia LED |
| IES files WP01 5000K Ra70 NiChia LED |
| Installation Manuals WP01 HiPack LED Wall Pack light V1.0 |
| Product Id | Model No. | Classification | Family Name |
|---|---|---|---|
| P1H9YVT1 | WP01-070-5000 | Premium | LLLBRL |
| P4NKITOO | WP01-070-4000 | Premium | LLLBRL |
| PK4FLO40 | WP01-070/GT | Premium | QQQUAI |
| PO99QVHN | WP01-040-5000 | Premium | LLLBRK |
| PFKRSFYB | WP01-040-4000 | Premium | LLLBRK |
