SP04 400W to 1500W 1800W Modular Design LED Sports Light

SP04 400W to 1500W 1800W Modular Design LED Sports Light

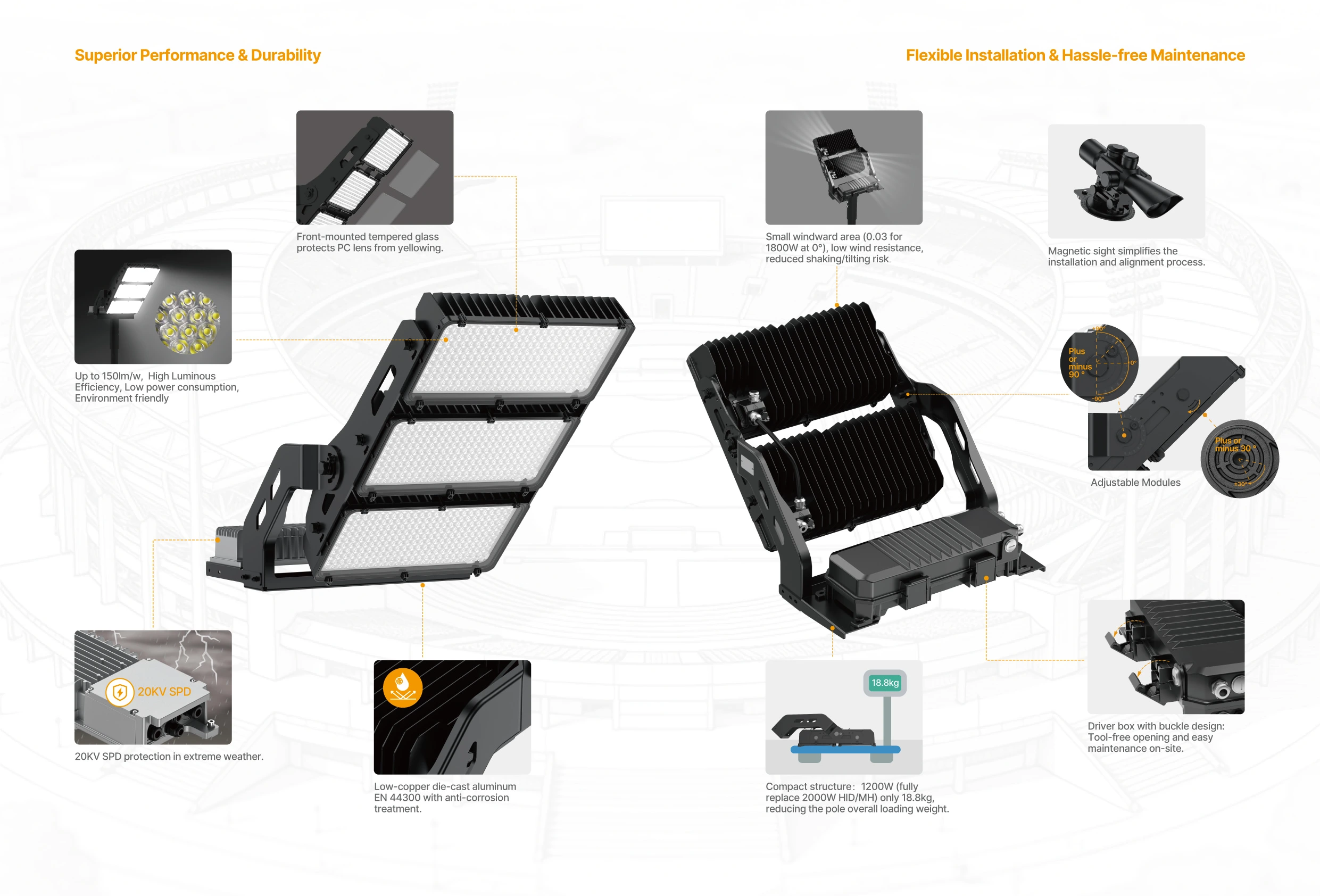

SP04 series LED sports light offer 56,000lm-270,000lm, flexible solution to cover medium and large stadium lighting projects. The modular design support single LED module tilt adjustable, to achieve precise lighting performance. With special materials and surface treatment, SP04 offer excellent anti-corrosion ability, it is a good choice for harbour lighting.

  • Modular design 400W 480W 600W  800W 960W 1200W 1500W 1800W.

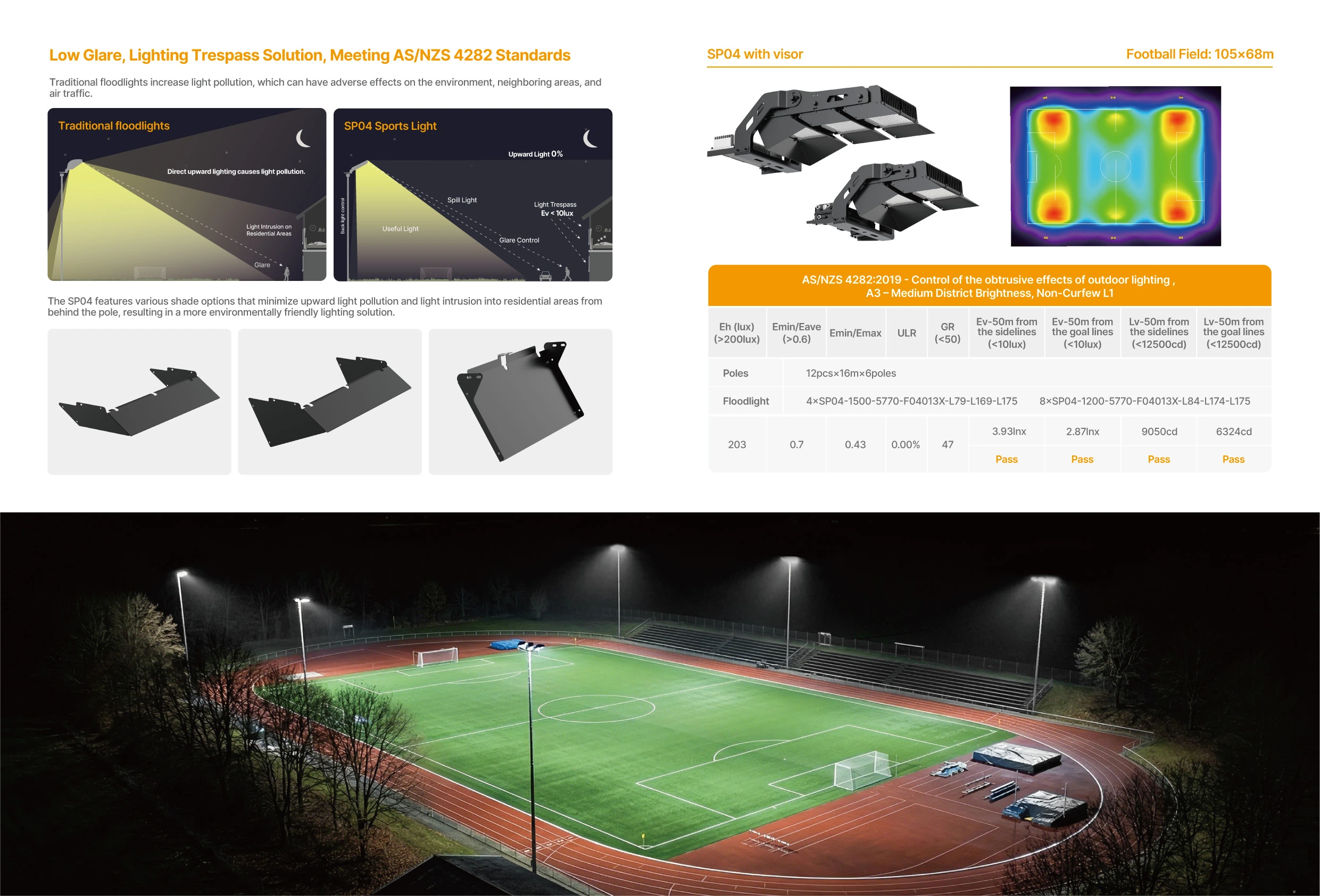

  • No backlight, no up-light and no spill light.

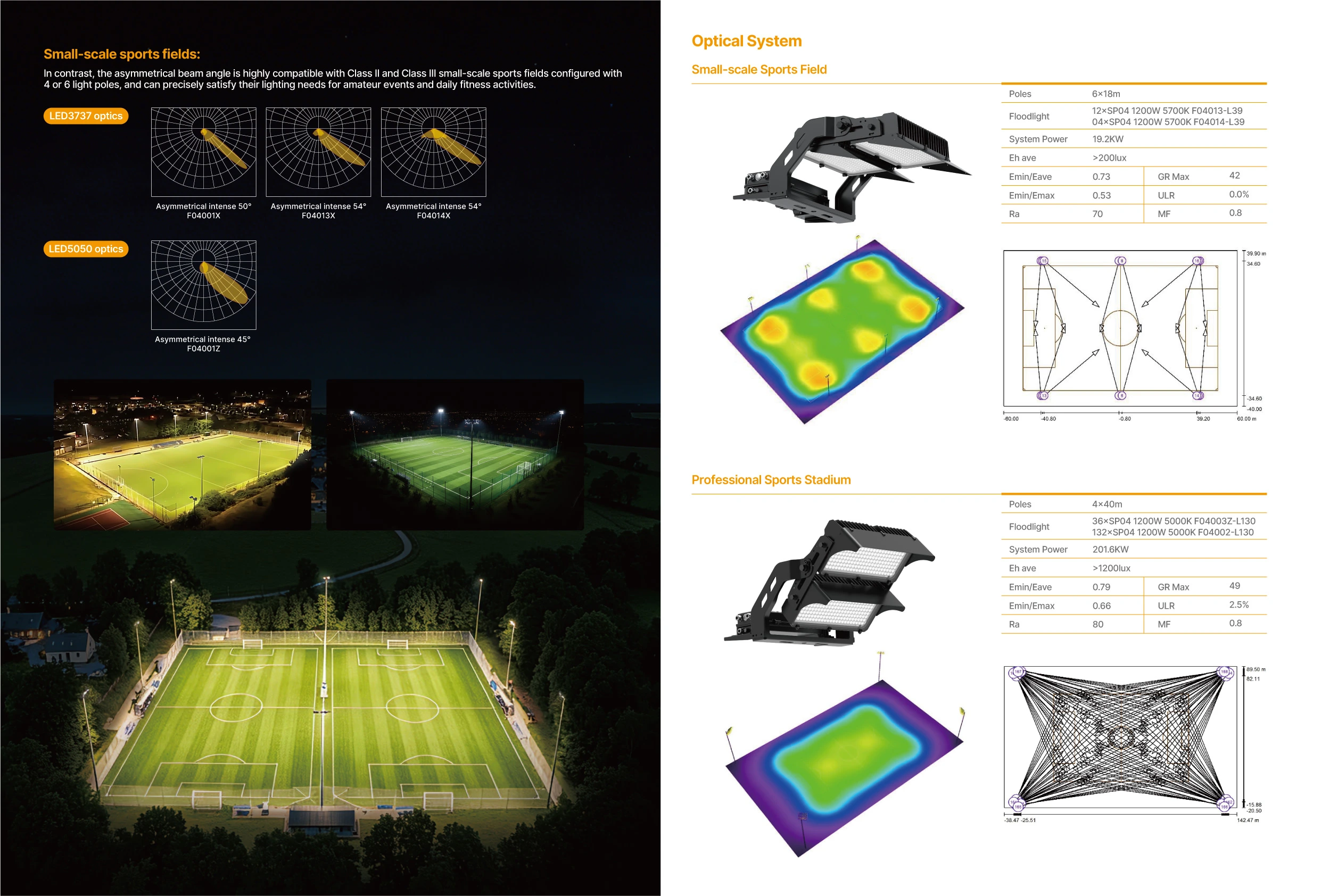

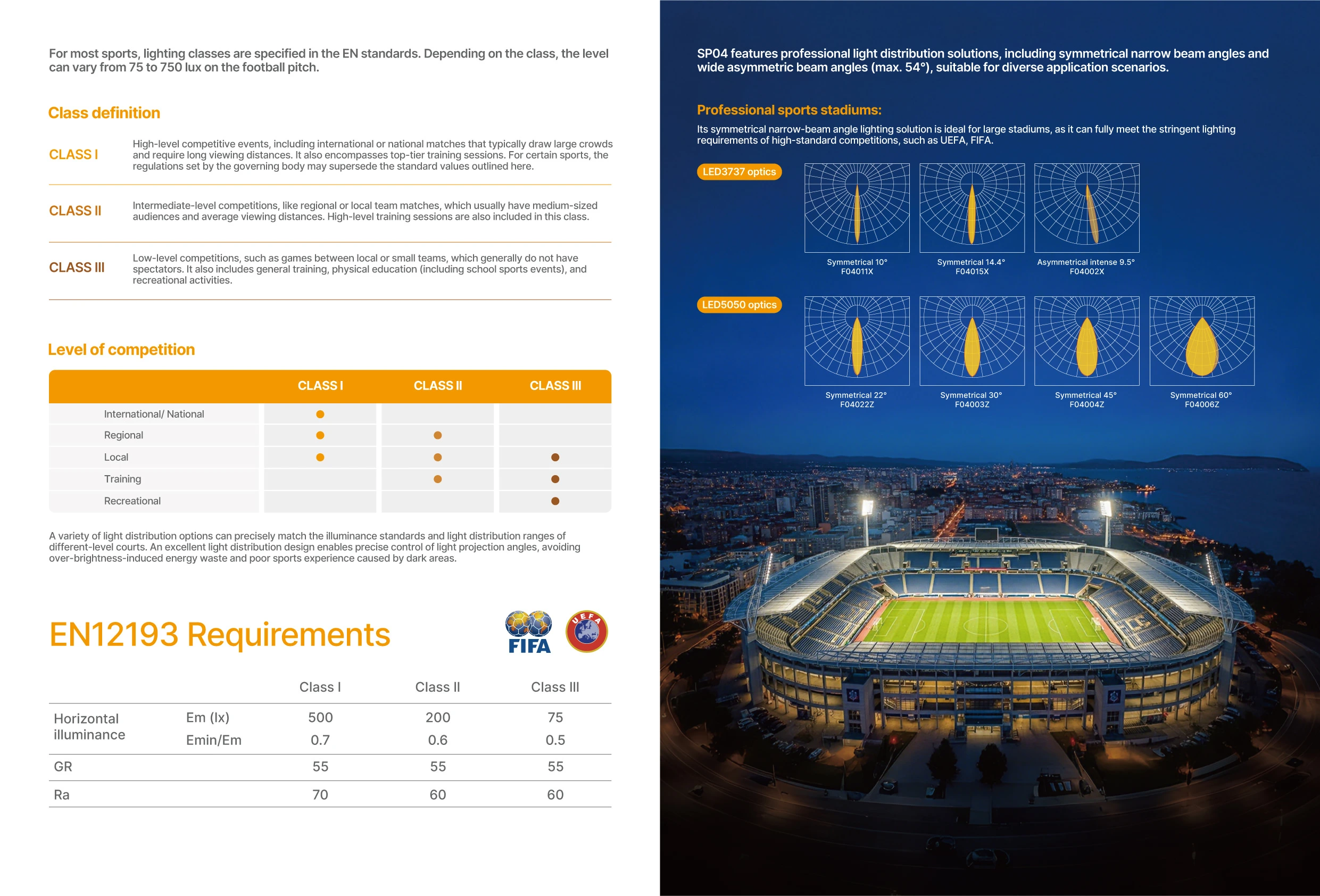

  • Professional and unique optics options could effectively control glare and ensure the good uniformity.
  • Adjustable bracket design obtains the best uniformity.
  • Excellent anti-corrosion performance.
  • Provided with 20KV surge protection devices.
  • IP66 and IK08 protection.

Applications: Square, Outdoor stadium, Exhibition center, Soccer field, Airport, Railway station

* AGC products are designed for global market. Please contact our sales team for certification details.
* Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
SP04 Sports Lighting 01
SP04 Sports Lighting 02
SP04 Sports Lighting 03
SP04 Sports Lighting 04
SP04 Sports Lighting 05
Series CodeSP04
Power400W, 480W, 600W, 800W, 960W, 1200W, 1500W, 1800W
Efficacy140lm/W, 150lm/W
Input Voltage120-240VAC, 50 / 60 Hz
Power Factor>0.97
Surge Protection20KV line-earth
Control0-10V dimmable, DMX, DALI
IP RatingIP66
IK RatingIK08
CCT3000K, 4000K, 5700K
CRI70, 80, 90
Operating Temperature-30°C to + 40°C
Beam AngleF04001Z, F04003Z, F04004Z, F04006Z
Mounting OptionBracket Mounting
Warrantys5 Years
