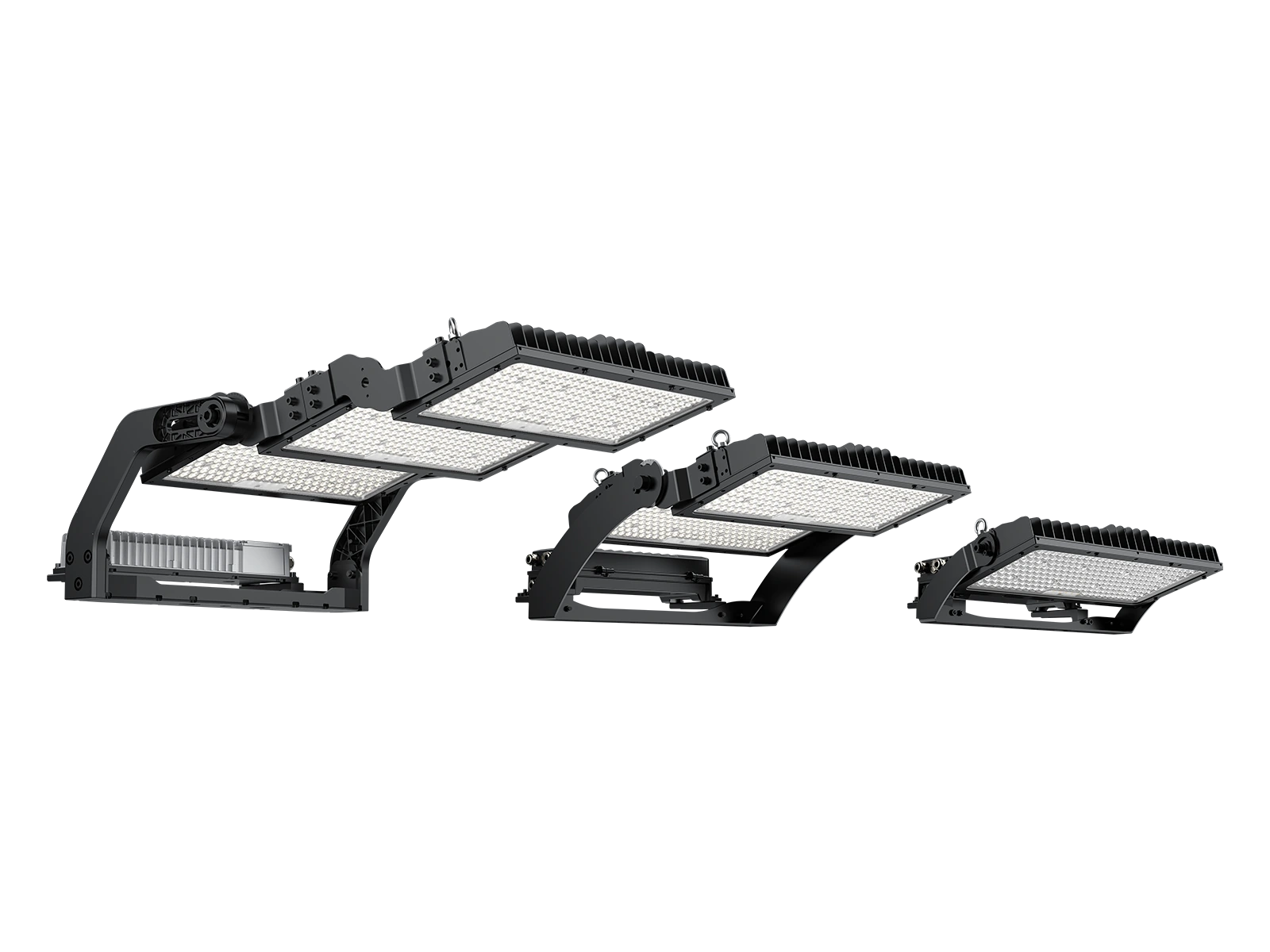

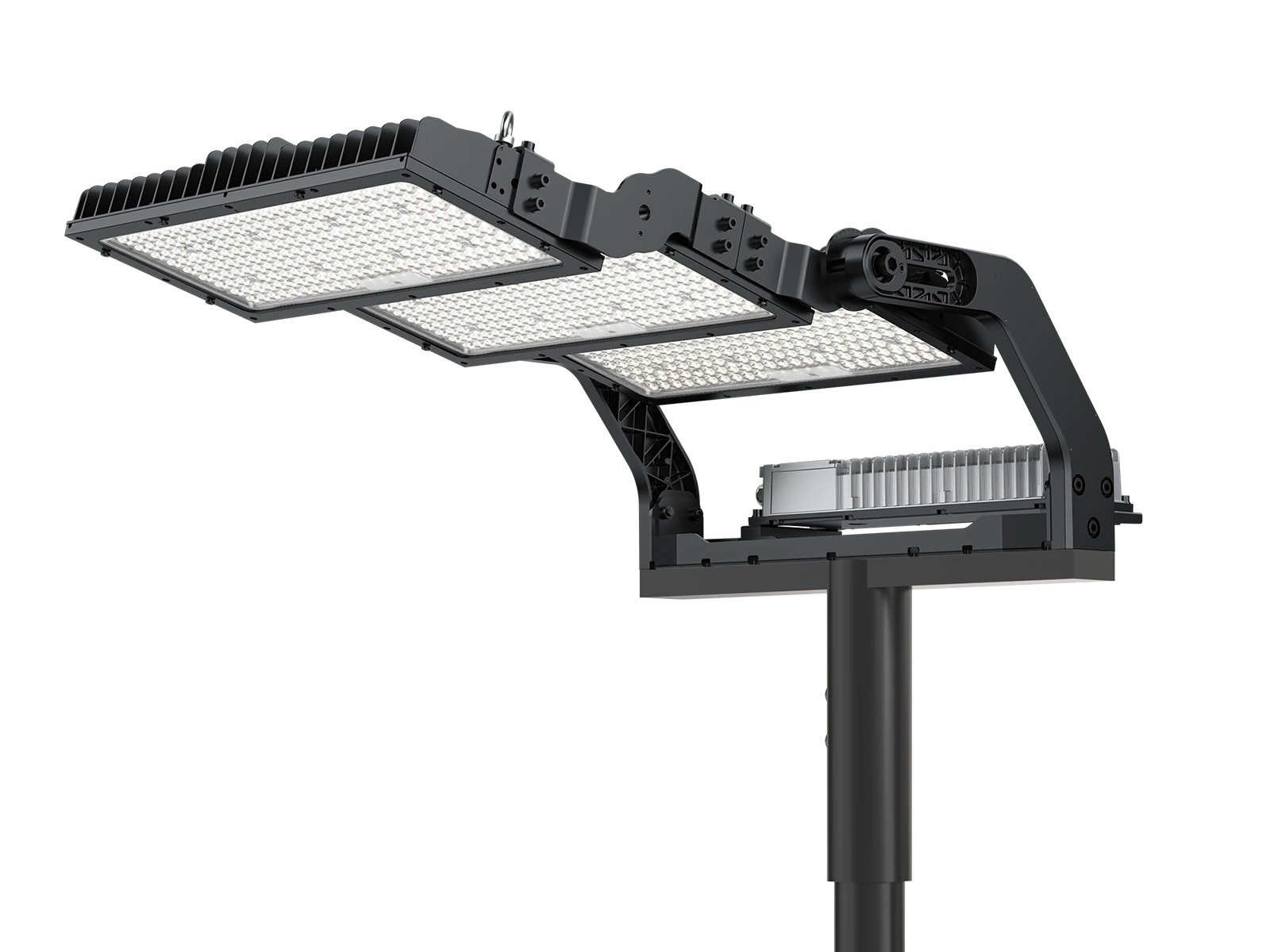

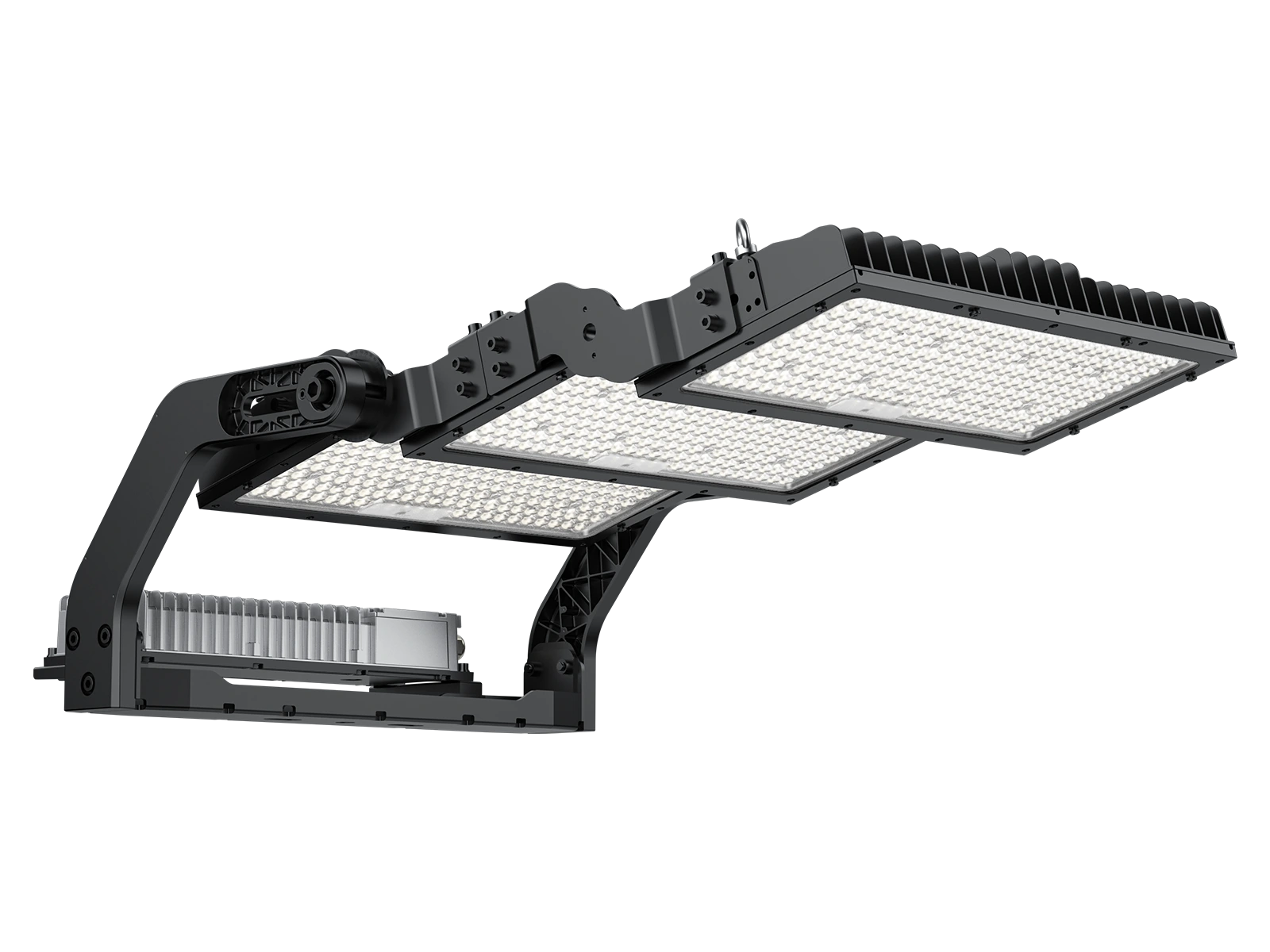

SP02 projection lamp is a multi-functional innovative sports lighting, which is used in outdoor sports areas and multi-functional gymnasiums. The brand includes the popular appearance developed by Thorne, which lacks a sense of design. Therefore, it has developed a high-end appearance with less light behind the pole and 65° angle polarization, which is required by the market.

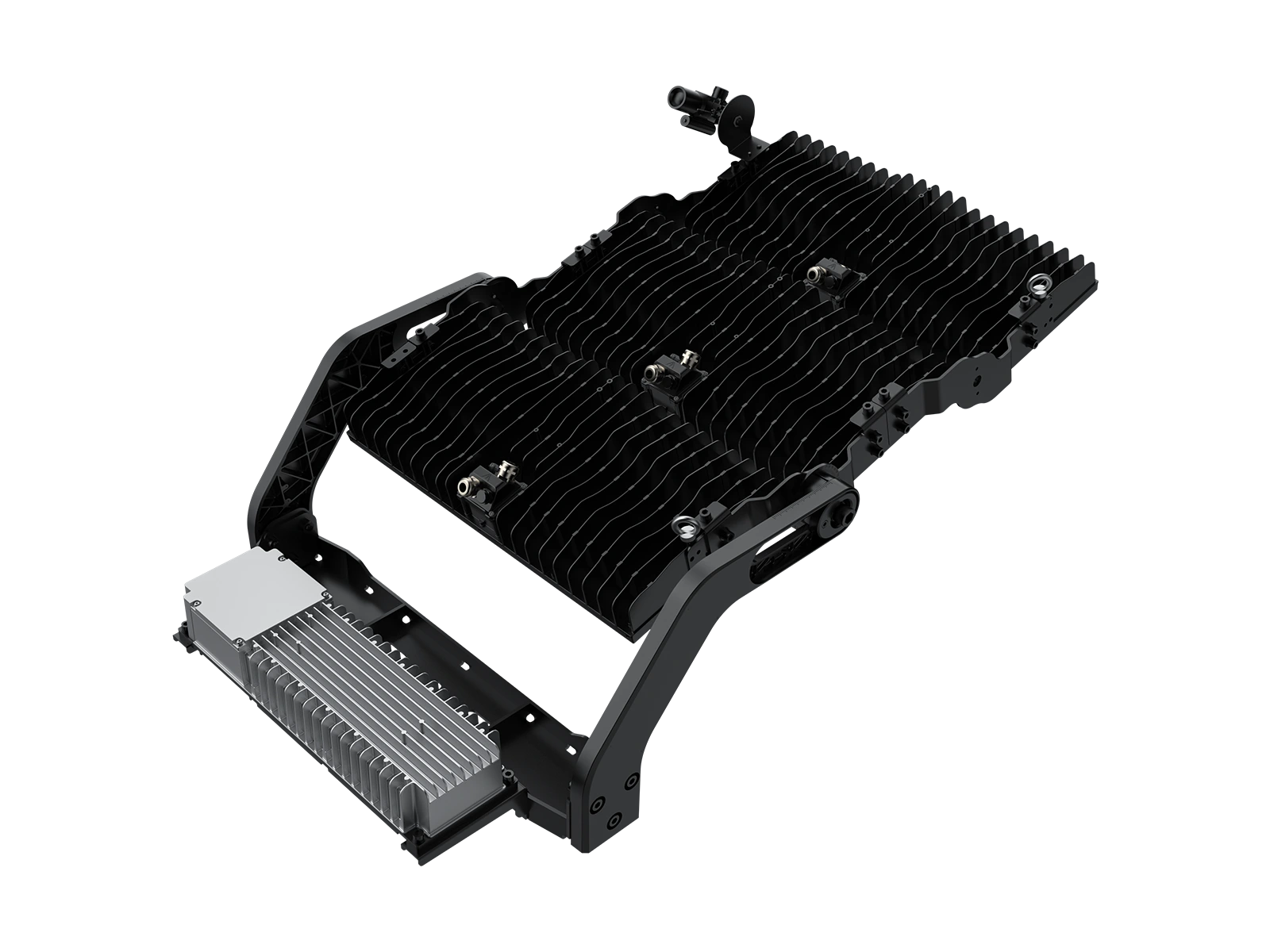

The light behind the rod is less, the cover is smaller, and there is no glass. In addition to the cover, the grille can also be installed. There are not many models, but the power coverage is very comprehensive, which can meet the demand of 20W lumens. The inclined way of the light-emitting surface can overcome the design problem of large polarization angle, and easily achieve 65 ° polarization. The spliced DIY structure is suitable for storage.
Applications: Outdoor sports fields, Square, Stadium, Exhibition center, Soccer field, Airport, Railway station
| Series Code | SP02 |
|---|---|
| Power | 600W, 1200W, 1800W |
| Efficacy | 130lm/W |
| Input Voltage | 220-277VAC, 50/60Hz; 200-277VAC, 50/60Hz; 200-420VAC, 50 / 60Hz, 50 / 60 Hz |
| Power Factor | >0.92, >0.95 |
| Surge Protection | 10kV line-line, 20kV line-earth |
| Control | DALI, DMX |
| IP Rating | IP66 |
| IK Rating | IK08 |
| CCT | 5700K, 3000K |
| Operating Temperature | -30°C to + 45°C |
| Beam Angle | F22001Z, F22003Z, F22004Z |
| Mounting Option | Bracket Mounting |
| Warrantys | 5 Years |
