HA06 is an LED luminaire that is made of Glass Reinforced Plastic. It is extremely strong, yet lightweight and highly versatile. This luminaire can be used in Zone 2 and Class I Division II. Its high-efficacy design comes with custom 12 optics to ensure maximum efficiency and has a sleek and attractive appearance. Additionally, an emergency version is available, which makes it an ideal solution for harsh and dangerous environments.

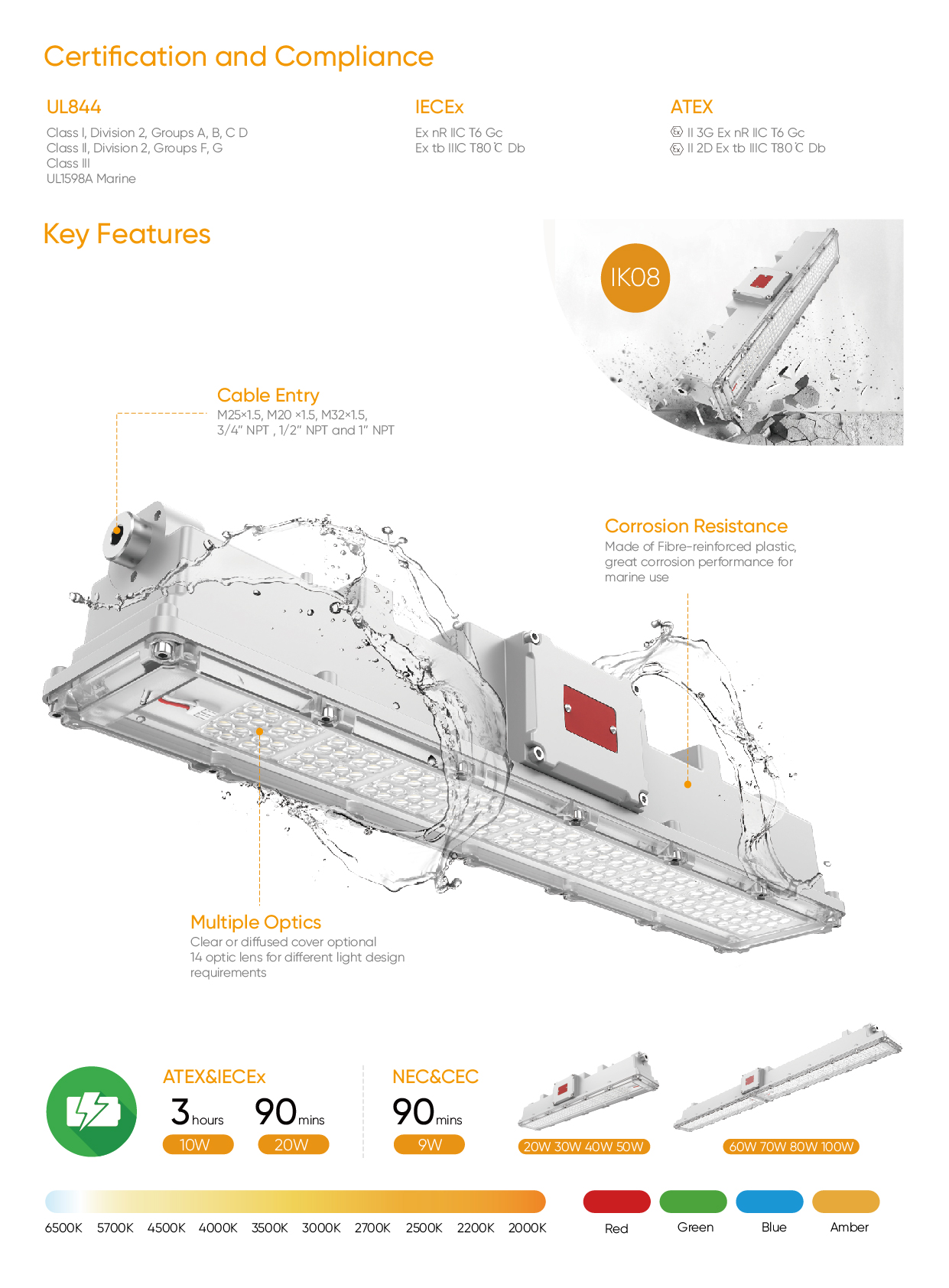

IECEx:
Ex nR IIC T6/T5 Gc
Ex tb IIIC T80℃/T95℃ Db IP66
ATEX:
II 3G Ex nR IIC T6/T5 Gc
II 2D Ex tb IIIC T80℃/T95℃ Db IP66
Applications: Chemical, Oil, gas and petrochemicals, Pulp and paper, Foundries, Manufacturing, Waste and sewage treatment, Power generation, Paint spray booths.
Series Code | HA06 |
---|---|
Efficacy | 160lm/W |
Input Voltage | 24-48Vac/120-277Vac/277-480Vac, 50 / 60 Hz; 18-48Vdc, 50 / 60 Hz |
Power Factor | >0.90 |
Surge Protection | 4kV line-line, 6kV line-earth, 6kV line-line, 10kV line-earth |
Control | 1-10V |
IP Rating | IP66 |
IK Rating | IK08 |
CCT | Red/Green/Blue/Amber/5000K (2000, 2200K, 2500K, 2700K, 3000K, 3500K, 4000K, 4500K, 5700K, 6500 optional)K |
CRI | 70, 80, 90 |
Operating Temperature | -40°C to +55°C (-40℉ to +131℉) |
Beam Angle | T00C05, T00C06, F01601, F01602, F01603, F01604, F01605, F01606, F01608, F01609, F01610, F01611, F01612, F01613 |
Mounting Option | Ceiling mount, Trunnion mount, Clamp mount, Loop mount, Pendant mount |
Warrantys | 5 Years |
