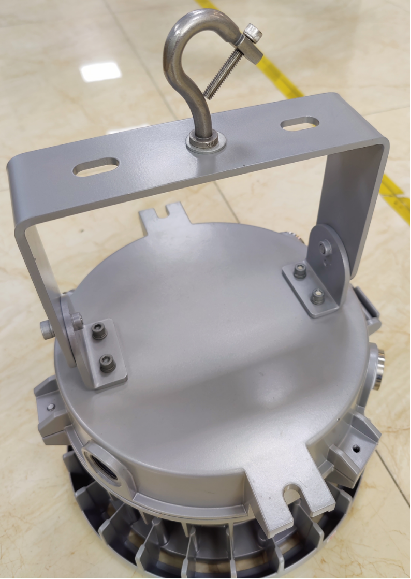

HA05 is a robust lighting fixture that is constructed using a high-strength, low-copper aluminum alloy. It is specially designed to cater to Zone 2 and Class I Division II environments and is equipped with a specialized outdoor powder coating to provide added protection. The stainless steel parts and brackets of HA05 feature anti-corrosion technology, ensuring its durability.
Additionally, it provides 90 minutes/ 3 hours of emergency lighting to ensure personnel safety & plant operation.
IECEx:
Ex nR IIC T6/T5 Gc
Ex tb IIIC T80℃/T95℃ Db IP66
ATEX:
II 3G Ex nR IIC T6/T5 Gc
II 2D Ex tb IIIC T80℃/T95℃ Db IP66
Applications: Oil refineries, Petrochemical facilities, Pulp and paper mills, Foundries, Manufacturing facilities, Waste and sewer, Treatment facilities, Mining, Power generation facilities.
Series Code | HA05 |
---|---|
Power | 30W, 50W, 75W, 100W, 120W, 150W, 180W, 200W, 240W |
Efficacy | 140lm/W |
Input Voltage | 100-277VAC, 277-480VAC, 50 / 60 Hz |
Power Factor | >0.90 |
Surge Protection | 10kV line-line, 10kV line-earth |
Control | Dimmable, DALI, Non-Dimmable |
IP Rating | IP66 |
IK Rating | IK08 |
CCT | Red/Green/Blue/Amber/5000K, 2000K, 2200K, 2700K, 3000K, 3500K, 4000K, 4500K, 5700K, 6500K |
CRI | 70, 80, 90 |
Operating Temperature | -40°C to + 65°C |
Beam Angle | Type I, Type III, Type Ⅴ |
Mounting Option | Ceiling mount/Pendant mount/Wall bracket/25° Stanchion mount/90° Stanchion mount /Trunnion mount |
Warrantys | 5 Years |
