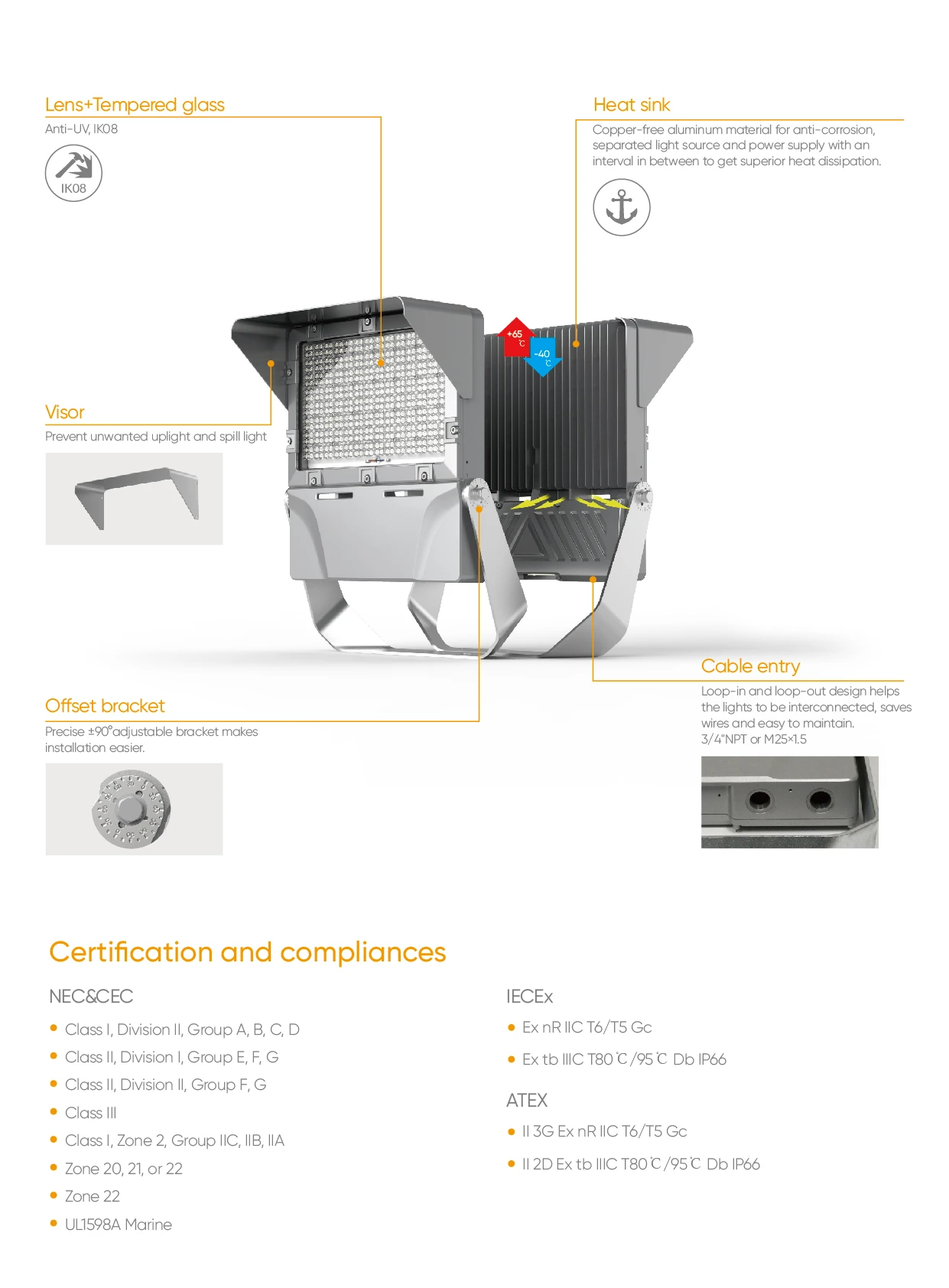

Sparkle is an LED explosion-proof floodlight that is designed for use in Zone 2 and Class I Division II hazardous locations. It is made from copper-free materials and features a separate LED body and heatsink. This floodlight has a loop in and out interconnection function, and it also offers 12 optics options that can exceed customer expectations.
IECEx:
Ex nR IIC T6/T5 Gc
Ex tb IIIC T80℃/95℃ Db IP66
ATEX:
II 3G Ex nR IIC T6/T5 Gc
II 2D Ex tb IIIC T80℃/95℃ Db IP66
Applications: Power plants,Heavy industrials storage facility, Paper mills wastewater treatment,Plants loading docks, Shipyards, Chemical processing facility, Petrochemical processing facility and so on
Series Code | HA04 |
---|---|
Power | 150W, 200W, 240W |
Efficacy | 150lm/W |
Input Voltage | 100-277VAC, 277-480VAC, 50 / 60 Hz |
Power Factor | >0.90 |
Surge Protection | 10kV line-line, 10kV line-earth |
IP Rating | IP66 |
IK Rating | IK08 |
CCT | Red/Green/Blue/Amber/5000K(2000, 2200K, 2700K, 3000K, 3500K, 4000K, 4500K, 5700K, 6500K |
CRI | 70, 80, 90 |
Operating Temperature | -40°C to + 65°C |
Beam Angle | F01601, F01602, F01603, F01604, F01605, F01606F01608, F01609, F01610, F01611, F01612, F01613 |
Mounting Option | Bracket Mounting |
Warrantys | 5 Years |
