FL28 Epoch High Lumen Output Floodlight, 84000lm to 192000lm Optional

FL28 Epoch High Lumen Output Floodlight, 84000lm to 192000lm Optional

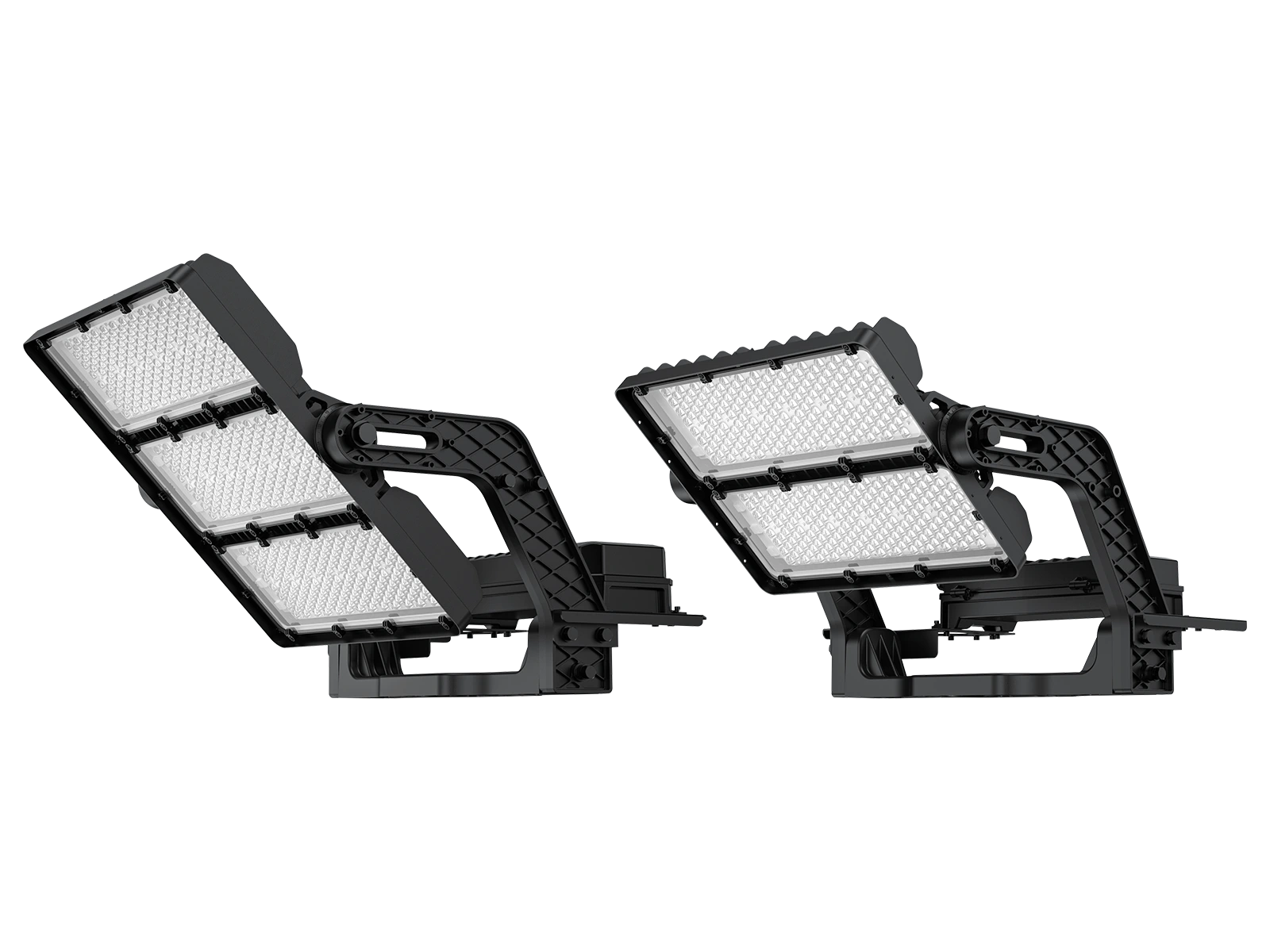

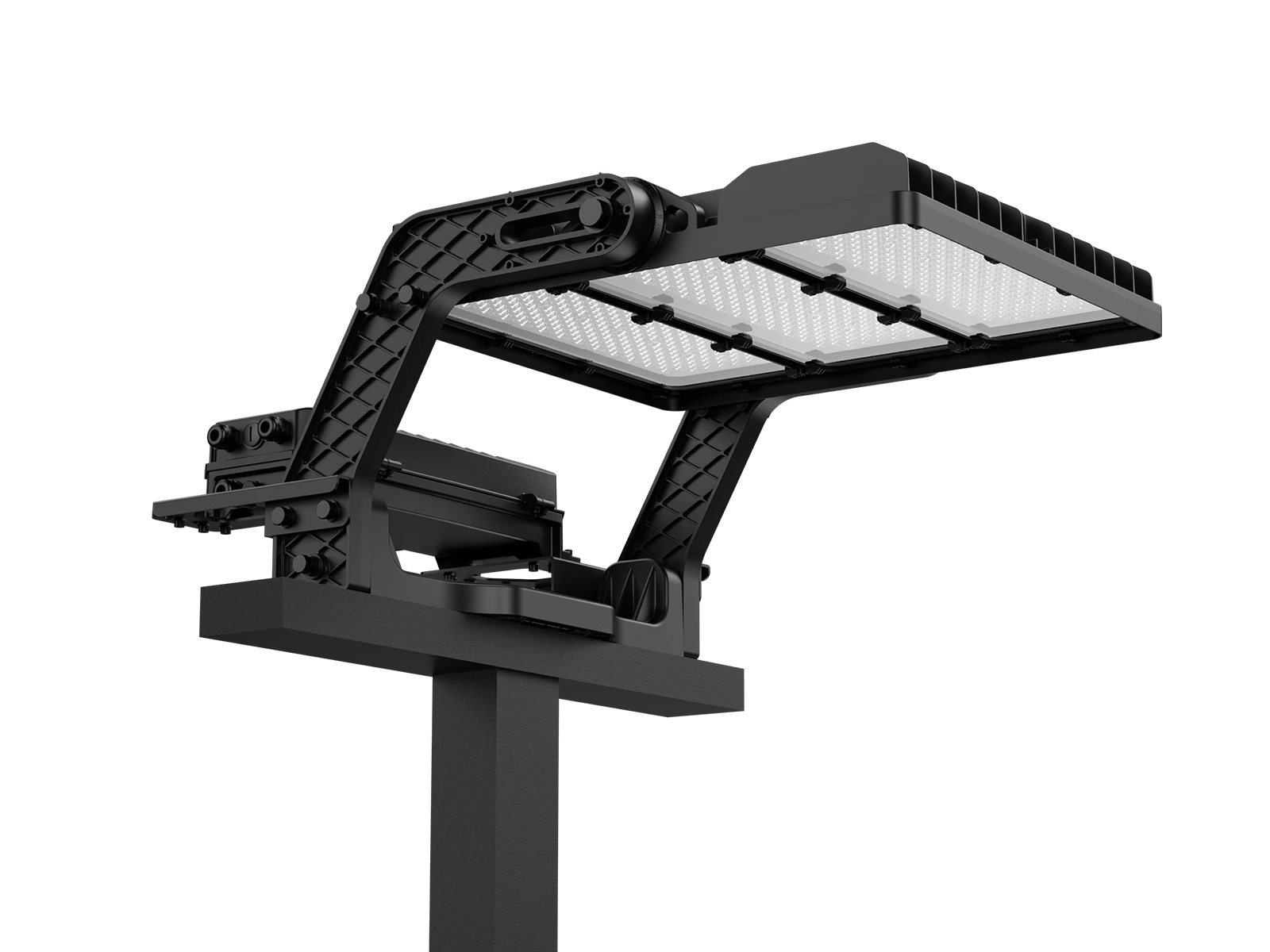

Epoch Maxi is a professional lighting solution for sports lighting and high mast area lighting. It can meet the complex lighting requirements such as backlight control, upward light control, glare control, and high lumen output without sacrificing light uniformity.

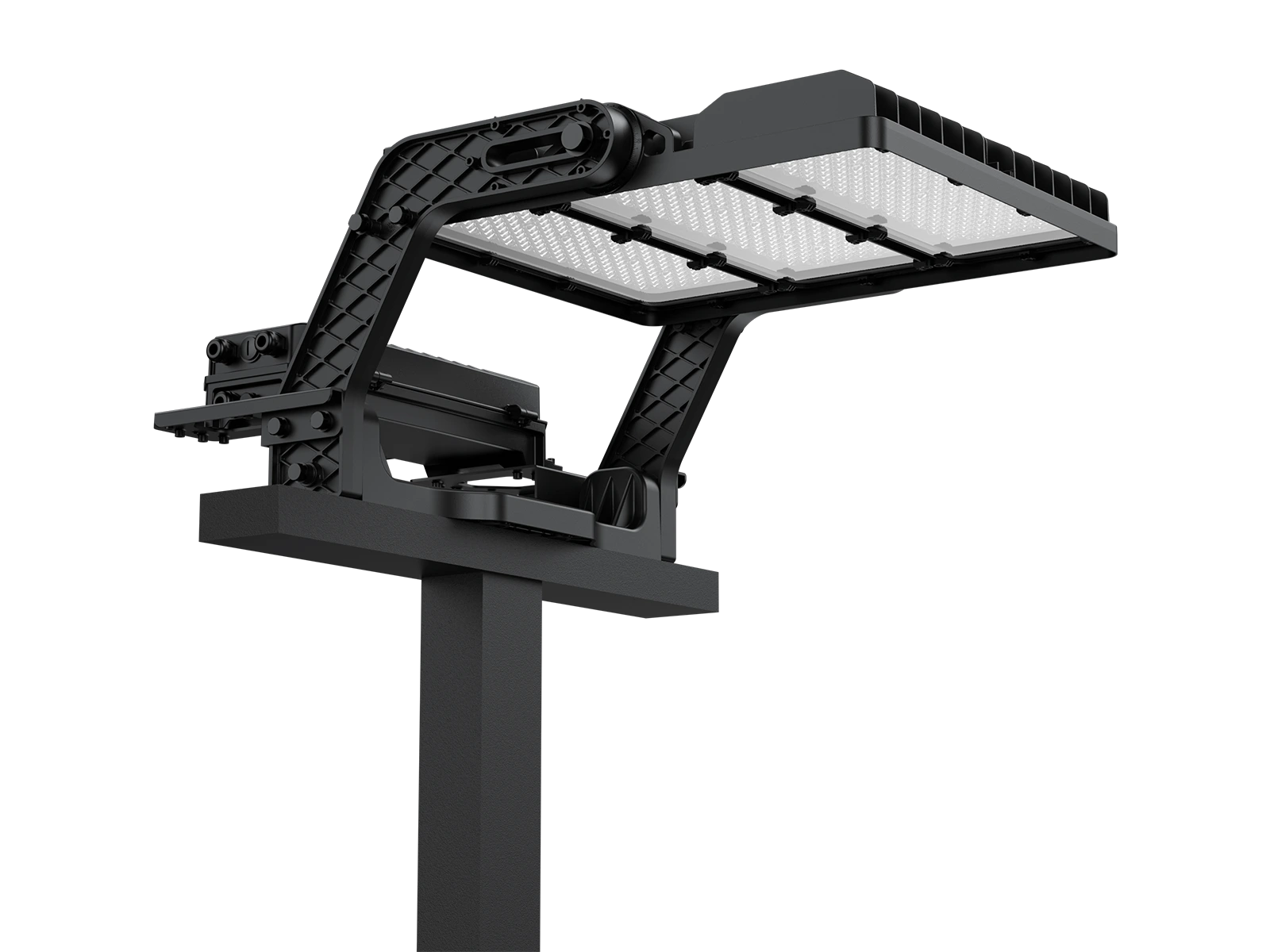

Single-piece die-cast housing and mounting bracket are made of high-quality aluminum. It can be installed in general outdoor environments because of its corrosion resistance performance. The whole luminaire can be adjusted at 360 degrees horizontally and vertically, making ON-SITE ADJUSTMENT easier and quicker. The readable adjustment scale printed on the bracket enables precise installation and reduces the luminaire quantities for cost-saving.

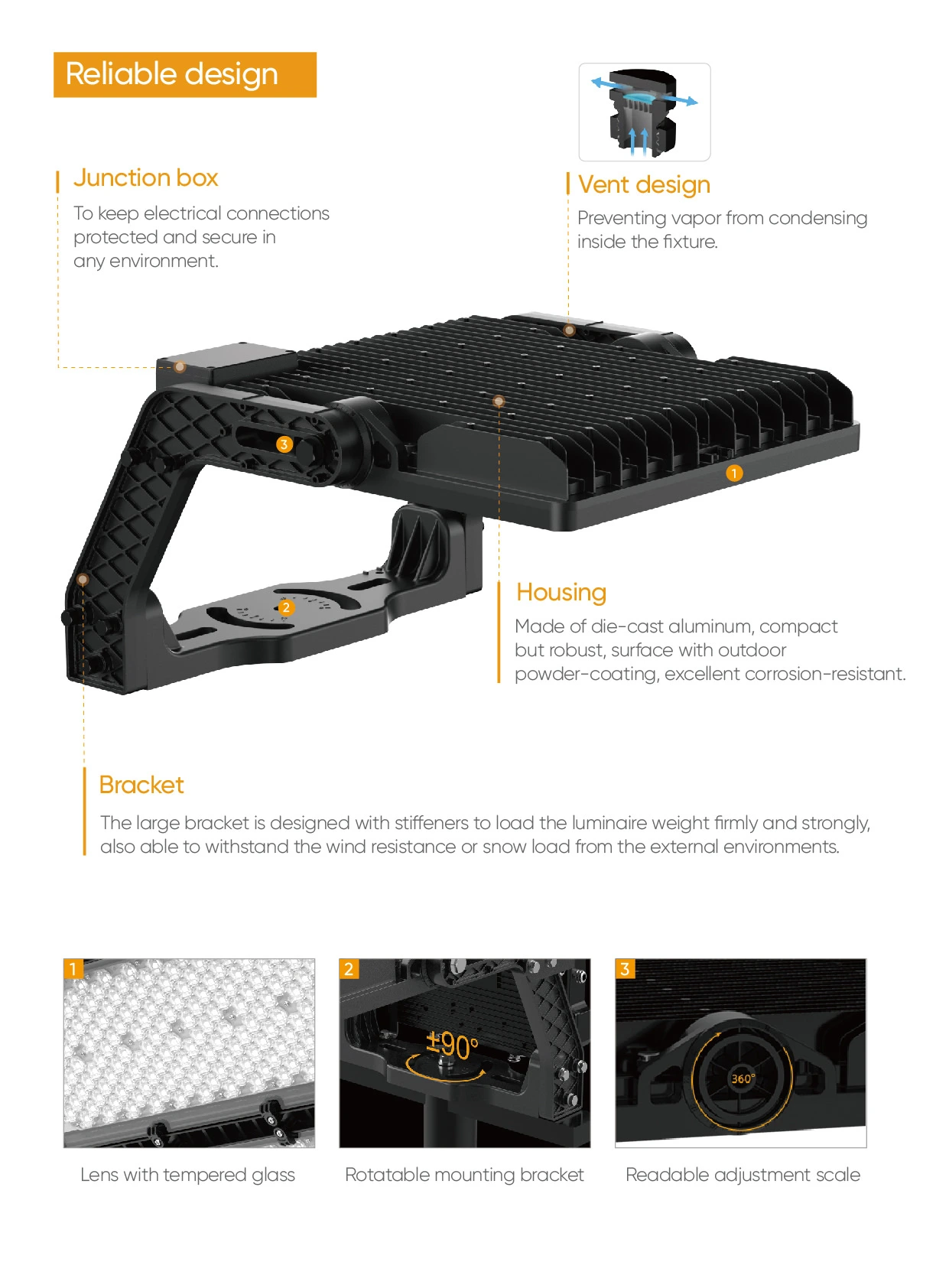

  • Lightweight single-piece die-cast housing.
  • Die-casting aluminum with special surface treatment
    ensures good corrosion resistance.
  • Covers the most commonly used wattage 600W 800W 1000W 1200W.
  • High lumen output from 84,000lm to 192,000lm optional.

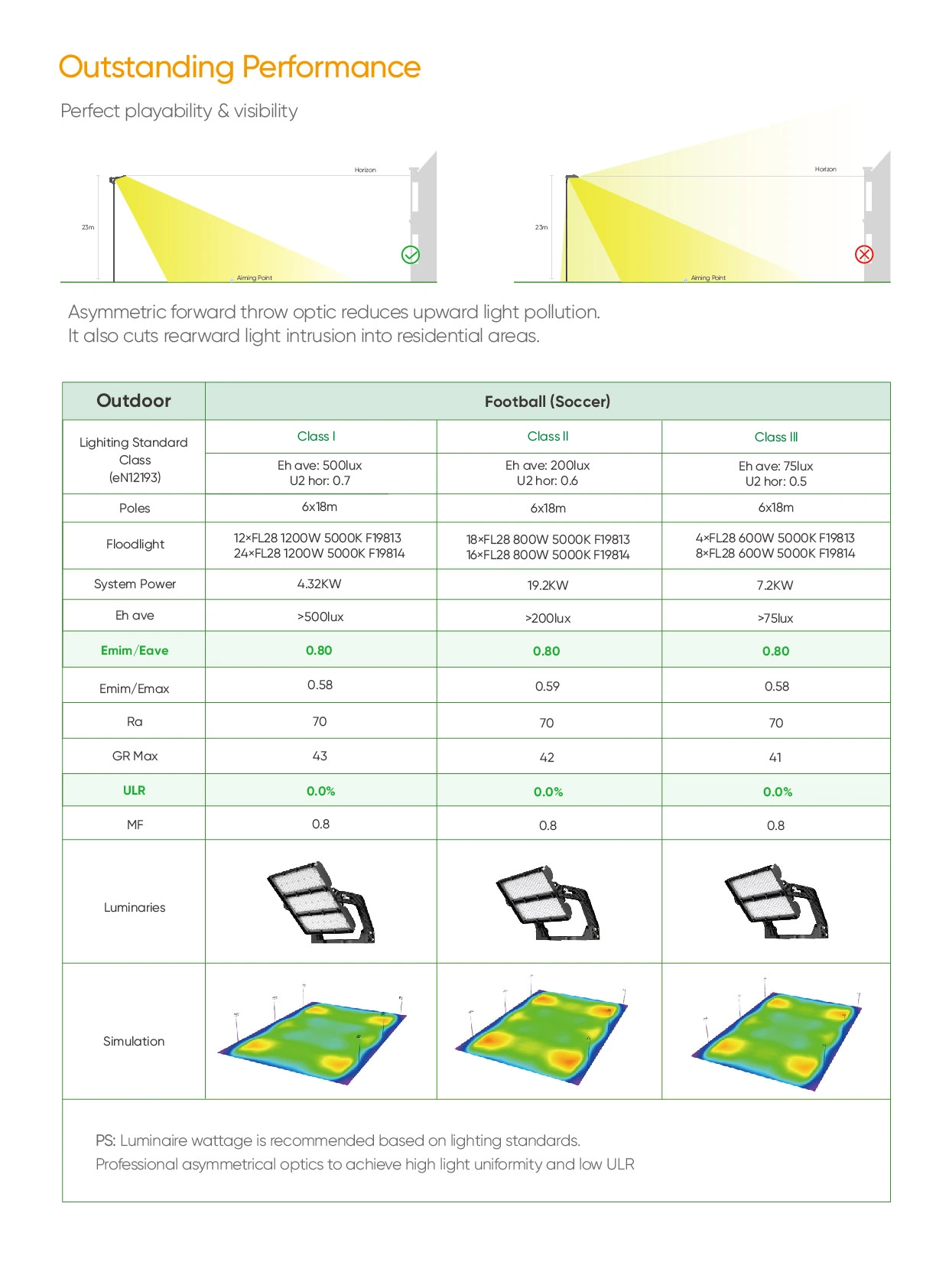

  • Narrow, Wide, Symmetrical, and Asymmetrical optics optional.

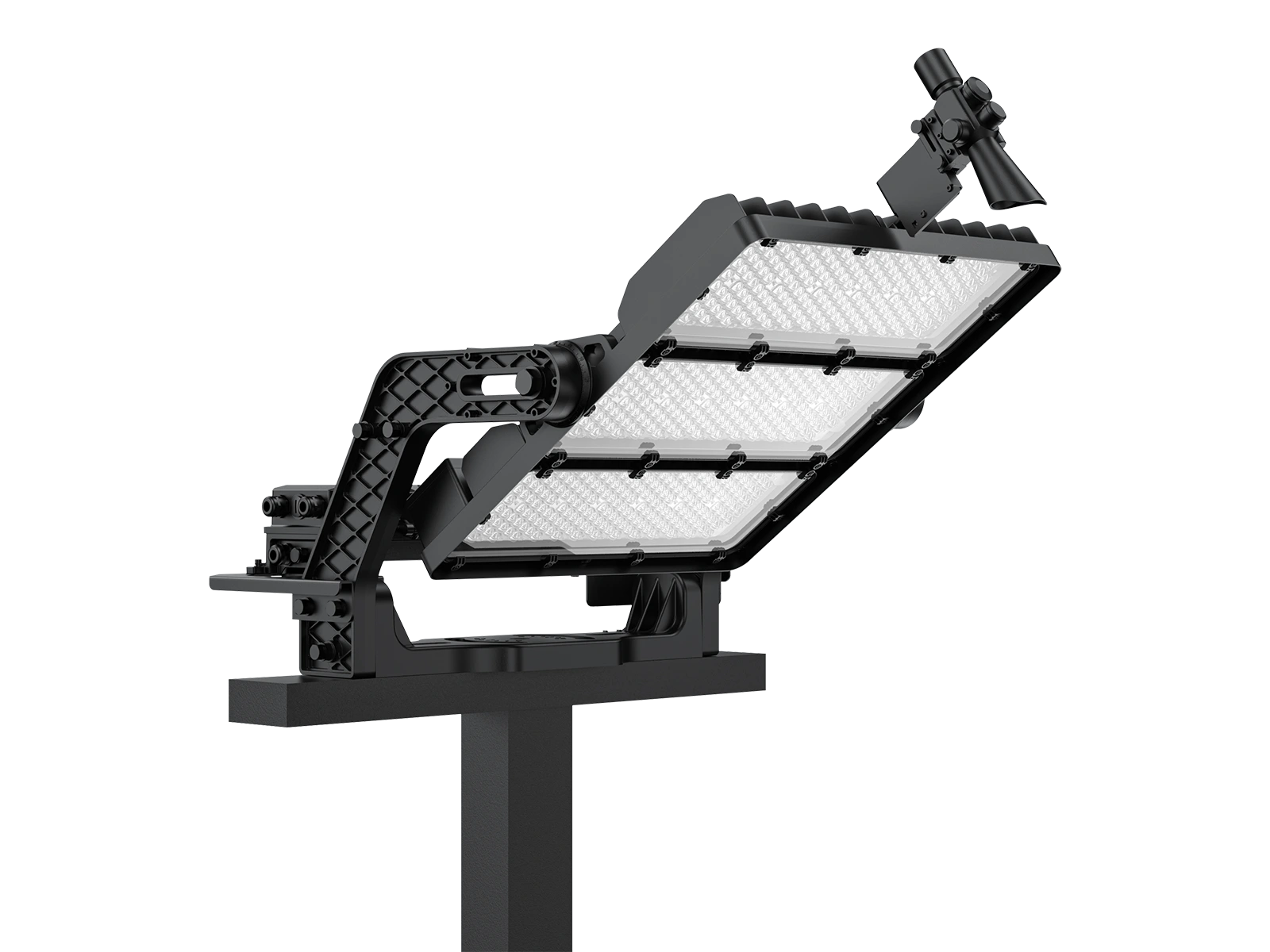

  • Bracket and housing allow 360 degrees adjustment.

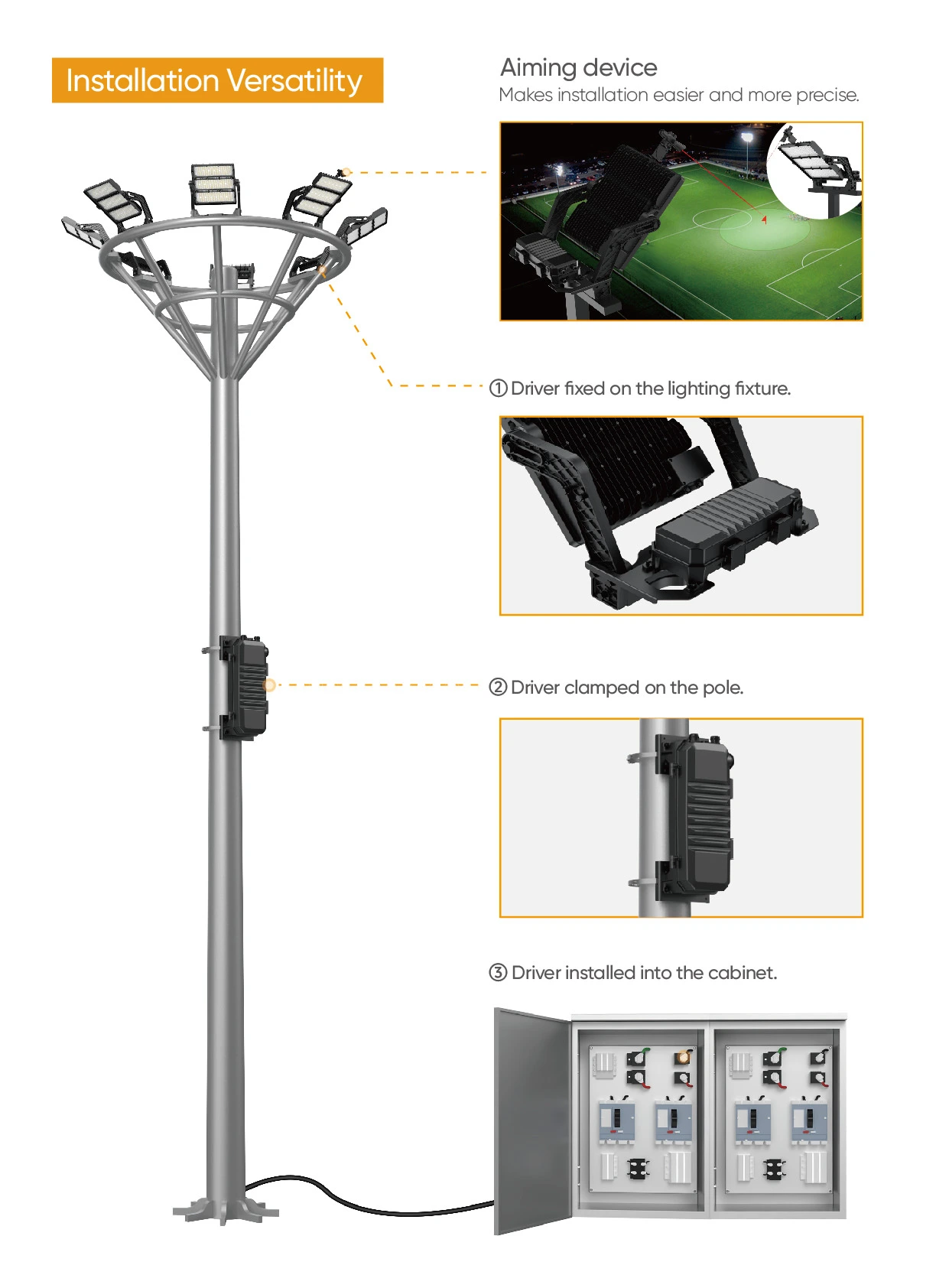

  • Remote driver gear for easy maintenance.
* AGC products are designed for global market. Please contact our sales team for certification details.
* Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
FL28 Sports lighting 00FL28 Sports Lighting 01FL28 Sports Lighting 02FL28 Sports Lighting 03FL28 Sports Lighting 04
Series CodeFL28
Power600W, 800W, 1000W, 1200W
Efficacy140lm/W, 160lm/W
Input Voltage200-240VAC, 277-480VAC, 100-240 VAC, 50 / 60 Hz
Power Factor>0.92
Surge Protection10kV line-line, 20kV line-earth, 20KV
ControlDimmable, DALI, DMX, ZigBee Control, Wireless
IP RatingIP66
IK RatingIK08
CCT4000K, 5000K, 5700K
CRI70, 80, 90
Operating Temperature-30°C to + 40°C
Beam AngleF19801, F19802, F19803, F19804, F19805, F19806, F19808
Mounting OptionBracket Mounting
Warrantys5 Years
CertificationsCE, CB, RoHS, ENEC
