LHB26 SlimPro Linear Trunking System Brings You Unprecedented Visual Comfort Experience

LHB26 SlimPro Linear Trunking System Brings You Unprecedented Visual Comfort Experience

SlimPro would comfort your eyes with the cutting edge optics LEDiL lens and light distributions without sacrificing high efficiency. The light is quite soft and uniform. It's also compatible with a variety of dimming mode (0-10V/ DALI). Plus, multiple lamps can be flexibly combined and spliced.

  • Excellent patent appearance design
  • LEDiL lens delivers high quality and diversified distributions
  • Seamless connection, no dark spots
  • Three firelines design which can be flexibly stitched
  • Maximum 50 fixtures can be combined to achieve flexible collocation

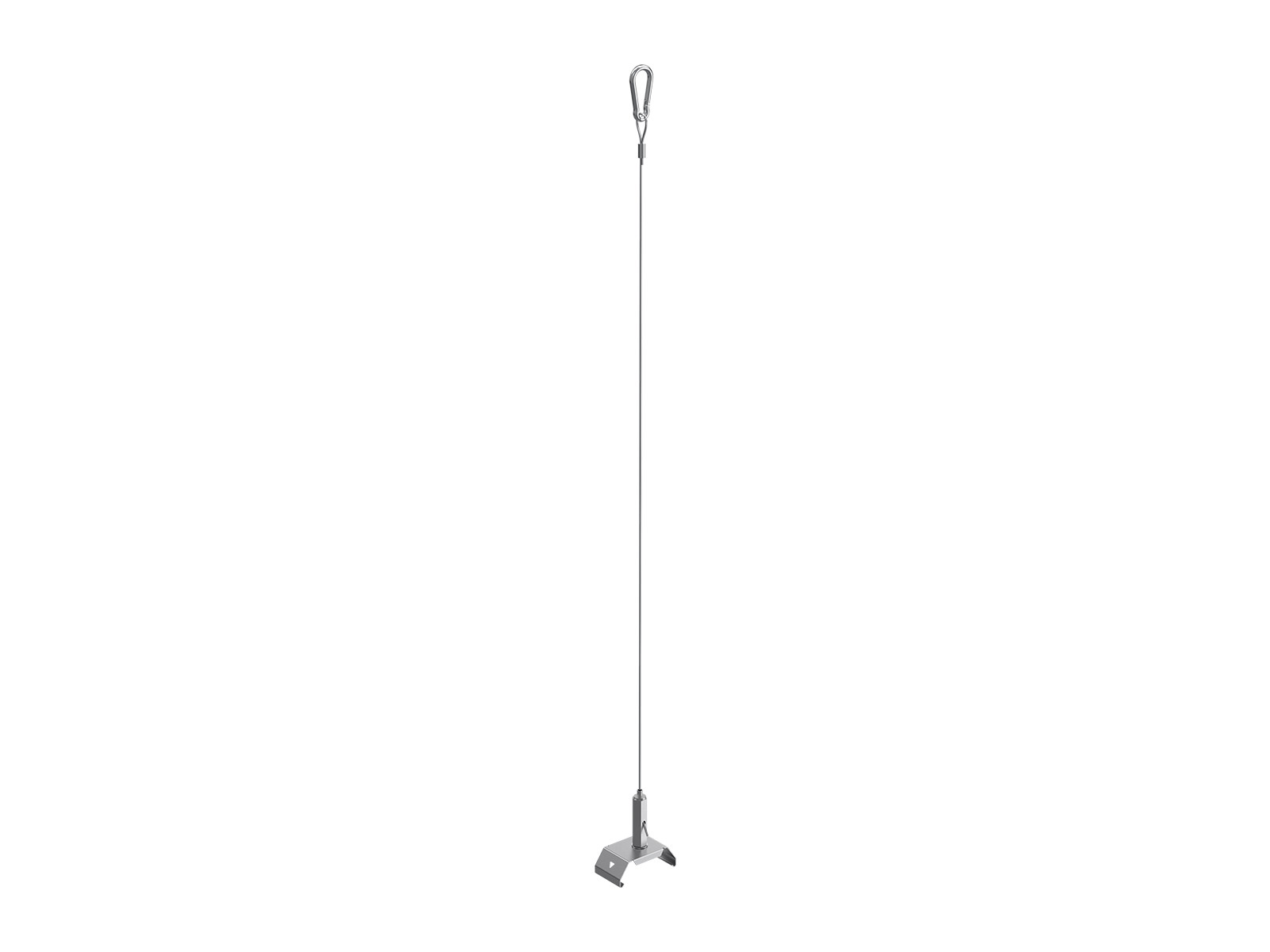

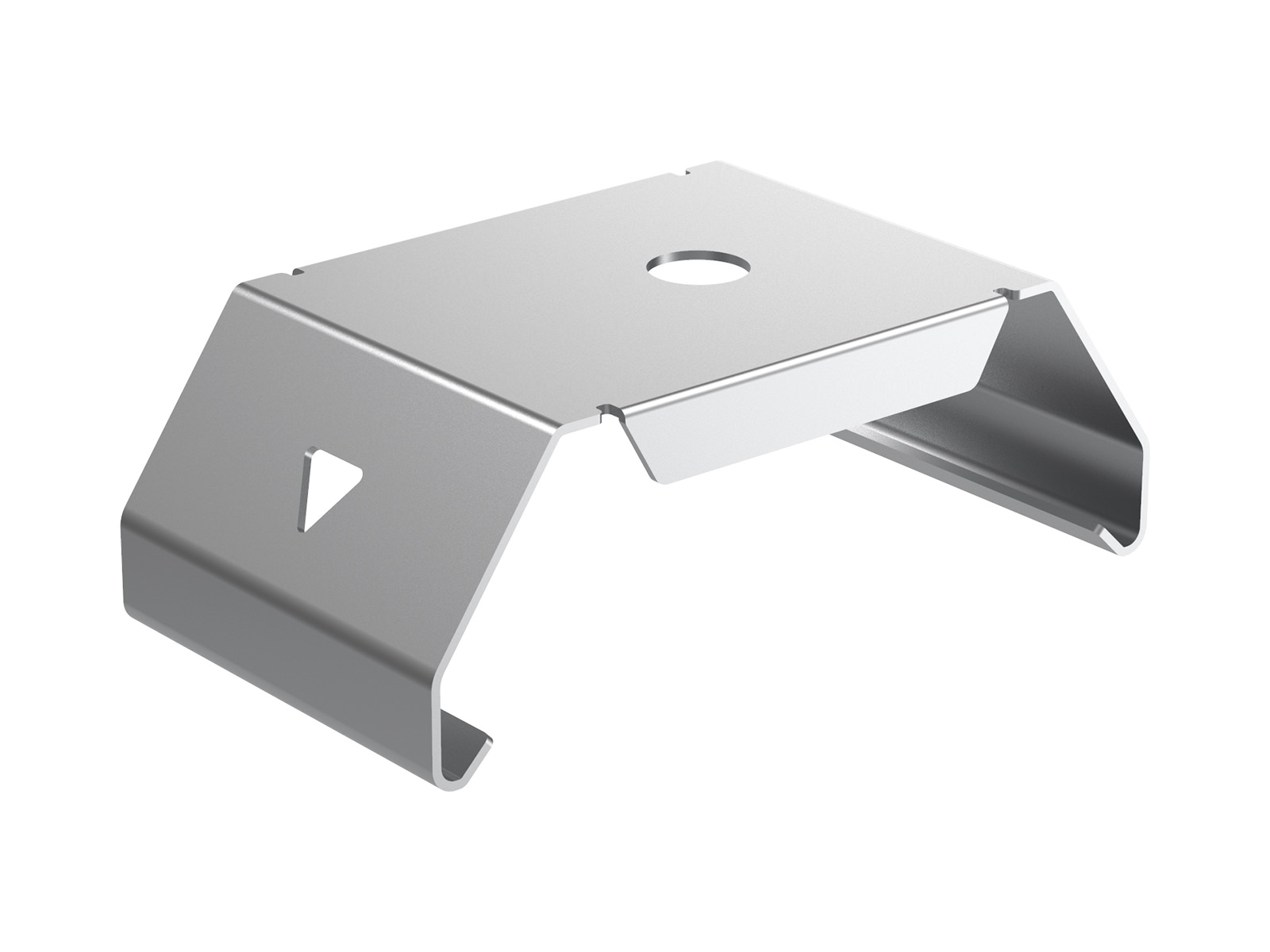

  • Wire suspension installation and ceiling installation optional

Applications: For office, hotel, warehouse, supermarket, corridor, airport, subway stations, high-speed rail stations

* AGC products are designed for global market. Please contact our sales team for certification details.
* Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
LHB26 01
LHB26 02
LHB26 03
LHB26 04
LHB26 05
Series CodeLHB26
Power40W, 60W, 75W
Efficacy150lm/W
Input Voltage220-240VAC, 50 / 60 Hz
Power Factor>0.90
Surge ProtectionLine-Line:1kV, Line-PE:2KV
ControlDALI, 0-10V
IP RatingIP20
IK RatingIK04
CCT3000K, 4000K, 5000K
CRI70, 80, 90
Operating Temperature-20°C to + 50°C
Beam AngleL00111, L00113, L00114, L00115, L00118
Mounting OptionWire Suspension, Ceiling Mounting
Warrantys5 Years
CertificationsCE, RoHS
