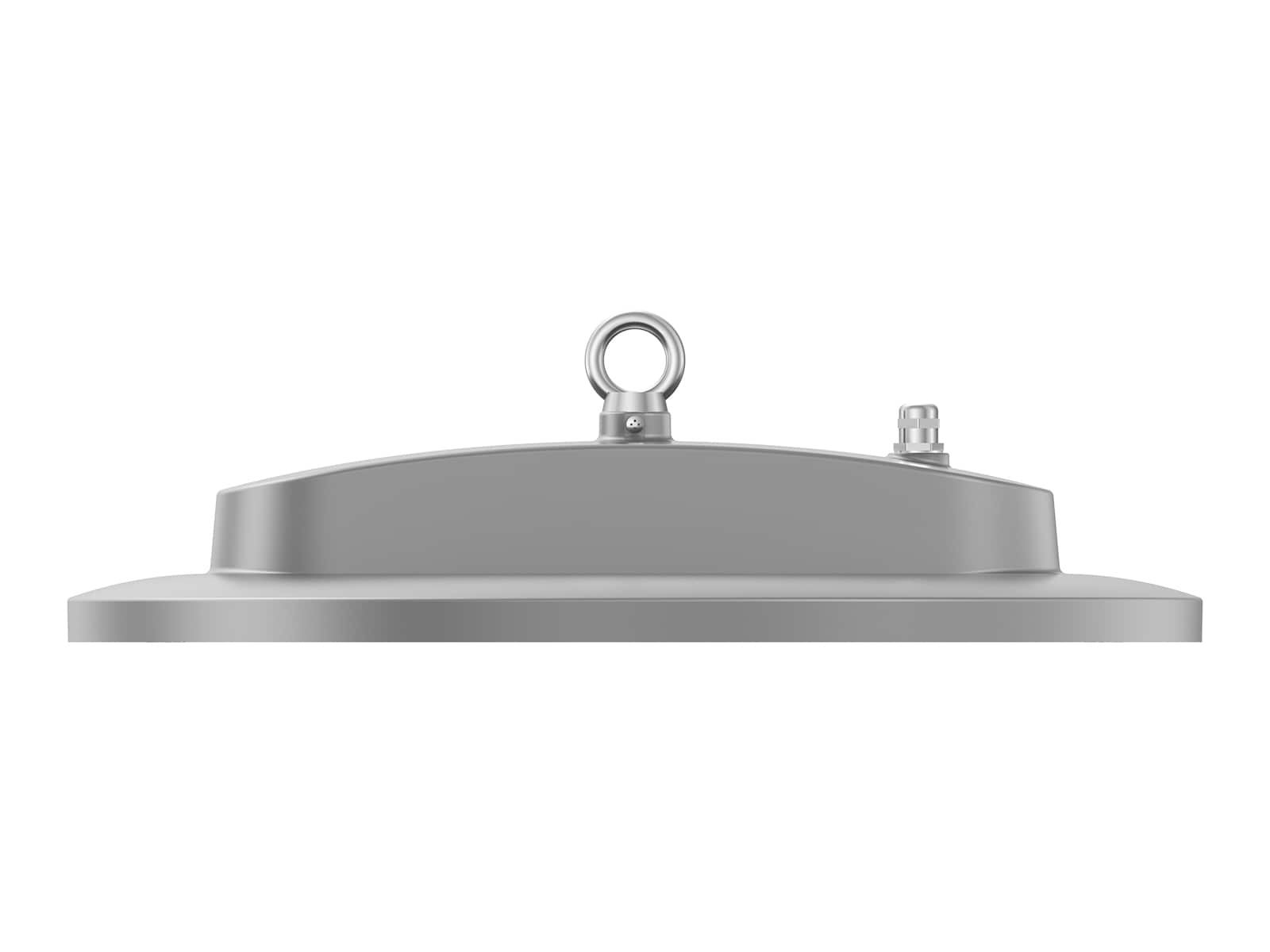

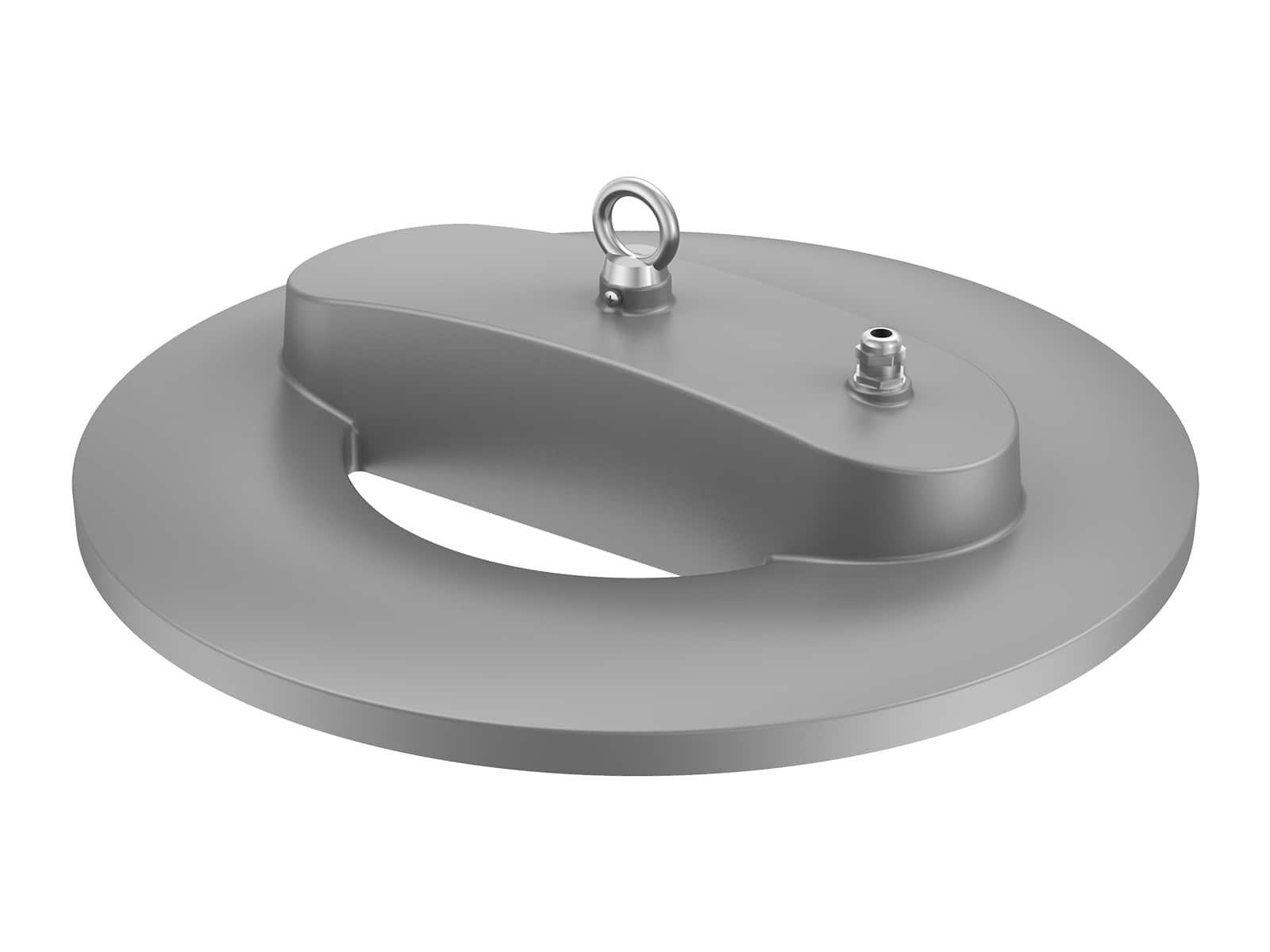

HB62 is a highbay fixture with simple appearance. It can be equipped with Zhaga base, Shark sensor base, and Haisen sensor base as well. It can use different types LED drivers, either isolated or non-isolated power supplies according to customers' selection. Light efficiency is up to 200lm/W
Applications: Warehouse, Industrial facility, Exhibition center, Shopping mall, Gymnasium, Airport, Toll Station and so on.
Series Code | HB62 |
---|---|
Power | 100W, 120W, 150W, 200W |
Efficacy | 200lm/W |
Input Voltage | 120-277VAC, 50 / 60 Hz |
Power Factor | >0.92 |
Surge Protection | 6kV line-line, 10kV line-earth |
Control | Zhaga Socket, Microwave Sensor, PIR Sensor |
IP Rating | IP66 |
IK Rating | IK10 |
CCT | 3000K, 4000K, 5000K |
CRI | 70, 80 |
Operating Temperature | -30°C to + 50°C |
Beam Angle | H11501, H11502 |
Mounting Option | Loop Hanging, Ceiling Mounting |
Warrantys | 5 Years |
